Super Width Linear Probe Type Wireless Mini Ultrasound Scanner

Sonostar Technologies Co., Limited

Diane Peng

Email: sales9(at)sonostar.net

Web: //www.sonostarmed.com

WhatsApp / Tel: +86 18898536606

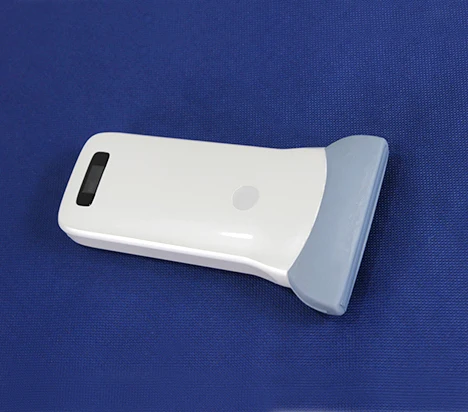

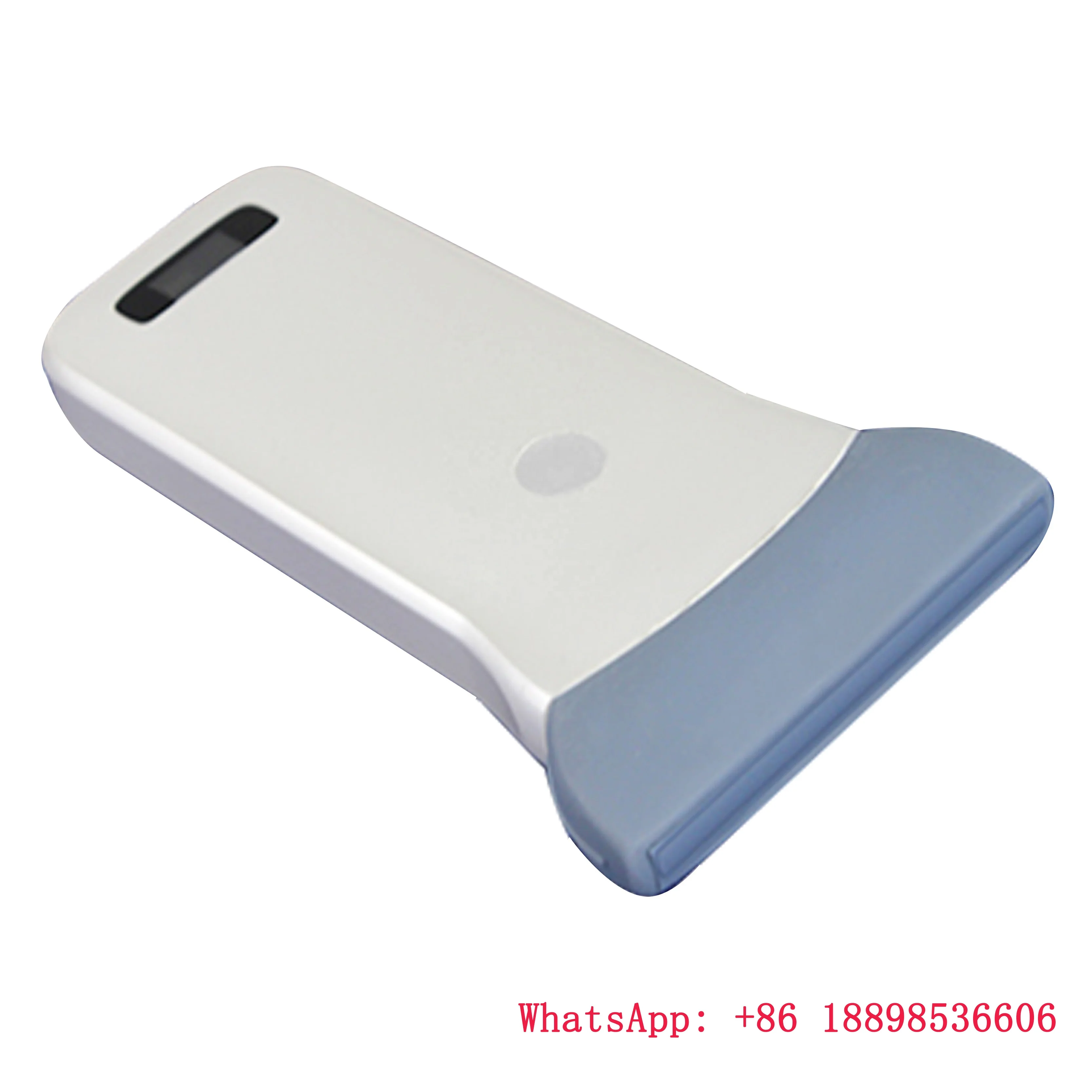

This probe is 256 elements, and head width is 80mm, suit for inspect of breast and hip bone.

Specification
- Scanning mode: Electronic array
- Display mode: B, B/M, B+Color, B+PDI, B+PW
- Channel of RF circuit board: 16/32/64
- Probe frequency: 7.5MHz/10MHz
- Probe element: 256
- Probe head width: 80mm
- Scan depth: 20/40/60/100mm
- Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
- Cineplay: auto and manual, frames can set as 100/200/500/1000
- Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
- Measure: Length, Area, Angle, heart rate, Obstetrics
- Image save: jpg, avi and DICOM format
- Image frame rate: 18 frames / second
- Battery working time: 3~5 hours(according to different probe and whether keep scan)
- Battery charge: by USB charge or wireless charge, take 2 hours
- Dimension: 156×60×20mm
- Weight: 220g
- Wifi type: 802.11g/20MHz/5G/450Mbps
- Working system: Apple iOS and Android, Windows

Product Configuration
Standard Configuration:
Wireless Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc
Optional:
Carrying Bag or Aluminium Suitcase, Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Wireless Power Bank, Tablet Bracket, Trolley

After-sale service

We provide a good after-sale service to our partners, if has product fault need to repair, please contact us, and we will cooperate with your engineers to try to deal the fault in the local firstly, so as to minimize the transportation and other cost. We will guide you how to deal the troubleshooting, and your engineers follow our guidance to solve fault. If need parts for replacement, we will send to you. If still can not solve the fault at last, please arrange to deliver the fault parts back to us for repair.

And in warranty period, you should be responsible for the freight of sending the fault parts back to us(You can send by postal the freight is low, the time is long we can deliver new parts for your use). And we will be responsible for the cost of repair and the freight of sending new or after repair parts to you.

Thanks for visiting our website, any more question please don't hesitate to contact us, your inquiry will be highly appreciated.
