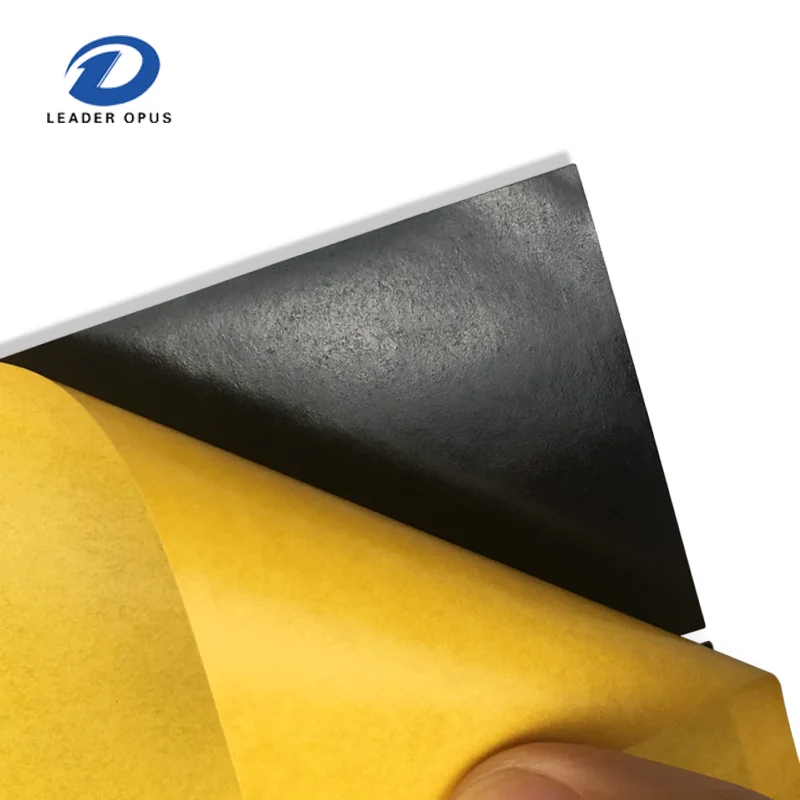

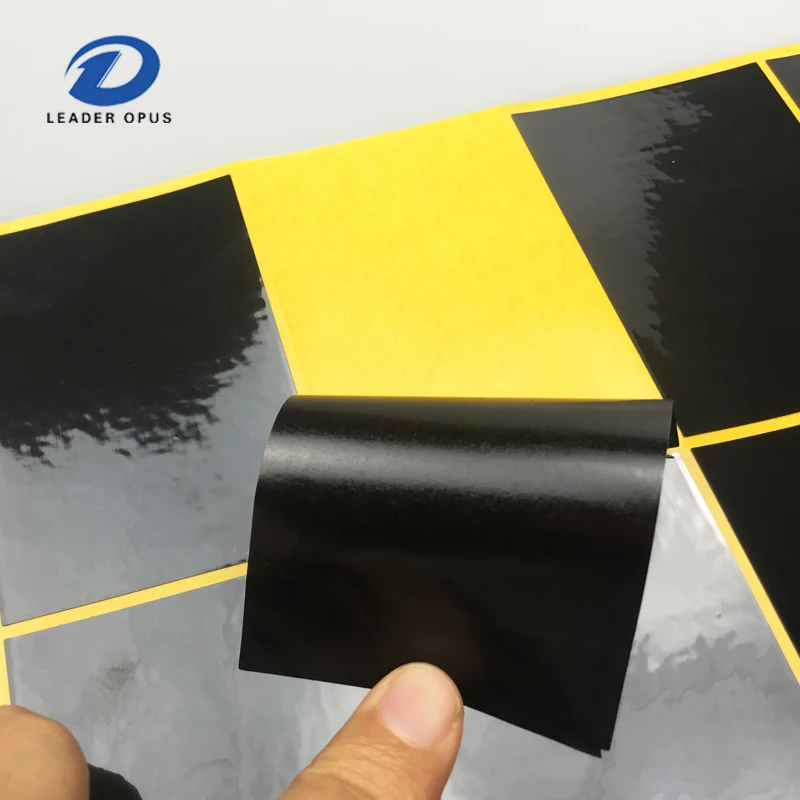

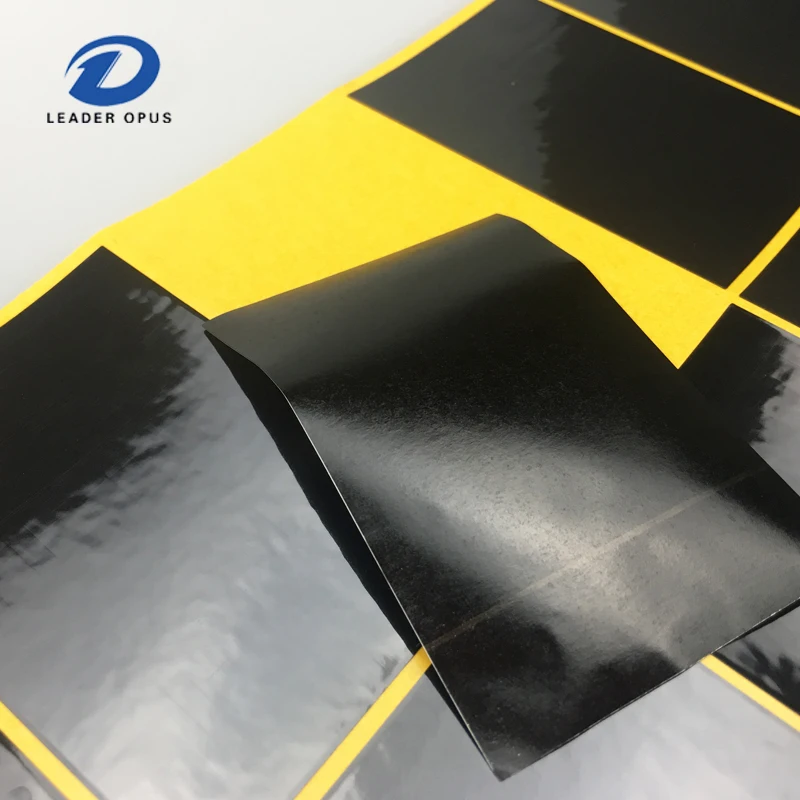

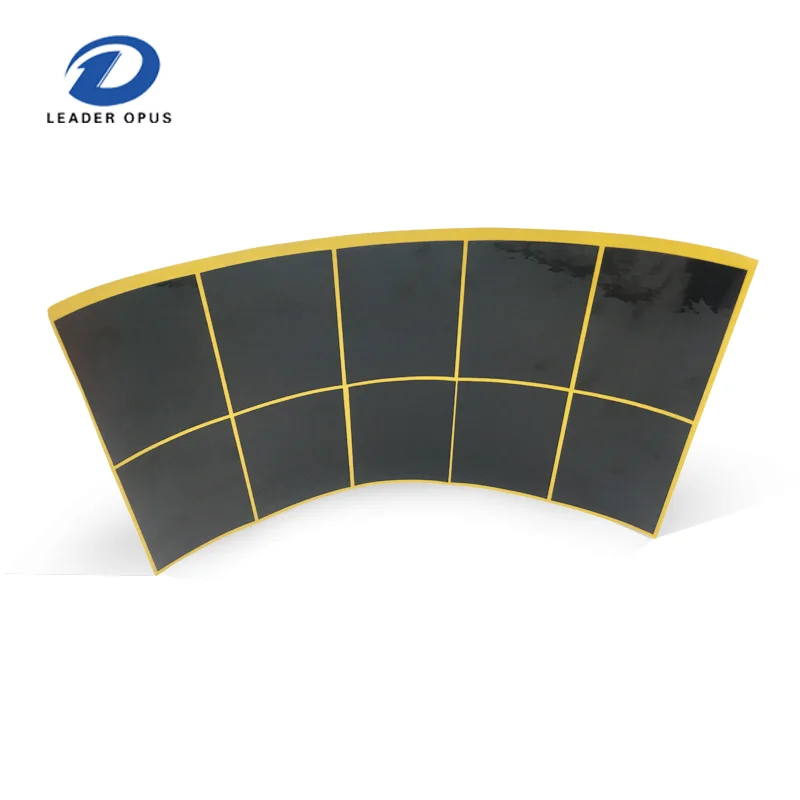

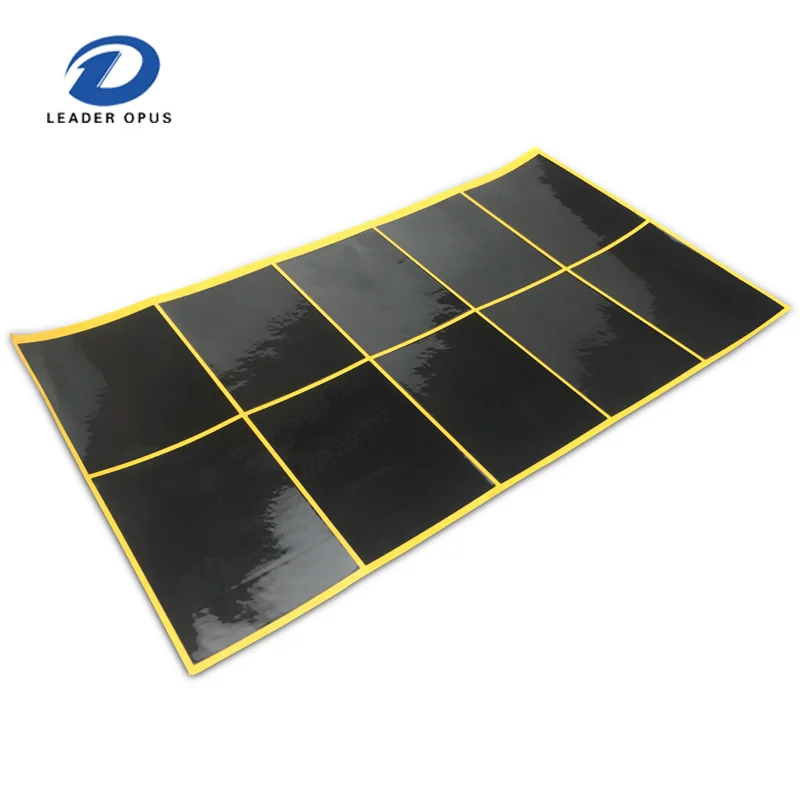

Superior soft thin electromagnetic noise suppression adhesive 3m emi absorber sheets
- Category: >>>
- Supplier: Dongguan Leader Optronics Technology Co. Ltd.
Share on (62286266571):
Product Overview
Description
Product Description
3m EMI adhesive absorber
Absorber sheet material is a kind of functional composite material which mainly absorbs electromagnetic wave. It can eliminate the back and forth reflection of electromagnetic wave in the shielding cavity and reduce the interference of clutter on the equipment. EMI Absorber 3m can improve the performance of GPS, and effectively prevent electromagnetic radiation from interfering and harming the surrounding equipment and personnel, which is a kind of advanced ways to eliminate electromagnetic wave pollution.
Structure of EMI absorber sheet:
Absorber Layer;
Adhesive/Tape;
Release Paper;
EMI absorber sheets features
* Wide range of anti-electromagnetic interference frequencies (10 M~6 GHz)
* Ultra-thin thickness up to 50 μm
* Good flexibility, resistance to bending, easy die cutting
* Low thermal resistance, in line with RoHS and HF standards
* Avaliable thickness: 100 µm,200 µm,300 µm,500 µm to 1500µm
* Ultra-thin thickness up to 50 μm
* Good flexibility, resistance to bending, easy die cutting
* Low thermal resistance, in line with RoHS and HF standards
* Avaliable thickness: 100 µm,200 µm,300 µm,500 µm to 1500µm
Features | Specifications | Units | |
Frequency | 10 M ~ 6 G | Hz | |
Thickness | 1530 ± 30 | µm | |
Size | 300*200 | mm | |
Density2 | 3.6 | g/cm3 | |
Permeability | 20 @ 1 MHz | - | |
Temperature | -25 ~ 120 | ˚C | |
Thermal Conductivity | 0.5 | (W/mk) | |
Surface Resistance | 1 x 109 (min) | Ω/□ | |
Flame Retardant | UL-94V1 | ||
Environment | RoHS Compliance | ||
Halogen Free, PVC Free, Lead Free | |||
Warm Prompt:
1. The above EMI absorber sheets data is for absorber layer only, the typical thickness of adhesive tape is 30µm, can be adjusted according to request.
2.The testing of EMI absorber sheets is operated at 23˚C.
Cost Advantage of 3m EMI adhesive absorber
We have the advanced complete absorber materials manufacturering equipment that can quickly complete the process of metal smelting, pulverization, flaking and shaping. We also can provide the customized solutions based on customers' request in short time, and produce the custom-made and high quality EMI absorber at low cost.
Product Application
EMI absorber sheets application
* Smartphone, tablet, digital camcorder
* Electronic payment, electronic label
* Precision medical equipment
* Automatic identification system military stealth
* Electronic payment, electronic label
* Precision medical equipment
* Automatic identification system military stealth
The EMI absorber sheets material application positions in the quipment is listed below for your reference.
Application Equipment | Position on the Equipment | Remark |
PDA/GPS | Noise on the processor/chip | |
Barcode Scanner | Flat cable | |
Repeater | ||
Mobile Phone | CPU, Intenna, between the speaker and the handset, RFID tags | EMI shielding, RFID |
Cable | Cable harness | thin film absorbing material |
Digital Camera | For linking the FPCB between the display and the body | thin film absorbing material |
Test and Measurement Equipment | In the equipment | Although the amount is small, it is expensive |
DMB/Navigation | Improve receiving sensitivity | Electric wave absorbing material |
Military Use | Confidentiality |
Related Products
Packing & Shipping
Company Introduction
Our Services & Strength
Leader OPUS has the ability to offer products/solution to meet customers' request in thermal engineering, EMI/SMD shielding and solutions, which are successfully applied in electronics, telecommunication, LCD TV, PC, medical and other industries. The EMI absorber sheet we provided is featured with high quality, ultra-thin property and superior anti-electromagnetic interference ability.
Certifications
The are RoHS Compliance.
FAQ
1. MOQ?
No MOQ for most emi absorber 3m, some should negotiate.
No MOQ for most emi absorber 3m, some should negotiate.
2. Can I take sample?
We are honored to provide you sample for testing.
We are honored to provide you sample for testing.
3. How can you guarantee the quality?
With advanced production machine and testing equipments,we ensure 100% quality inspection of every piece of 3m EMI adhesive absorber before shipping.
With advanced production machine and testing equipments,we ensure 100% quality inspection of every piece of 3m EMI adhesive absorber before shipping.
