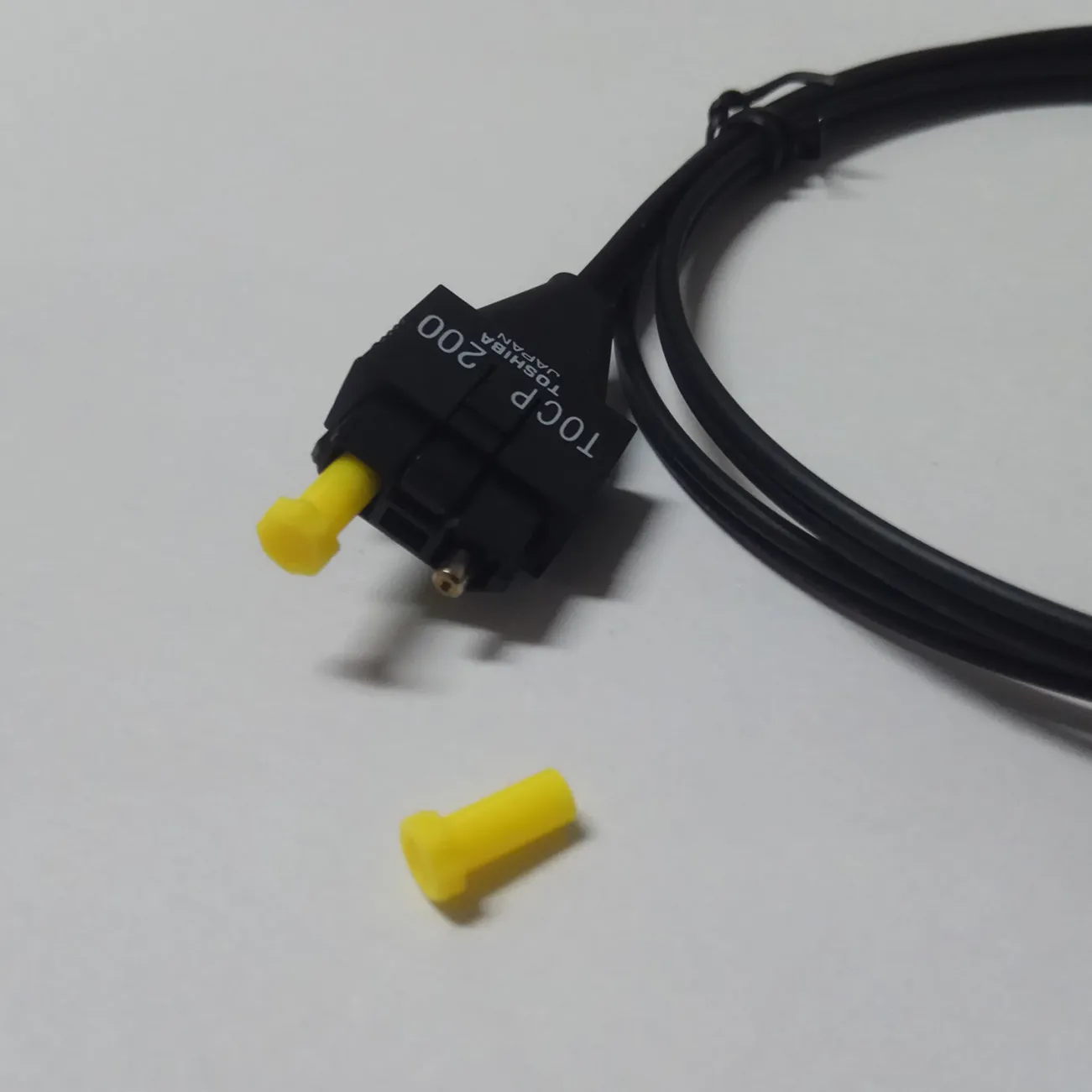

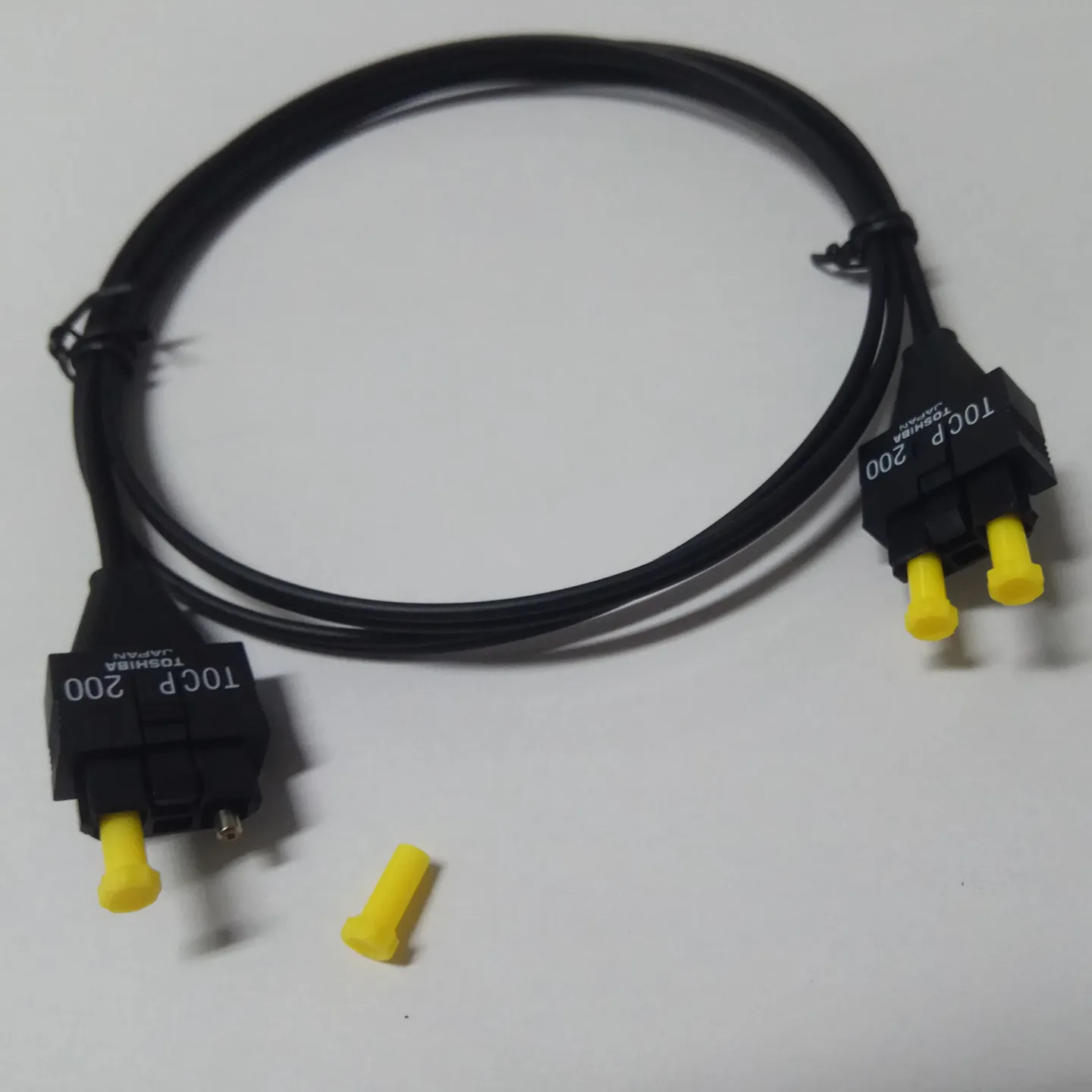

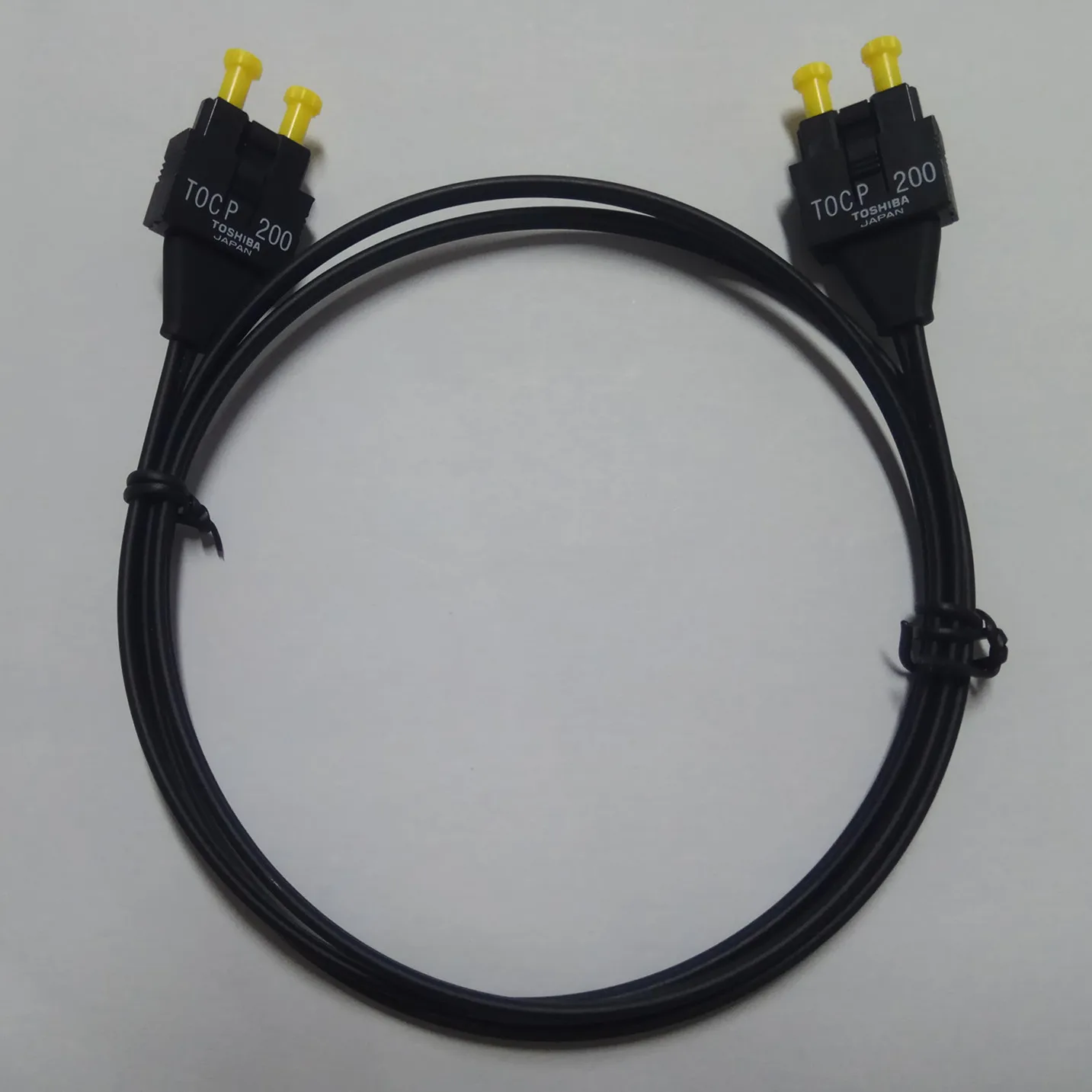

JIS F07 type 1m duplex optic fiber cable Patch Cord with original Toshiba TOCP200 connectors

Product Overview

Description

  JIS F07 type 1m duplex optic fiber cable Patch Cord with original Toshiba TOCP200 connectors





Features



--Anti-electromagnetic interference and electromagnetic radiation

--Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission

--High temperature and low temperature(-55 to 85)

--Easy to install, needless of maintenance

--Plastic optical fiber is not conductive, can share the power transmission pipeline

--Long-range power supply



Technical Parameter of TOCP200 Original Toshiba Connectors Optical Fiber Patch Cords

Parameter	Unit	Numerical value
Connector type	--	Tocp 200
Fiber optic core diameter	mm	Φ1.0
Fiber optic core material	---	PMMA
Finished product diameter	mm	Φ2.2mm*4.4mm
Outer material and color	---	Black PE/PVC
Application wavelength	nm	650
Attenuation(650nm)	dB/km	170
interconvertibility	dB	Max:1.0dB( randomizing)
Bend radius	mm	25
Insertion loss	dB	Max:1.0dB
Tensile strength	N	≤1.0dB(0~80N)
Vibration	---	≤1.0dB(5~50HZ,1.5mm amplitude)
Working temperature	°C	-55°C~+85°C
Standard	---	EuropeROHS,USA Standard(SONET.OC-48),Japan standard(G.653),China industry standard(YD/T1447-2006)



Product codes of optical fiber cable

Item no.	Connector 1	Connector 2	Core diameter	Core style	Cable color
ST-ST	ST	ST	POF 980/1000	simplex	black or customized
SC-SC	SC	SC	POF 980/1000	simplex	black or customized
FC-FC	FC	FC	POF 980/1000	simplex	black or customized
LC-LC	LC	LC	POF 980/1000	simplex	black or customized
SMA-SMA	SMA	SMA	POF 980/1000	simplex	black or customized
TOCP 155/F05	TOCP 155/F05	TOCP 155/F05	POF 980/1000	simplex/duplex	black or customized
TOCP 255/F07	TOCP 255/F07	TOCP 255/F07	POF 980/1000	duplex	black or customized



1.Standard Package as aboved. Every piece in poly bag, then pieces in carton.

2.Special package could be accept according to the demand of clients.
