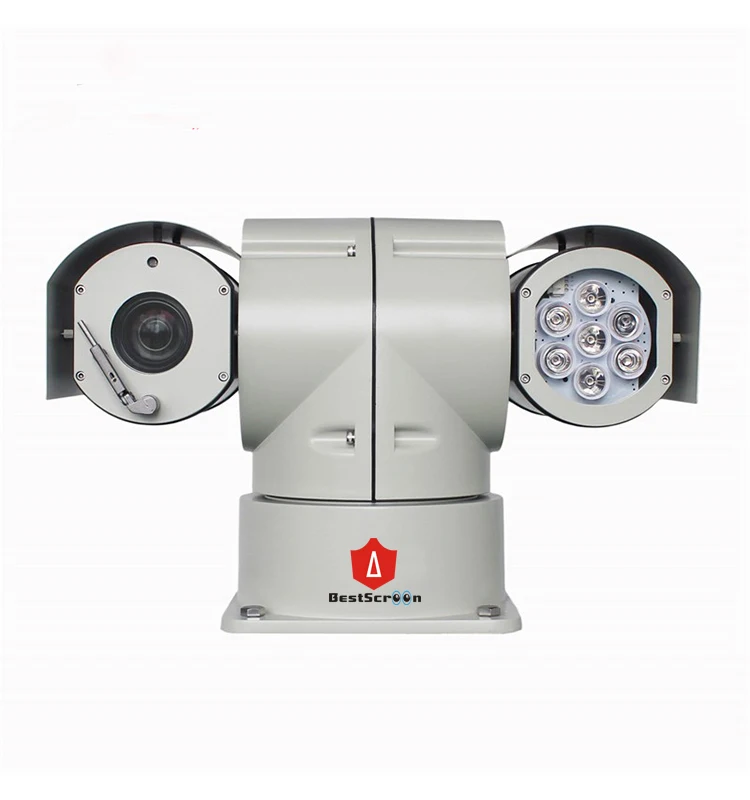

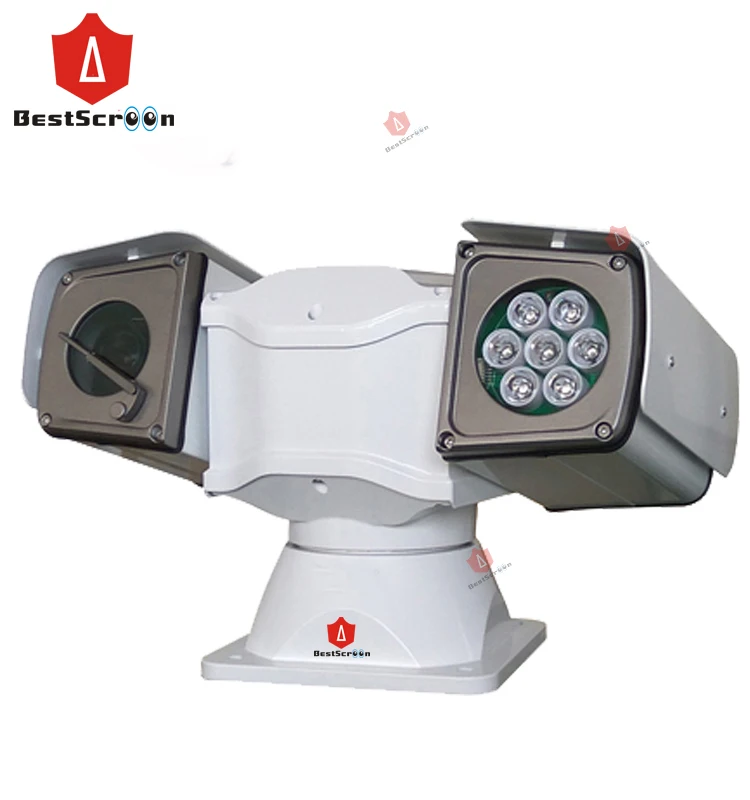

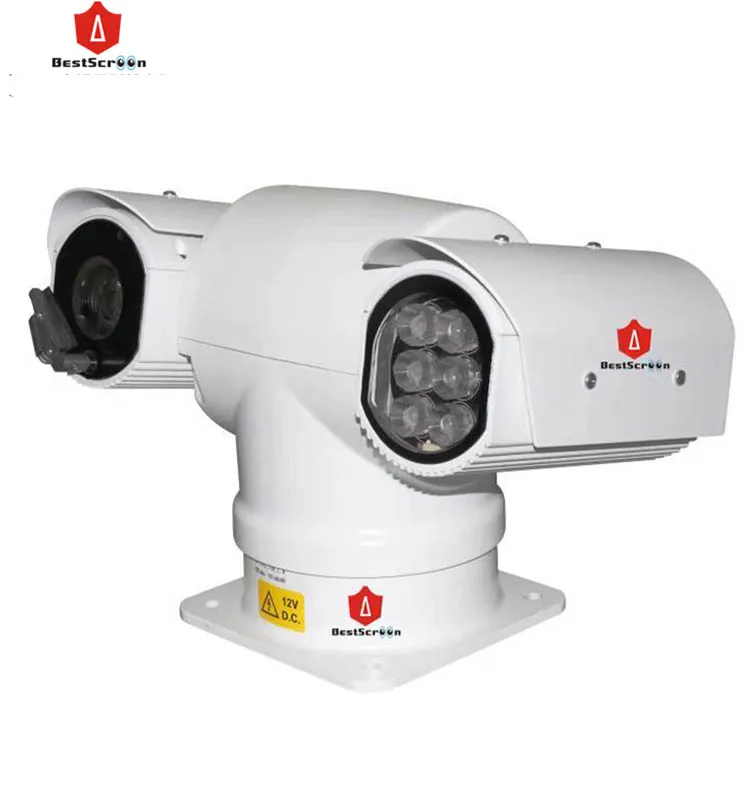

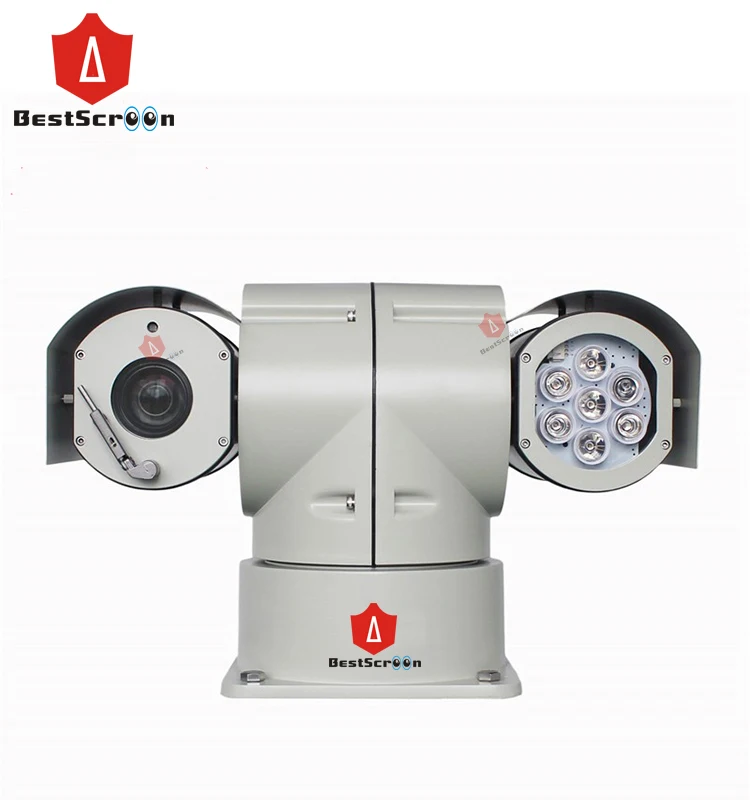

1080P IP Vehicle mounted IR outdoor security PTZ Camera for surveillance system enforcement
- Category: >>>
- Supplier: Shenzhen BestScreen Technology Co. Ltd.
Share on (62286559209):
Product Overview
Description
Product Description
-Support PTZ auto lock, High grade wertherworthy
- Support -35℃ cold Start, can be used for servere cold region
-Aluminum alloy structure design, IP66;
- EMI grade high, suitable for power sector...etc complex environments
-Video coding,H.265/H.264,compression ratio.image quality good
- Image resolution Max.Support 1080P,1920(H)X1080(V) 30fps;
- Support ONVIF,GB28181 protocol;
-Support 3D location function, quickly tracking target
-Support memery without power, when power on, PTZ will run to the postion where before power off
- Pan 360 degree rotation endless, tilt ±90 degree, auto flip
- Pan speed Max.160°/S, tilt speed Max.80°/S;
-Preset: 256pcs;
-Can through IE browser to play real-time video and iamge, at the same time support analog video and image output
- Through Network to control the PTZ, also can through RS485 to control
- Choose high quality IR LED, IR distance more than 100M
-solation ppwer design, high stable, DC9V~DC36V

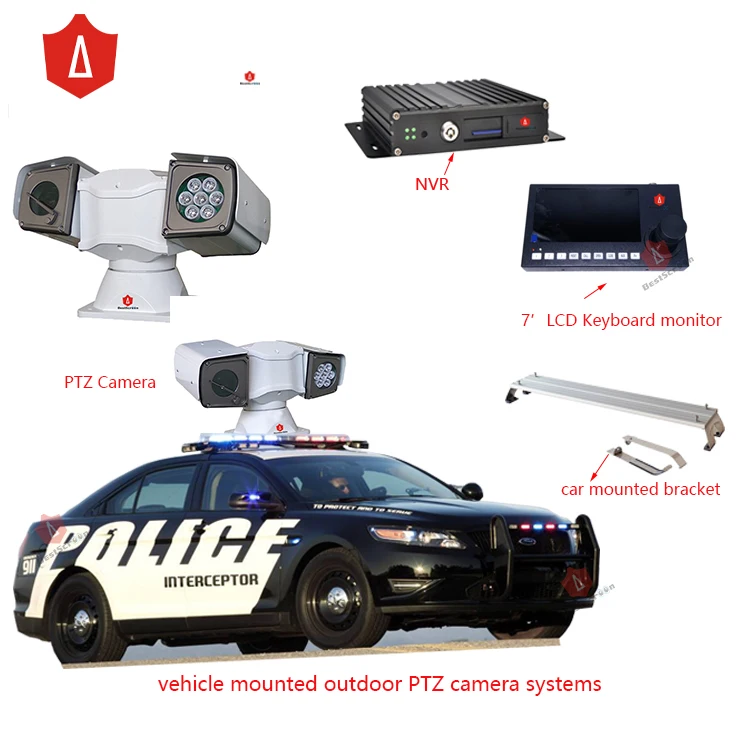

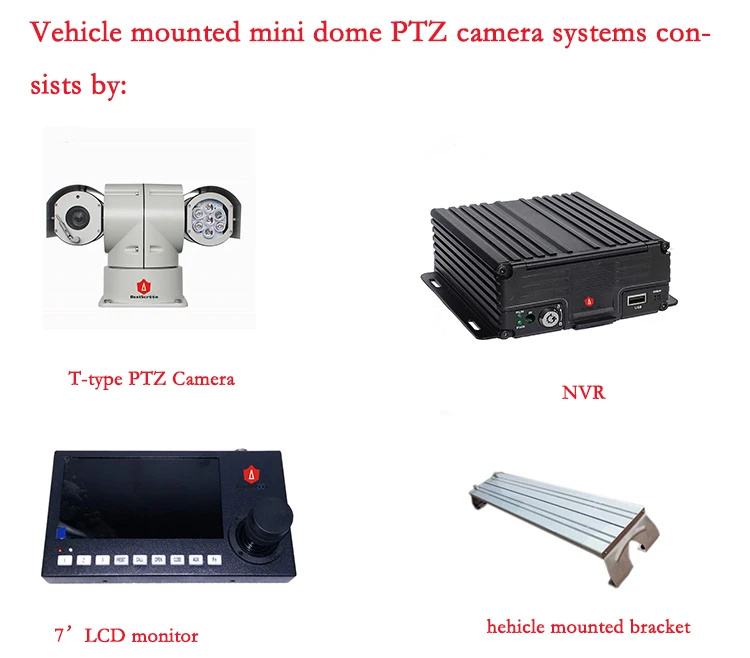

- The Vehicle mounted PTZ camera surveillance systems consists by as follows :
| Item | Parts of Descrpiton | Model | Parameters | Qty |
| 1 | mini dome Descrption | BSD10T-30-20IPTA | 1.Applicated in all weather conditions, dependant disfroging and disfrosting design . 2.360°continuously rotation, no blind spots when it looks up to 180°,PTZ high-speed rotation is smoother, low-speed rotation without jitter 3.Night version distance >=120m 4Pan Rotation speed =120°/s and tilt rotation 60°/s 5.Aluminium alloy ,stongly anti-seismic ,IP66 waterproof level, DC12V input 6.256 preset ,with power off memory function 7.Support a variety of mainstream digital HD camera movement & HD SENSOR, acquiring HD images ,with whisper and shock absorber seat 8. can built-in 20X /30X zoom camera 8.English user guide | 1 |
| 2 | 7' LCD keyboard monitor | BSKB-701 | 1.Integration of 7" monitor and 3-dimensional keyboard makes it looks smart and lighter 2.Used for controlling PTZ camera,able to control 5 pcs PTZ camera at the same time and set up preset positions 3.English keys and English user guide 4.Can set-up shortcuts order for Wiper,Infrared lamp ,Capture,Up and Down etc. 5..Rated Voltage :AC/DC 12V; Power:20W | 1 |
| 3 | 4 Channels NVR ( GPS,4G WIFI,HD ,SD is optional) | BSDV-4R-TL02 | 1.Video Input: 4 channels AHD /Analog signals access+1 channel IP signal input 2.2.Video Output:1 channel CVBS output, 1 channel VGA output,(1 channel aviation plug) ,1080p image resolution 3. Storage :1T HDD or .128 SD memory card for your optional 4. Additonal :4G wifi /GPS is for optional 5.Vedio compression :H.264 ,DC 12V | 1 |
| 4 | Vehicle mounted Bracket | BSM-ZJ-01 | Standard vehicle mounted bracket ,1100~1500X240X135 mm, with 4 clasps and screws | 1 |
| 5 | Remark : if you need 4G /GPS long distance remote contral function ,we wil give you ID number if you use our server and operation platform of CMSV6 ,if not ,you can build your own's sever | |||
The PTZ camera Technical data :
| Model | BSD10T-20-20IPTA | |
| Camera | Imaging sensor | 1/2.8" Progressive Scan CMOS |
| Effective pixels | 2.1 mega pixels | |
| Lens | 20X optical zoom f=4.7 -94.0mm | |
| Min.illumination | 0.095 lUx (F1.6,ICR open) | |
| Aperture | F1.6-F3.5 | |
| Horizital view angle | 61.4-2.9° | |
| Frame rate | 25FPS & 30FPS | |
| Double stream | H.265/H.264 | |
| SDK Docking | standard ONVIF protocols,Support SDK two development | |
| PTZ and Network | Pan preset speed | 100°/s |
| Tilt preset speed | 80°/s | |
| Pan control speed | 0°~60°/S | |
| Tilt control speed | 0°~40°/S | |
| Pan range | 360°endless rotation | |
| Tilt range | +90° ~ -90° | |
| Preset positions,Tracking | 256 positions 6 tracking | |
| Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional | |
| Relative Humidity | Less than 90% | |
| IP Grade | IP66 | |
| Working Temperature | -35° ~ +55° | |
| Impact resistance requirements | ≥4G | |
| Wiper | Support | |
| Installation | Variety of installation according to the environment | |
| Weight | 6kg | |
| Video Compression | H.264/H.265 | |
| Audio Compression | G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM | |
| Compression output rate | 32Kbps—12Mbps | |
| Support Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional) | |
| Interface Protocol | ONVIF/PSIA/CGI/ISAPI | |
| Storage Function | Support MicroSD storage | |
| Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake |

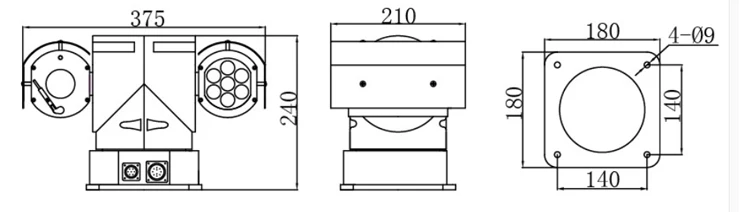

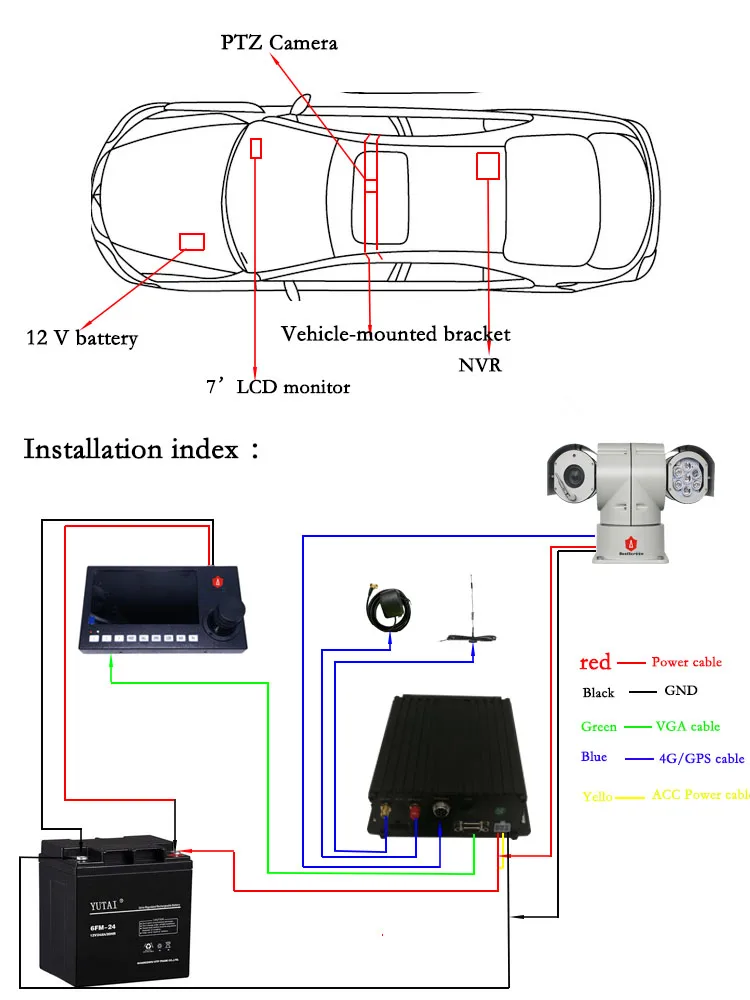

Dimensions and Installation Index :
Packaging & Shipping
Functions info2

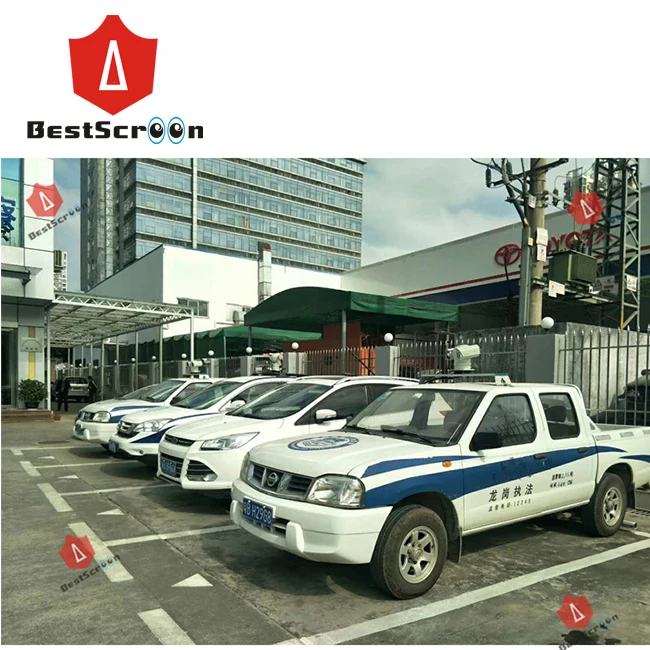

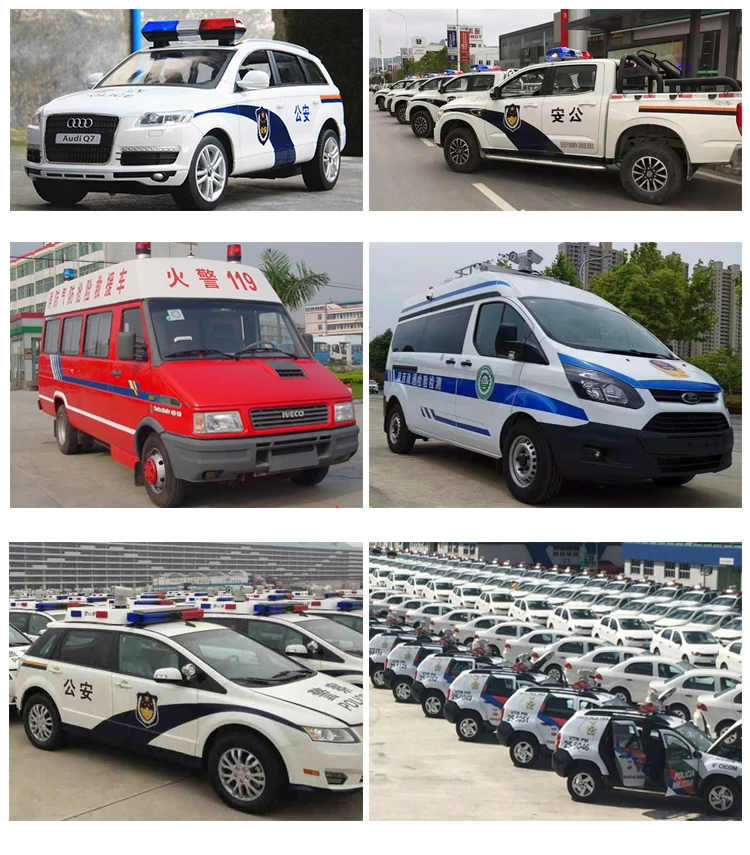

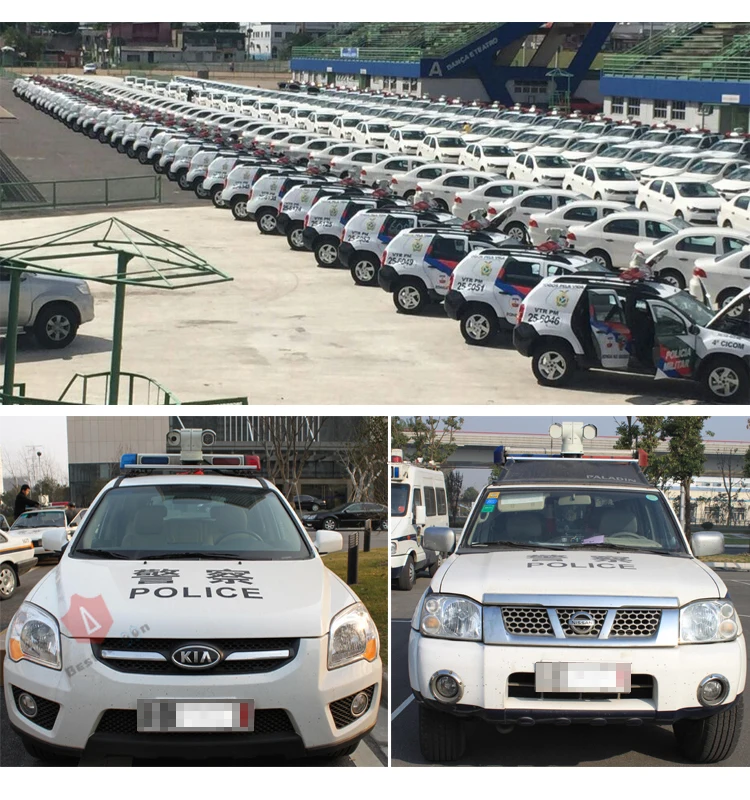

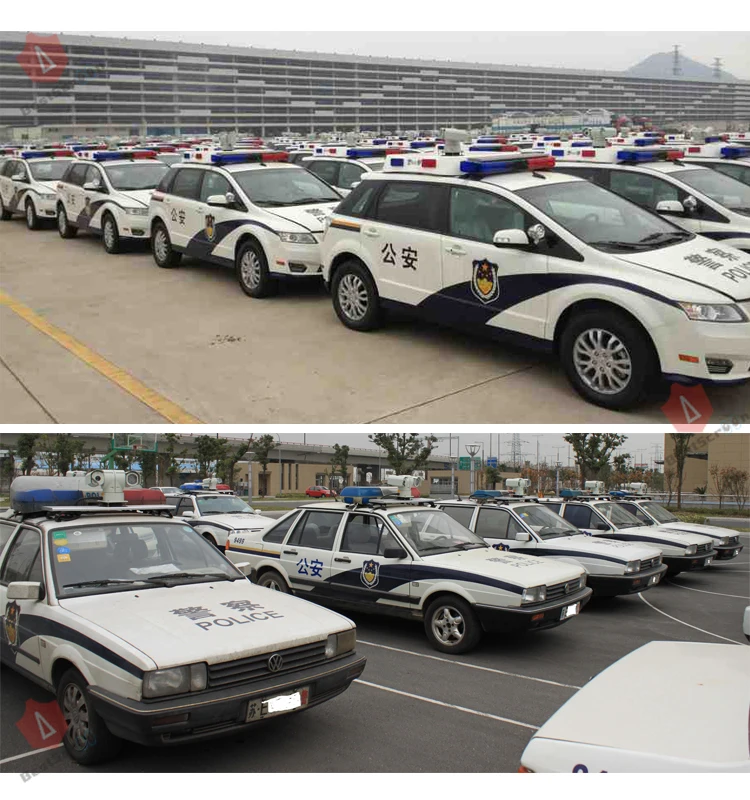

Application
Certificates
Our Services
1.Quickly response with 24 hours for any questions and issues
2.provide official test report
3. Specific exporting package and provide the tracking number against any parcels
4. provide customized service for customers request
5. OEM/ODE order is appreciated
FAQ
Q1. What is your terms of payment?
A: We accept T/T(Telegraphic Transfer),Western Union or Paypal ,also will sign official contract before payment.
Q2,What is your minimum order quantity?
A: MOQ 1 PCS
Q3. What is your sample policy?
A: we can provide sample if customer can absorb the cost and logistic cost ,also appreciated you come to our office to validate the sample.
Q4. Have you the export certificates and test report ?
A: Yes, we will provide the test report and export certificate ( CE/FCC etc ..)
Q5: What is quality guarantee policy ?
A:Normally guarantee term is 1 years ,we offer 2 years PTZ main body and 1 year for camera
Q6: Do you accept OEM/ODM?
A:Yes! We accept to label your brand if you would like .
