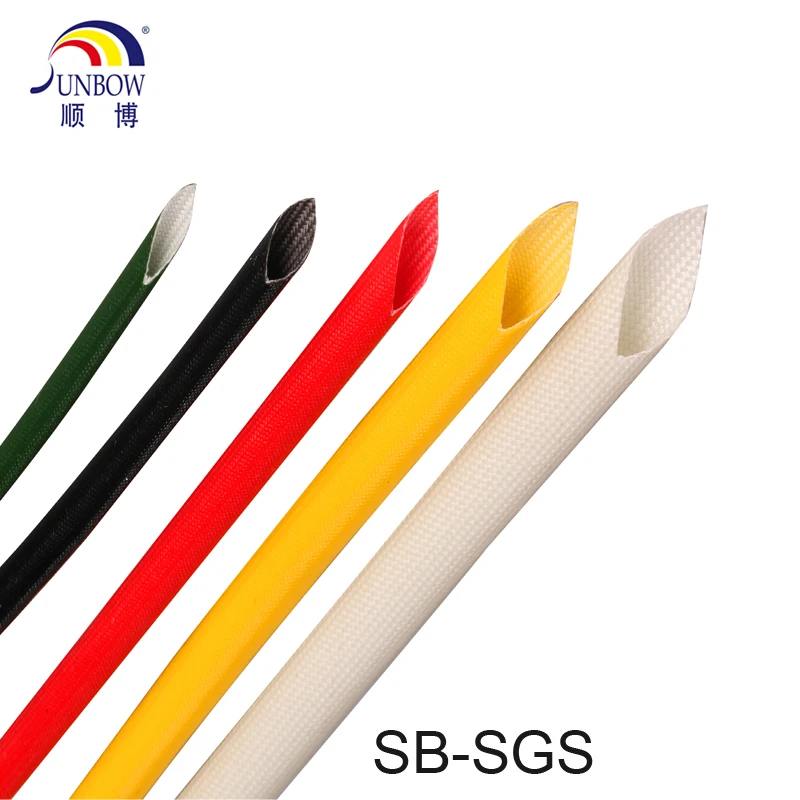

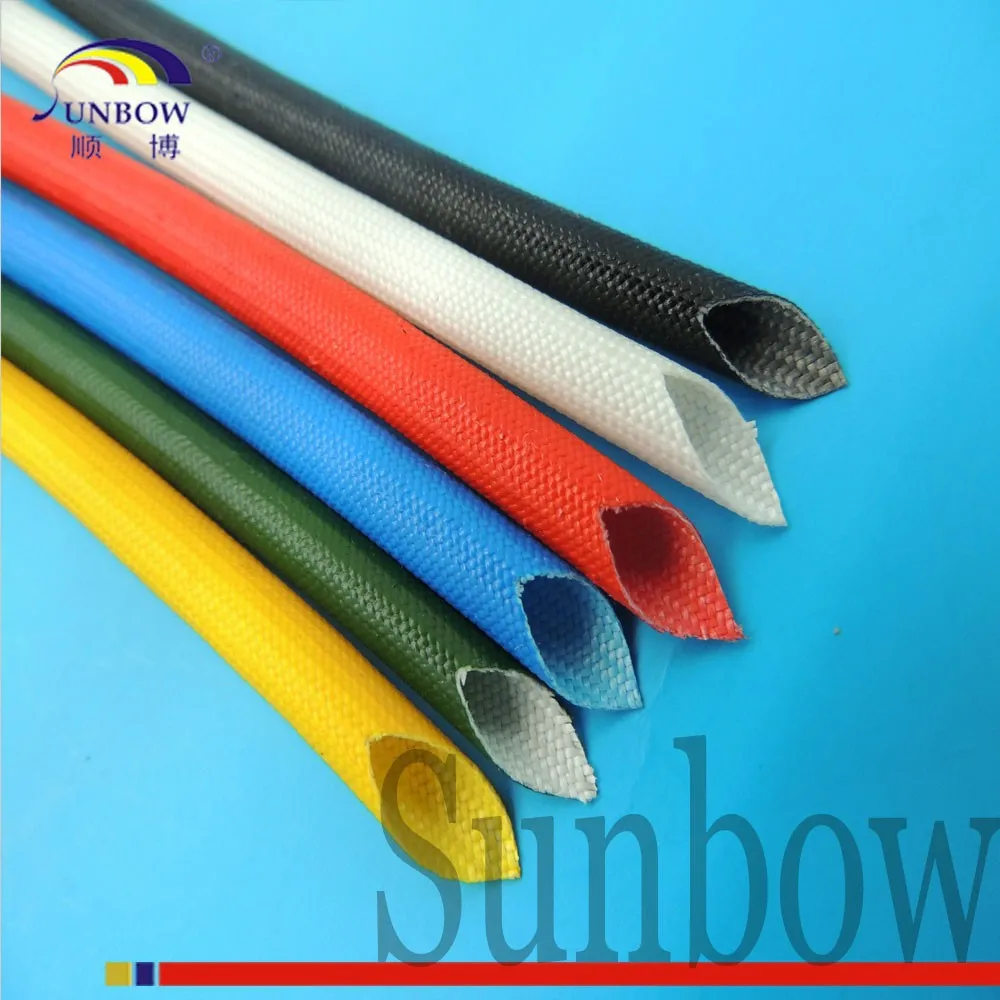

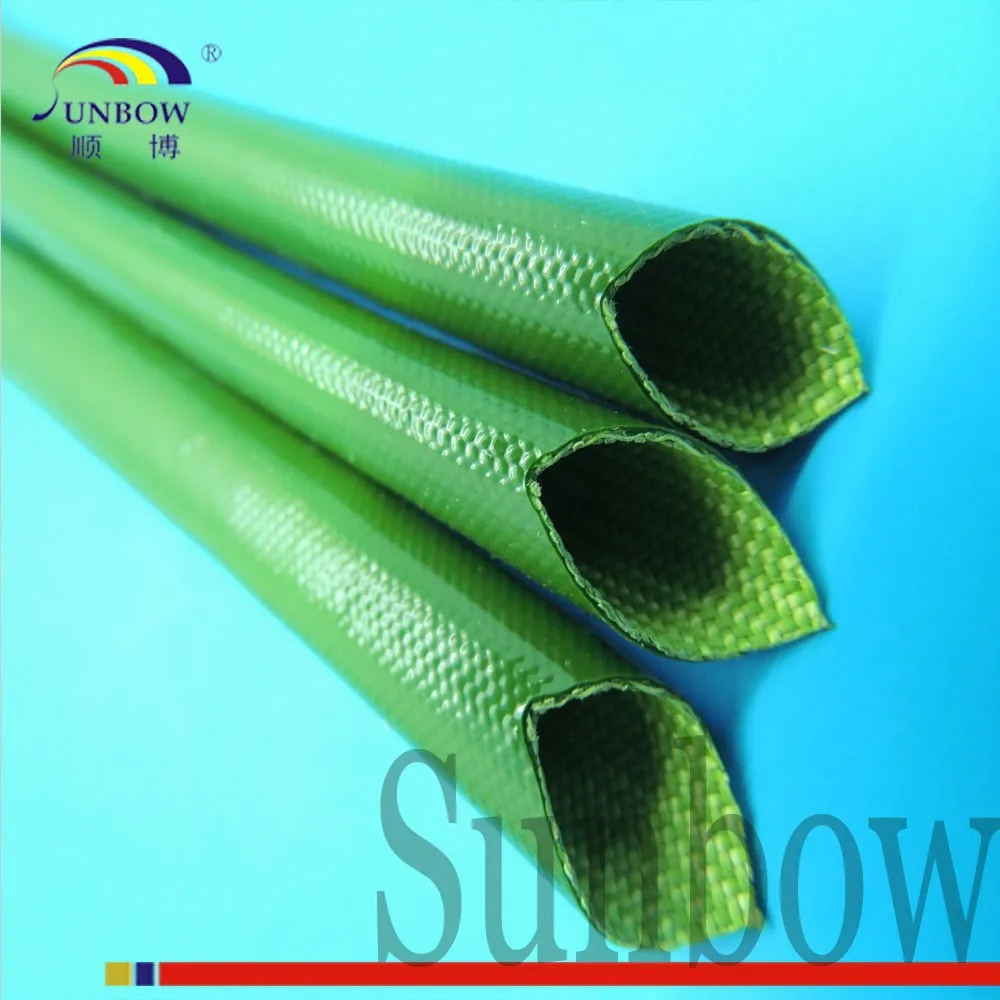

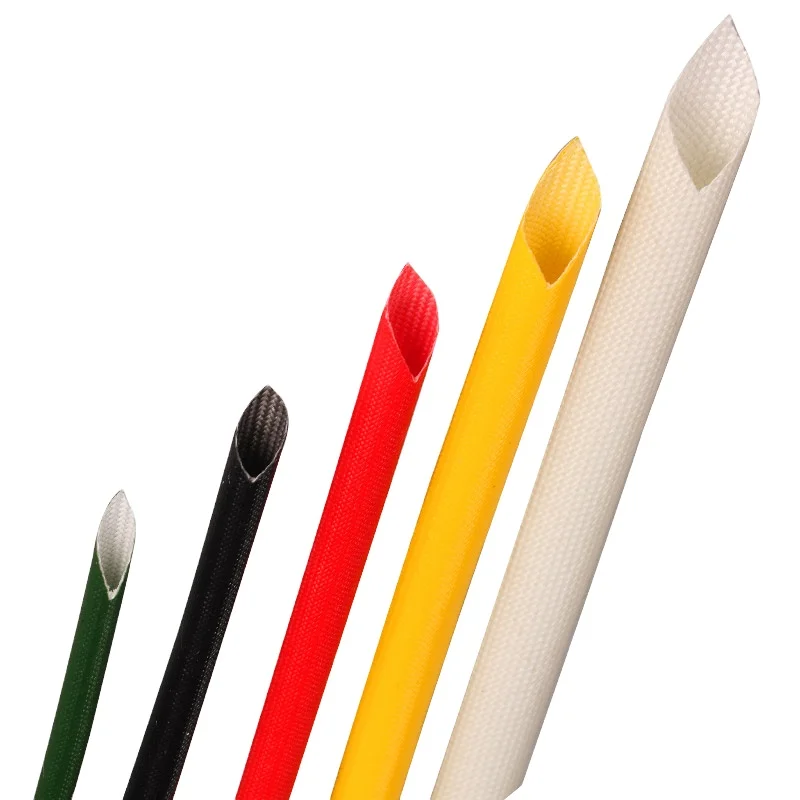

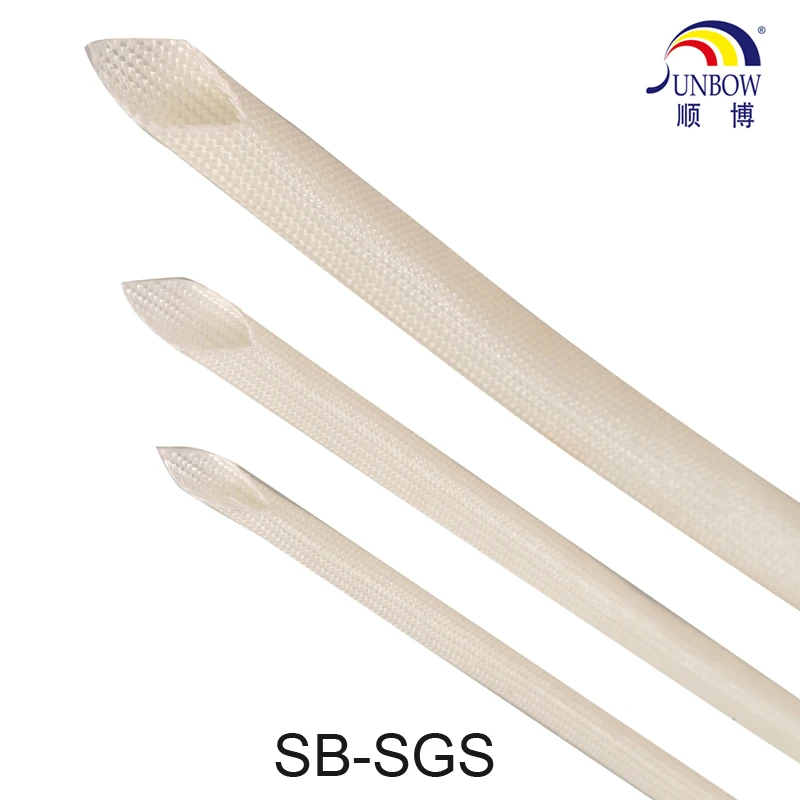

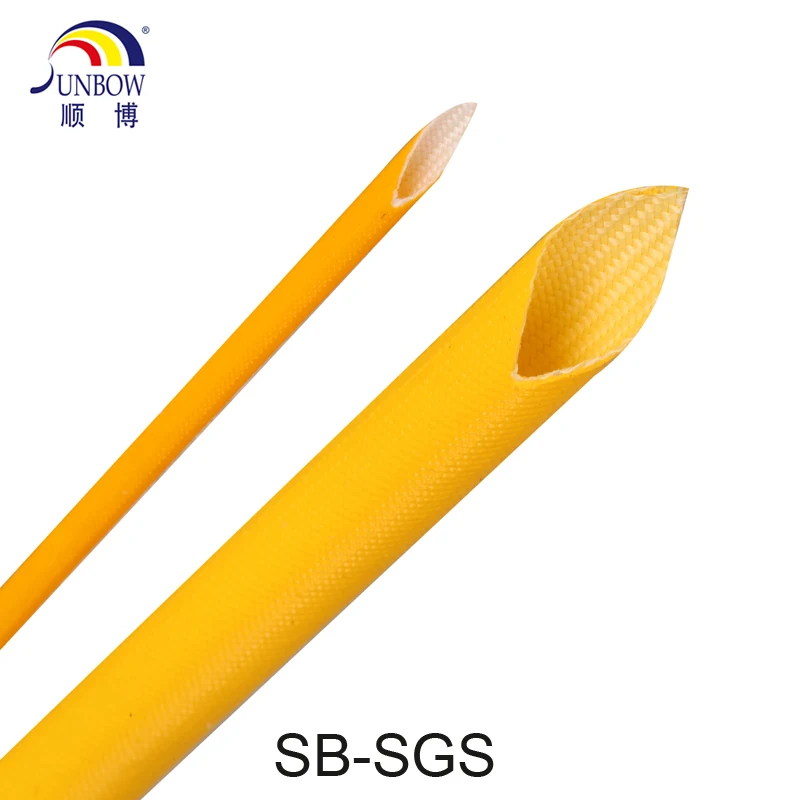

2.5KV 6.0MM Automotive Wire Insulation Silicone Glass fiber Braided Sleeve

Product Overview

Description

2.5KV 6.0MM Automotive Wire Insulation Silicone Glass fiber Braided Sleeve



PRODUCT PARAMETERS

Product Name	2.5KV 6.0MM Automotive Wire Insulation Silicone Glass fiber Braided Sleeve
Model Number	SB-SGS-25
Working temperature	-60-200 degree
Minimum average	2.5KV
Minimum single point	2.0KV
Thermal endurance	No indication of crack in codition 6 hours* 245+-5degree
Fire resistance	VW-1



 STRUCTURE

2.5KV 6.0MM Automotive Wire Insulation Silicone Glass fiber Braided Sleeve is braided by non-alkali fiberglass, then coated with silicone resin and treated in high temperature.



CHARACTERISTICS

2.5KV 6.0MM Automotive Wire Insulation Silicone Glass fiber Braided Sleeve is Flammability: self-extinguishing, wear resistance, tear resistance, good compatibility with same class impregnation varnishes, good mechanical resistance, very flexible.



APPLICATON

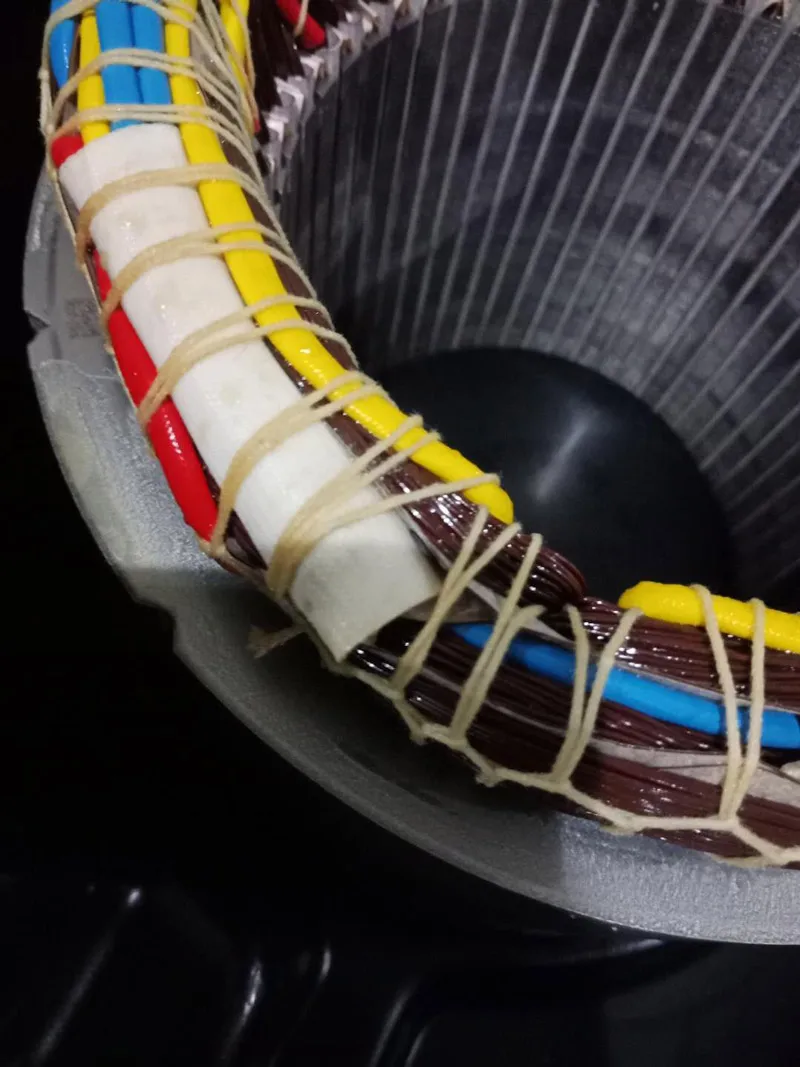

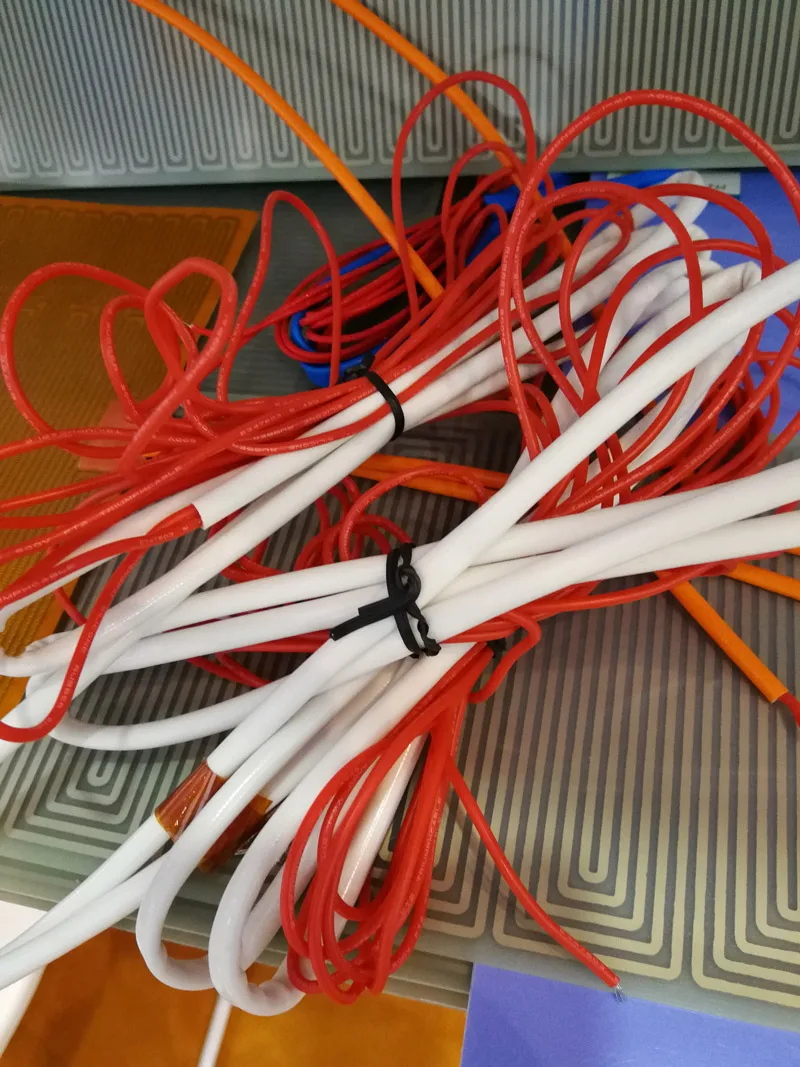

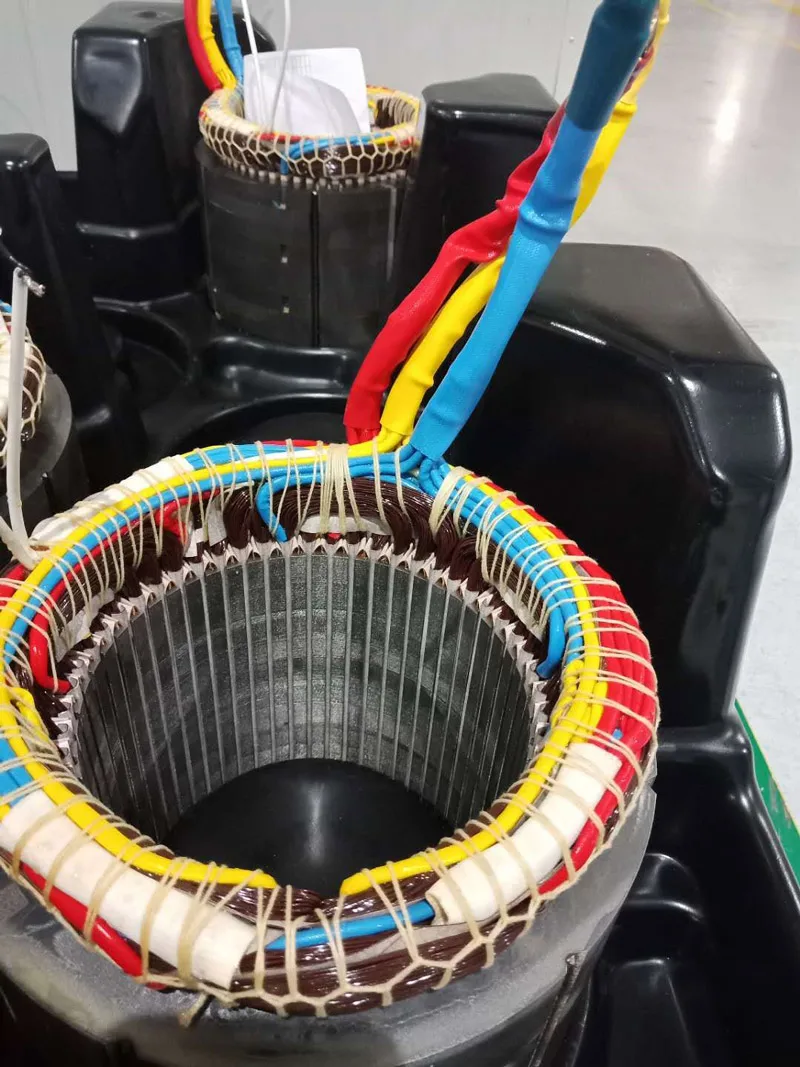

2.5KV 6.0MM Automotive Wire Insulation Silicone Glass fiber Braided Sleeve are widely used for Internal wiring of electronics, electrical appliances and automotive, class H and C motors, transformers, generators, heating apparatus, lighting, control, inverter, etc.



DIMENSION of 2.5KV 6.0MM Automotive Wire Insulation Silicone Glass fiber Braided Sleeve



Inside Diameter		Wall thickness (mm)	Standard package        (m/roll)
Nominal(mm)	Tolerance(mm)
φ0.5	+0.2, -0.1	≥0.30	200
φ1.0	+0.2, -0.1	≥0.30	200
φ1.5	+0.2, -0.1	≥0.30	200
φ2.0	+0.2, -0.1	≥0.30	100
φ2.5	+0.3, -0.1	≥0.35	100
φ3.0	+0.3, -0.1	≥0.35	100
φ3.5	+0.3, -0.1	≥0.35	100
φ4.0	+0.3, -0.1	≥0.35	100
φ4.5	+0.3, -0.1	≥0.40	100
φ5.0	+0.3, -0.1	≥0.40	100
φ6.0	+0.3, -0.1	≥0.40	100
φ7.0	+0.3, -0.1	≥0.45	50
φ8.0	+0.3, -0.1	≥0.45	50
φ9.0	+0.3, -0.1	≥0.55	50
φ10.0	+0.3, -0.1	≥0.55	50
φ12.0	+1.0, -1.0	≥0.55	50
φ14.0	+1.0, -1.0	≥0.55	25
φ16.0	+1.0, -1.0	≥0.55	25
φ18.0	+1.0, -1.0	≥0.55	25
φ20.0	+1.0, -1.0	≥0.65	25
φ25.0	+1.0, -1.0	≥0.65	25
φ30.0	+1.0, -1.0	≥0.65	25







WHY SUNBOW



1.   Sunbow is a leading manufacture of insulation sleeves in China.

2.   Sunbow is a IATF16949 and ISO 9001 manufacture.

3.   Quality is the top 3 in the insulation sleeve industry in China, but price is in the middle level.

4.   Sunbow owned more than 21 potent, other small factory do not have.

5.   Sunbow invest 20% of annual sales turnover on the R&D.

6.   Sunbow is located in Shenzhen, which is a manufacture and trade city.

7.   All our products are UL, Rohs and Reach certificated.

8.   Good service, Inquiry can be replied in 2 hours.

9.   Good after sales service, we can give the solution in two days for complaint.

10.Fast delivery time, the normal sleeve 1.0-6.0mm are almost in the stock, we can ship in 1-2 work days. If not in the stock, the delivery time is 7-10 work days.
