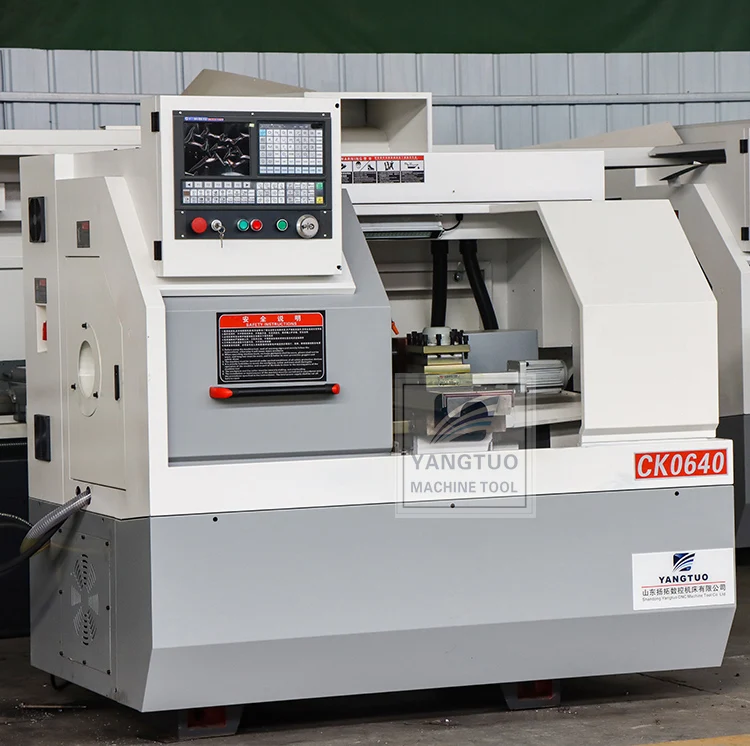

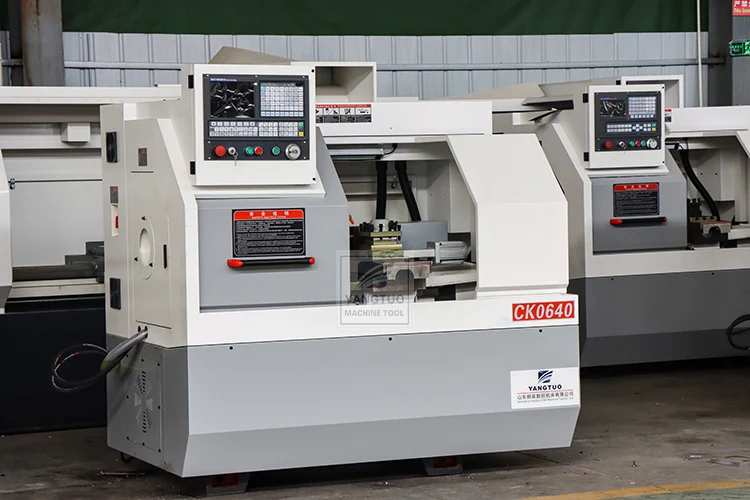

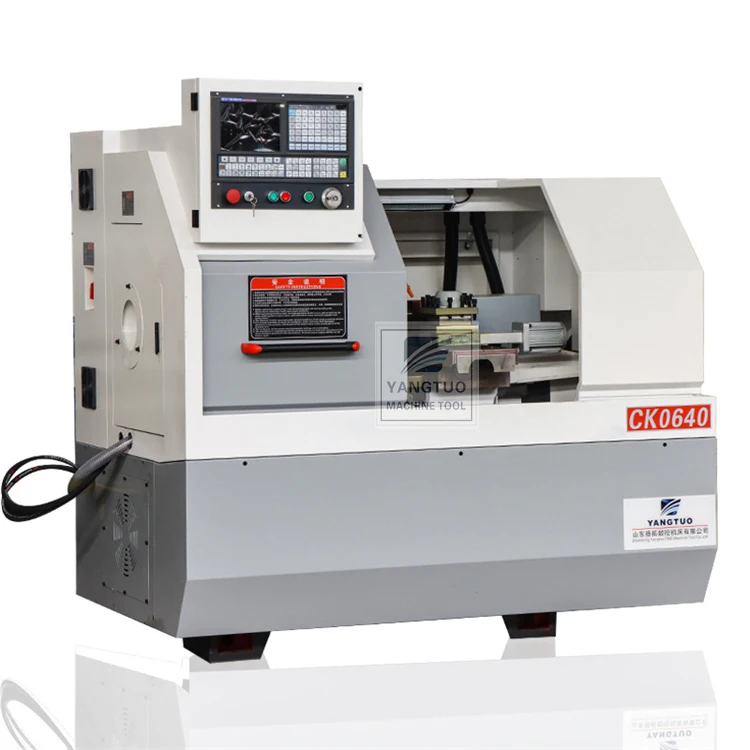

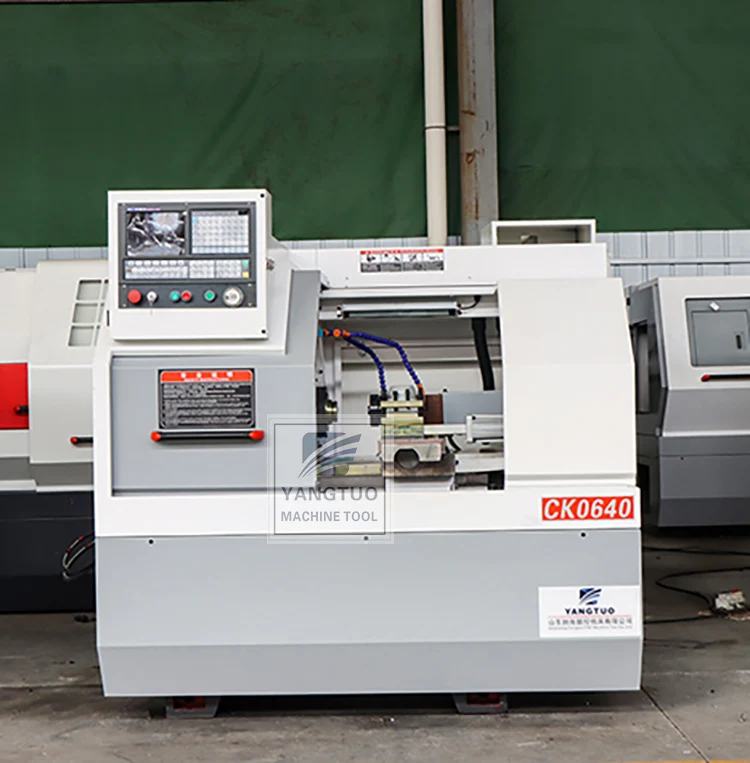

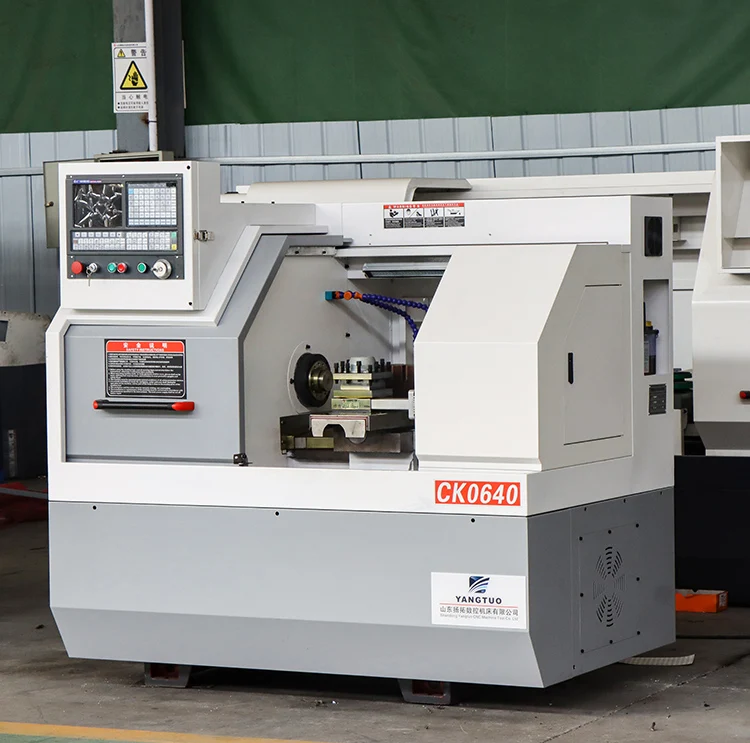

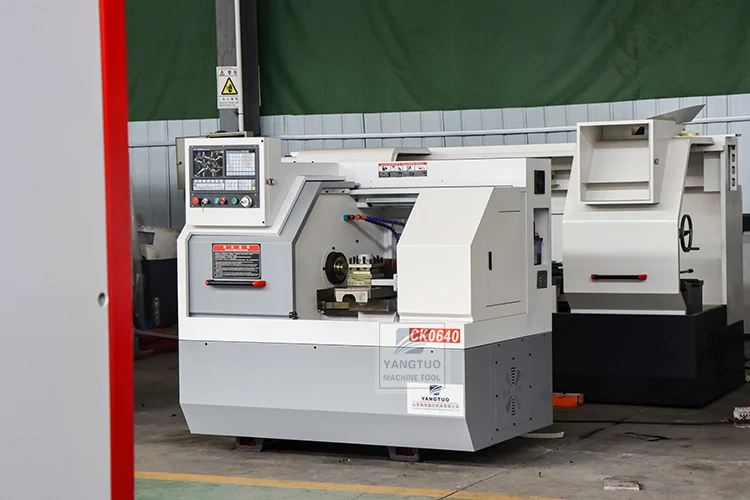

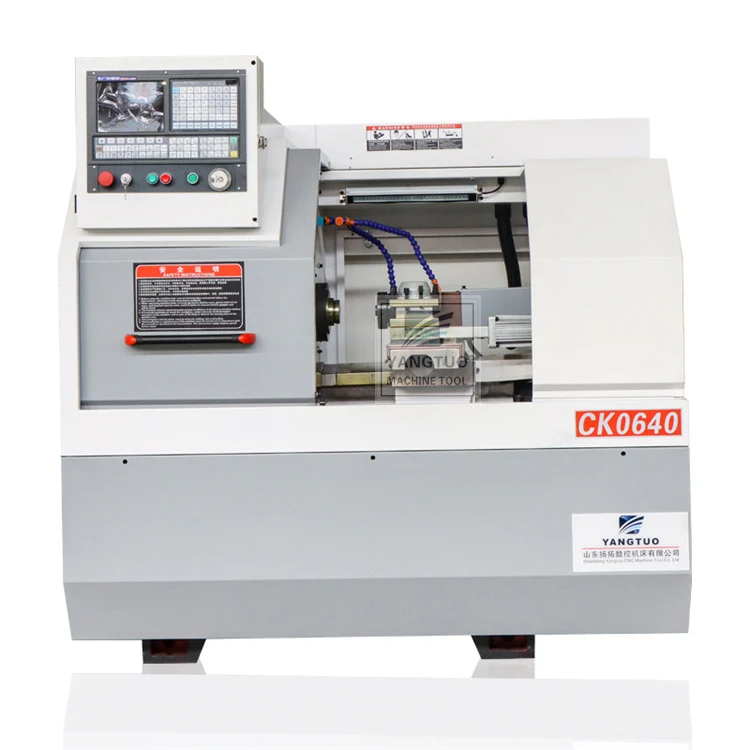

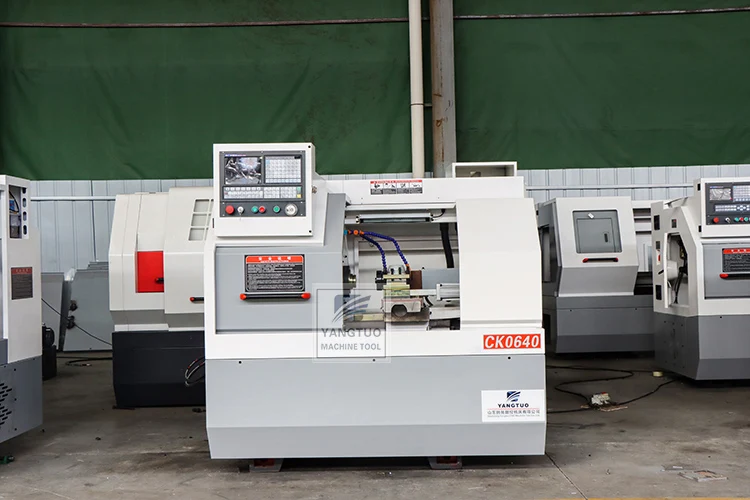

China CNC lathe machine bench CK0640 Mini CNC Lathe
- Category: >>>
- Supplier: Shandong Yangtuo CNC Machine Tool Co. Ltd.
Share on (62286569383):
Product Overview
Description
Product Description

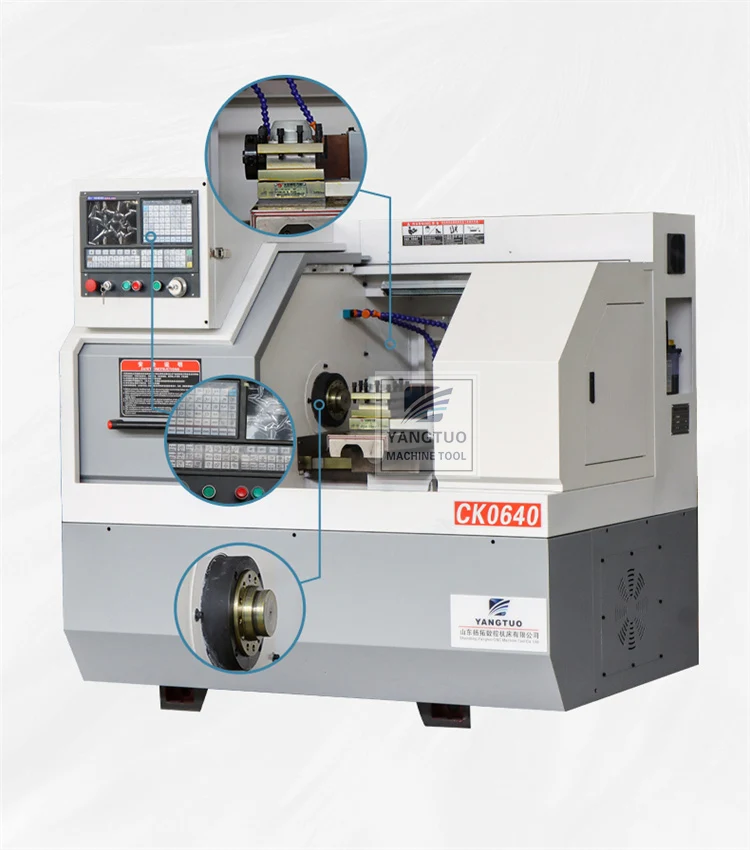

China CNC lathe machine CK0640 Mini CNC Lathe
Main Features
1.CK0640 lathe machine can be permanently memory coordinates after power offer,you do not need worry if people moved the position
2.Machine often caused alarms because of these widgets,CK0640 can set soft limit,so that can save machine maintenance time and
cost
3.High precision,CK0640 use Absolute servo encoder is 17 bits
4.It is suitbale for Mass production for small workpiece, High efficiency, high precision
1.CK0640 lathe machine can be permanently memory coordinates after power offer,you do not need worry if people moved the position
2.Machine often caused alarms because of these widgets,CK0640 can set soft limit,so that can save machine maintenance time and
cost
3.High precision,CK0640 use Absolute servo encoder is 17 bits
4.It is suitbale for Mass production for small workpiece, High efficiency, high precision
Item | CK0640 | CK0660 |
Max. swing dia. over bed | Φ260mm | Φ260mm |
Max. swing dia. over cross slide | Φ130mm | Φ100mm |
Max. workpiece length | Collet 200mm Chuck 120mm | Collet 200mm Chuck 120mm |
Diameter of spindle bore | Φ48mm | Φ70mm |
Drawn pipe diameter | Φ42mm | Φ60mm |
X-axis fast moving speed | 6000mm/min | 6000mm/min |
Z- axis fast moving speed | 8000 mm/min | 8000 mm/min |
X-axis feed rates | 1~2000mm/min | 1~2000mm/min |
Z- axis feed rates | 1~1800mm/min | 1~1800mm/min |
Range of spindle speed | 50~2500rpm | 50~2500rpm |
Thread machining scope (metric system) | 0.25~12mm | 0.25~12mm |
Thread machining scope (British system) | 28~3 1/2 | 28~3 1/2 |
Stations of tool carrier | gang-type tool carrier | gang-type tool carrier |
Main motor | 3KW | 4KW |

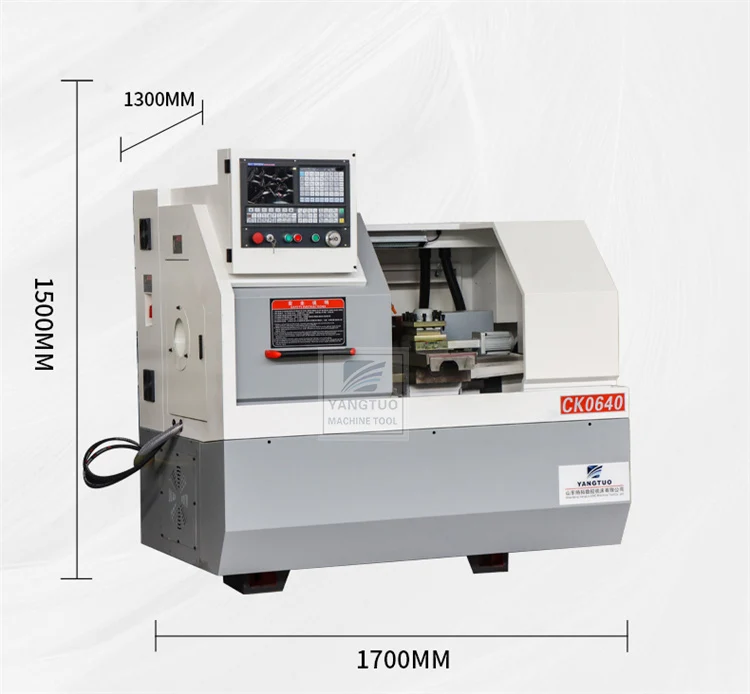

Dimension | 1550×920×1450mm | 1650x1000x1600mm |
Weight | 900KG | 950KG |
Standard configuration:
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 4/6-station electric turret.
5). Automatic bar feeder, Chip conveyor.
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 4/6-station electric turret.
5). Automatic bar feeder, Chip conveyor.
