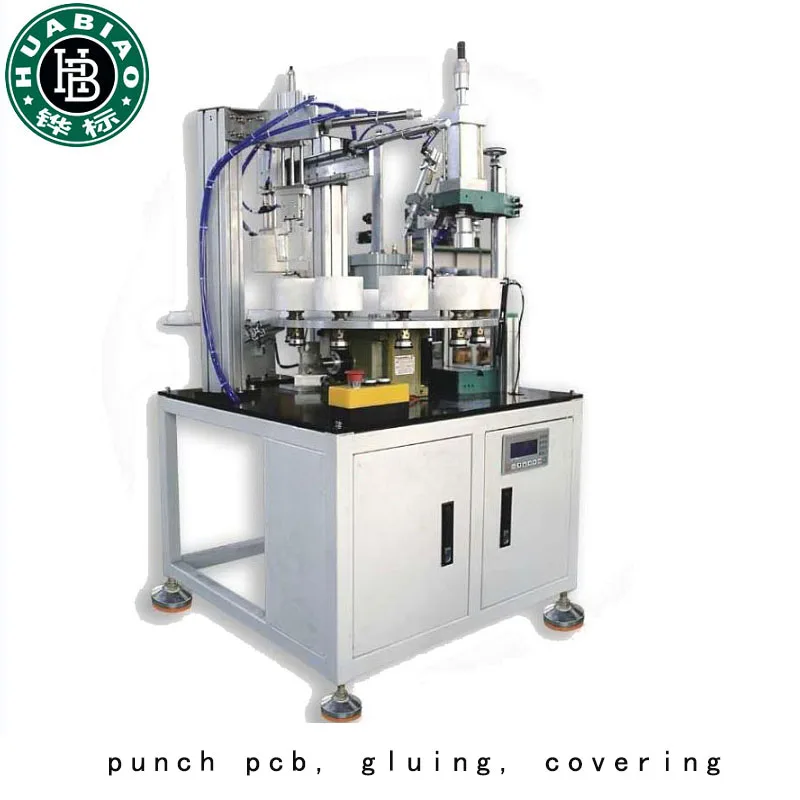

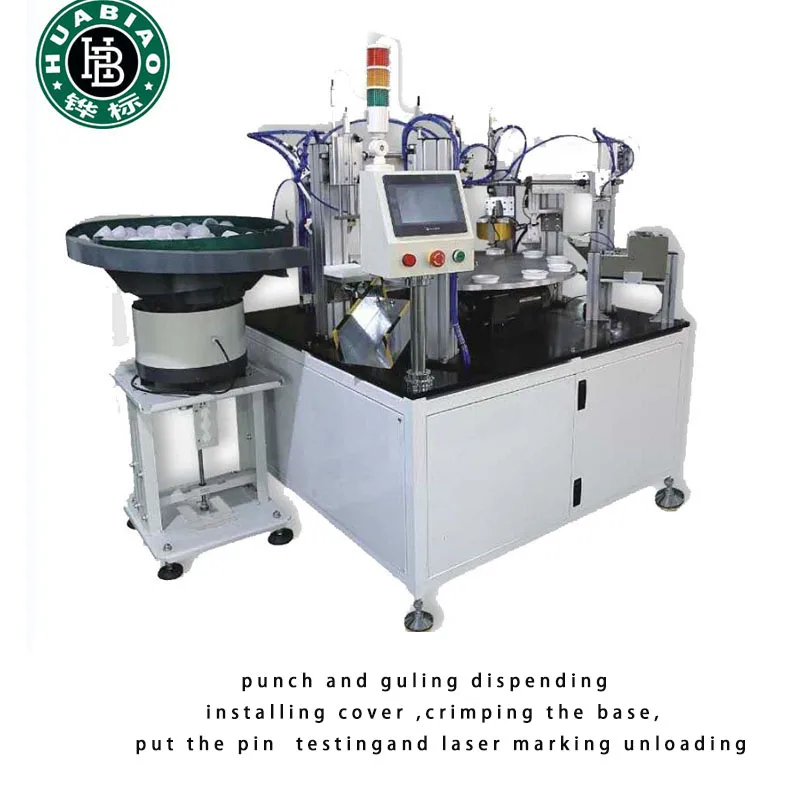

Professional manufacturing semi automatic machine for b22 led bulb making machine
- Category: >>>
- Supplier: Zhongshan Huabiao Industrial Equipment Co. Ltd.
Share on (62286571356):
Product Overview
Description
Name: | semi-automatic assembly equipment for LED bulb lamp |
model: | HB 1300-12 |
size: | 1100 x 1100 x 1200cm |
function: | nail loading, detection, Reservation marking, riveting, gluing, Cover Cover, offline |
weight: | 600KG |
control mode: | PLC + touch screen (7 inch) |
driving Mode: | high speed precision intermittent divider |
working Number of turntable: | 12 |
disc diameter: | 680MM |
maximum diameter of single station production: | 120MM |
working power supply: | 220V/50HZ;600W |
air source: | add 0.6-0.8Mpa |
applicable objects: | A bubble, T bubble |
lamp head: | b22, e26, E27 |
loading method: | automatic loading of manipulator artificial placement |
bubble shell feeding method: | vibrating plate artificial placement |
use glue: | 2600ml filling glue |
speed: | 1300 pcs/h |
