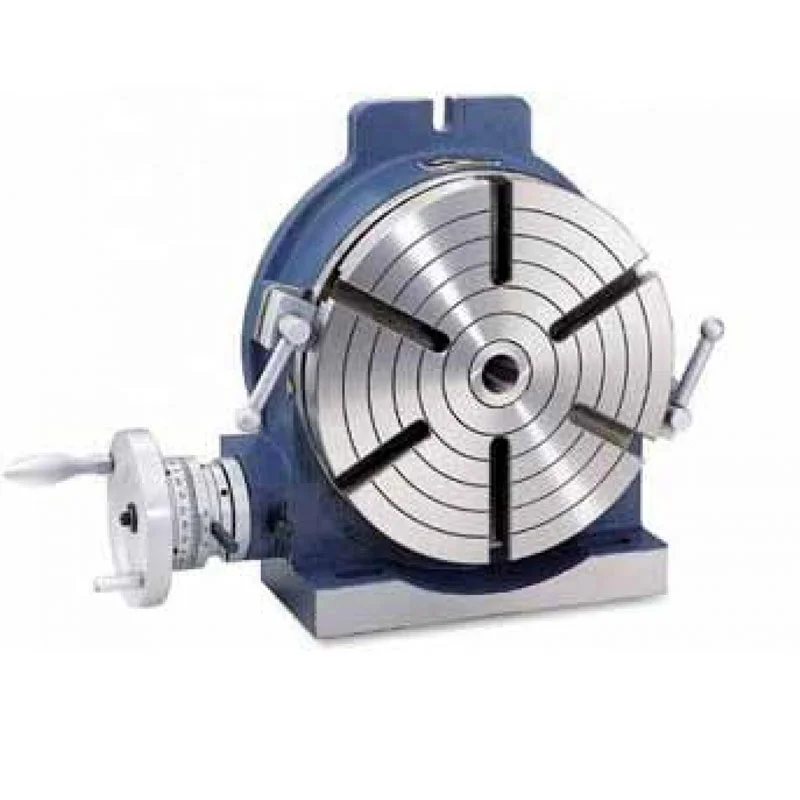

universal tilting rotary table tilting rotary table TSK type rotary tbale for milling boring drilling machines

 A flange for connecting scroll chuck is special supplied,and be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360 degree rotation of the clamping surface into divisions of 2 through 66,and all divisible of 2,3 and 5 from 67-132.
The table can be tilted to any position from 0°to 90°and locked.
Optional accessories:hole plate,flange

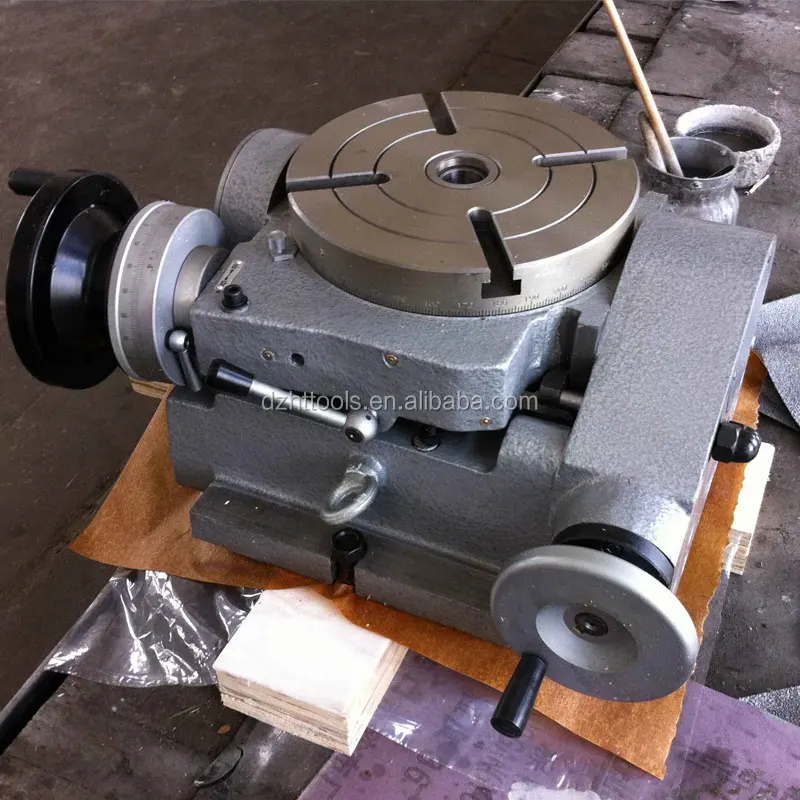

 The TSK series titing rotary tables are for main accessories for milling ,boring and drilling machines,They can be used for machining,the oblique hole or surface and hole of compound angle at one set-up,Besides this,it is so designed as to be used in a vertical position to carry cut center work with a tailstock.

TSK series tilting rotary table  installation sketch and dimensions

Note:Accessories :T-slot bolt set 2sets

Optional :Hole plate 1set ,Flange 1set
