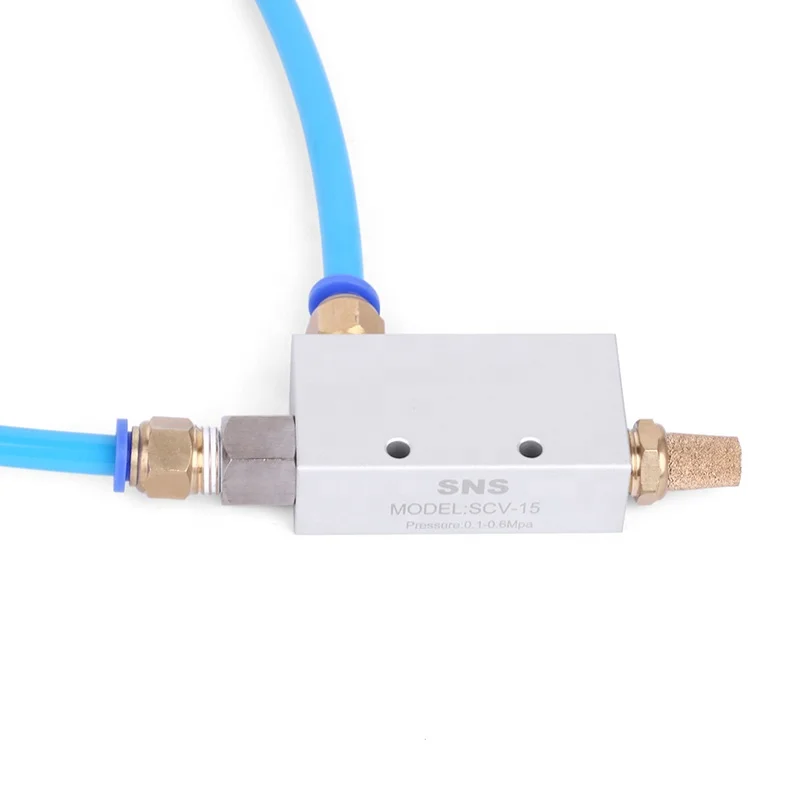

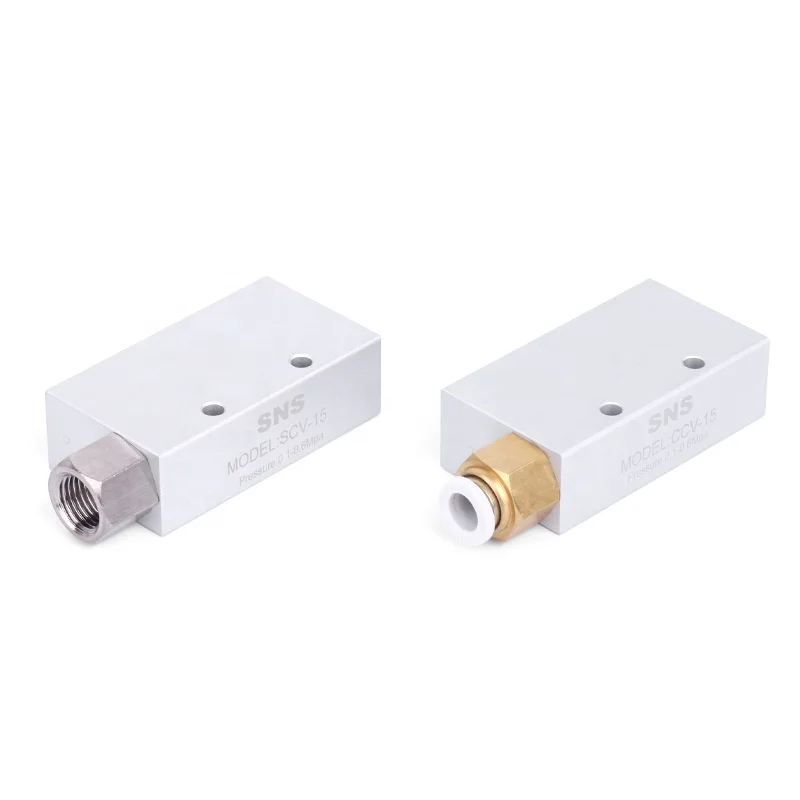

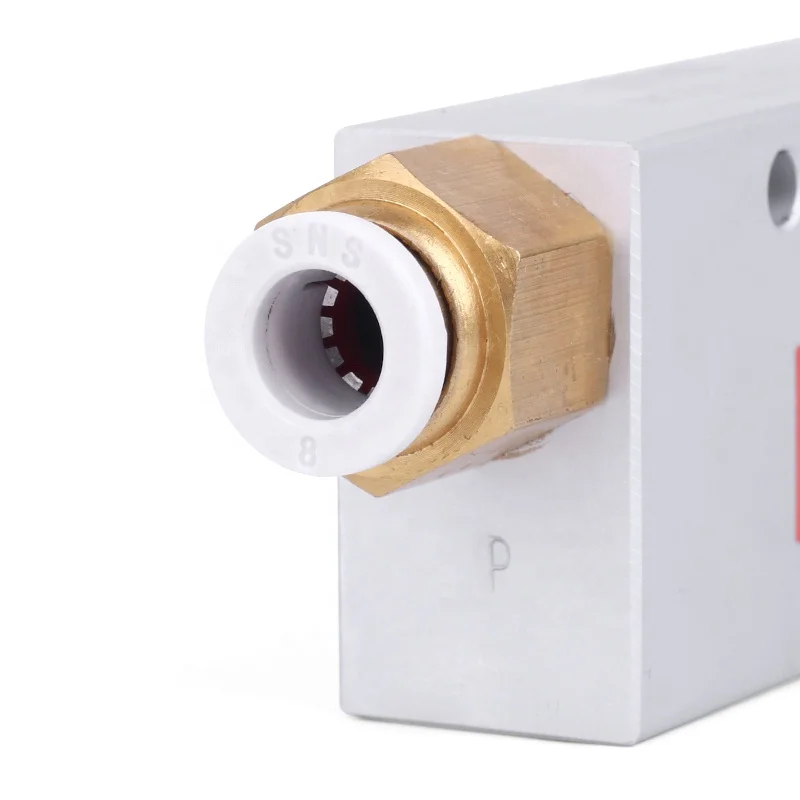

SNS Pneumatic SCV/CCV Series Aluminum Alloy Air Vacuum Ejector Generator
- Category: >>>
- Supplier: China SNS Pneumatic Co. Ltd.
Share on (62286809167):
Product Overview
Description
SNS Pneumatic SCV/CCV Series Aluminum Alloy Air Vacuum Ejector Generator
Banner
Product Description
| Model | SCV-05 | SCV-10 | CCV-10 | SCV-15 | CCV-15 | SCV-20 | CCV-20 | SCV-25 | SCV-30 |
| Port Size | G1/8 | φ6 | G1/4 | φ8 | G1/4 | φ8 | G3/8 | G1/2 | |
| Mass(g) | 72 | 136 | 271 | 710 | |||||
| Working Temperature Range | -5~60℃ | ||||||||
| Lubrication | No Need | ||||||||
| Working Media | Air | ||||||||
| Model | SCV-05 | SCV-10 | SCV-15 | SCV-20 | SCV-25 | SCV-30 |
| CCV-10 | CCV-15 | CCV-20 | ||||
| Working Pressure | 0.5 | |||||
| Air Consumptoin L/min | 13 | 44 | 100 | 180 | 265 | 385 |
| Vacuum Pressure Kpa | 88 | |||||
| Vacuum Suction Volume L/min | 6 | 27 | 63 | 110 | 160 | 225 |
| Note:Parameter above is only for standard type | ||||||

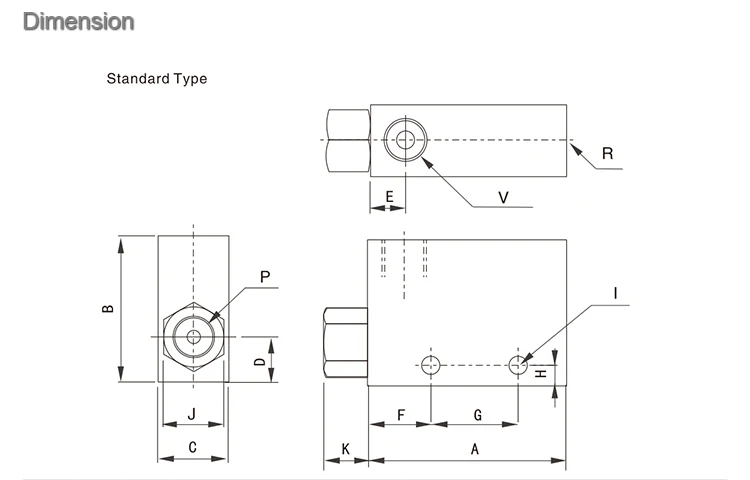

| Model | A | B | C | D | E | F | G | H | I | J | K | P | V | R |
| SCV-05 | 45 | 32 | 16 | 10 | 8 | 14 | 20 | 4.5 | 2-φ4.3 | 14 | 10 | G1/8 | G1/8 | G1/8 |
| SCV-10 | 45 | 32 | 16 | 10 | 8 | 14 | 20 | 4.5 | 2-φ4.3 | 14 | 10 | G1/8 | G1/8 | G1/8 |

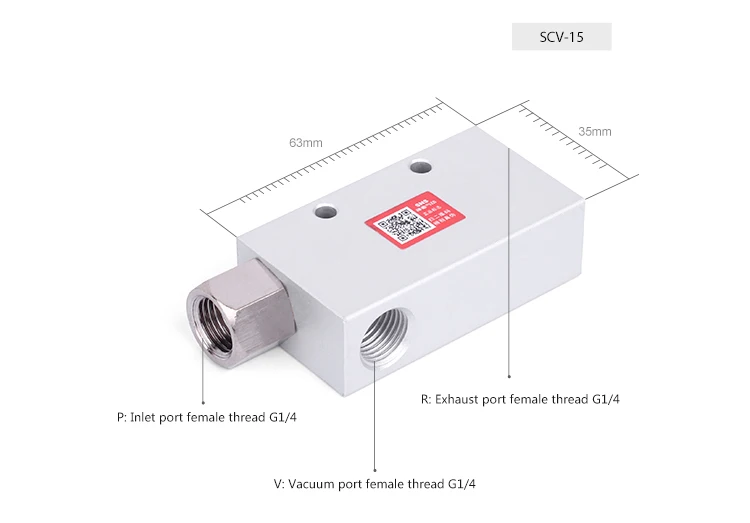

| SCV-15 | 63 | 35 | 20 | 11 | 10 | 20 | 25 | 5 | 2-φ4.5 | 17 | 15 | G1/4 | G1/4 | G1/4 |
| SCV-20 | 85 | 40 | 25 | 15 | 13 | 28 | 32 | 7 | 2-φ6 | 21 | 20 | G1/4 | G3/8 | G3/8 |
| SCV-25 | 100 | 60 | 40 | 20 | 16 | 20 | 50 | 5.5 | 2-φ6.3 | 26 | 17 | G3/8 | G1/2 | G3/4 |
| SCV-30 | 100 | 60 | 40 | 20 | 16 | 20 | 50 | 5.5 | 2-φ6.3 | 26 | 17 | G1/2 | G1/2 | G3/4 |
CHINA SNS PNEUMATIC
------Leading supplier of pneumatic components in China-----
Certificate

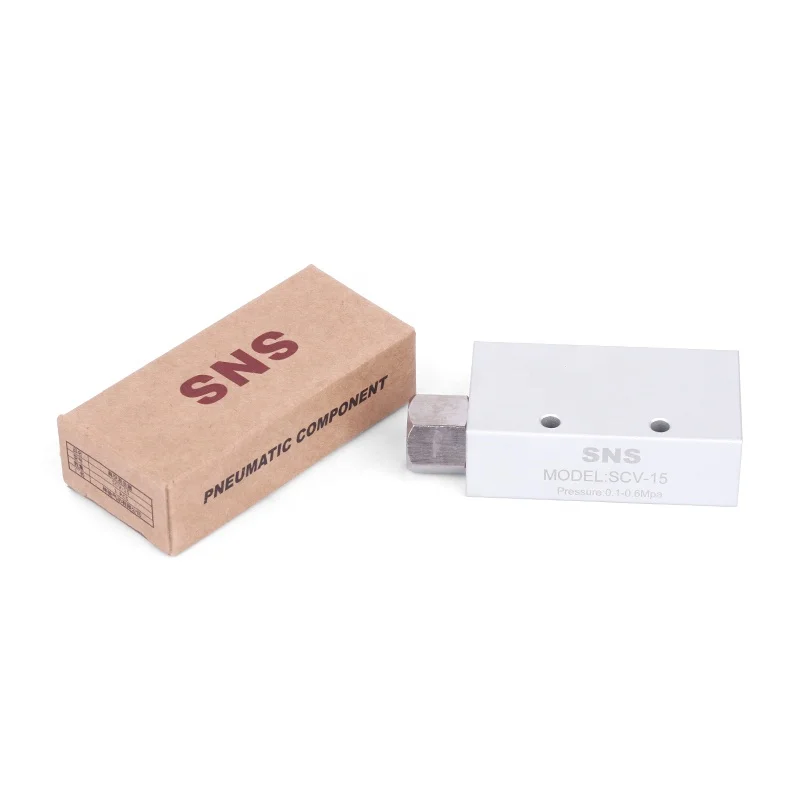

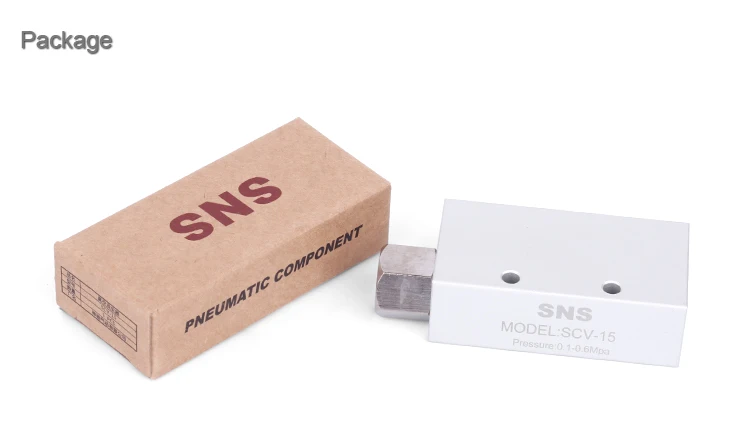

Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
