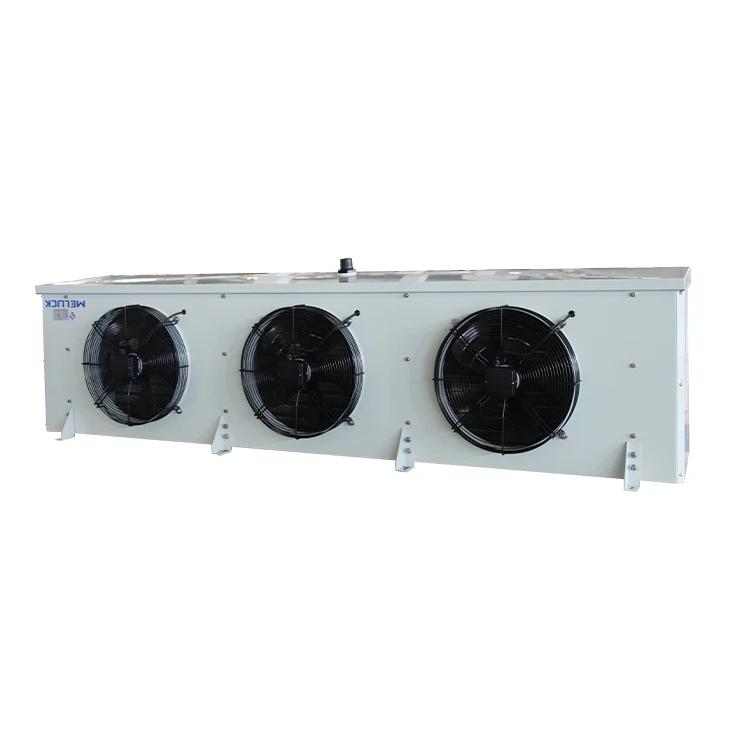

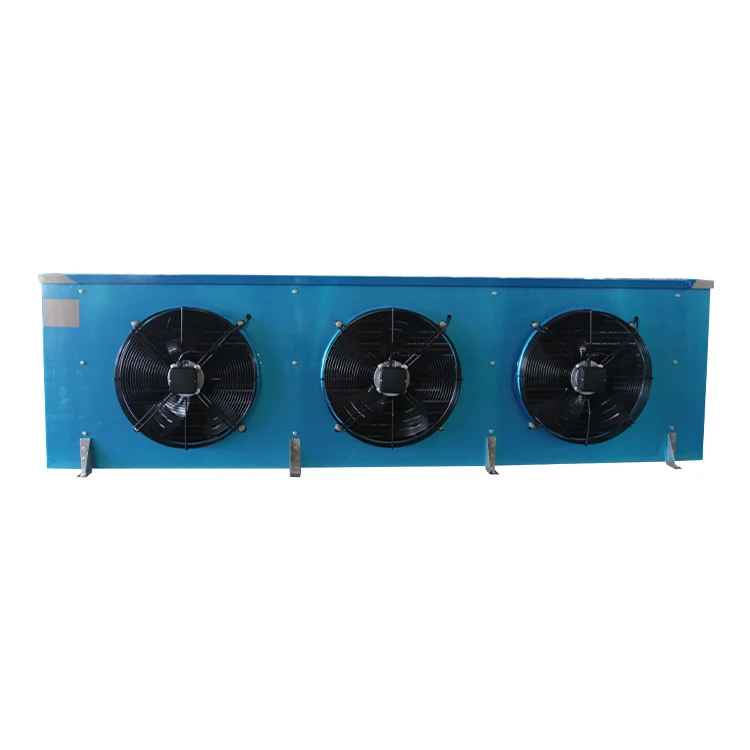

Customized heat resistant small cold room refrigeration air evaporator
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Anhui Meluck Refrigeration Air-Condition Equipment Co. Ltd.
Share on (62286967990):
Product Overview
Description
PRODUCT PARAMETERS

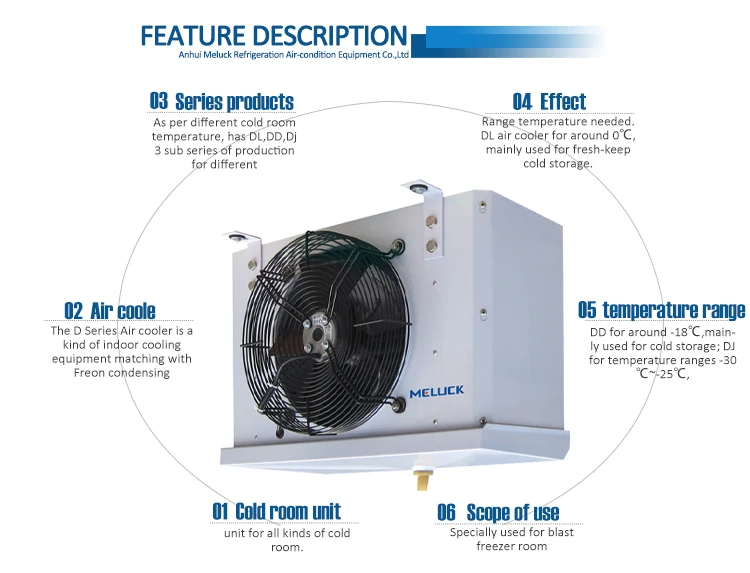

Feature description:
The D Series Air cooler is a kind of indoor cooling equipment matching with Freon condensing
unit for all kinds of cold room.
As per different cold room temperature, has DL,DD,Dj 3 sub series of production for different
range temperature needed. DL air cooler for around 0℃, mainly used for fresh-keep cold storage.
DD for around -18℃,mainly used for cold storage; DJ for temperature ranges -30℃~-25℃,
specially used for blast freezer room.
Modle | Capacity (KW) DT=7K t0=-7℃ | Air flow m3/h | Air throw m | Fan power W | Defrosting kW | Overall size (mm) Pipe dia( mm) | Pipe dia (mm) | Drainage | Weight | ||||||||||
| R22 |
|
|
| Coil | Water receiver | A | B | C | D | E | E1 | E2 | E3 | F | liquid | gas |
|
|
DL2.2/311A | 2.2 | 1500 | 9 | 90 | 1 | 0.5 | 642 | 445 | 465 | 364 | 440 | - | - | - | 105 | φ12.7 | φ12.7 | 1″ | 23.7 |
DL3.5/311A | 3.5 | 1500 | 9 | 90 | 1.5 | 0.5 | 642 | 445 | 465 | 364 | 440 | - | - | - | 105 | φ12.7 | φ19 | 1″ | 26.5 |
DL4.7/312A | 4.7 | 3000 | 9 | 180 | 2.7 | 0.9 | 1092 | 445 | 465 | 364 | 860 | - | - | - | 120 | φ12.7 | φ22 | 1″ | 41 |
DL6/312A | 6 | 3000 | 9 | 180 | 3.6 | 0.9 | 1108 | 455 | 465 | 384 | 860 | - | - | - | 120 | φ12.7 | φ22 | 1″ | 44 |
DL9/352A | 9 | 4500 | 10 | 280 | 3.6 | 1.2 | 1408 | 455 | 465 | 384 | 1160 | - | - | - | 135 | φ16 | φ22 | 1″ | 52 |
DL12.5/402A | 12.5 | 7000 | 12 | 390 | 4.8 | 1.2 | 1488 | 555 | 565 | 484 | 1240 | - | - | - | 135 | φ16 | φ22 | 1″ | 72 |
DL14.5/402A | 14.5 | 7000 | 12 | 390 | 6 | 1.2 | 1488 | 555 | 665 | 484 | 1240 | - | - | - | 135 | φ16 | φ28 | 1″ | 81 |
DL17/402A-1 | 17 | 7000 | 12 | 390 | 6 | 1.2 | 1680 | 555 | 665 | 484 | 1360 | - | - | - | 160 | φ16 | φ28 | 1.5″ | 84 |
DL25/502A-1 | 25 | 12000 | 15 | 1000 | 10 | 4 | 2121 | 595 | 665 | 502 | 1801 | 920.5 | - |
| 160 | φ22 | φ35 | 1.5″ | 113 |
DL29/453A-1 | 29 | 13500 | 14 | 840 | 10 | 4 | 2695 | 595 | 665 | 502 | 2374 | 818 | 778 | - | 160 | φ22 | φ35 | 2″ | 141 |
DL36.5/503A-1 | 36.5 | 18000 | 15 | 1500 | 10 | 4 | 2695 | 595 | 765 | 502 | 2374 | 818 | 778 | - | 160 | φ22 | φ42 | 2″ | 159 |
DL42/503A-1 | 42 | 18000 | 15 | 1500 | 12 | 4 | 2890 | 595 | 765 | 502 | 2560 | 880 | 840 | - | 160 | φ22 | φ42 | 2″ | 176 |
DL49/503A-1 | 49 | 18000 | 15 | 1500 | 12 | 4 | 2890 | 675 | 765 | 582 | 2560 | 880 | 840 | - | 160 | φ22 | φ54 | 2″ | 190 |
DL59/504A-1 | 59 | 24000 | 15 | 2000 | 15.6 | 5.2 | 3778 | 685 | 865 | 582 | 3440 | 890 | 850 | 850 | 170 | φ22 | φ54 | 2-2″ | 277 |
DL70/554A-1 | 70 | 30000 | 18 | 3000 | 15.6 | 5.2 | 3778 | 685 | 975 | 582 | 3440 | 890 | 850 | 850 | 170 | φ22 | φ54 | 2-2″ | 312 |
DL84/554A-1 | 84 | 30000 | 18 | 3000 | 23.4 | 5.2 | 3978 | 785 | 975 | 682 | 3600 | 930 | 890 | 890 | 240 | φ28 | φ54 | 2-2″ | 373 |
DL103/604A-1 | 103 | 42000 | 18 | 3400 | 26 | 5.2 | 3978 | 785 | 975 | 682 | 3600 | 930 | 890 | 890 | 240 | φ28 | φ60 | 2-2″ | 442 |
DL112/634A-1 | 112 | 46000 | 18 | 3520 | 31.2 | 5.2 | 3988 | 785 | 1075 | 682 | 3620 | 950 | 890 | 890 | 240 | φ35 | φ60 | 2-2″ | 487 |
DL122/634A-1 | 122 | 46000 | 20 | 3520 | 33.8 | 5.2 | 3988 | 785 | 1175 | 682 | 3620 | 950 | 890 | 890 | 240 | φ35 | φ60 | 2-2″ | 516 |
PRODUCT DISPLAY

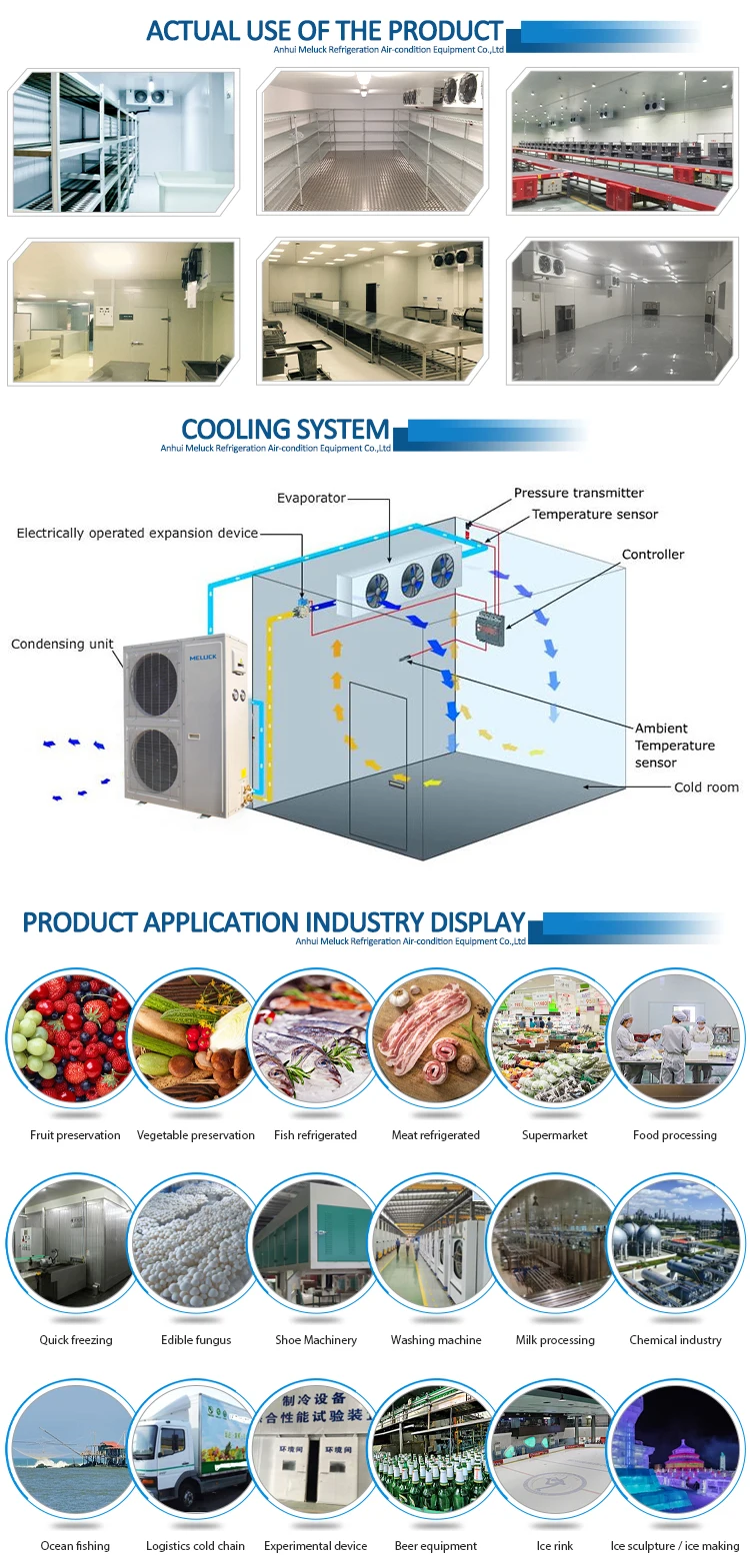

COOLING SYSTEM
PRODUCTS RECOMMENDED
COMPANY PROFILE
EXHIBITION
TRANSPORT
Q :Are you a factory or a trading company?
A :We are one of the largest refrigeration equipment manufacturers in China.
Q:Where is your factory located?
A:Our factory was located in Fenggong Rd,North Xuanzhou Economic Development Zone,Xuancheng City, Anhui,China.
Q:Is Anhui Meluck be the same with Shanghai Meluck?
A:Yes, Anhui Meluck, Shanghai Meluck and Zhengjiang Bingfeng are belong in Meluck group.
Q:Can the product be customized according to specifications?
A:Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
Q:What are the payment terms?
A:A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
