Automatic pallet strapping machine with integrated stretch wrapper

Product Overview

Description





 Automatic integrated pallet strapping stretch wrapper machine

Automatic integrated pallet strapping stretch wrapper machine

Automatic pallet strapping machine with integrated stretch wrapper

The fully automatic bundling and laminating machine integrates the bundling and the wrap, automatically bundles, automatically wraps the film, and the whole process is unmanned, and the wrap film has no tail film shedding risk. Improve the efficiency of packaging logistics, with dust, moisture and reduce the cost of packaging materials.
Space saving, labor saving, imported parts, stable performance,

Equipment characteristics:
The strapping head is mounted on the top, and the binding force is even. The wrap winding unit is integrated, saving space and reducing cost. The movable arrow can be adapted to various specifications. The maximum load-bearing capacity of the conveying and rotating unit can reach 3000KG.
Package specifications:
Tray size:
Width (maximum) 1100mm / length (maximum) 1200mm package size
Width (maximum) 1100mm / length (maximum M200mm height (lowest) 500mm / (highest) 1400mm
Strapping head specifications:
European brand made in Europe Optional 16mm or 19mm size Use PP/PET strap
Broken film method:
Automatic filming, automatic cutting of the film after the top is bundled.
Welding method:
Perm or rub
Maximum tension:
3200N
Pre-stretched film specifications:
Material: LLDPE Width: 500mm Diameter: 250mm Thickness: 23 M
A variety of packaging processes:
Bundling only
Winding only
Tail-bundling and winding
Packaging working hours:
Tail-bundle beat: about 2 minutes and 30 seconds / support. Individually wrapped beats: about 1 minute and 30 seconds / support. Well-bundle + winding beat: about 4 minutes / support.
Equipment power supply:
3C 380V50HZ 16A

Strapping strap specifications:

16mm specification		19mm specification
Width	9-16mm	Width	16-19mm
Thickness	0.6-1.0mm	Thickness	0.7-1.35mm

High quality PET straps are available with the device

Package specifications:

Tray size:

Width (maximum) 1100mm / length (maximum) 1200mm

Package size:

Width (maximum) 1100mm / length (maximum) 1200mm

Height (minimum) 500mm up to 1400mm [1]

[1] Package size height with tray height:

l Packer parameters:

Packing head specifications:

TITANVK10-16/19[2]

[2] When ordering, you can choose VK10-16 or VK10-19

Use PET strapping specifications: VK10-16 VK10-19

Width: 9-16mm Width: 16-19mm

Thickness: 0.6-1.0mm Thickness: 0.7-1.35mm

Electrical configuration:

Motor reducer SEW,

Inverter Siemens,

PLC Siemens,

Low-voltage electrical appliances Siemens,

Proximity / photoelectric switch SICK,

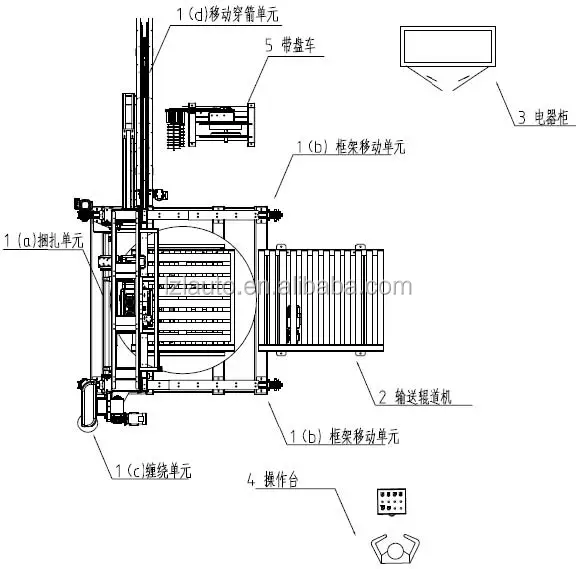

l Delivery range:

1, a set of bundled, wrapped two-in-one host

a) strapping unit

b) Frame mobile unit

c) winding unit

d) moving the arrow unit

2. One conveyor roller machine

3, one electric control cabinet (with 15 meters cable)

4, one console (with 15 meters cable)

5, a reel with a car [4]

[4] You can choose 25KG or 70KG reel when ordering.

Host color RAL 5015 sky blue, moving parts RAL7031 medium yellow,
