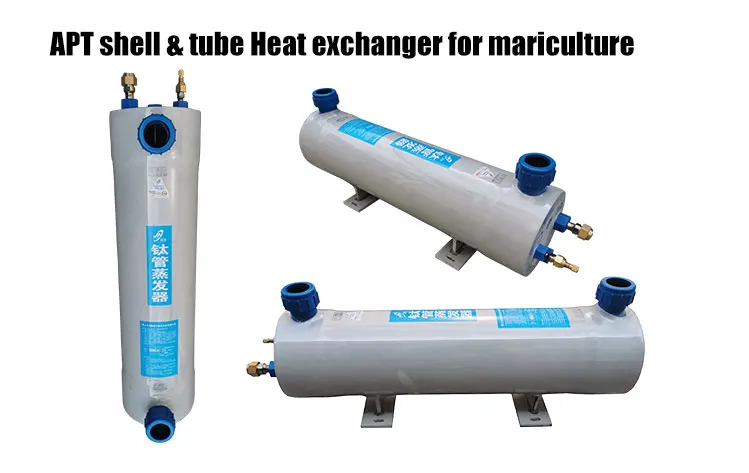

Shell and tube heat exchanger evaporator and condenser for mariculture 8HP

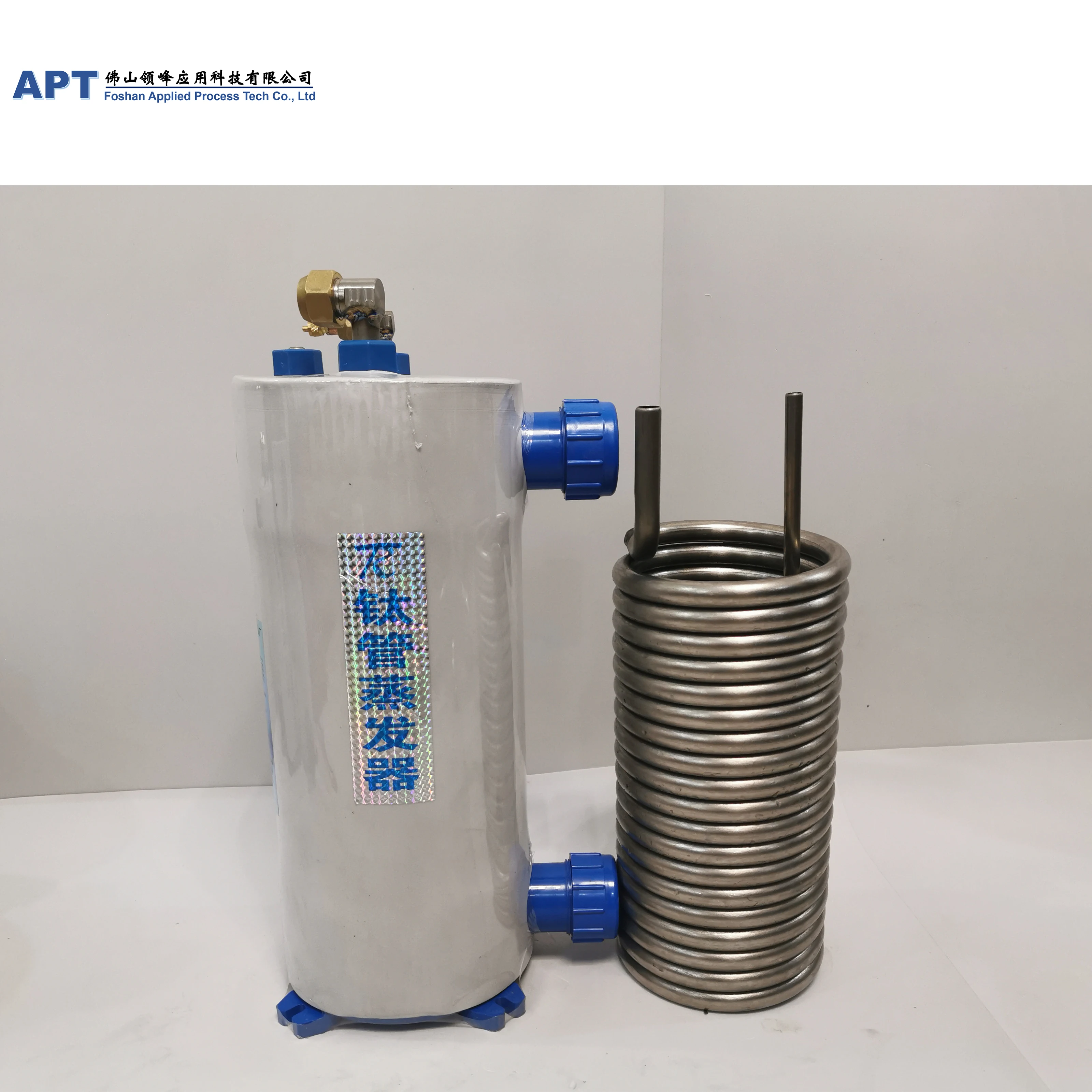

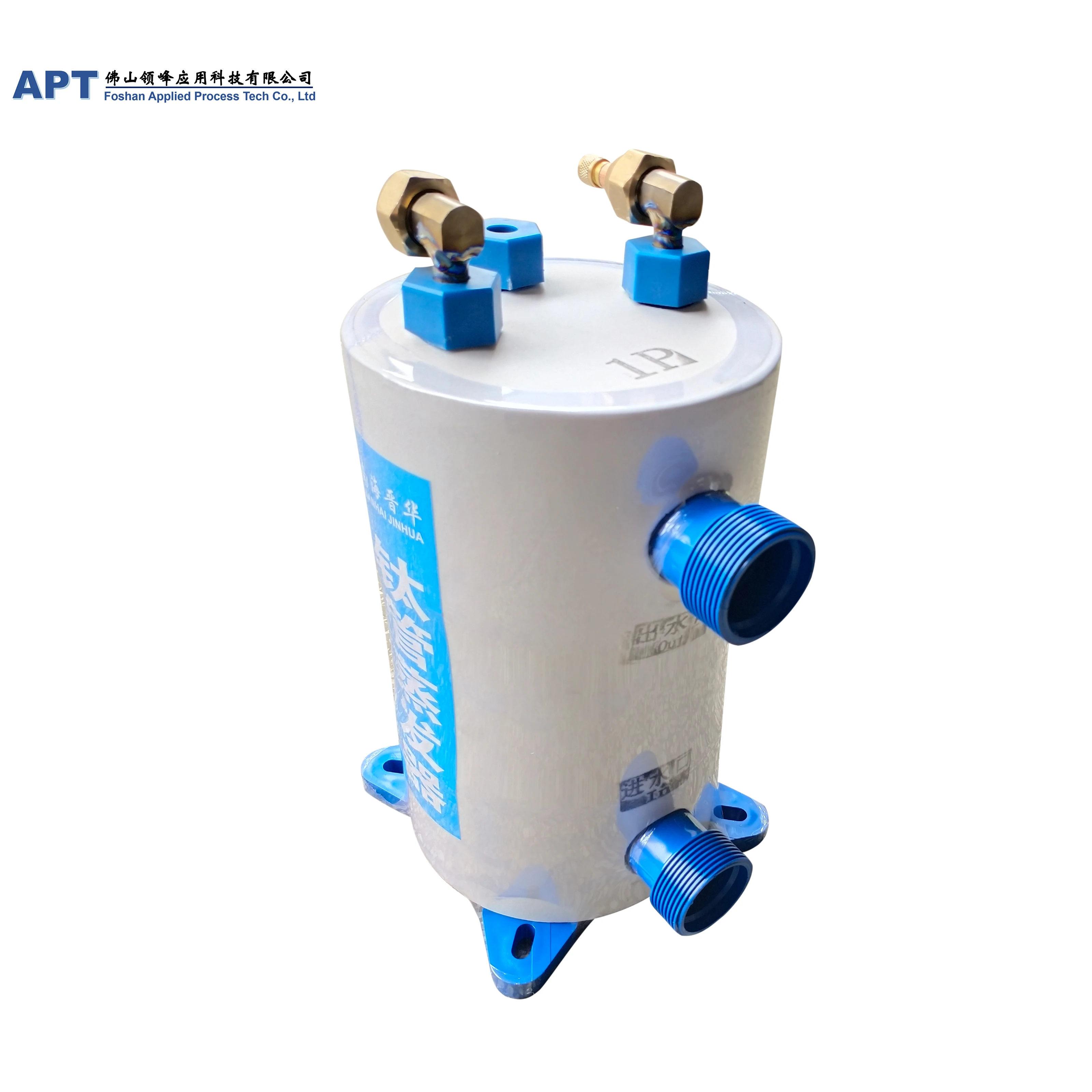

APT Star Products, 8HP Marine Titanium Coil Evaporator. The evaporator is made of pure titanium tube with a pollution-free and chemically stable PVC shell. The outer shell diameter of the product is 200 mm and the length is 800 mm. The diameter and thickness of titanium tube are 19 mm and 0.55 mm respectively. It is widely used in evaporator of mariculture chiller and temperature control of large aquarium. The product has excellent heat transfer effect and excellent corrosion resistance in seawater.
APT factories can also design corresponding heat exchangers according to the specific needs of customers.
Product Description
Titanium heat exchanger evaporator for aquarium or aquaculture
Titanium has a strong corrosion resistance, and the corrosion in sea water is basically zero. It is not easy to produce oxide layer on the surface. It does not pollute the medium and is environmentally friendly and non-toxic. The shell can be made of PVC, titanium, stainless steel, etc. Titanium tube heat exchanger effectively prolongs the service life of heat exchanger in special occasions, and costs less maintenance. It also has the advantages of small size and strong heat transfer capacity.
Purpose:
Titanium tube heat exchangers can be widely used for temperature control in swimming pools, aquariums, aquariums, sea water baths, plating tanks, marine heating and cooling systems of chemical equipment. It can also be used in anti-corrosion areas such as seawater utilization and surface treatment industries. In addition, the titanium tube heat exchanger is also used in food, distilled water, pure water, brewing, beer, beverage, soilless cultivation, pharmaceutical, cosmetics and other industries. It can also be used in the field of environmental protection, such as waste gas condensation recovery, pollutant (solvent) recovery and so on.
Structure Feature
The inner heat converter is made of seamless pure titanium, which has strong corrosion resistance, high heat transfer efficiency, non-magnetic, non-toxic and good heat resistance.
The outer barrel is made of high strength plastic injection moulding, solvent pressing and synthesis. It has good chemical stability and is not affected by environmental factors and medium composition in the pipeline. It has good corrosion resistance, low heat transfer efficiency, good insulation and heat preservation, and good energy saving effect. It is welded by professional process.
Detail parameters
Liquid Flow Rate
4.5 m3/h
Maximum Working Pressure
5.2Mpa
Weight
14.7 KGS
Warranty
1 Year
After-sales Service Provided
On line installation, commissioning and training
Applicable Industries
Manufacturing Plant
Condition
New
Place of Origin
Foshan, China (Mainland)
Brand Name
APT
Structure
Tube Heat Exchanger
Voltage
110V/220V/380V
Dimension(L*W*H)
270*220*555
Certification
CCC, CE, ROHS, UL
Material
Pure titanium tube
Application
Heat exchanger
Type
New energy

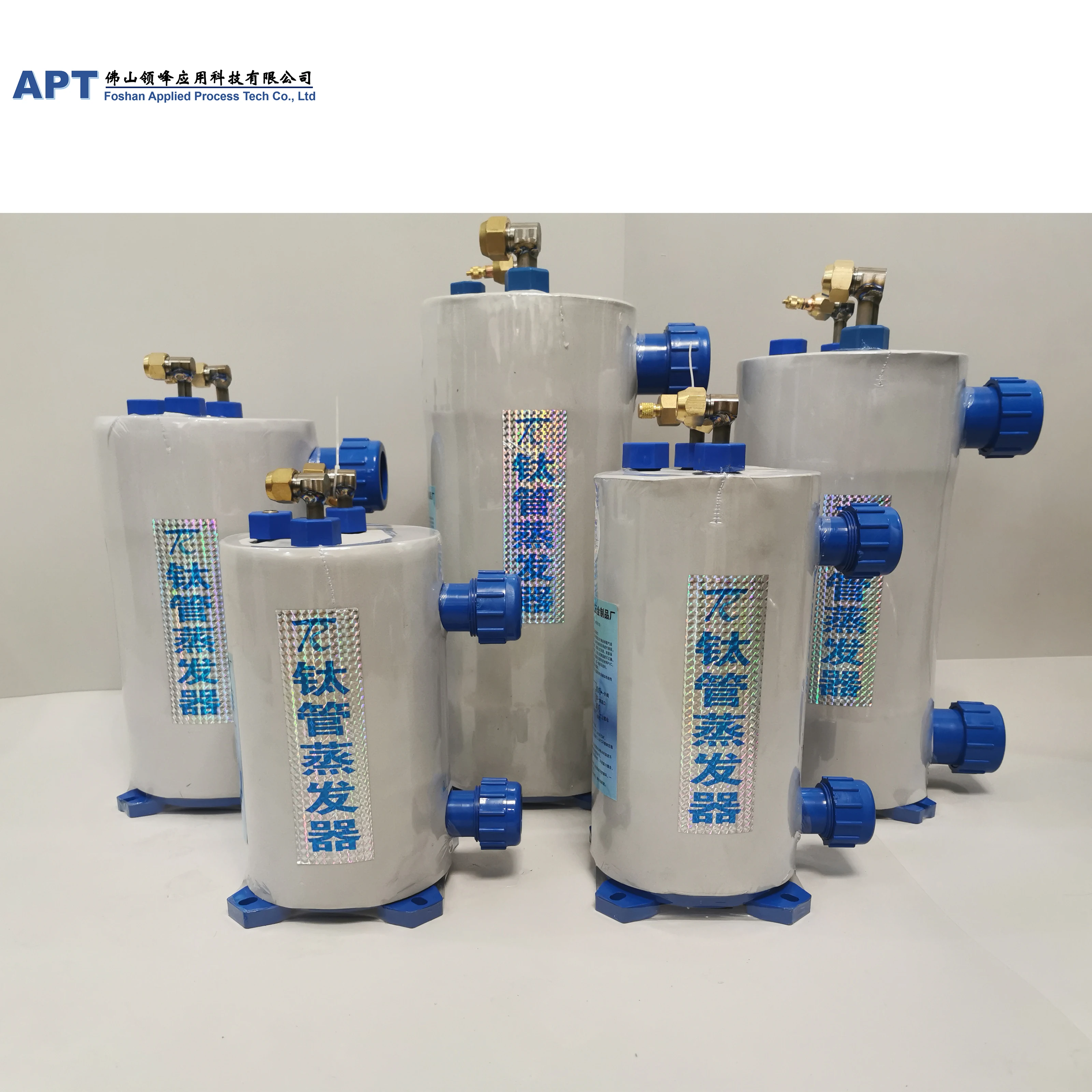

Product shows

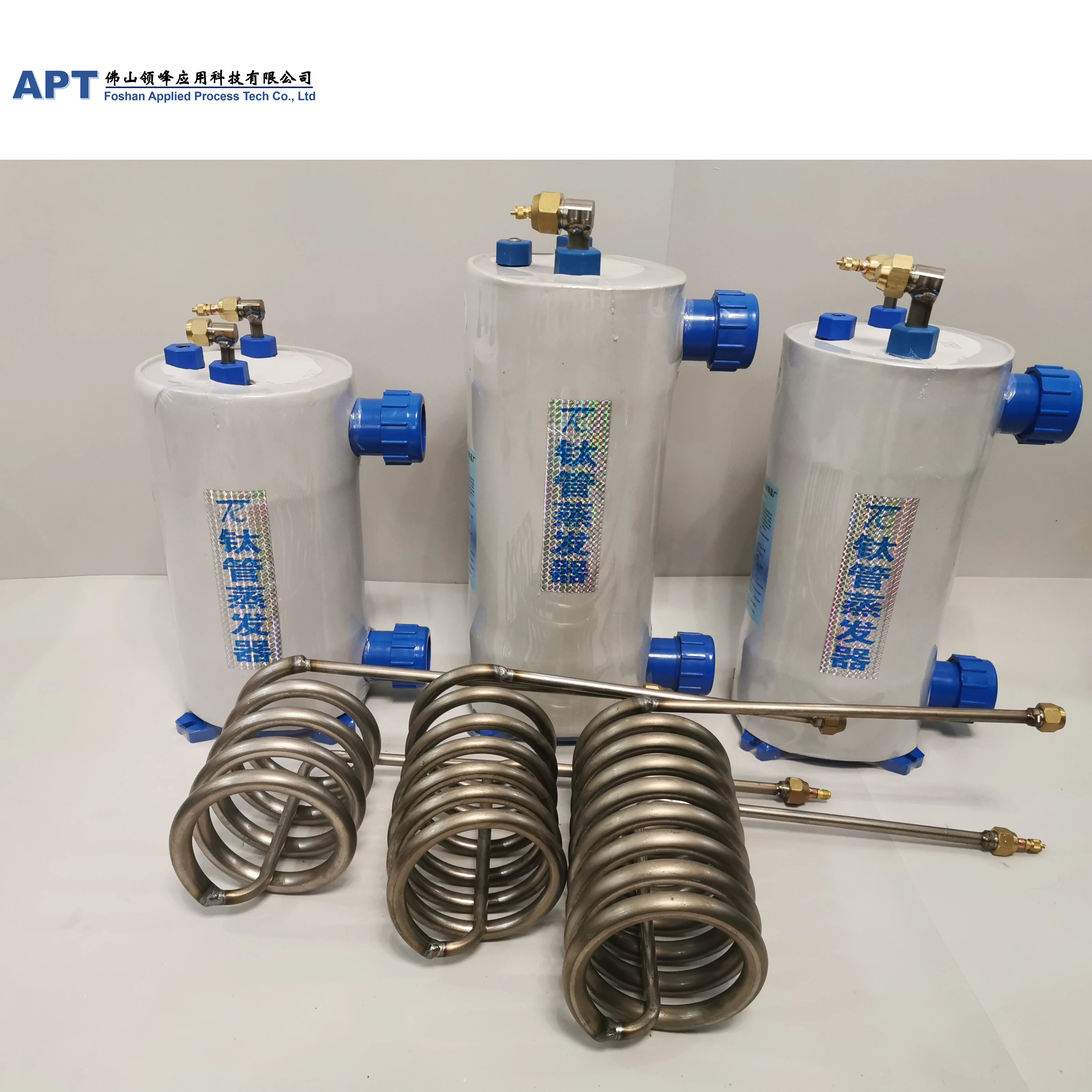

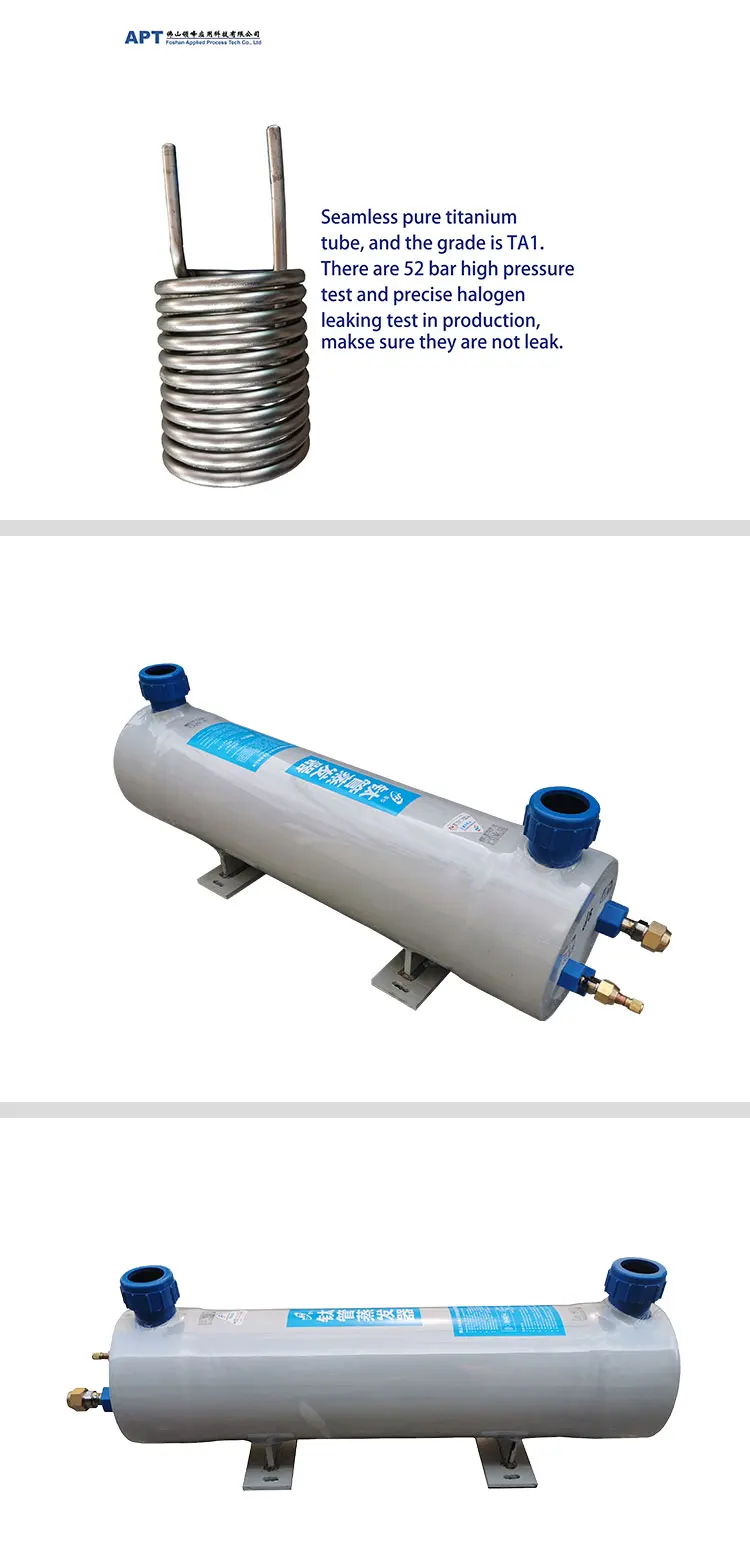

Seamless pure titanium tube, and the grade is TA1. There are 52 bar high pressure test and precise halogen leaking test in production, makse sure they are not leak.
Some of our plastic shell is no longer a traditional plastic welding process. The top and base are made of special PVC moulds by one-time injection moulding process, which meets the ROHS environmental protection requirements. Thanks to its perfect structure design, it can with stand high pressure and the maximum pressure is 2.1 Mpa.
The shell of the evaporator is covered with an insulating sponge, which can further improve the heat exchange effect and service life of the evaporator.

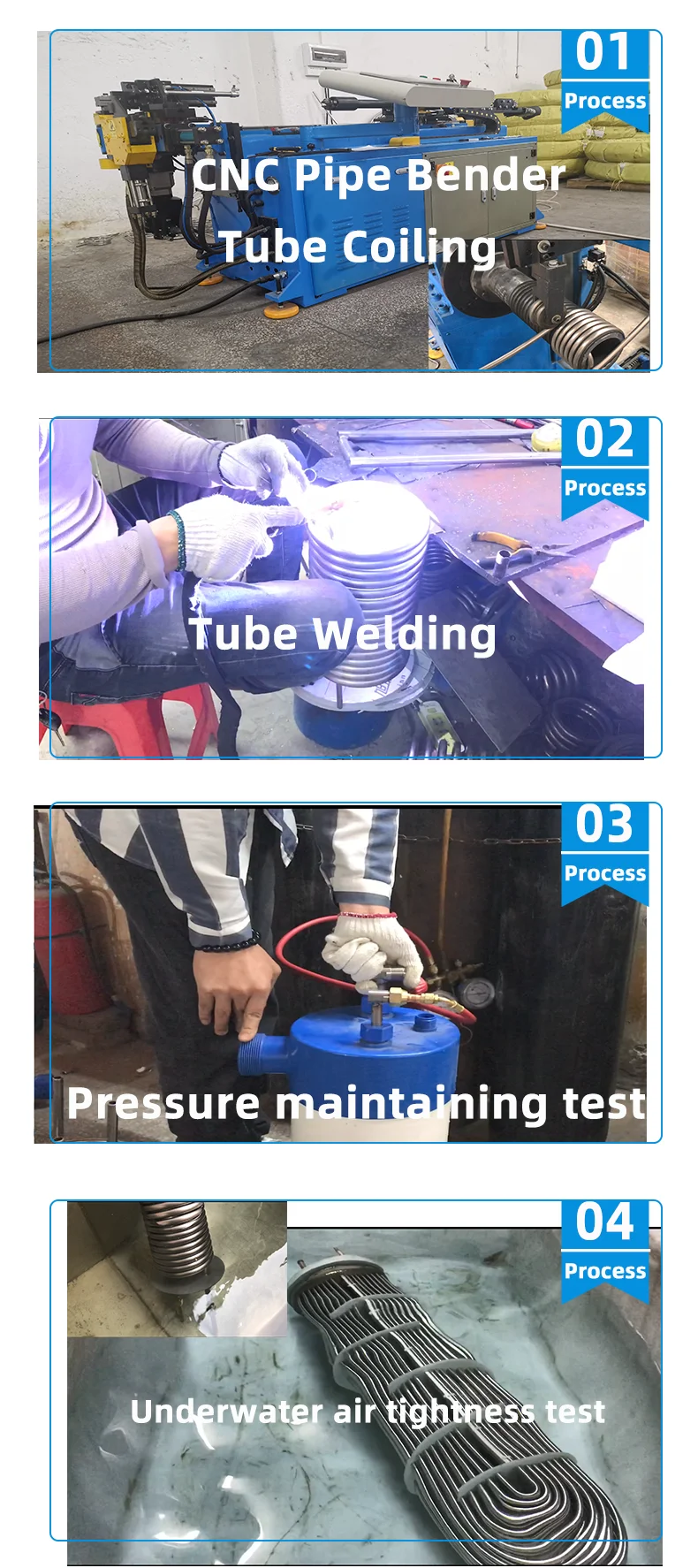

Production Process
Application Object
APT titanium coil tube heat exchangers with excellent ability for heat exchanging and adaptation are widely used for:
1. Heat pump water heater condenser

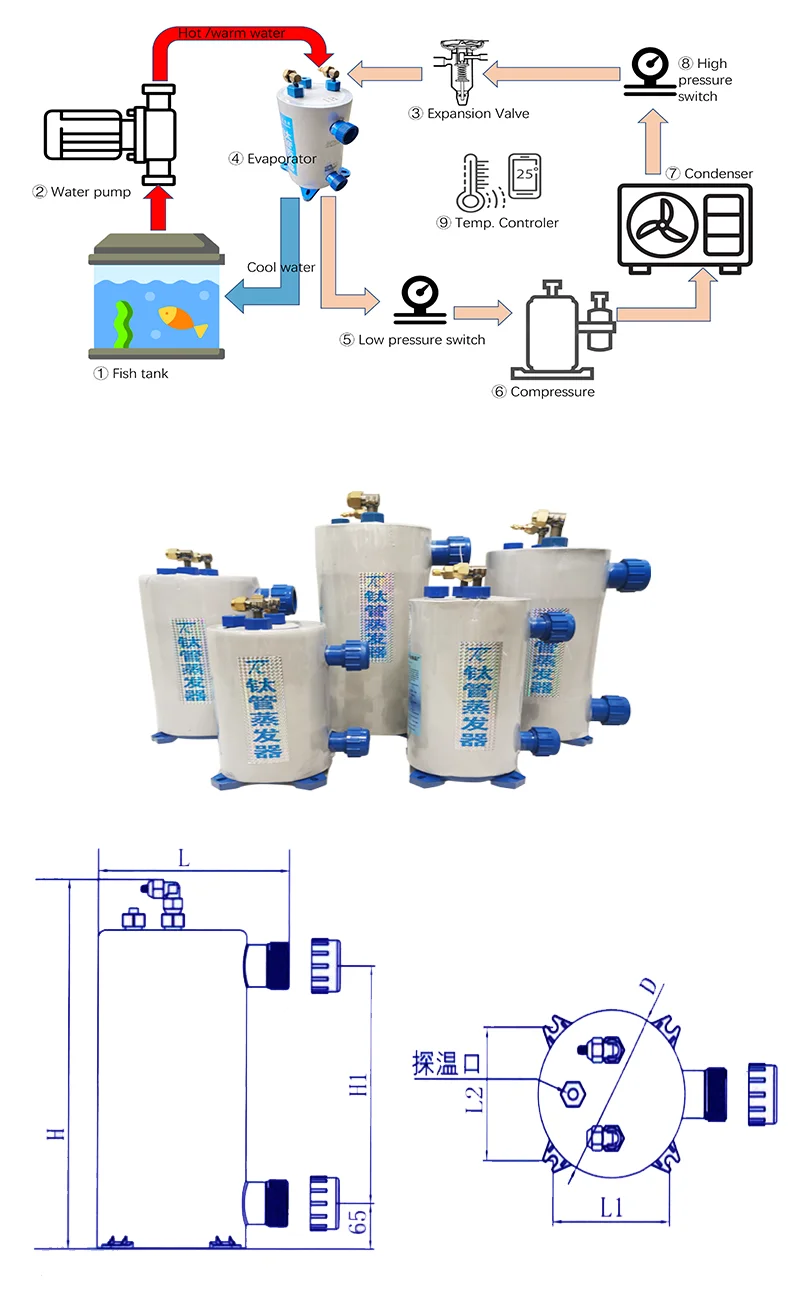

2. Condenser/evaporator for aquarium or aquaculture water chiller
3. Condenser for pool heat pump
4. Condenser/evaporator for water(ground) source heat pump
5. Cooler or regenerator for CO2 heat pump air
6. Condenser/evaporator for marine AC
7. Condenser for ice machine
8. Evaporator for water purifier
9. Evaporation or condenser for mariculture constant temperature machine
10. Condenser for dish washer
