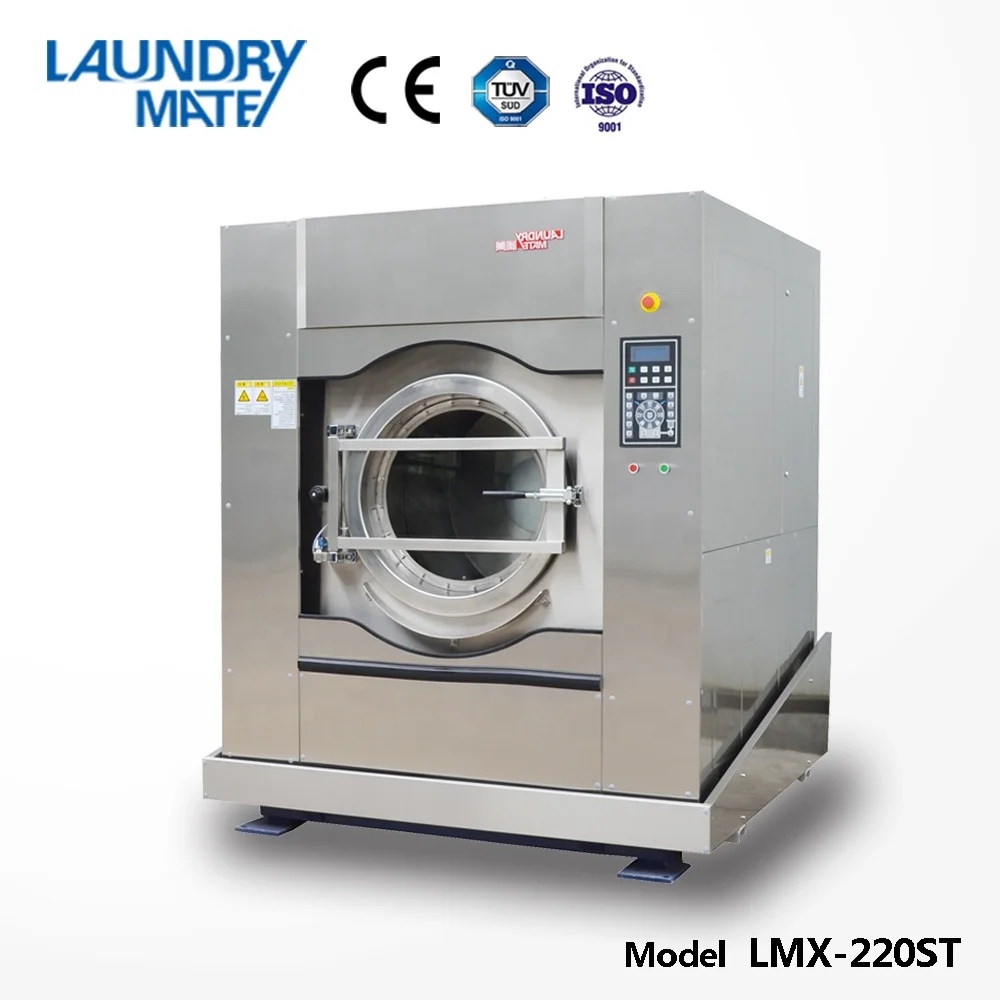

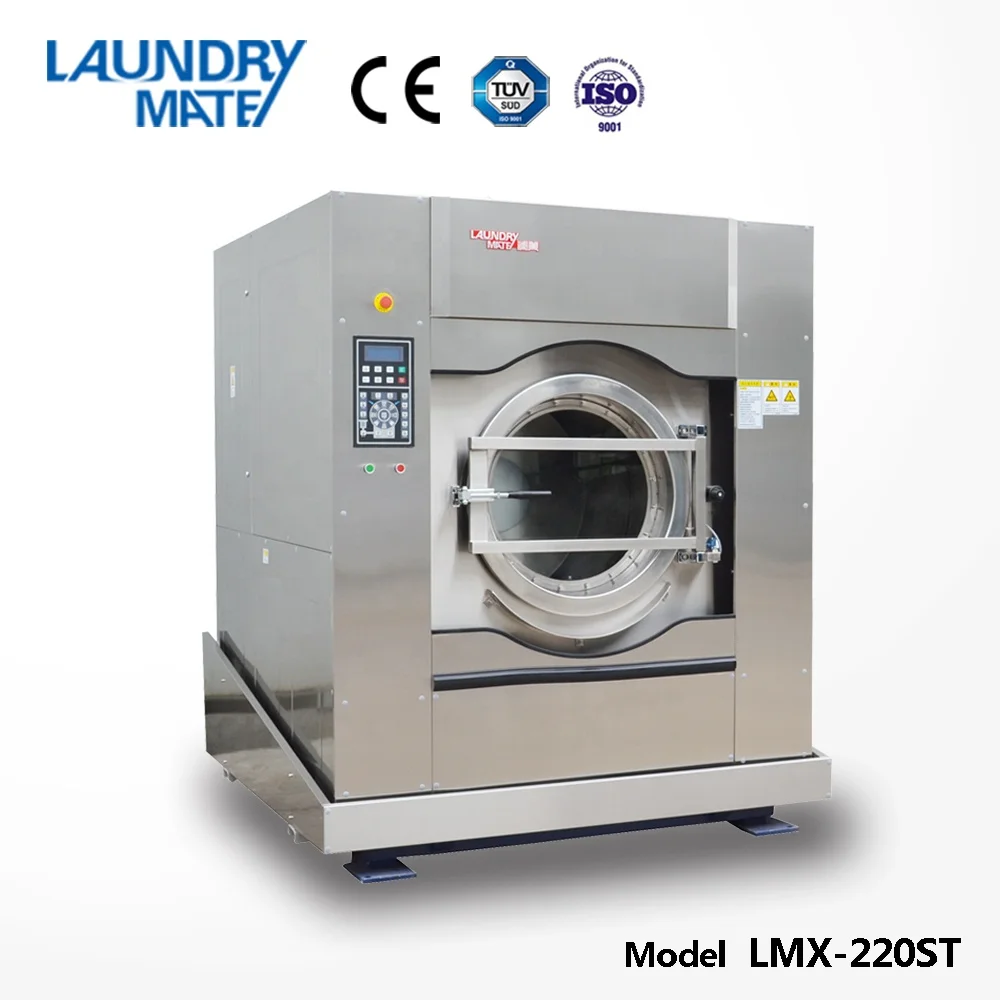

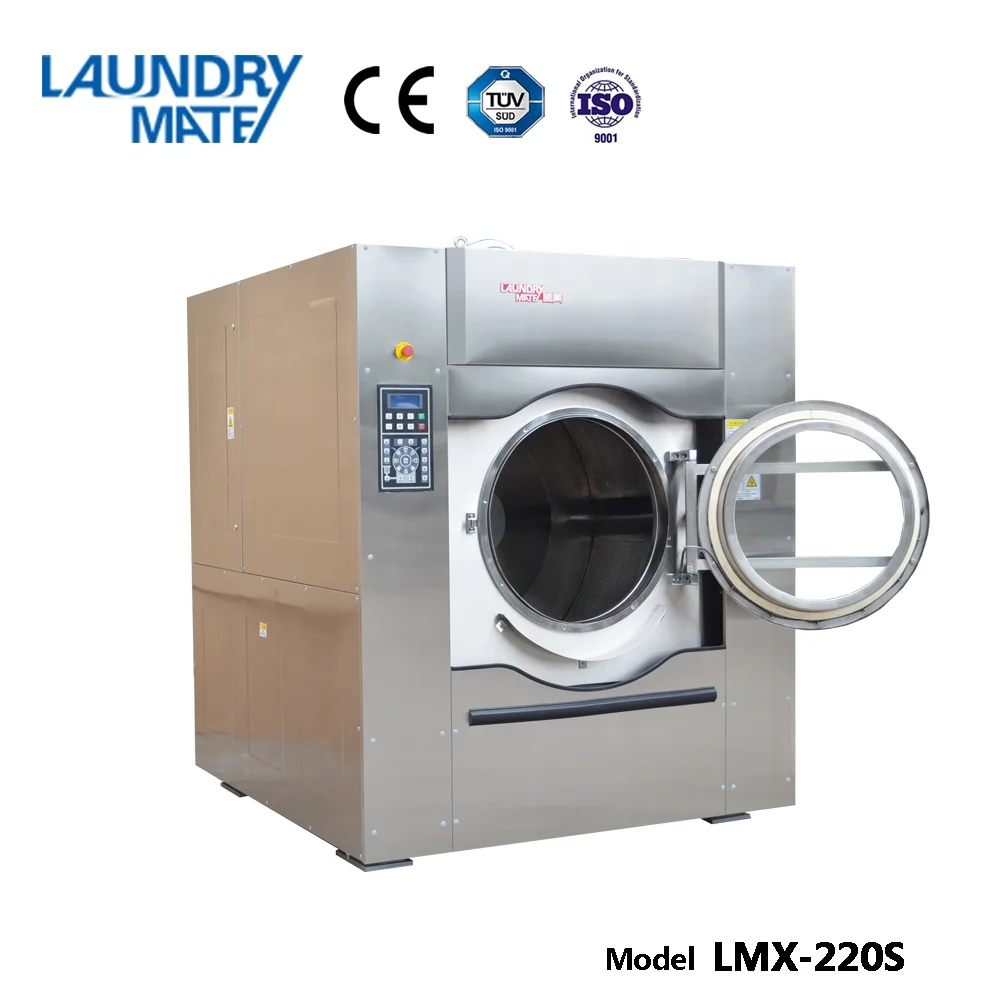

10 130KG washing industrial machine MADE SHANGHAI,CHINA
- Category: Industrial Washer >>>
- Supplier: Shanghai Laundrymate Machinery Co. Ltd.
Share on (62287411223):
Product Overview
Description
Product Description
1. Large door opening for easy loading and unloading for washer extractor
2. High-density flat hole technology of drum,perforated V-ribs for better cleaning result.
3. Anti-corrosion,tub and all metal part connect with water are AISI 304 stainless steel ensure long lifespan.
4. Heavy stainless steel material structure design,absorb vibration rate is up to 97%, freestanding.
5. Five soap box, unique tilt stainless steel door for not leakage.
6. High spin testing under large capacity of unbalanced loading ensure long lifespan of structure.
7. Narrow water tank design,improve water utilization,reduce detergent consumption,engergy save.
8. 300 G-fator,standard double water inlet,save water and time.
9. Unbalance design ensure balance of linen,efficient extraction.
10. Comprehensive security control system,water pressure lever diagnostic, more reliable.
11. High quality seal from German supplier, guaranty stable performance.
12. Fully programmable micriprocessor,USB port avaliable
Optional: * Detergent connect system * Second drain system
* Cambered loading part * Reuse water inlet
Main Parameters
| Washer Extractor Model No | Unit | LMX-65S | LMX-110S | LMX-155S | LMX-220S | LMX-285S |
| Heating | Steam/Electric | Steam/Electric | Steam | Steam | Steam | |
| Capacity | kg | 30.00 | 50.00 | 70 | 100.00 | 130.00 |
| Drum Diameter | mm | 902.00 | 1069.00 | 1090.00 | 1240.00 | 1300.00 |
| Drum Deepth | mm | 500.00 | 610.00 | 760.00 | 840.00 | 960.00 |
| Inverter Power | kw | 5.50 | 7.50 | 11.00 | 11.00 | 15.00 |
| Motor Power | 4.00 | 5.50 | 7.50 | 7.50 | 11.00 | |
| Multilingual Microprocessor | 30 Programmable programs + Maunal | |||||
| Washing Speed | rpm | 37.00 | 36.00 | 35.00 | 32.00 | 32.00 |
| Spin Speed | 750.00 | 720.00 | 722.00 | 650.00 | 640.00 | |
| G-factor | G-factor | 300.00 | 300.00 | 300.00 | 300.00 | 300.00 |
| Stainless Steel AISI 304 | Standard | Standard | Standard | Standard | Standard | |
| Cage & Cage House AISI304 | Standard | Standard | Standard | Standard | Standard | |
| Electrical | V/Ph/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Steam Pressure | bar | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 |
| Cold Water Inlet | inch | 43771.00 | 43771.00 | 43771.00 | 43771.00 | 43771.00 |
| Hot Water Inlet | inch | 43771.00 | 43771.00 | 43771.00 | 43771.00 | 43771.00 |
| Steam Inlet | inch | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Recycling Drain-optional | inch | / | 43771.00 | / | 43771.00 | / |
| Drain | mm | 140.00 | 140.00 | 140.00 | 140.00 | 140.00 |
| Compression Air Inlet | mm | 8 | 8 | 8 | 8 | 8 |
| Weight | kg | 1600.00 | 2860.00 | 2800.00 | 3200.00 | 4200.00 |
| Width | mm | 1460.00 | 1700.00 | 1650.00 | 1810.00 | 1870.00 |
| Depth | mm | 1440.00 | 1730.00 | 1960.00 | 2010.00 | 2130.00 |
| Height | mm | 1870.00 | 2080.00 | 2108.00 | 2340.00 | 2340.00 |

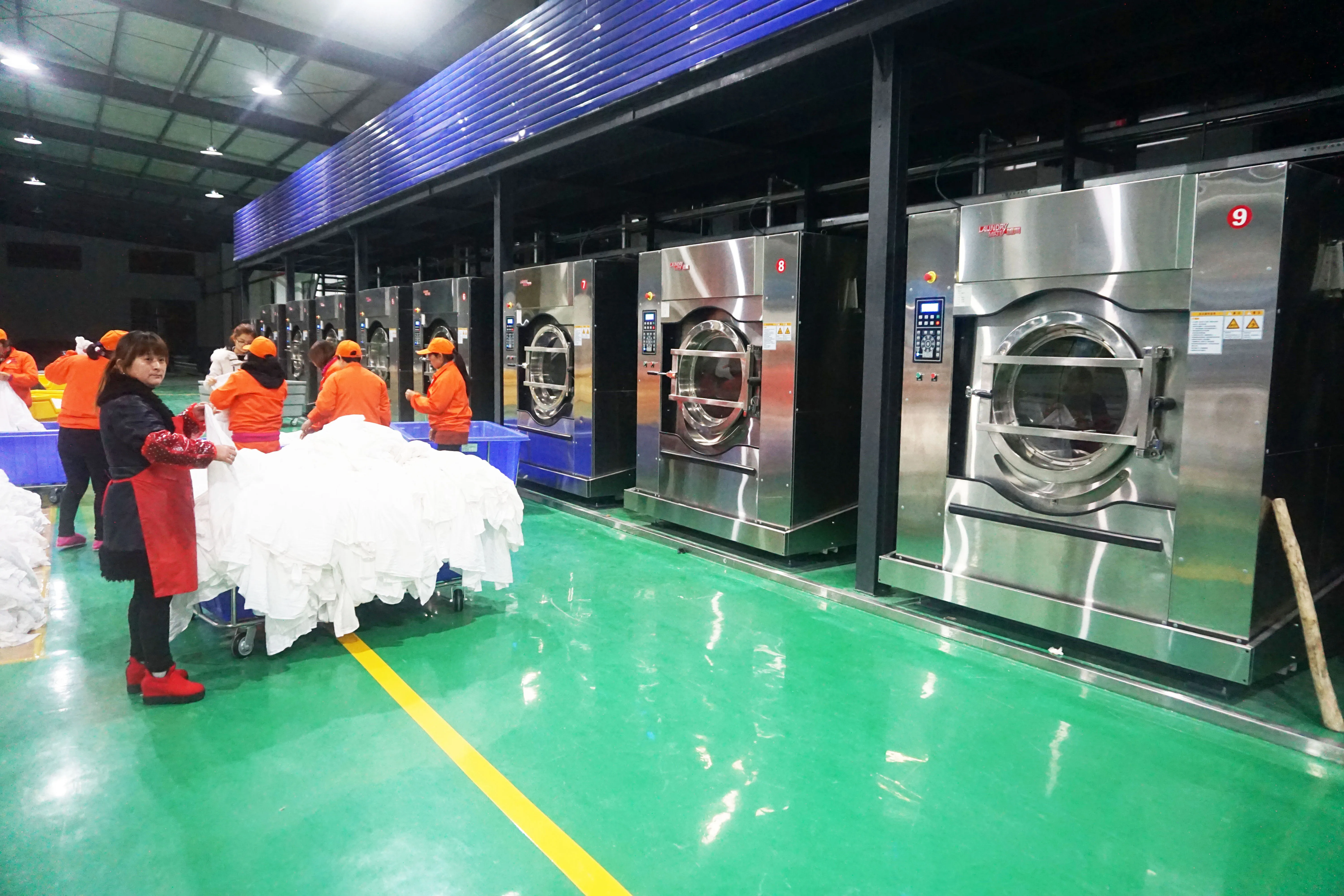

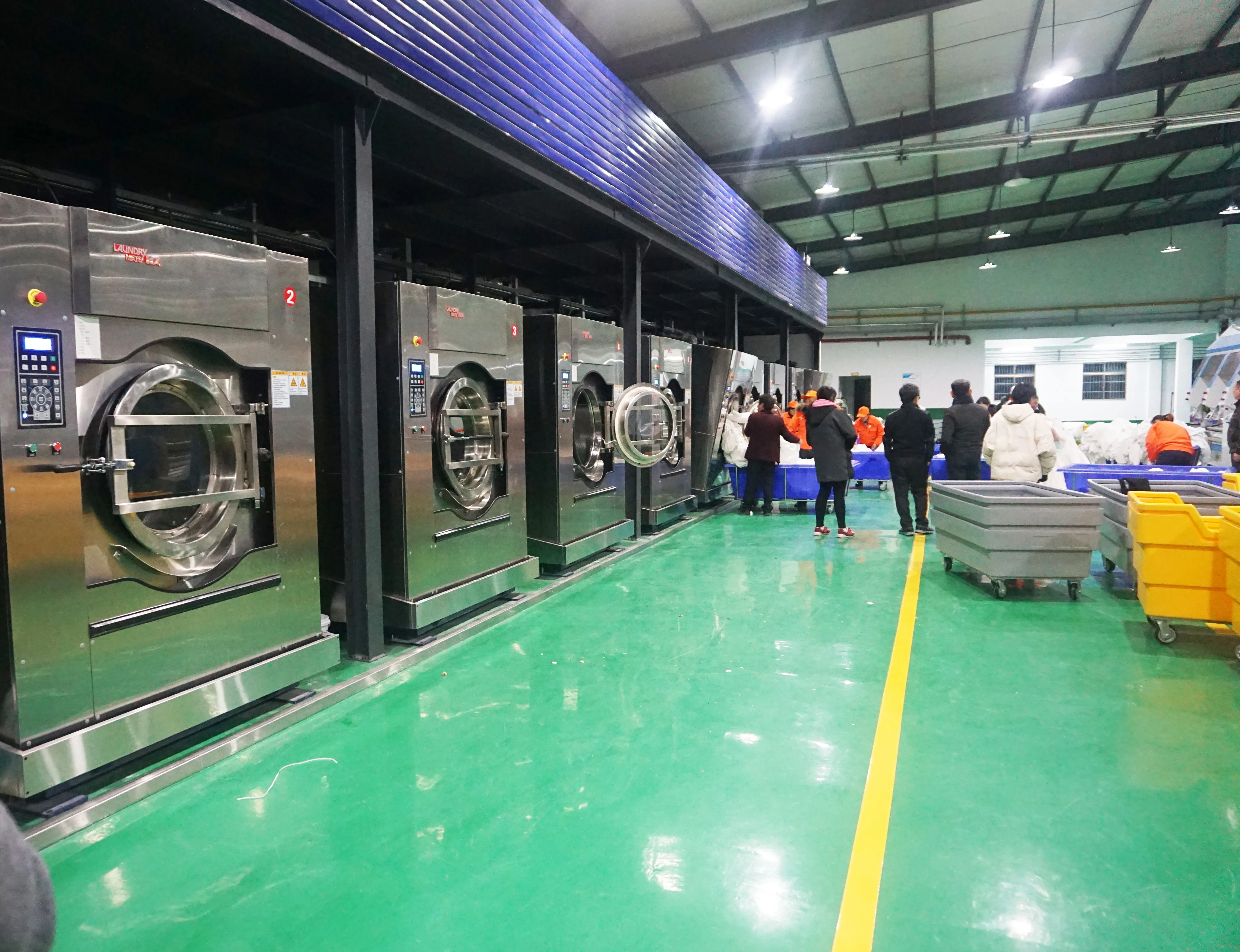

Customer use site
