IEC60228 flexible cable towline bending test machine
- Category: >>>
- Supplier: Shenzhen Honas Technology Co. Ltd.
Share on (62287653625):
Product Overview
Description

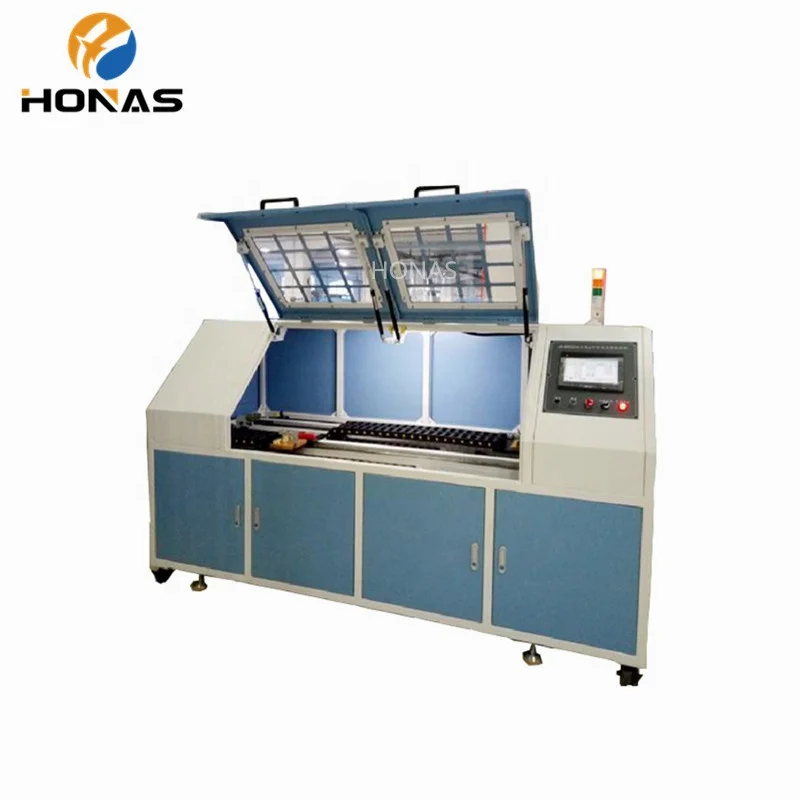

IEC60228 flexible cable towline bending test machine
.
Product Description
Application:
1.The flexible cable towline bending test machine is suitable for detecting repeated U-shaped bending fatigue tests of high flexible cables such as TUV, VDE and UL. Repeated U-bend fatigue tests such as robotic cables, flexible cables, flex-resistant flexible cables, towline cables, towline bending, and high-flexible cables.
2.Mainly detect whether the flexible cable is driven by the towline, whether there is a short circuit after the repeated high-speed U-bend test, whether the insulation sheath is cracked, damaged or other abnormal phenomenon. In order to detect the metal deformation of the metal conductor in the repeated high-speed U-bend test performance and highlight the defects.
The flexible cable towline bending test machine is use for requiring continuous bending of high-speed motion, such as machine internal routing, high-speed towline system cables, machine moving parts connection cables, machine internal wiring, and industrial towline cables, industrial robotic cable repeated bending fatigue test.
2.Mainly detect whether the flexible cable is driven by the towline, whether there is a short circuit after the repeated high-speed U-bend test, whether the insulation sheath is cracked, damaged or other abnormal phenomenon. In order to detect the metal deformation of the metal conductor in the repeated high-speed U-bend test performance and highlight the defects.
The flexible cable towline bending test machine is use for requiring continuous bending of high-speed motion, such as machine internal routing, high-speed towline system cables, machine moving parts connection cables, machine internal wiring, and industrial towline cables, industrial robotic cable repeated bending fatigue test.
Item | Parameter |
Test station | 1 group |
Test method | Horizontal bending, the sample is fixed in the corresponding drag chain, followed by the drag chain for horizontal bending test; |
Power down signal voltage | DC 24V |
Test space | Installable towline width 40mm-150mm |
Total number of cores per drag chain | 30 core |
Count digit | 0-9999999 times arbitrary setting |
Running schedule | 0-600mm adjustable, Generation inverter |
Test line speed | 0-2.0 m/s adjustable |
Test speed | 90 times / minute |
Bending radius | Fixed height 30mm-250mm up and down adjustment, suitable for drag chain with radius 15mm-125mm |
Motor | AC motor with frequency converter |
Standard | DIN VDE 0295, VDE 0281, IEC 60228 standards; |
Details Images
Main feature:
1. Control and setting: test speed, number of tests, test stroke (500mm), lock of test results, etc.; counting function;
2. The function of this machine is designed for front-to-back synchronous double-track operation, with independent test parameter setting and identification of test data acquisition and test results. Increased test efficiency and reduced energy for the company.
2. The function of this machine is designed for front-to-back synchronous double-track operation, with independent test parameter setting and identification of test data acquisition and test results. Increased test efficiency and reduced energy for the company.
