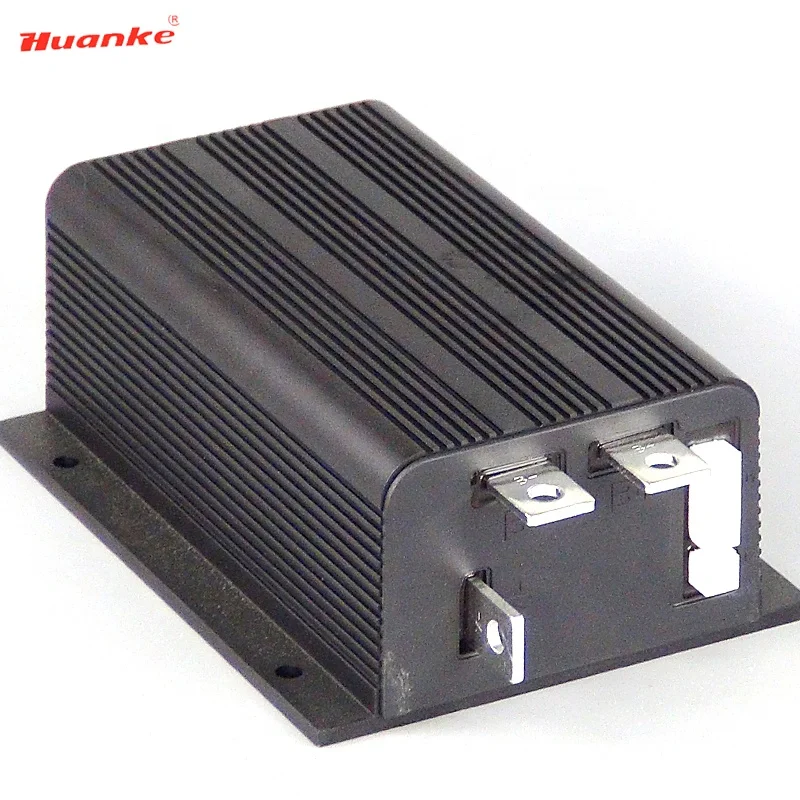

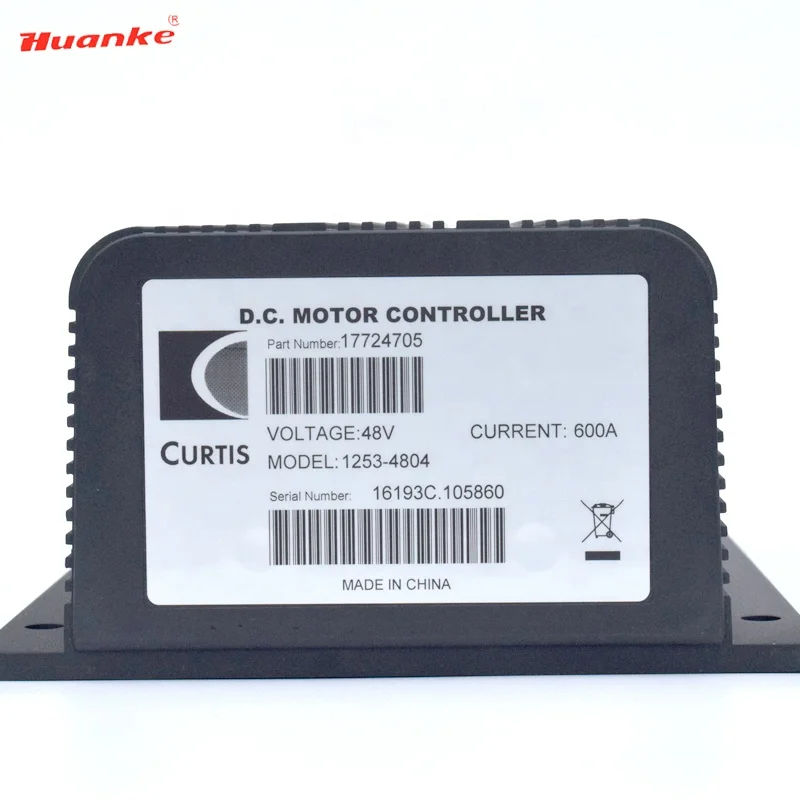

CURTIS 1253 4804 48V 600A lighting controller

1253 is a high-power hydraulic pump controller which provides both digital input and analog throttle based control of DC series wound motors. It features microprocessor based logic with programmable parameters and offers maximum flexibility for minimum cost.

APPLICATION

The 1253 Series Motor Speed Controller is designed as
an affordable solution for solid-state control of DC motor driven
hydraulic pumps. Systems integration features are designed
primarily for Class I and Class II material handling vehicles.

FEATURES

Smooth, Silent Control

•\tPulse-Width-Modulation control with programmable
acceleration rates provides smooth application and release
of pump motor torque.

•\t15.6 kHz PWM frequency for near silent operation

Programmable and Flexible

•\tEasily programmable through the 1311 handheld
programmer or 1314 PC Programming Station.

•\tExternal Status LED output for easy system troubleshooting.

 •\tFour Speed Select inputs with individually programmable
fixed speeds.

•\tProgrammable analog throttle input for precise speed control
with a variety of signal sources.

•\tProgrammable turn-off delay allows SS4 input to be used for
power steering.

•\tAdjustable minimum speed setting to maintain steering system
pressure and pump lubrication.

•\tLift lockout input to disable the controller at low battery state
of charge.

•\tSeamlessly integrates with Curtis model 803, 906, 841, and
enGage® IV displays for lift lockout functions.

•\tSeparate Interlock input to disable the controller when the
operator is not present.

Robust Safety and Reliability

•\tProgrammable lockout feature on startup prevents inadvertent
operation.

 •\tRedundant Watchdog timer circuits ensure proper software
operation.

•\tContactor driver short circuit protection.  Thermal cutback with warning and automatic shutdown faults
provides protection to the controller.

•\tPre-charge control prevents pitting of contactor tips at startup.

•\tRugged housing meets IP54 environmental ratings.

•\tFull power operation over -40 ªC to 80 ºC Heatsink
temperature range.

Every product is strongly packed by carton box with foam inside.

For example, 1 pc Curtis Controller 1204M-4201

Packing Size: 30x20x13 cm

Weight: 3 kg
