DC Inverter Heat Pump Water Heater Air Source (R32/16KW) Air To Water Heat Pumps

DC Inverter Heat Pump Water Heater Air Source (R32/16KW) Air To Water Heat Pumps

Category: >>>
Supplier: Guangdong Xingfeng Refrigeration Equipment Co. Ltd.

Price:$2,299.00 - $2,499.00

Quantity:

Product Overview

Description

Product Details

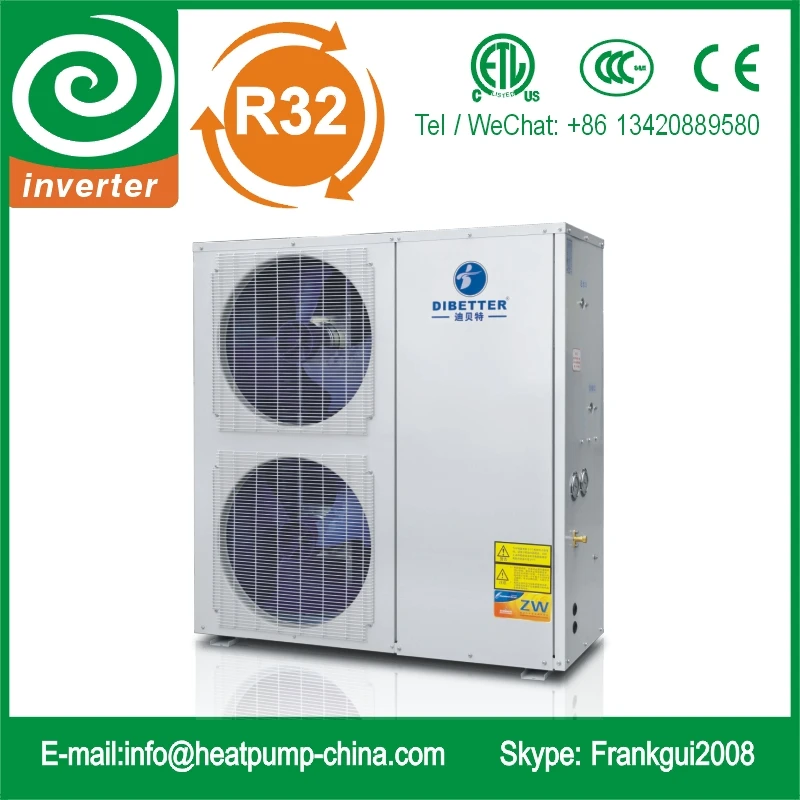

DC Inverter Heat Pump Water Heater Air Source (R32/16KW) Air To Water Heat Pumps

DIBETTER/GAGGIA brand DC inverter heat pump can provide house heating,cooling,domestic hot water.With advance DC inverter technology,it can save 30% energy compared to normal heating way.It is equipped with variable fan speed,working frequency can change according to the heat demand.It is best way for house heating.

DIBETTER DC Inverter heat pump advantages:

1) A+++ COP

2) DC inverter wilo water pump

3) EC Fan motor

4) Included safety valve

5) Included expansion tank

6) Included water flow detector

7) Wifi control function

Product Parameters

Technical parameters			DBT-16DC/32
Heating-1(7/6℃,30/35℃)	Rated capacity	kW	16.2
		Power input	kW	3.69
		COP	W/W	4.38
Cooling-2(35/24℃,12/7℃)	Rated capacity	11.8kW	6.13
		Power input	kW	4.4
		EER	W/W	2.58
Power source			V/Ph/Hz	220-240/1/50
Compressor type				Twin rotary
Refrigerant				R32
Max current			A	25
Max power input			kW	5.5
Max working pressure			Bar	42
Water proof				IPx4
Max output water temp.			℃	60
Max water pressure			Bar	3
Water pipe size			Inches	1
Drain water pipe size			mm	15
Rated water volume			m³/Hour	2.7
Dimensions			mm(HxWxL)	1310x425x1115
Net weight/Gross weight			kg	175/195

Wireless remote control function

DIBETTER heat pump has WiFi remote control, that’s mean, you can control your heat pump and know the working situation on your phone at any time and any place.

Energy Saving up to 30%

With the use of inverter compressors, brushless DC fan motors and PFC control method, the units can regulate the running capacity . With no frequent start-ups and stop runnings, the units work in stable condition with high efficiency. The energy consumption is 30% less than that of standard heat pump units.

Multi-Protection

DIBETTER DC inverter heat pump has various protection control like water flow switch protection,antifreezing protection,high/low pressure protection,compressor overload protection,high discharge temp protection,etc.

Timing in Sections Function

The heat pump units are with timing on/off function,and the function can be set at the same time.For example,the first section can be 8:00 unit on,and 10:00 unit off.And two section can be 17:00 unit on,23:00 unit off.More energy saving.

0.5 °C Precise Control

The units can change the operating frequency of the compressors automatically according to the heating or cooling demand. When the target temperature is reached, the units run at a lower frequency, and the temperature control accuracy can be as precise as 0.5°C

Speed up Heating/Cooling Time

When there is a large difference between the actual temperature and the programmed temperature, the unit can run at a higher frequency to make fast heating or cooling to increase or decrease the temperature rapidly.

Automatic Antifreeze Protection Technology under Standby Mode

Unit designed with multi-grade antifreeze protection control function. When outdoor ambient temperature is lower than setting function, unit operate antifreeze protection function automatically and keep the unit safe

Smart defrosting

The heat pump utilizes smart defrosting technology, reduce the defrosting times and extend the pool heating time, fast recover water-supply temperature, improve heat pump heating efficiency and keep comfortable pool water temperature.

Intelligent curve control mode

Intelligent working mode with winter heating curve, according to the change of outdoor ambient temperature, the unit will calculate water supply temperature automatically. Make more convenient and energy-saving.

Electronic expansion valve

500-step linear electronic expansion valve throttle control, wide adjustable refrigerant flow control range.
Automatically adjust expansion valve opening according to the degree of superheat.Rapid track of balance control point according to changes of temperature ranges

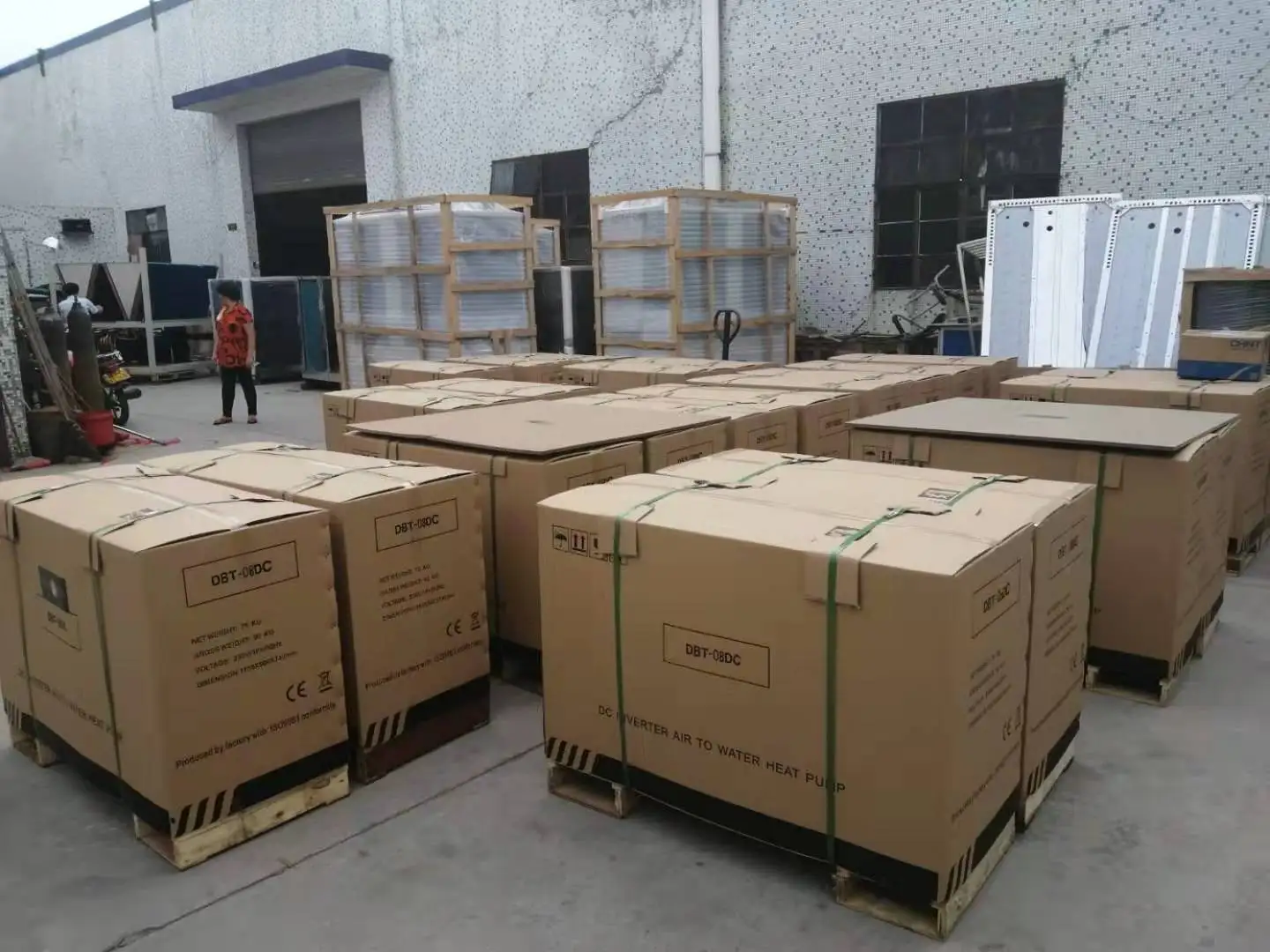

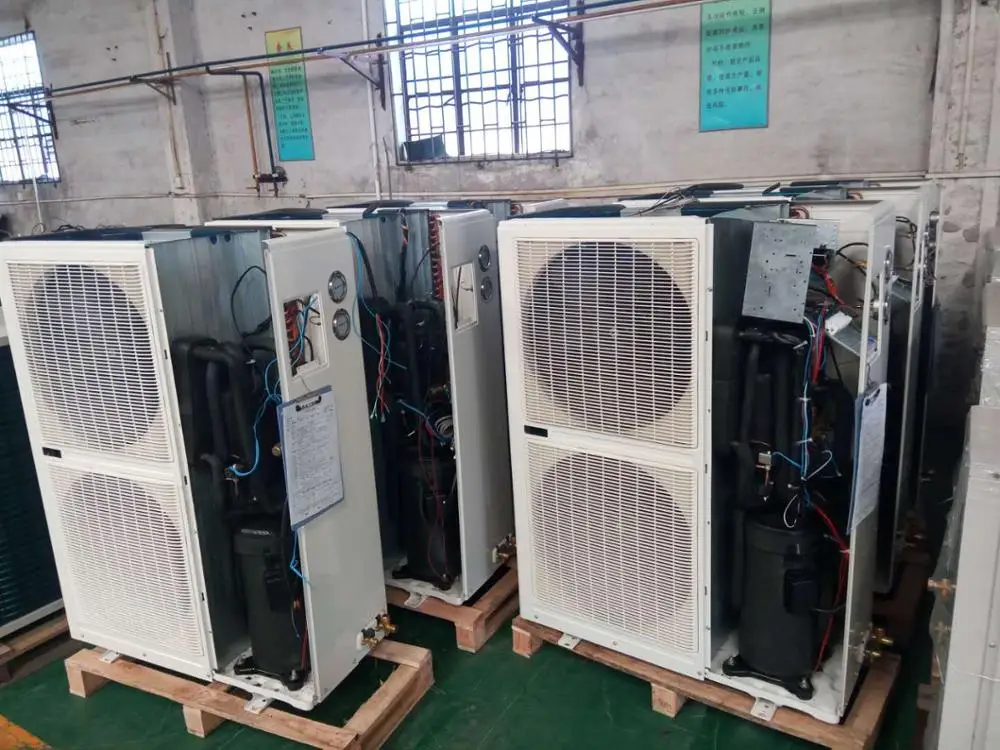

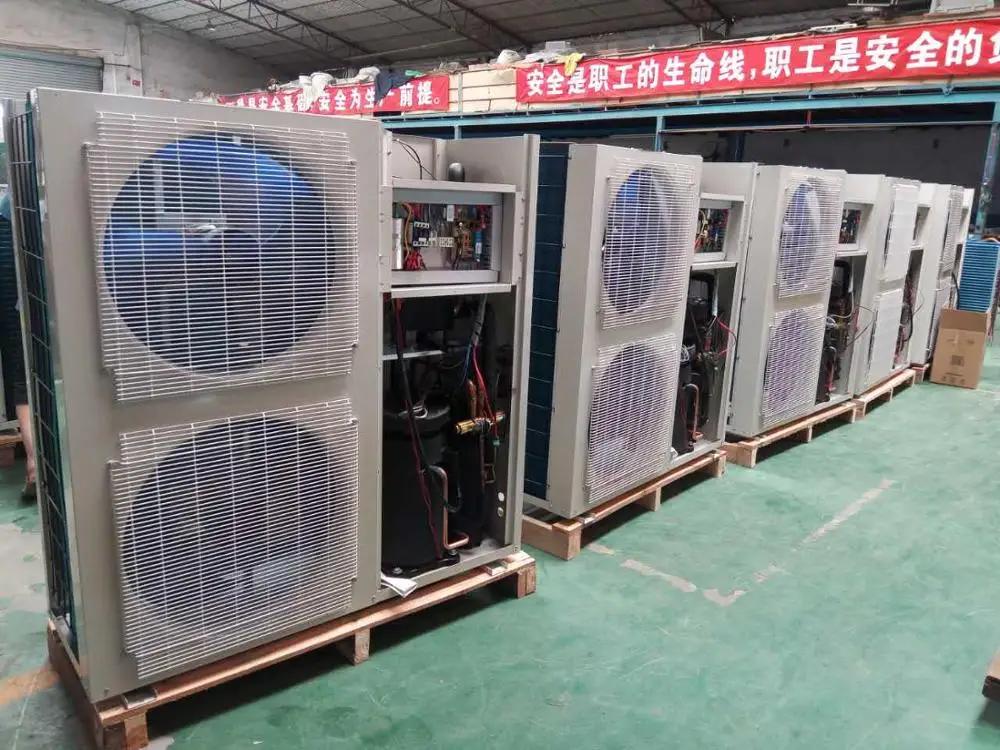

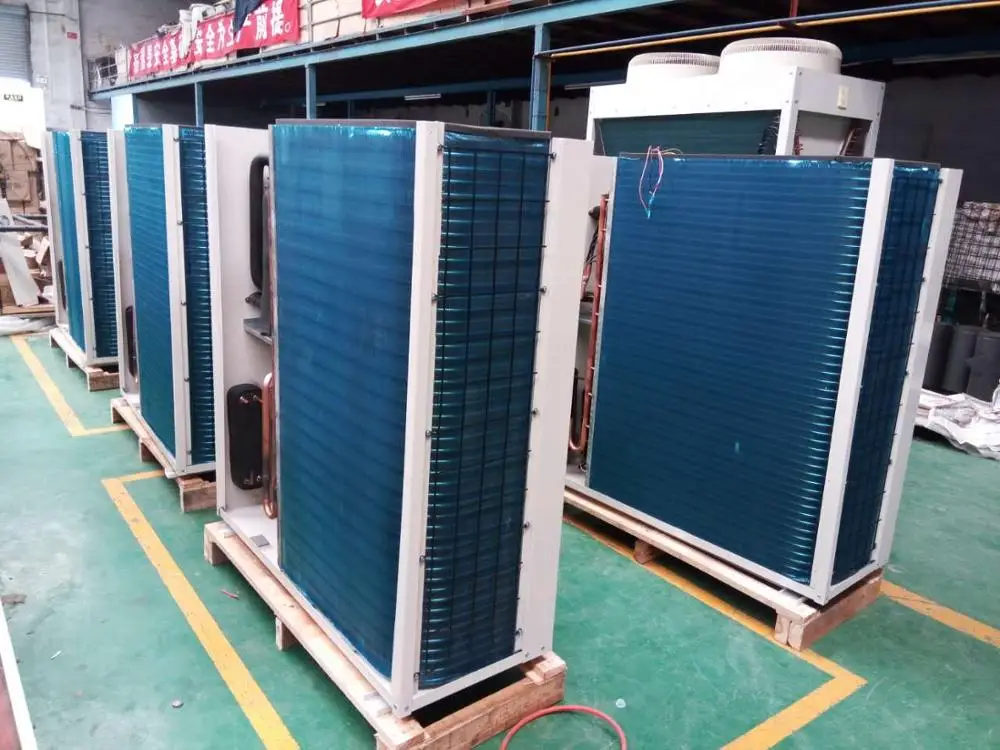

Product Details Show
