1 to 16 Loops Addressable Fire Alarm Control Module System
- Category: >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (62288632877):
Product Overview
Description
Description

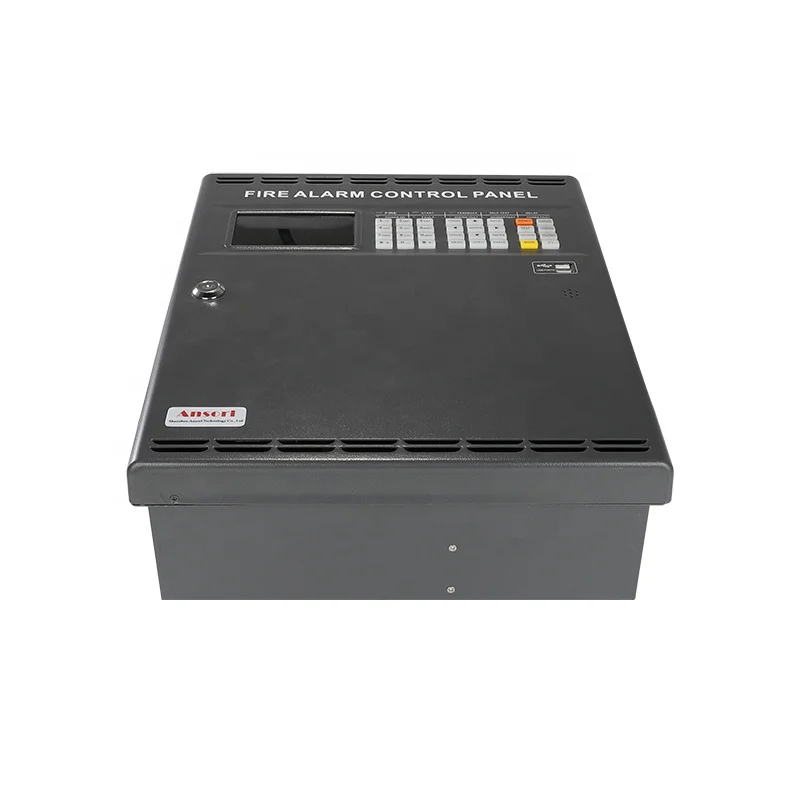

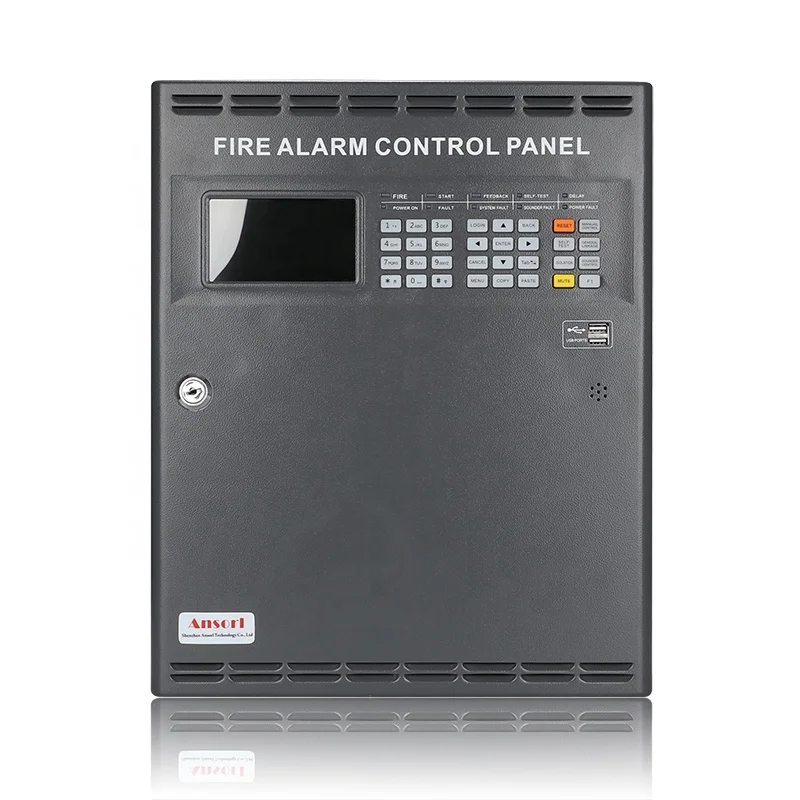

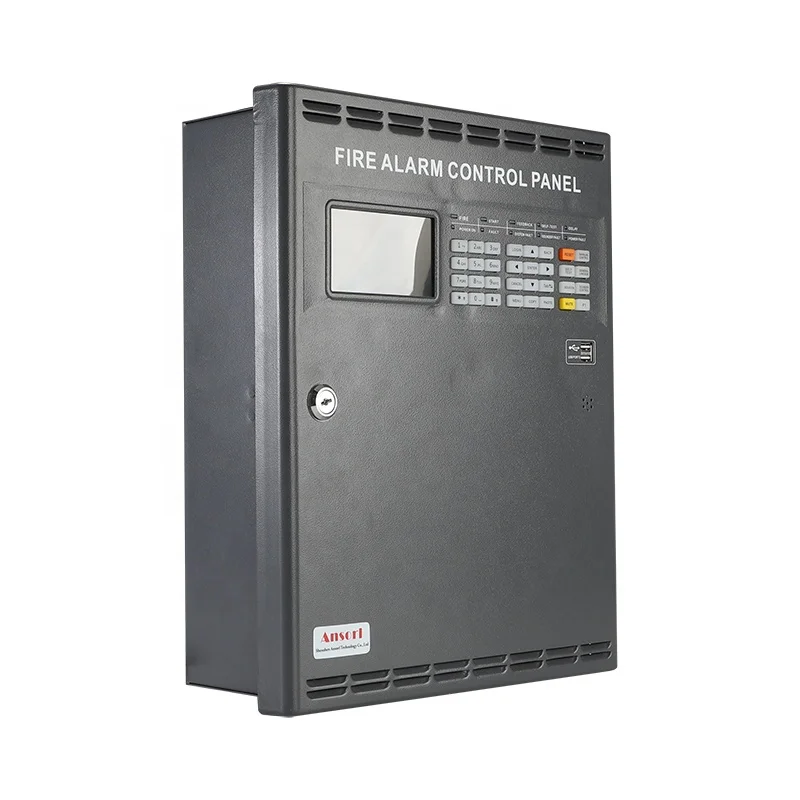

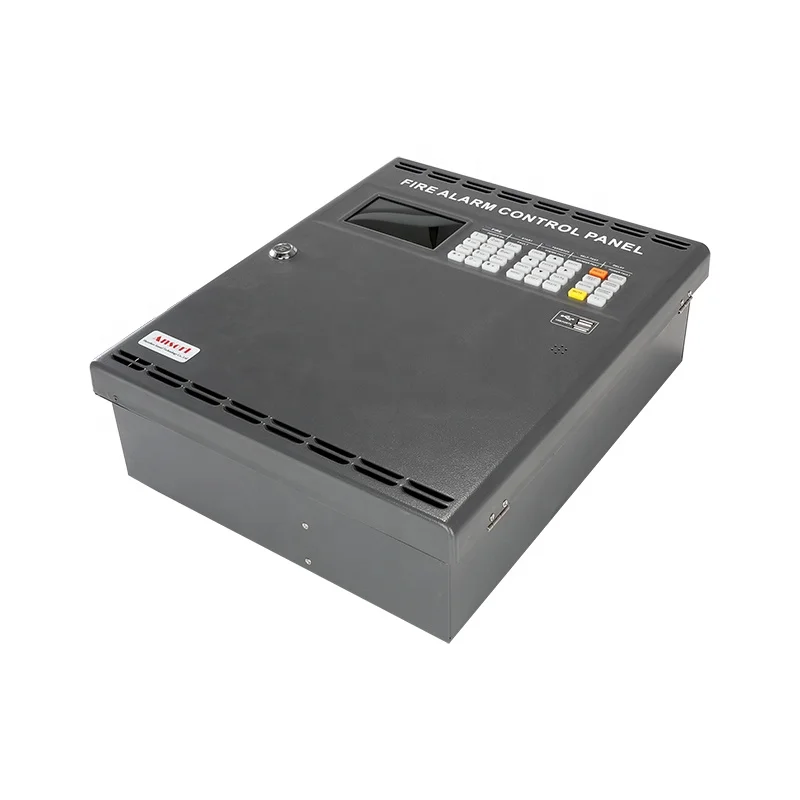

1 to 16 Loops Addressable Fire Alarm Control Module System
MN3010 fire alarm control panel (hereinafter referred to fire control unit) is a new generation of fire alarm control panel launched by Shenzhen Ansorl Technology Co., Ltd. In order to meet the engineering design demand, the control unit is provided with both linkage and control functions. It can support uses of other related products of the Company to form an integrated alarm and linkage control system, which is perfectly suitable for the application of small and medium-sized fire alarm and firefighting and linkage integrated control system. The fire alarm linkage control system is widely used in small and medium-sized firefighting engineering, such as high-grade office building, residence community, department store, gymnasium, exhibition room, library, workshop, supermarket and hotels, factory, apartment, hospital, school, shopping mall, bank etc.
Features
* Adopts the latest generation of high-speed microprocessor. Data processing rate and data storage capacity reach 100-fold and 1000-fold increase, respectively, compared to traditional technologies.
* MN3010 is provided with 4.3" display screen (LCD), with a display resolution of 430×272.
* The operation interface imitates Windows menus and window interfaces and is almost the same as the computer operating and using habits, thus facilitates the learning.
* Operation and control are flexible and convenient through the standard USB-interfaced computer keyboard and mouse + the panel buttons are used as field programming devices.
* It supports interconnection of 20pcs MN3010 control units and the maximum system capacity after networking reaches 20×324=6480 (alarm point).
* The system has the function of recording operation history: 1000 pieces of historical fire alarms, historical requests, historical feedbacks, historical faults and historical operations respectively.
* The user may customize the equipment type, which can facilitate the system integration.
* It has the modular manual single-point start/stop functions, which can facilitate field debugging and testing
* It has the single-point detector/module testing function, the detector working status and test data are clearly displayed.
* The system is provided with a dedicated mini-printer as optional, which is used to print various operating statuses of the system immediately.
* It can be accessed with area indicating panels, building indicating panels and floor indicating panels, which will extend display information of the control unit to corridor and other locations.
* The system carries out the hierarchy management of multi-level users and the users of different levels are granted with corresponding operating system permissions, which is convenient for system management
* MN3010 is provided with 4.3" display screen (LCD), with a display resolution of 430×272.
* The operation interface imitates Windows menus and window interfaces and is almost the same as the computer operating and using habits, thus facilitates the learning.
* Operation and control are flexible and convenient through the standard USB-interfaced computer keyboard and mouse + the panel buttons are used as field programming devices.
* It supports interconnection of 20pcs MN3010 control units and the maximum system capacity after networking reaches 20×324=6480 (alarm point).
* The system has the function of recording operation history: 1000 pieces of historical fire alarms, historical requests, historical feedbacks, historical faults and historical operations respectively.
* The user may customize the equipment type, which can facilitate the system integration.
* It has the modular manual single-point start/stop functions, which can facilitate field debugging and testing
* It has the single-point detector/module testing function, the detector working status and test data are clearly displayed.
* The system is provided with a dedicated mini-printer as optional, which is used to print various operating statuses of the system immediately.
* It can be accessed with area indicating panels, building indicating panels and floor indicating panels, which will extend display information of the control unit to corridor and other locations.
* The system carries out the hierarchy management of multi-level users and the users of different levels are granted with corresponding operating system permissions, which is convenient for system management
Parameters
Product Name | 1 to 16 Loops Addressable Fire Alarm Control Module System | ||||
Model No. | AS-MN3010 | ||||
Main Power Supply: | AC 220V±20%/50Hz or DC24V | ||||
Backup Power Supply | DC24V battery BAT12V/5AH | ||||
Ambient Temperature | Operating -10℃~+55℃ | ||||
Ambient Humidity | ≤95% (40℃±2℃, no condensation) | ||||
Display | 4.3" LCD display | ||||
Mini-Printer | Optional | ||||
Loop | 1 loop, 2 loops, 4 loops and more | ||||
Address | 100 points, 200 points, 324 points, 648 points and more | ||||
Network | CAN bus networkable | ||||
Standard | EN54-2 & EN54-4 | ||||
Application | Office, factory, warehouse, apartment, hotel, bank, supermarket, shopping mall, school, hospital etc. | ||||
Pictures
Factory Corners
Workshop and Warehouse
Mass Production
Package and Shipment
Certification
About Us
ANSORL LTD is a building automatic control system and fire alarm system solution provider. Over the past years, We have always been dedicated to serving the diverse needs of our customers. Although we started out as a tiny engineering and manufacturing company in China and have grown into a global player in the international safety market, Ansorl continues to work hard to earn your trust and retain your confidence in our product line.
We focuse on providing advanced buidling automatic control system and fire alarm / fire protection system. Ansorl works harder to tailor our solutions to meet your needs.
Ansorl is an ISO 9001:2000 certified manufacturer with number of testing facilities. We are also planning to expand our manufacturing and testing facilities in China to ensure that our products and manufacturing practices continue to meet the highest standards.
We invite you to get to know Ansorl better. Experience the best fire alam technology and solution. We are convinced that you will find Ansorl superior to any other detector company in China. You'll see it in our facilities, in our people, and in the products that Ansorl makes. It's our uncommon commitment to excellence and quality, and to the automation and productivity of our customers.

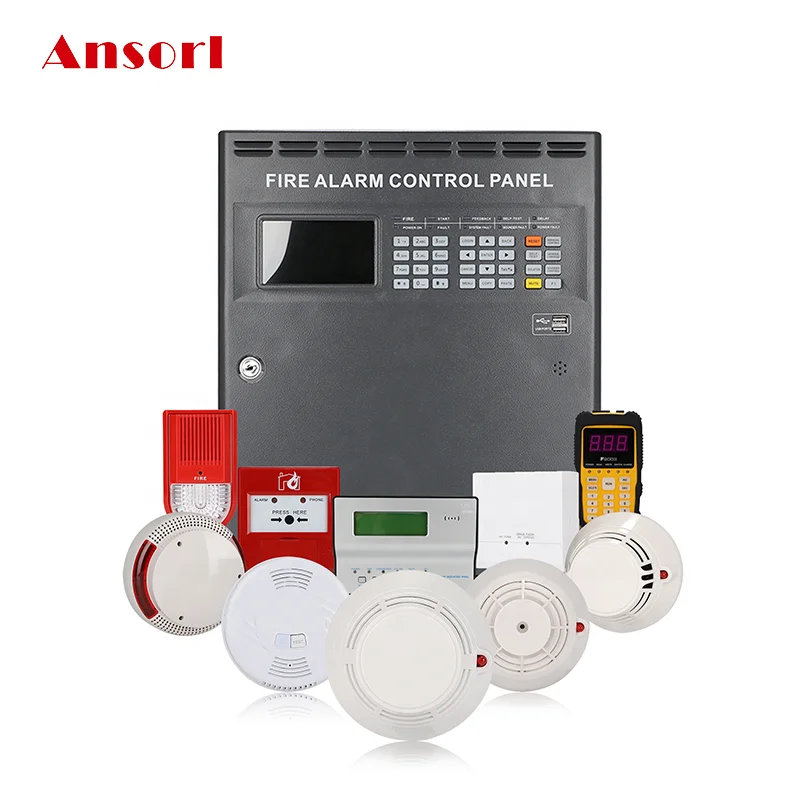

Product Lines
* Conventional and Addressable fire control panel
* Smoke, heat, gas, flame, beam detector
* Manual call point and pull station
* Audio/visual alarm, strobe horn
* Standalone battery operated fire alarm detectors
* Explosion-proof and weather-proof fire alarm devices
* FM200/co2 gas extinguishing control system
* Other fire safety products
Our Service
* Prompt Response.
* Standard Quality Control System.
* Sample & Customized Order Can Be Supported.
* Independant R&D / Manufacturing / Customer Service / Marketing Dept.
* Direct Control On Materials, Production Status, Quality Checking.
* Fast Delivery Time for Standard Products.
* State-of-the-art Technology and Models.
* Waranty Guarrentee.
