1U 19" 4 x CAT5 ports LCD KVM Switch console

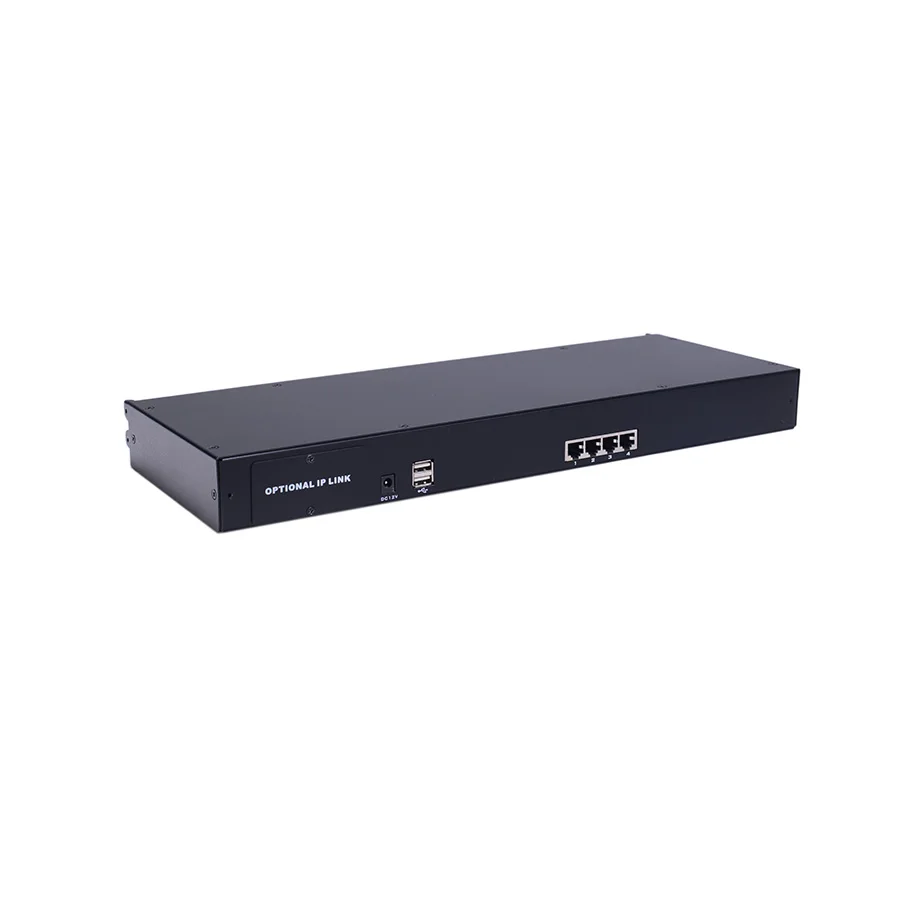

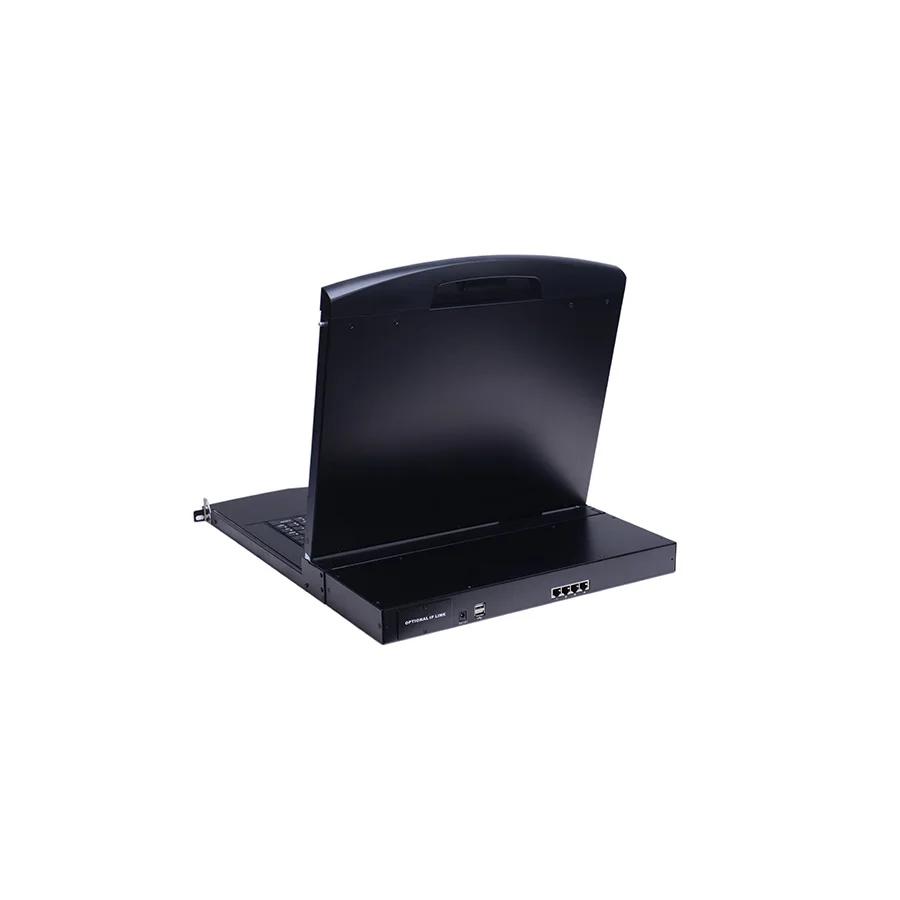

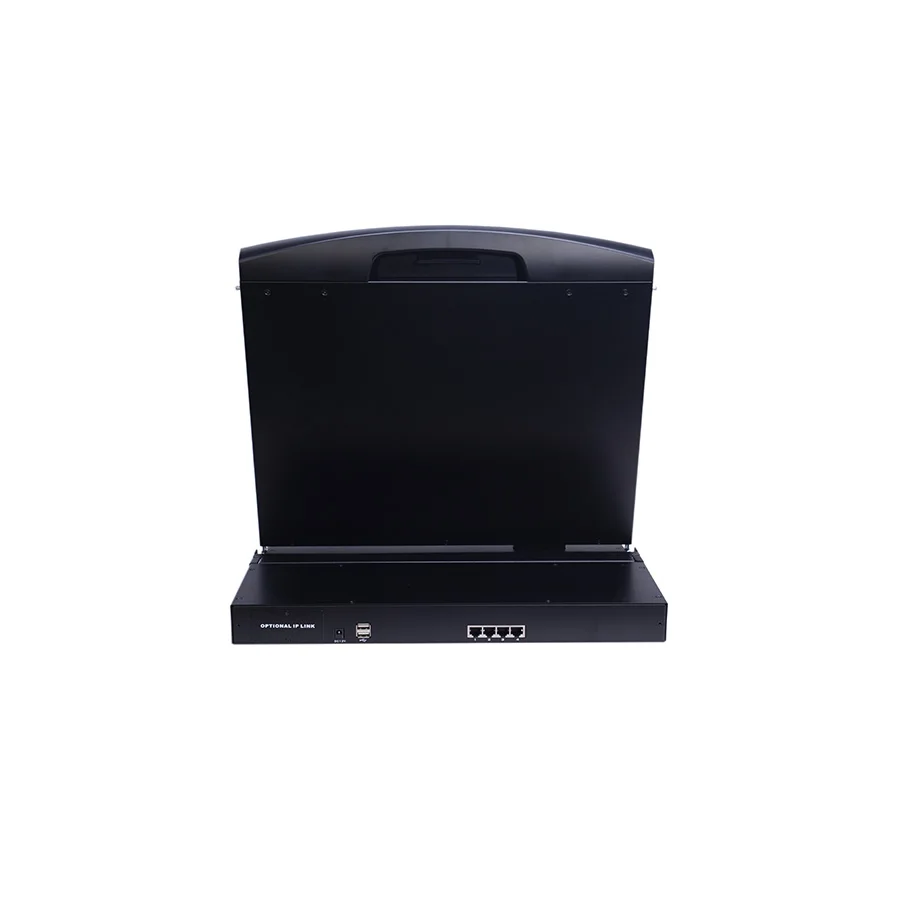

CAT5 KVM control platform WB-AS-7104TLS is one with integrate a 4 ports KVM switch, monitor, keyboard & mouse into 1U height, could realize remote control. It controls 4 computers with one platform (keyboard, mouse and monitor).

FEATURES

Control Platform

*  Control platform with LCD, keyboard, mouse and multiple ports CAT5 KVM switch.

*  1U height, suitable for 19’’ standard cabinet installation and metal structure.

*  18.51” LED screen with high brightness, high clear and high resolution.

*  Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees.

*  Ultra thin keyboard with keypad.

*  Mouse touch board with two function button.

*  Front panel with lock to prevent damage by accident.

*  Built-in power.

*  Automatic power on/off. When pulling control platform out from cabinet, the power turns off automatically. When pushing it into the cabinet, the power turns on automatically.

*  An easy to use OSD menu.

Switch

*  One control platform can control 4 computers by direct connection.

*  Be compatible with USB/PS.2 standard interface.

*  Support VGA, SVGA, XGA video input.

*  Accord with DDC, DDC2, DDC2B standard and VESA standard.

*  Support maximum resolution of 1920 * 1080

*  Support multiple operating systems: WIN95/98/98SE/ME/200/XP/7/ NT, UNIX, LINUX.

IP Module

*  RJ45 Port, realize remote control
