Product Overview

Description

Dark Energy Isolated Driver LED 100W Constant Current Source EUM Series Inventronics LED Drivers





Features:

• Compact Metal Case with Excellent Thermal Performance
• Full Power at Wide Output Current Range (Constant Power)
• Adjustable Output Current (AOC) with Programmability
• Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
• Output Lumen Compensation
• Input Surge Protection: DM 6kV, CM 10kV
• All-Around Protection: OVP, SCP, OTP
• Waterproof (IP66 / IP67) and U* Dry / Damp / Wet Location
• SELV Output
• TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
• 5 Years Warranty



Description:

The EUM-100SxxxDG series is a 100W, constant-current, programmable IP67 LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

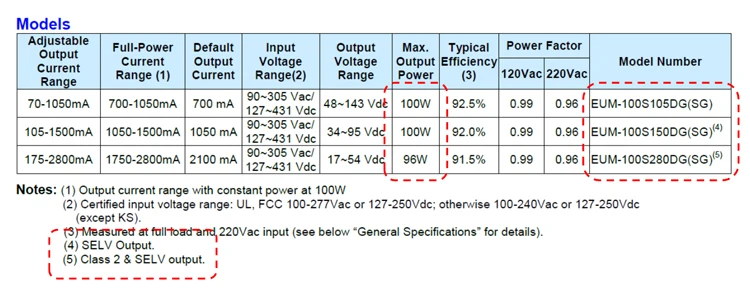

Models:

Adjustable Output Current Range	Full-Power Constant Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency(3)	Power Factor		Model Number(3)
							120 Vac	220 Vac
70-1050mA	700-1050mA	700mA	90 ~ 305 Vac/ 127 ~ 431Vdc	48 ~ 143Vdc	100W	92.5%	0.99	0.96	EUM-100S105DG
105-1500mA	1050-1500mA	1050mA		34 ~ 95Vdc		92%			EUM-100S150DG
175-2800mA	1750-2800mA	2100mA		17 ~ 54Vdc		91.5%			EUM-100S280DG



Notes: (1) Output current range with constant power at 100W
(2) Certified input voltage range: U*, FCC 100-277Vac; otherwise 100-240Vac or 127-250Vdc (except for KS).
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV Output.
(5) Class 2 & SELV Output .
