70 75 82 86 inch infrared touch screen interactive electronic blackboard for school teaching

Specification

Model

Model

YC650E/YC700E/YC750E/YC860E

Type

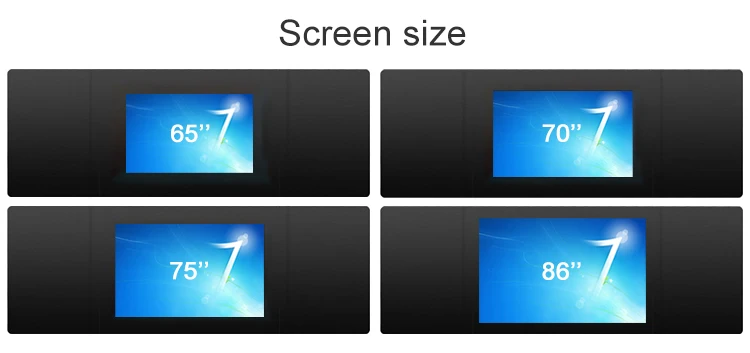

65/70/75/86inch

Operating System Info.

CPU

Quad core

RAM

2GB RAM; (optional)

Memory

32GB;(optional)

Windows OS

Optional

Android OS

Standard

Touch Info.

Touch Technology

Infrared touch

Touch points

10 points

Input way

finger touch,or capacitive pen

Touch life times

Over 60,000,000 times

Touch response speed

6~8ms

Display Panel Info.

Display Type

LED

Resolution

1920*1080 FHD (3840*2160 UHD option)

Brightness

350~450(cd/m2)

Ratio of display

16:09

Max. viewing angle

178°

Contrast ratio

5000:1TYP

Tempered glass(option)

Glass type

4mm tempered glass

Glass transmittance

95%

Interface Info.

Input:

HD.MI in*2; VGA*2; VGA AUDIO*2; USB*2; YPbPr*1; AV*1; MlC*1

Output:

USB TOUCH*1; EARPHONE OUT*1; AV OUT*1; Coaxial OUT

Touch connection port

USB2.0

Touch output standard

32768(W)* 32768(D)

Video format

PAL/SECAM

Other Info.

Power of display

≤260W

Colors

10bit, 1.07B

Life time

50,000h

Working voltage

50-60HZ 100-240V

Standby power

≤0.5W

Working temperature

0~45℃

Storage temperature

-20℃~60℃

Working humidity environment

5%-90%

Power of speaker

2*30W

Frame material

Alloy

Installation

Wall mounted bracket

Package Info.

Package box

Honeycomb box(30mm thickness)

Size of product(mm)

4200*1250*60
