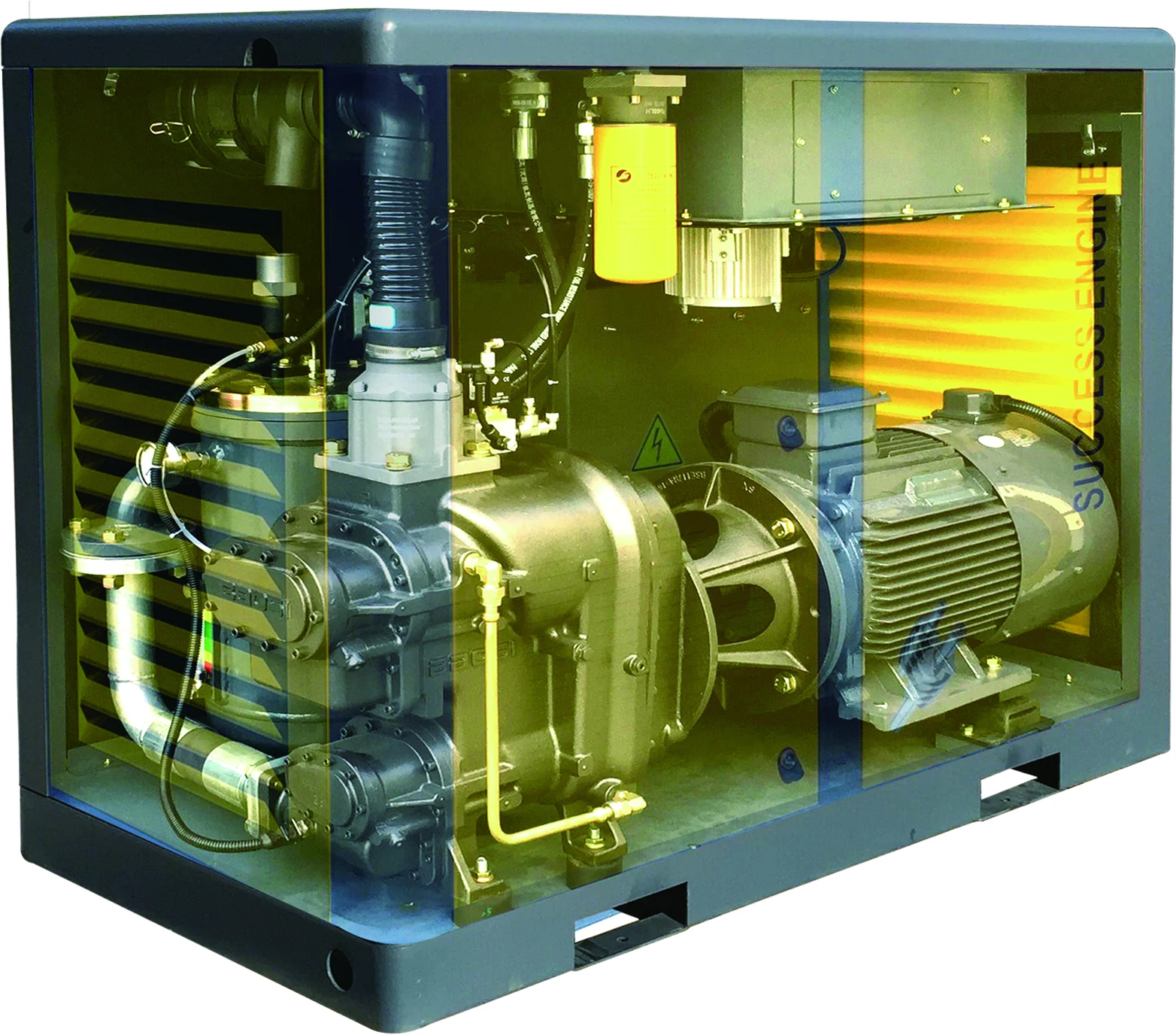

Reliable, Ultra-Efficient Performance: Use the newest UV rotor of profile line with large diameter and low speed. The two pairs of rotors are independent of the two compression units, the primary compression rotor and the secondary compression rotor are combined in same compressor housing. Respectively, through the gear drive, the two inter-stage rotors are in the best line speed state of operation, and the compression efficiency is extremely high. This air compressor’s has smaller host compression ratio, less leakage, and the volume efficiency is higher than the single-stage compression of 15%, the energy-saving effect is remarkable.
Precise Control: Personalized intelligent control system, Intuitive Intellects controller gives you complete, fingertip access to your compressor, including easily adjustable operating parameters and time-saving on-board diagnostics.
Less-Leakage Design: Selection of high durability, strong bearing capacity of SKF heavy-duty bearing to ensure that the core components with excellent reliability and durability. Using O-ring fittings significantly reduces the potential leakage problems associated with conventional threaded fittings..
Flexible Design Options: Air-cooled or water-cooled, Standard and VSD type, Voltage & Frequency customized, Low Pressure (3~5 Bar)Soft starting option, mixed flow system temperature control valve.
(Energy efficiency and durability, energy savings up to 15% on full-load)
Technical Parameters
MODEL
Power
(kW)
Pressure(bar)
Air Flow
(m3/min)
Outlet Connection
Cooling water/air capacity
(air -kw;warter-m3/h)
Weight
(Kg)
Dimension
L×W×H mm
SE315A(W)E-7
SE315A(W)E-8
SE315A(W)E-10
SE315A(W)E-12.5
315
7
8
10
12.5
65.00
63.00
59.00
53.00
DN 125
Air-7.5kw
Water-30m3/h
9200
3200x2200x2300
SE355A(W)E-7
SE380A(W)E-8
SE400A(W)E-10
355
380
400
7
8
10
73.20
72.90
72.60
DN 200
Air-11kw
Water-35m3/h
9500
5060x2350x2400
SE400A(W)E-7
SE430A(W)E-8
SE450A(W)E-10
400
430
450
7
8
10
82.50
82.20
81.60
DN 200
Air-15kw
Water-45m3/h
10000
5060x2350x2400
SE500A(W)E-7
SE540A(W)E-8
SE570A(W)E-10
500
540
570
7
8
10
102.00
101.60
101.20
DN 200
Water-55m3/h
10500
5060x2350x2400
Support & RFQ
Q: Are you a factory or trading company?
A: We are the professional screw air compressor manufacturer established in 2004
Q: Where is your company and factory located? How can I visit you?
A: Our overseas sales center is located in No.666,Xinbo Road, Maogang Industry Zone, Songjiang, Shanghai, China(201606). It takes about one hour from Shanghai Pudong airport or Hongqiao Airport. We warmly welcome all our clients from home or abroad to visit us!
Q: How does your company and factory do regarding quality control?
A: Quality is priority. SUCCESS ENGINE always attach great importance to quality controlling from beginning to the end. Our factory comply with the IS09001 standard strictly.
Q: What is your after-sale service?
A: The guarantee period is 12 months from the date of the installation or 15 months from the day of delivery. We will take full responsibilities for the charges caused by the defects during the guarantee period.
Service & Quality Gu
1. Consultation: Professional team for pre-sale consultation and the team comprises product engineer, sales engineer, installation and after service engineer, these engineers will give professional solution to your requirement.
2. Planning and Design: We provide the best design plan according the applications, air consumption, pressure, ambient working condition, compressor station space,etc.
3. Usually, we give one-year guarantee, during the time, we will provide free replacement parts by TNT, DHL or FedEx in shortest time, and the warranty period can be extended after negotiation. The accessories and service will be supplied in the next 15 years.
About SUCCESS ENGINE
Shanghai Success Engine Compressor Co.,Ltd is located in Maogang Town,Songjiang District,Shanghai City,it is surrounded by conservation forest,with very beautiful environment and profound culture background.The name of “SUCCESS ENGINE” was coming from “The Book of Changes”-”As heaven’s movement is ever vigorous,so must a gentleman ceaselessly strive along”,under this faith,we are dedicated to manufacture the first-class brand compressor to the word.
