Quality assurance automatic spiral toilet tissue paper core rolling tube winding making machine
- Category: >>>
- Supplier: Zhejiang Jinshen Machinery Manufacture Co. Ltd.
Share on (62290032799):
Product Overview
Description
FEATURES AT A GLANCE
1. Main structure is in thicker steels, much more stable and strong.
2. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.
3. Main motor adopt Vectorial high torque inverter speed adjusting.
4.hydraulic device to adjust belt tension
5.synchronous cutting system, high precision ball screw and high performance server motor drive.
6. pulse length fixation control to ensure cutting length
7. double PLC control system, IO output control and functional operation control separately,
8. new control panel and big size colorful main machine touching interface
9. multi functional bottom paper feeding device, will stop once paper break
10. integral paper reel stand, glue stand, paper feeding assembly
"E" series of paper tube machine ,designing idea simple,compact,stable.
Standardly for making paper tube 3”(ID76.5), Max wall thickness under 8MM, biggest tube ID can up to 200MM.
Standardly for making paper tube 3”(ID76.5), Max wall thickness under 8MM, biggest tube ID can up to 200MM.
For tube use: Chemical Fiber paper tube,All kinds of packaging paper can, All kinds of small industrial paper core.
model can produce spiral paper tube with gluing ,winding, cutting together on.
model can produce spiral paper tube with gluing ,winding, cutting together on.

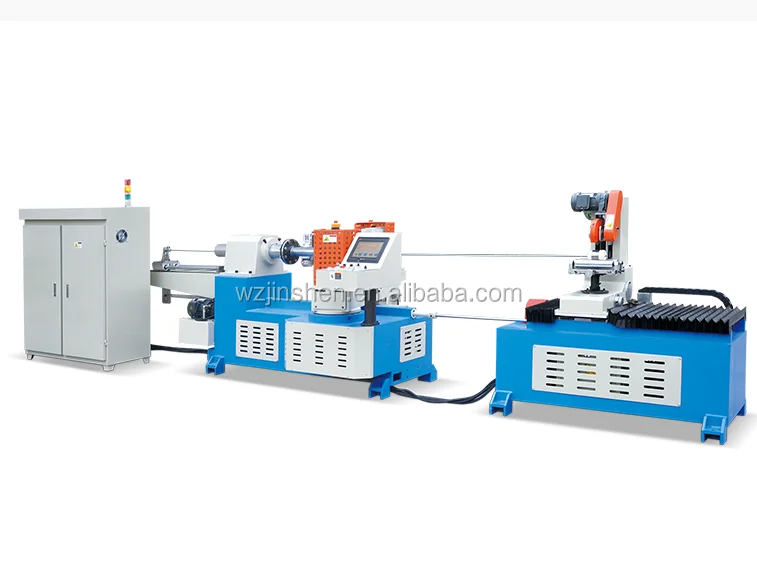

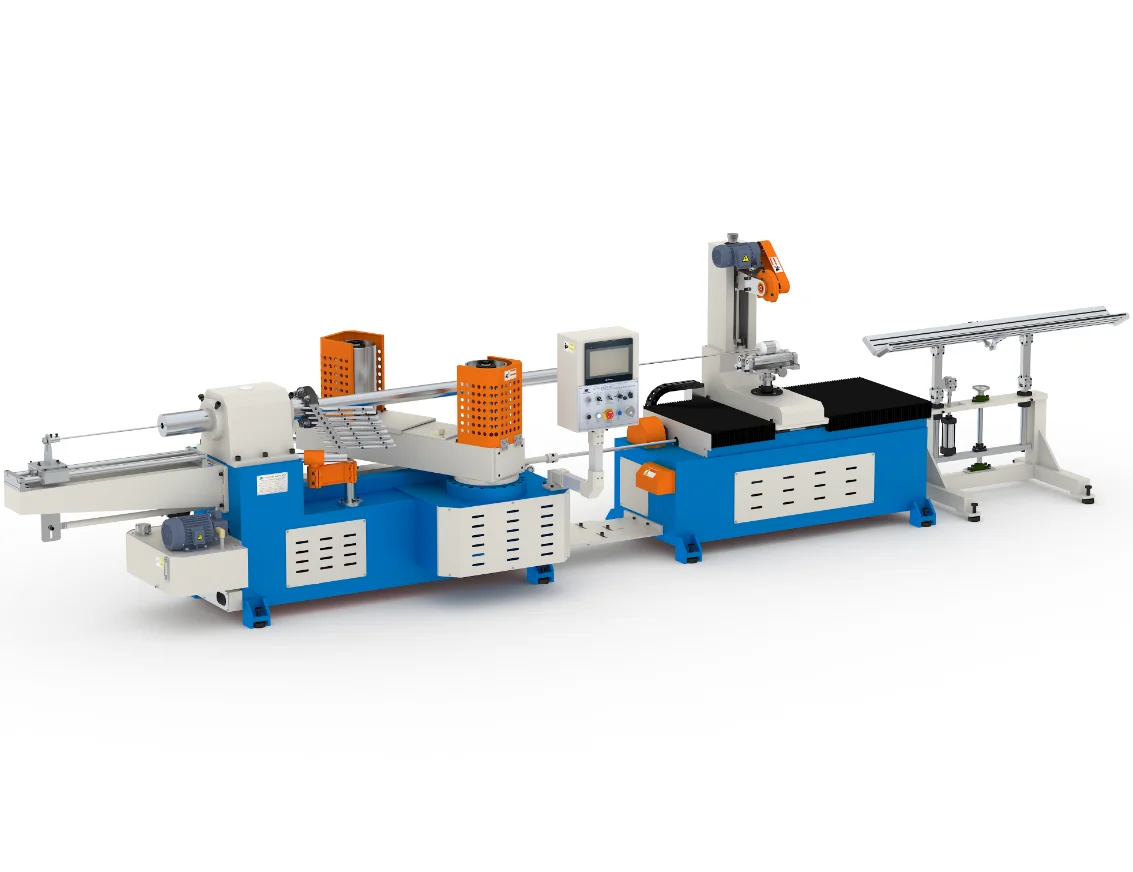

mainframe

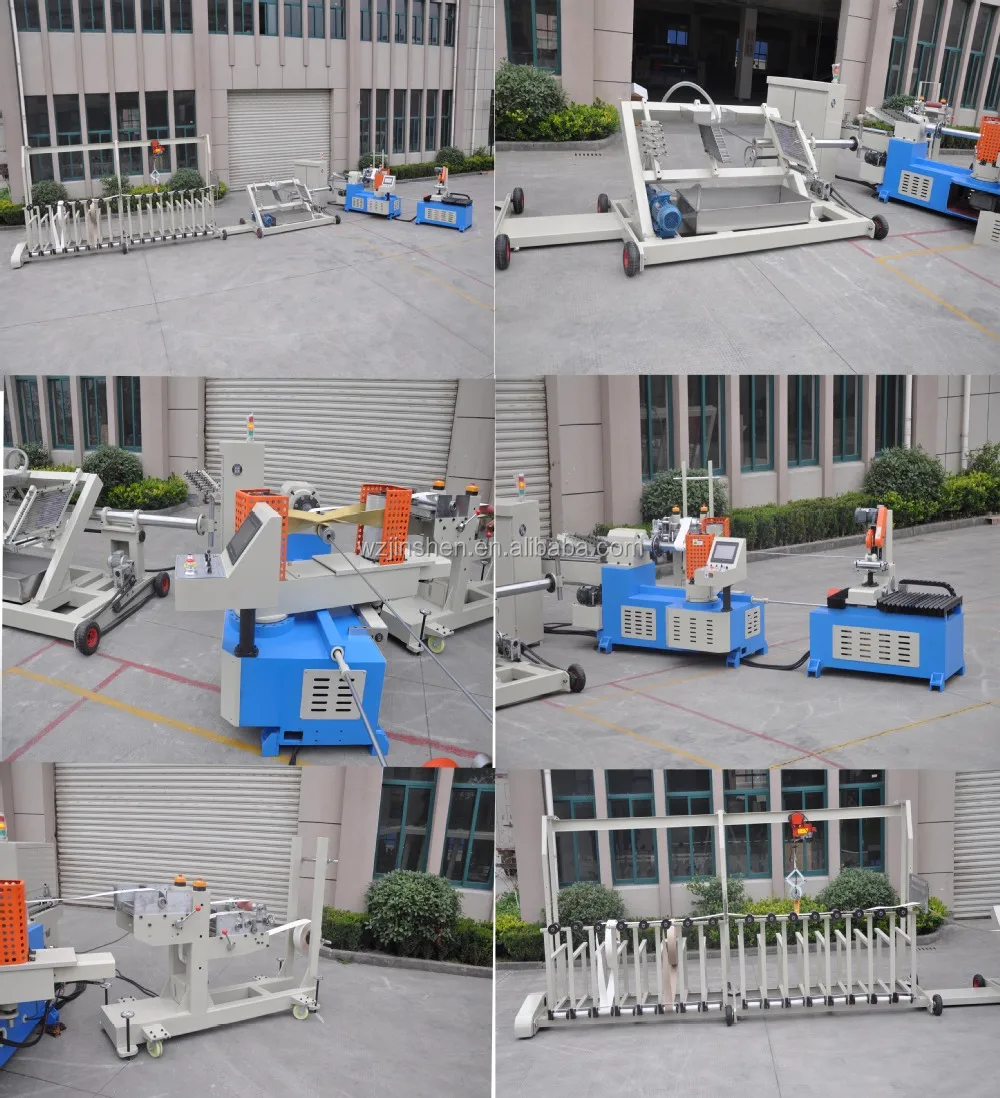

bottom paper stand

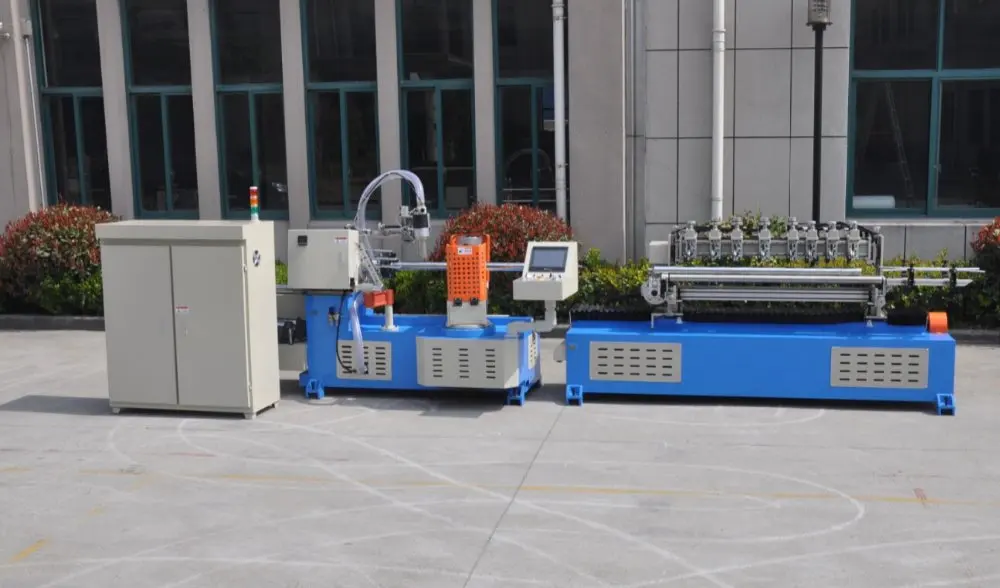

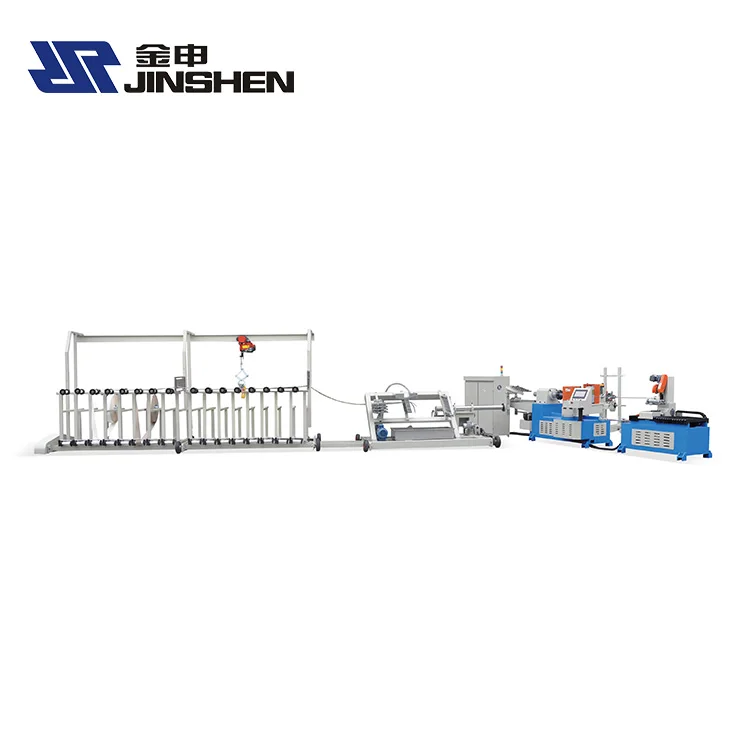

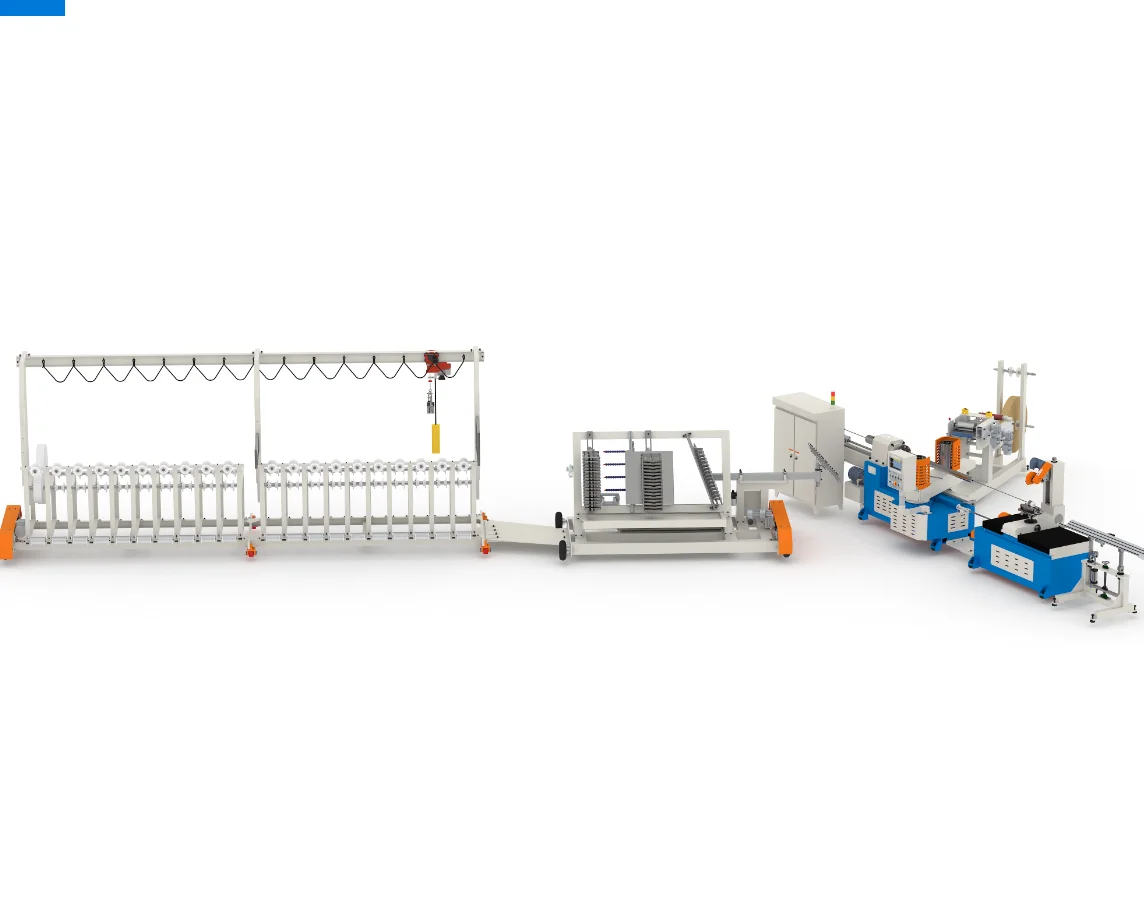

whole machine
PRODUCT SPECIFICATIONS
Number of roll paper | 3-16 plies | PLC controller | Delta |
tube diameter | 20-200mm | Man machine interface | Weinview 6070T colorful touching screen |
thickness | 1-8mm | Program edition | JS-PTM4.2 |
Mandrel fixing way | Flange & tightening | Inverter | YASKAWA 7.5KW |
Rewind nose | Two noses one belt | Actuator(contactor..) | CHNT |
Cutting way | Single round cutter | Signal component | OMRON |
Gluing way | Double sides / single side | Pneumatic component | AIRTAC |
Operator | 1-2person | Angle adjusting motor | JIACHENG |
Production speed | 3-20M/Min | Synchronism control | X Axis Servo Screw/Z axis stepping screw |
Speed control | Inverter | Fixing length way | Encoder |
Input power | Custom | Synchronism track cutting system | Servo Tracking System |
Mainframe power | 7.5KW WANNAN | Auto falling tube holder | Have |
Mainframe rotating speed | 1400r/min | Belt angle | Electric |
Max rotating speed of wheel hub | 47r/min | Belt adjust | Hydraulic |
Chain model | 12A*2 | Angle of main motor | Have |
cutter motor | Stepping Motor/WANXING Gear Motor | Stop when paper run out | Bottom ply stop automatically |
Wheel hub drive | 2 wheels | Auto glue giving | Screw pump 3.0KW |
Type of paper stand | Integral | Auto lubrication giving | Auto |
Bearing | HRB | Tension adjust | Mechanical |
