JW31 160 H frame 160 ton pressing machine for electronic equipment

Product Overview

Description

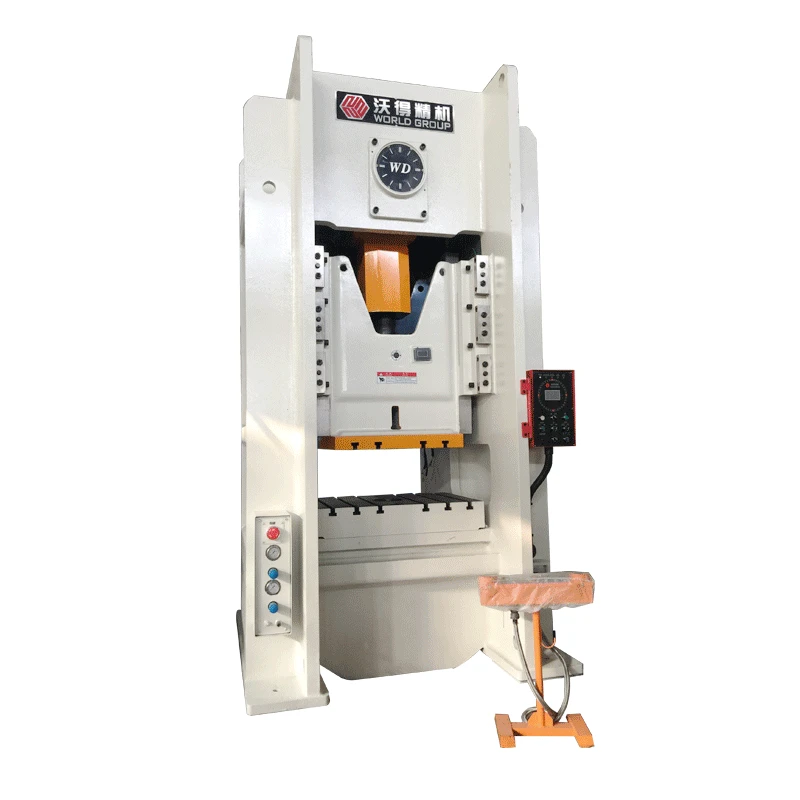

JW31-160 H frame 160 ton pressing machine for  electronic equipment

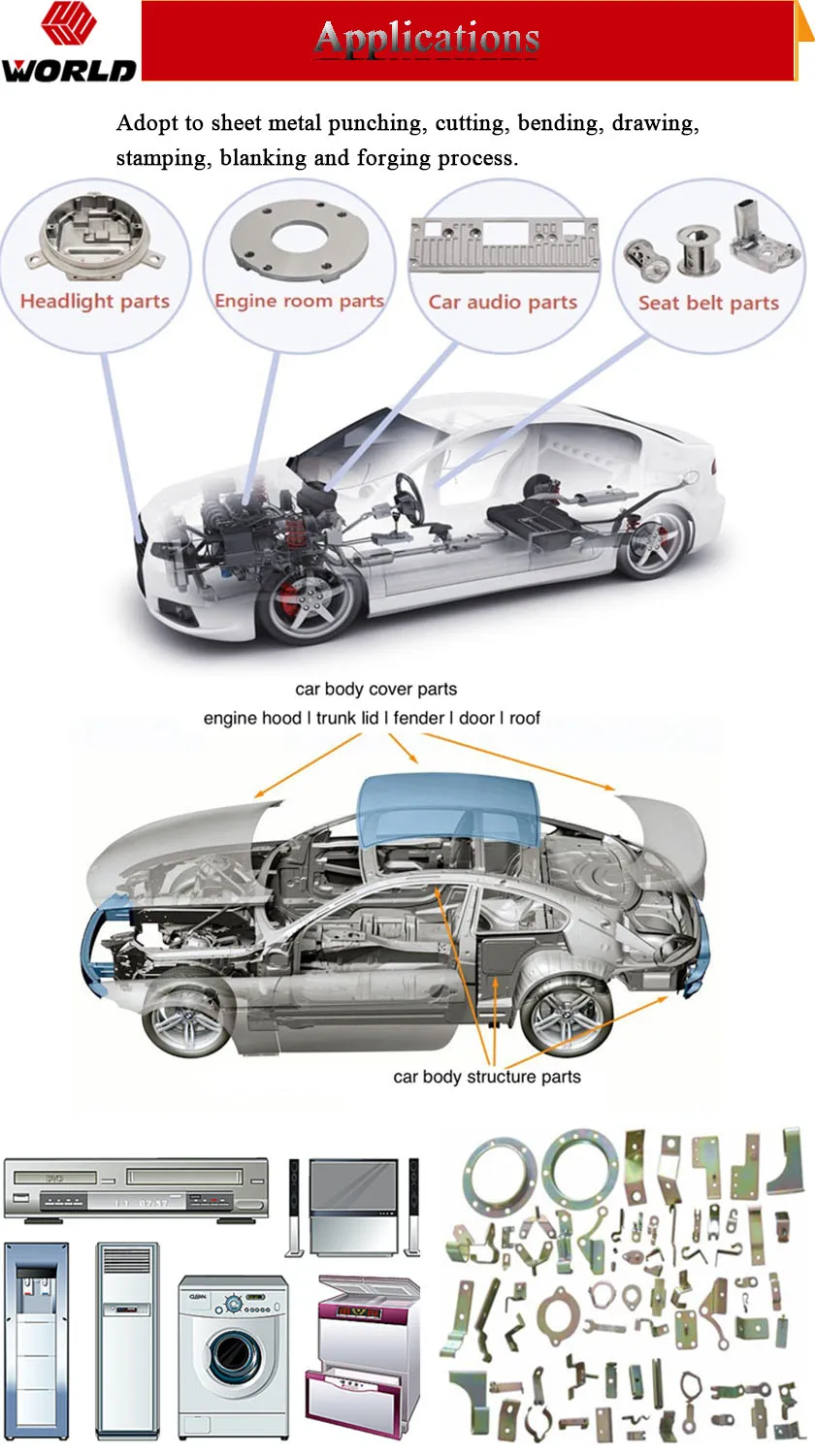

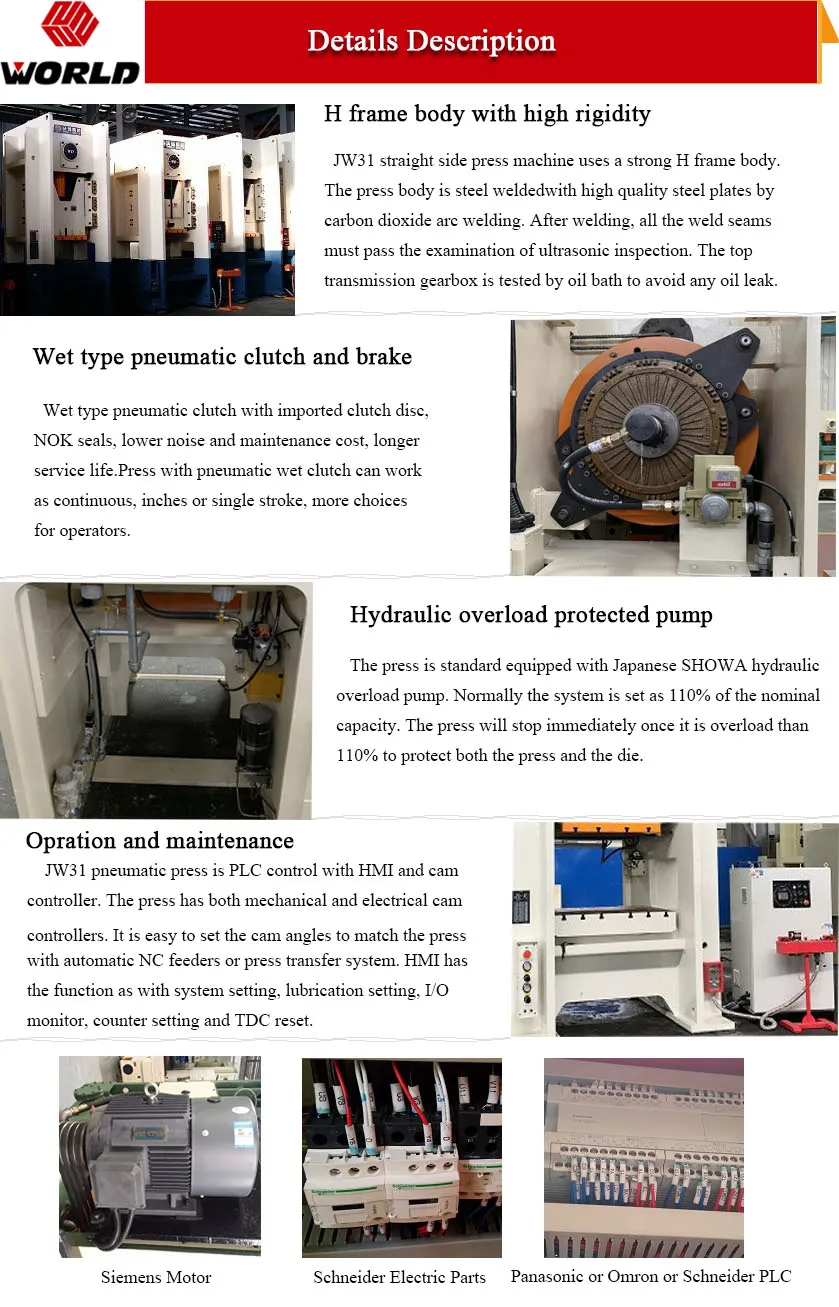

• JW31 H frame single crank power press is applicable to light, thin material, for single, and progressive die application in blanking, piercing, bending, forming, interlink with ROT line or transfer unit. High rigidity frame, applications suitable for various kinds of stamping works. The press capacity is from 160ton to 630ton. Slide guide 8 faces for higher precision.

• SPECIFICATION:

  ITEM		CODE	UNIT	JW36-160
  Nominal Capacity			KN	1600
  Slide Stroke Length		S	mm	180
  Slide Strokes Speed	Fixed		spm	45
  	Variabled(optional)		spm	25-50
  Max.Die Shut Height		H2	mm	400
  Die Shut Height Adjustment		t	mm	110
  Slide Window Size	F-B	E	mm	650
  	Height	F	mm	350
  Distance Between Uprights		G	mm	1100
  Table Size	F-B	D	mm	650
  	L-R	C	mm	1000
  	Thickness	H3	mm	165
  Table Hole Diameter			mm	180
  Slide Bottom Size	F-B	b	mm	600
  	L-R	a	mm	750
  Table Surface Height		H1	mm	1005
  Overall Dimensions	F-B	A	mm	2200
  	L-R	B	mm	1780
  	Height	H	mm	3800
  Motor Power			KW	15
  Weight(Approximate)			KG	16000

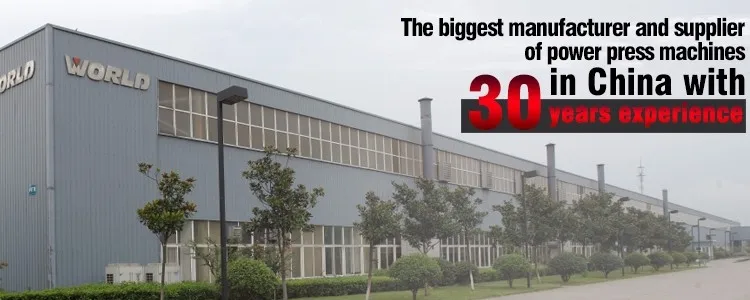

  World group was established in 1988 as a private company in Danyang City, Jiangsu Province. World has 21 subsidiary companies totally. The main business is to produce and sell power press machines, agriculture machines,construction machines,auto parts and garden tools.

   With 2016 sales and revenues of $3.692 billion, World group is one of the TOP500 private companies in China and TOP100 companies in Jiangsu Province. Now, World is one of the leading power press manufacturers, the biggest combine harvester manufacturer, the biggest

lawn mower manufacturer, and one of the main construction machines manufactures in China.







 Pre-Sales Service:

• Inquiry and consulting support.
• Sample testing support.
• Visiting our factory.

 After-Sales Service:

• Our technical staff will provide technical instruction.
• Engineers available to service machinery overseas.
• 24/7 online receving your question or machinery overseas.
• providing solution within 12 hours

 Packaging  Details :

Weight	16000kg
Size	2200*1780*3800mm
Casing	The normal package is with steel pallet.Wood case or steel box are optional. If some big size press is too big tor container, we can ship it by bulk vessel or flat rack.

 FAQ:

Q: What is the warranty?

A: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3years warranty for the wet clutch

 Q:Where we can get the spare parts?

A: All electric parts in our presses are international famous brand. Customers can buy electric parts in their local market.

We produce most of the steel parts in our own factory and we can supply all parts within 20years.

Urgent parts can be shipped by DHL.

 Q:Installation and training available?

A: Yes, we can provide installation and training if customer needs. Customer can send their technicians to our factory for site training too.

 Q:Is there any customer reference available?

A: Yes, please contact our sales team.
