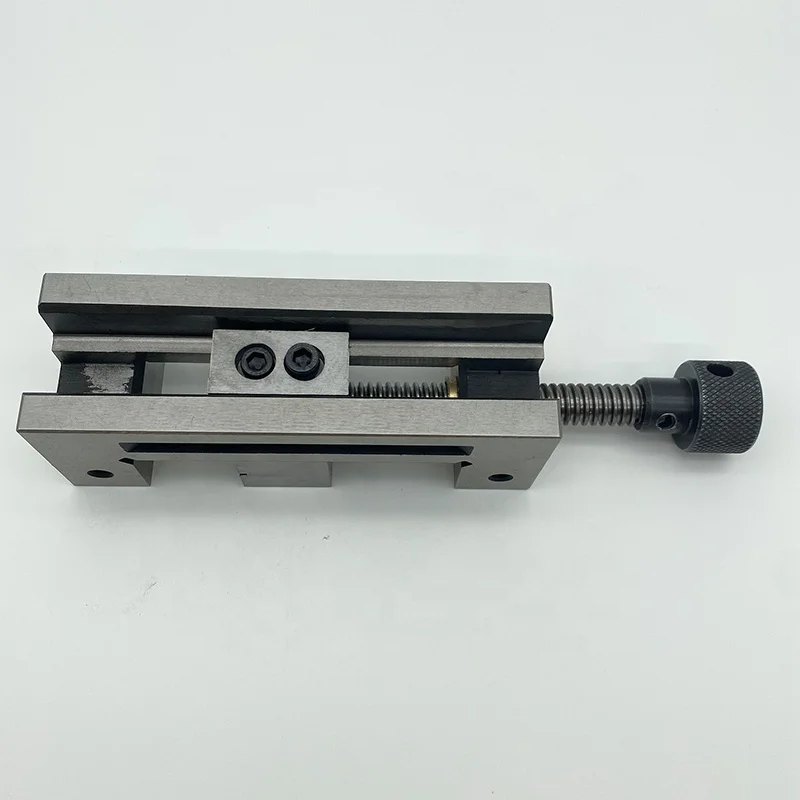

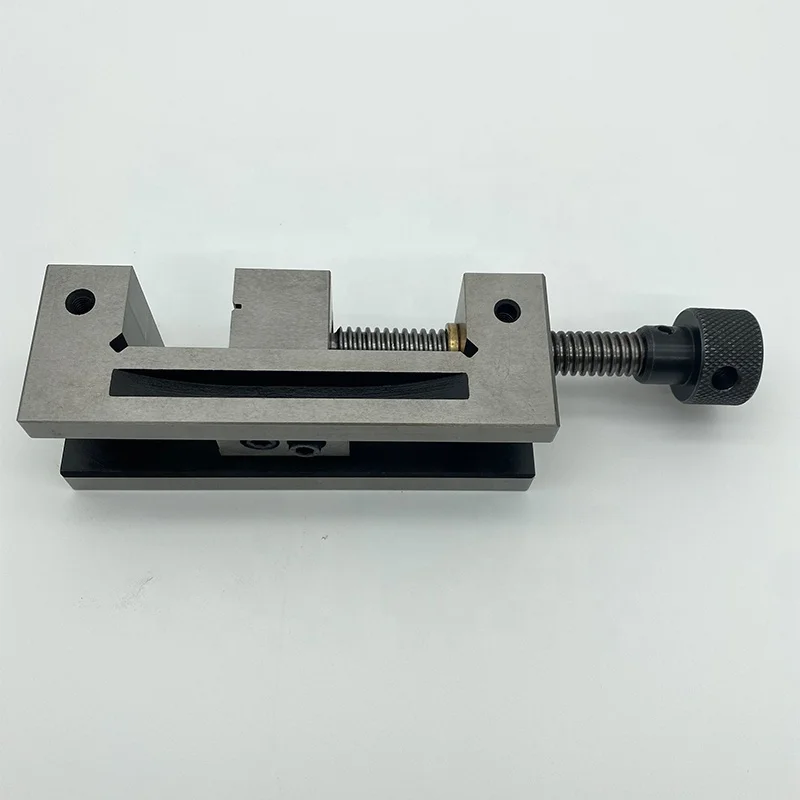

Precision QGG88 Milling Machine Vices Tool Accessory Hand Tool Vise 3.5' Machine Vice for EDM machine
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (62290145323):
Product Overview
Description

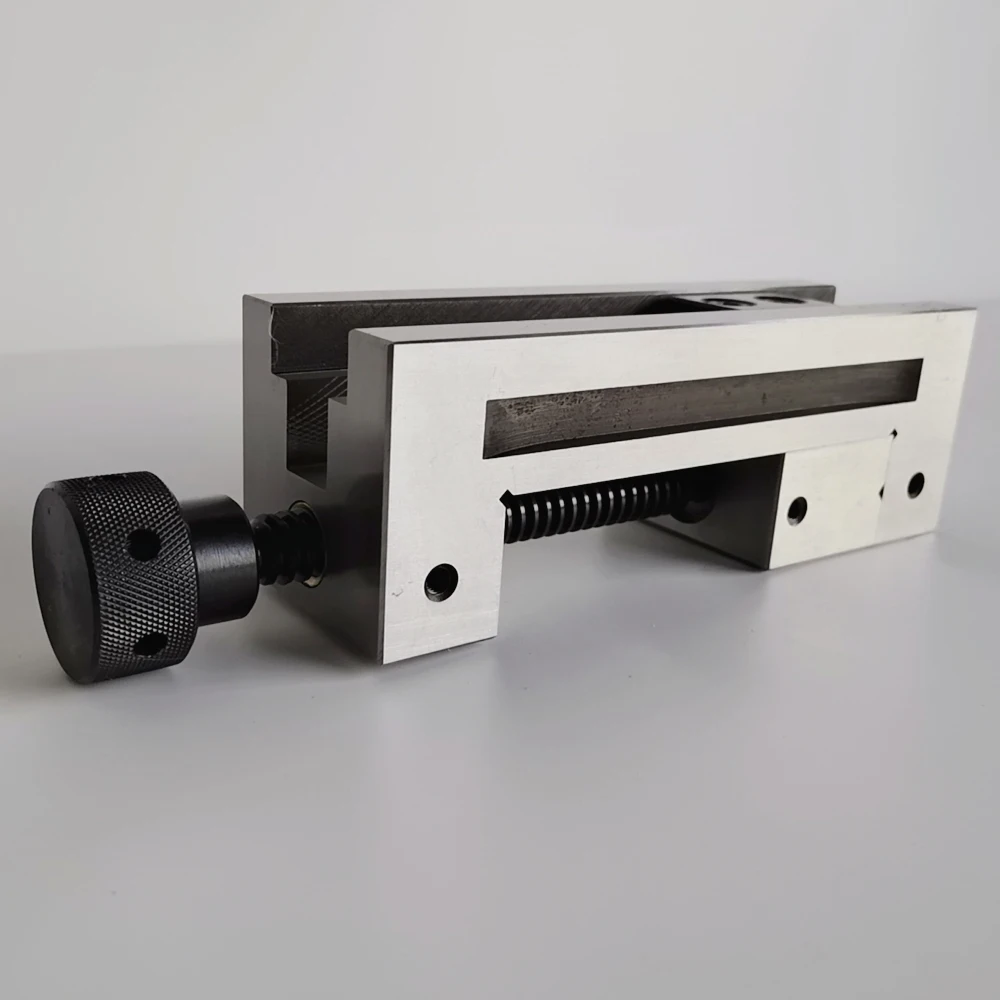

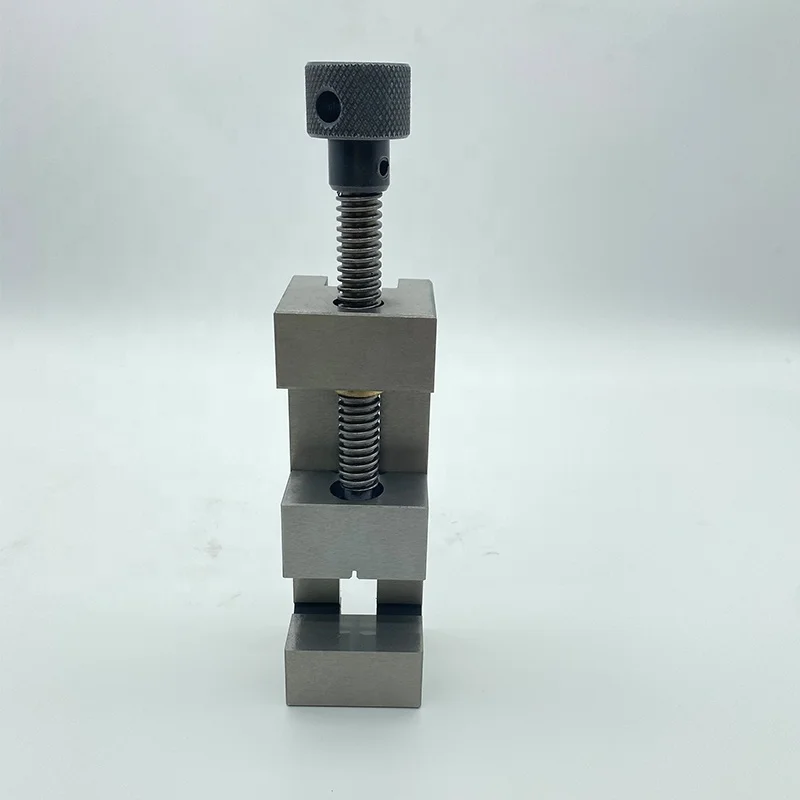

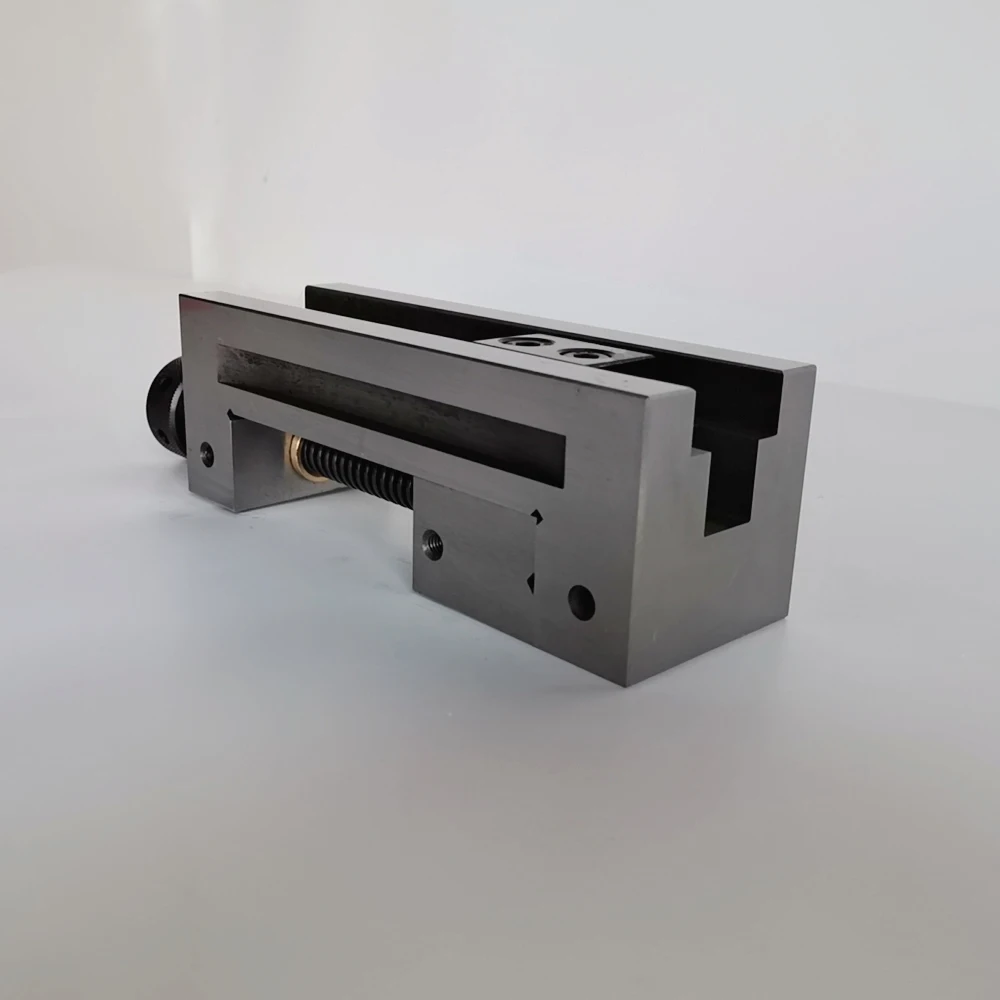

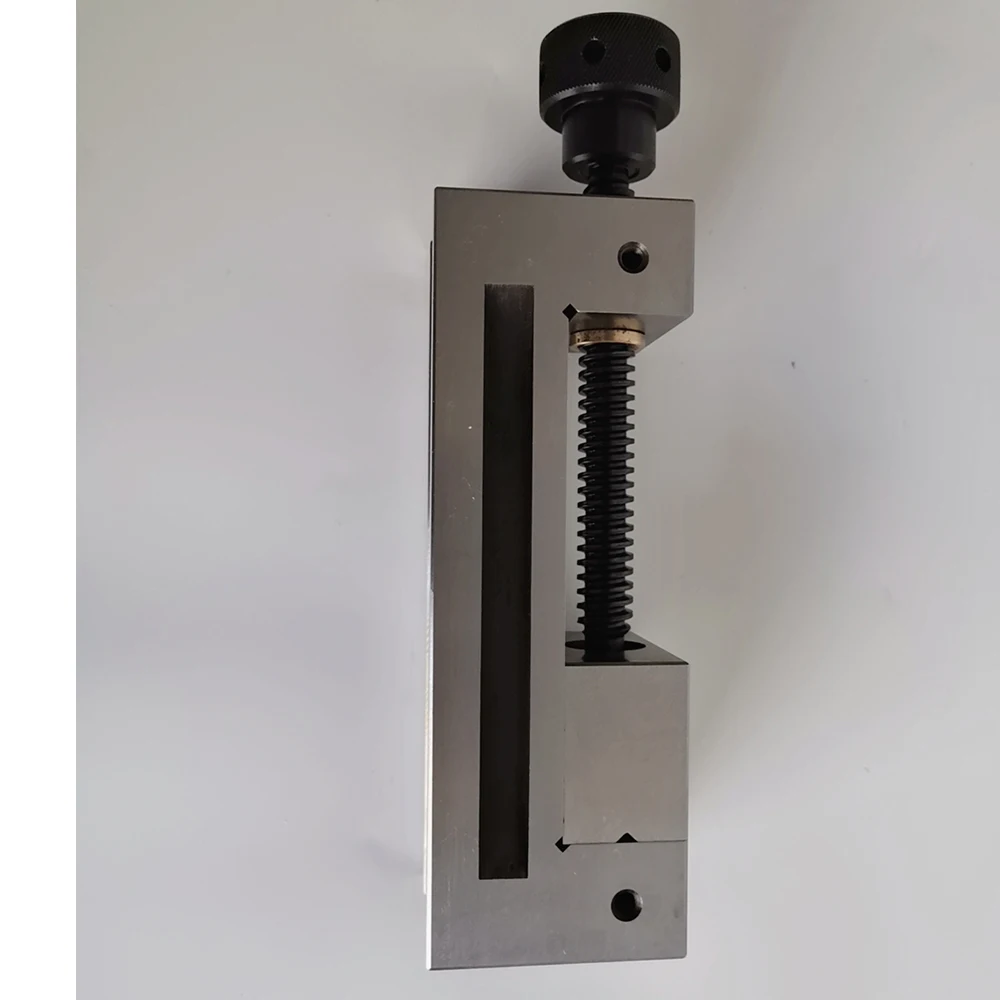

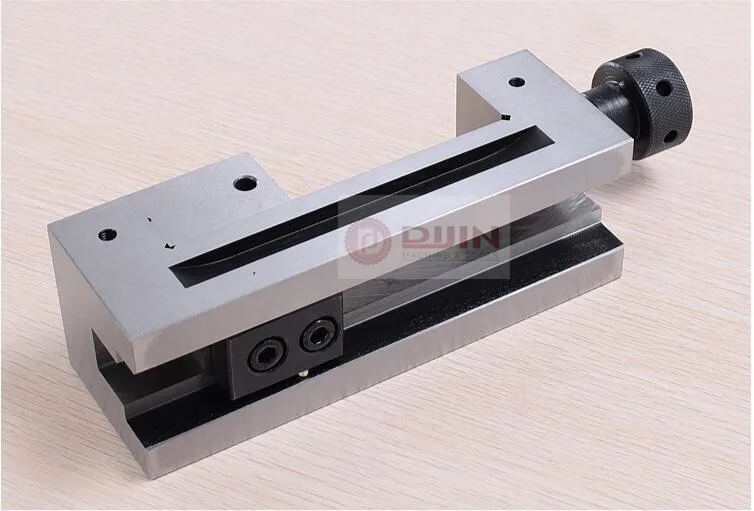

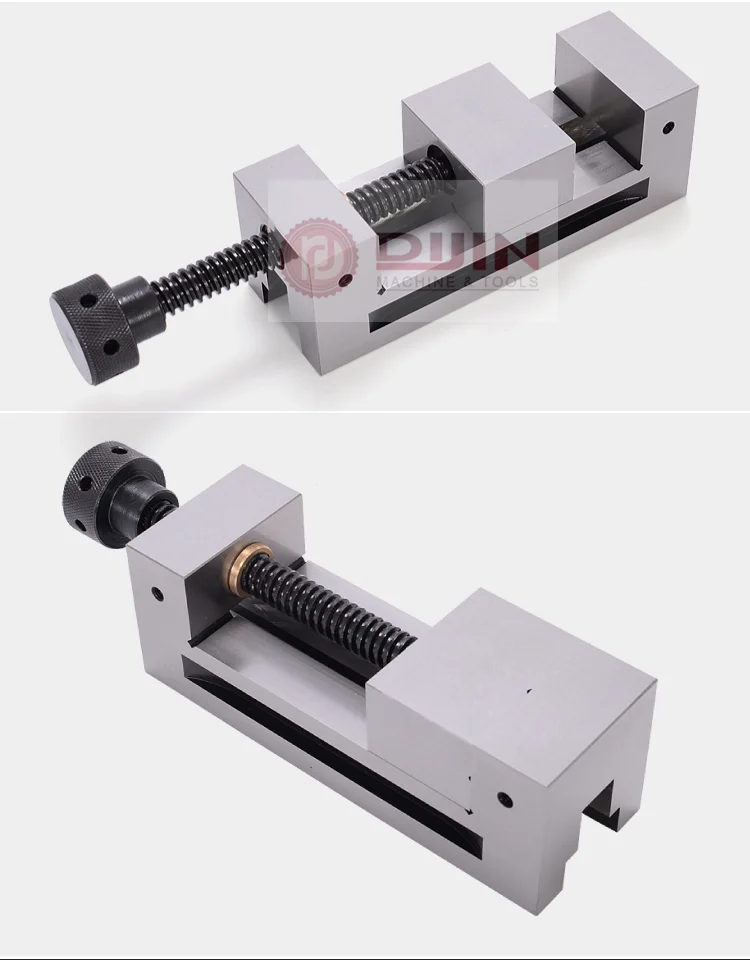

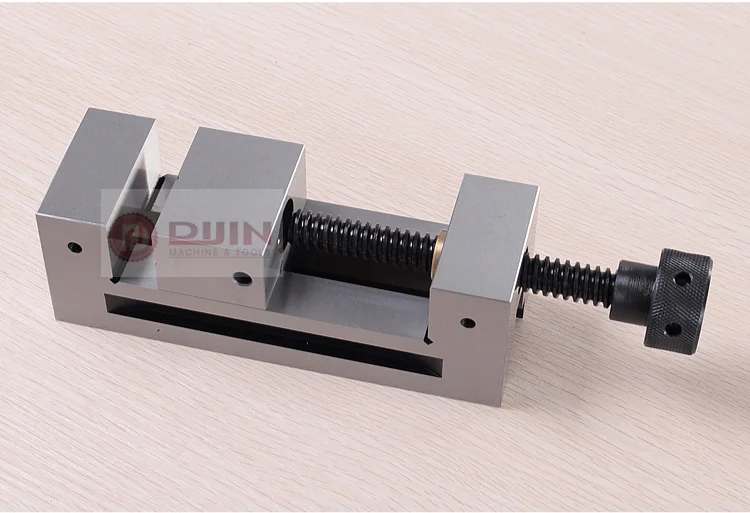

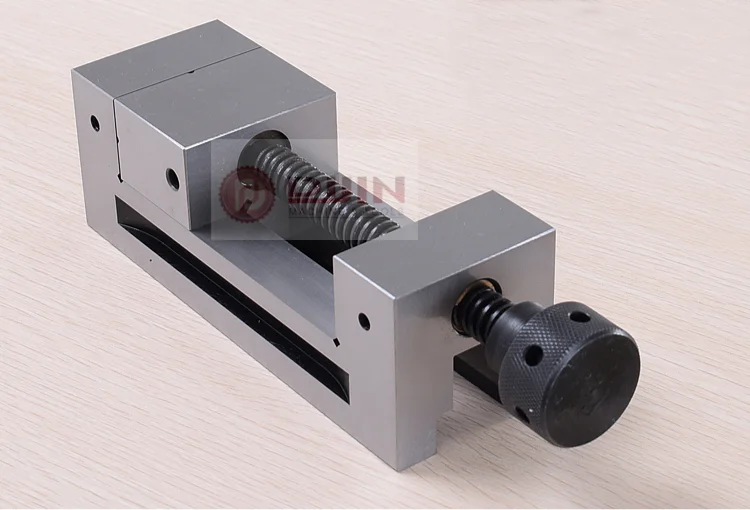

High precision machine vise QGG88
High precision flat mini machine vice for cnc edm machine
Application: Very convinent for precision measurement, inspection, precision grinding, electric discharge machine, wire-electrode cutting and other precision machining.

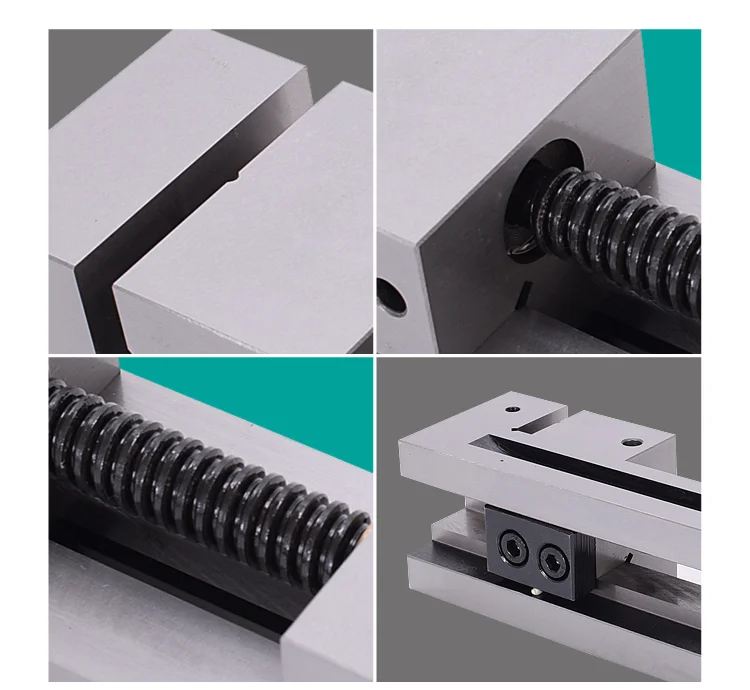

Features:
1. Made of high quality alloy steel
2. Fast clamping, flexible operation
3. Working face hardness reach HRC58-62
4. Product precision: 0.005
5. Parallelism: 0.005mm/100mm
6. Verticality:0.005mm

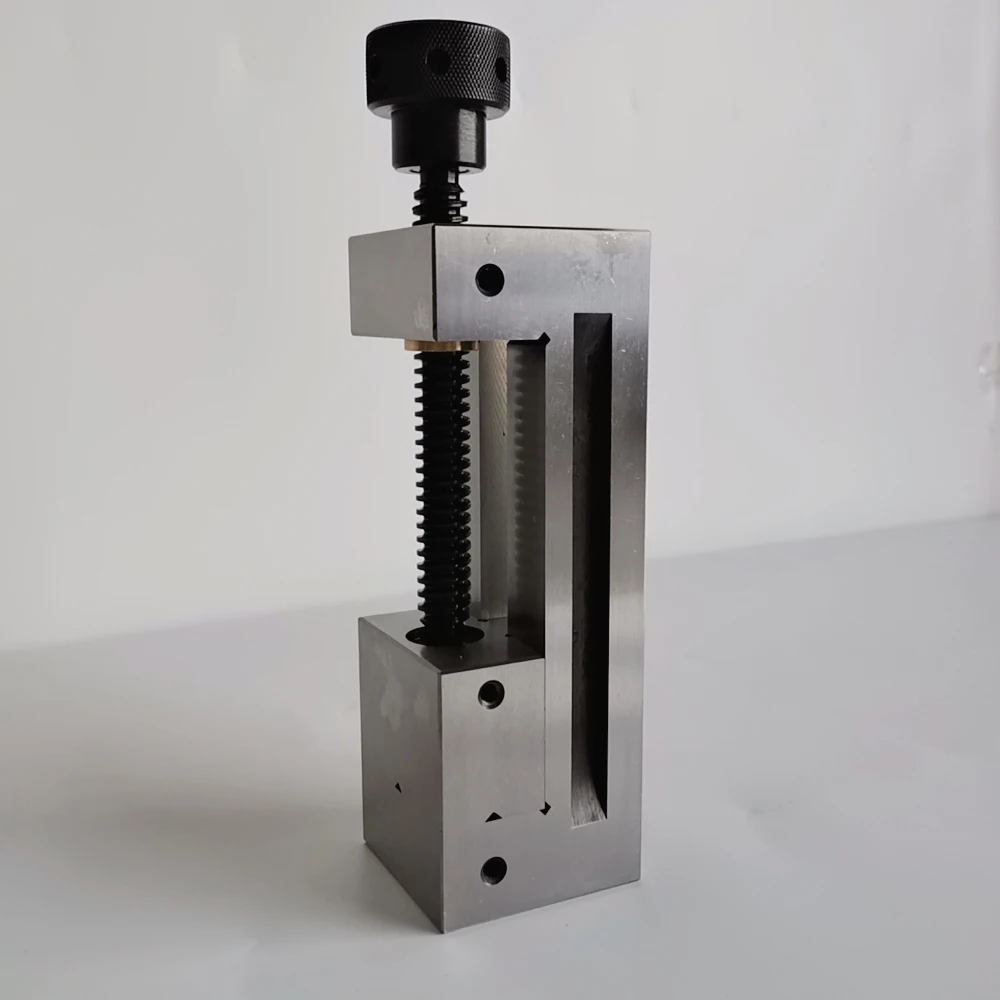

4. Maintain high accuracy no matter working in horizontal, vertical, or laid flat.

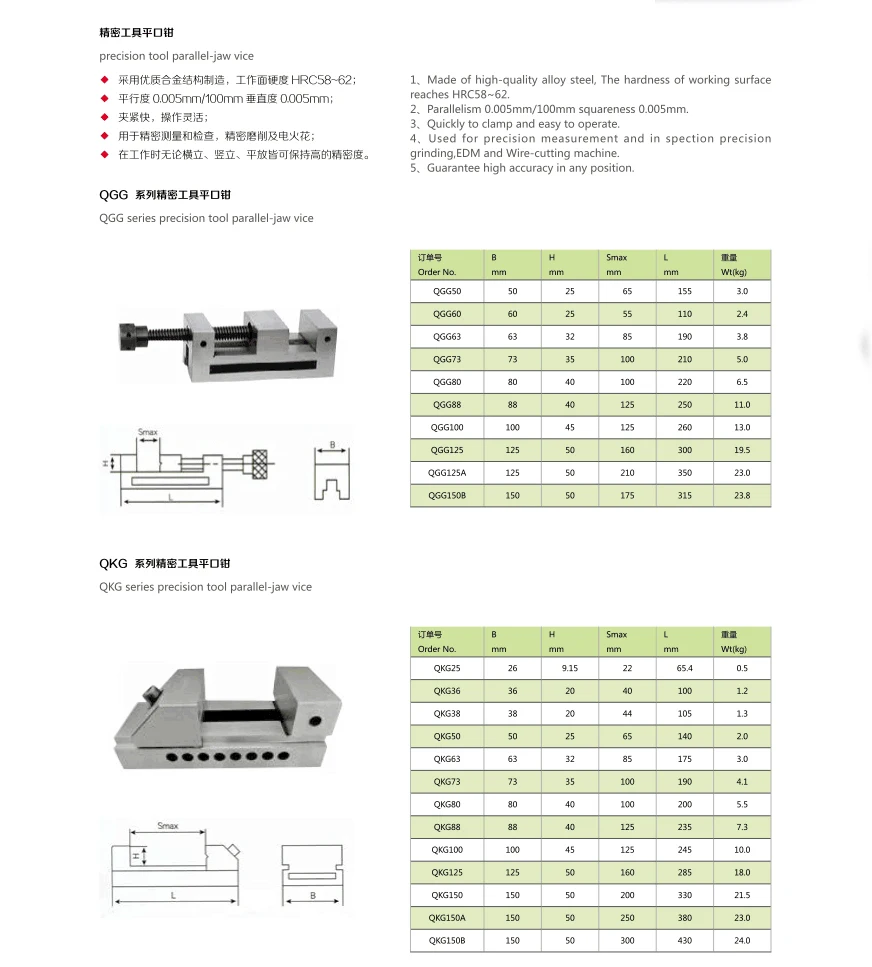

| Model | B(MM) | H(mm) | Smax(mm) | L(mm) | Wt(Kg) |
| QGG50 | 50 | 25 | 65 | 155 | 3.0 |
| QGG63 | 63 | 32 | 85 | 190 | 3.8 |
| QGG73 | 73 | 35 | 100 | 210 | 5.0 |
| QGG80 | 80 | 40 | 100 | 220 | 6.5 |
| QGG88 | 88 | 40 | 125 | 250 | 11.0 |
| QGG100 | 100 | 45 | 125 | 260 | 13.0 |
| QGG125 | 125 | 50 | 160 | 300 | 19.5 |
| QGG125A | 125 | 50 | 210 | 350 | 23.0 |
| QGG150 | 150 | 50 | 175 | 315 | 23.8 |
