China manufacturer Frequency Measurement Electrical Multi Tester Dc Current auto range Multimeter Non Slip
- Category: >>>
- Supplier: Guilin Huayi Peakmeter Technology Co. Ltd.
Share on (62290473696):
Product Overview
Description
Product Description

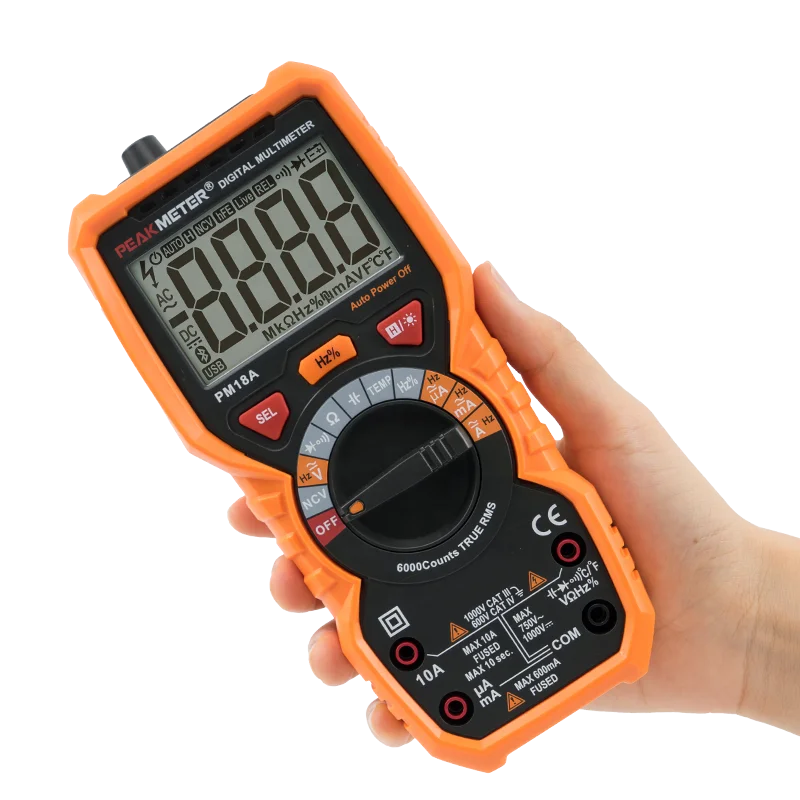

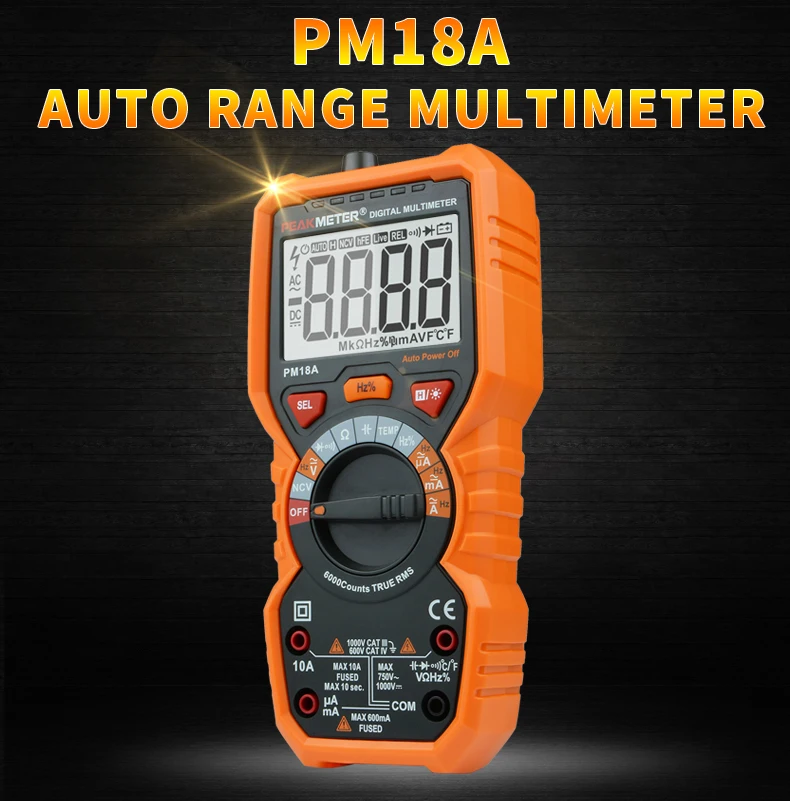

PEAKMETER Multimeter Voltmeter Ammeter PM18A with True RMS AC DC Voltage Resistance Capacitance Frequency Temperature NCV Tester
| FEATURE | ||
| Display | 6000 counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1kHz | |
| ℃/℉ | √ | |
| Hz | 10MHz | |
| GENERAL | ||
| Power Supply | 4×1.5V AAA | |
| Size | 190mm×89mm×50mm | |
| Weight | 380g | |
| Category | EN61010-1,EN61010-2-033 EN61326,CATⅢ 1000V/CAT 600V | |
| SPECIFICATION | RANGE | ACCURACY | |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) | |
| AC Voltage | 6V/60V | ±(0.8%+3) | |
| 600V/750V | ±(1%+10) | ||
| DC Current | 60uA/600uA/6mA/60mA/600mA/ | ±(0.8%+3) | |
| 10A | ±(1.2%+3) | ||
| AC Current | 60uA/600uA/6mA/60mA/600mA/ | ±(1.0%+3) | |
| 10A | ±(1.5%+3) | ||
| Ω | 600/6k/60k/600k/6M | ±(0.8%+3) | |
| 60MΩ | ±(1.2%+30) | ||
| Capacitance(C) | 6nF | ±(4.0%+30) | |
| 60nF/600nF/6uF/60uF/600uF6mF | ±(4.0%+30) | ||
| 100mF | ±(5.0%+3) | ||
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz | ±(1.0%+3) | |
| Duty | 5%~95% | ±(2.0%+3) | |
| ℃/℉ | -20℃~1000℃/-4℉~1832℉ | ±(1.0%+3) | |
| FEATURE | |||
| Counts | 6000counts | ||
| ACV/ACA TRMS | √ | ||
| ACV(bandwidth) | 1kHz | ||
| ℃℉ | √ | ||
| Hz | 10MHz | ||
| Duty | 5%~95% | ||
| Ω | 60MΩ | ||
| Capacitance | 100mF | ||
| Continuity | √(Sound and LED Alarm) | ||
| Diode Test | √ | ||
| Low Battey Indication | √ | ||
| Worklight | √(high,medium and low)Sound and LED Alarm | ||
| NCV | √ | ||
| Auto Power Off | √ | ||
| GENERAL | |||
| Power supply | 4×1.5V AA batteries | ||
| Weight | Approx.580g | ||
| Size | 204mm×93mm×57mm | ||
| Safety Rating | EN61010-1,EN61010-2-033, EN61326,CAT.III 1000V | ||
Packaging & Shipping
EXHIBITION
OUR ADVANTAGES
OUR CERTIFICATE
Our Services
OUR SERVICES
We are developing, producing and marketing instruments and meters. Meanwhile, we provide OEM & ODM services
R&D TEAM
Our R&D Team has over 20 years R&D experience in E&E instrument industry.
MISSION
Our mission is to get our work done well to become customers’ reliable business friend. S. E. Q (Service, Economic pricing, Quality) is our concern, we know what you need, and we know what we have.
Company Information
Guilin Huayi Peakmeter Co.,Ltd is one of the most famous Digital Measuring Instrument Manufacturers in China.It is a National recognized High-tech Company, authorized by Chinese&Guilin Government and also a prestige Brand of measuring Meter industry.
Technology,Innovation,Customer Satisfication is our culture and eternal pursuit, also is the drive of our sustainable development. Over 20 Years professional R&D Team to ensure our products with advanced technology.
We now have Digital Multimeter, Digital Clamp Meters, Earth Resistance Testers, Insulation Testers, Power Meters, Environmental Detectors and other special Measuring Instrument in Over a hundred product series. All products are designed to comply with IEC61010 International Electrotechnical Commission Safty Standard and Requried CE (EMC/LVD), UL, ROHs, REACH,WEEE and other related regulations. Strict ISO 9001 Quality management and complete after-services system to ensure providing constant high quality product to our global customers.
FAQ
1. Q:What is your delivery time?
A: 3-5 days for product in stock, 35-40 days for unstock product according to the product category and its quantity.
2. Q:Can you make OEM or ODM? Can you help to do package/artwork design for us?
A: Yes, OEM or ODM are welcome, We have a graphic design tam that can help our customer to make logo and package/artwork design, Also photo taking is available.
3. Q:How much will the shipping charges be?
A: It depends on the shipping method, Please note us your destination and the required method, by air or by sea or by express, Then we will give you the shipping solution and fright cost and shipping time.
4. Q:Which shipping port do you used normally?
A: We ship from Shenzhen or Shanghai port, your designated port or place is acceptable.
5. Q:What is your advantage?
A: (1)Various products in low MOQ and competitive prices;
(2)We have ourselves factory, we accept the order if you want to customize products or design the product;
(3) Fast delivery;
(4) Products are all coverred with warranty and insurance.
