1. NC control unit 2. Direct acting hydraulic clamping
3. Manual feeding and bending
4. Can make 2-dimensional elbow bend 5. Easy operaton interface and easy data input 6. Large program storage capacity up to 16 units 7. Automatically lock angle, angle changing is controlled by coder 8. High bending accuracy 9. Self diagnosis and error messages 10. Optional boost facility
11. Fit for carbon steel pipe, stainless steel pipe, aluminium pipe, copper pipe, galvanized pipe, etc.
Technical parameter
Item/Model
DW115NC
Max. bending diameter of adapted carbon-steel pipe, taking 1.5D for example
Φ115×6.0
Effective length of bended tube
4250mm
Max. bending angle
190°
Max. bending radius
400mm
Number of bended pipes in every piping
16
Max air pressure
14Mpa
motor power
20Hp
L,W,H(CM)
5600*1600*1500
Weight
7500kg

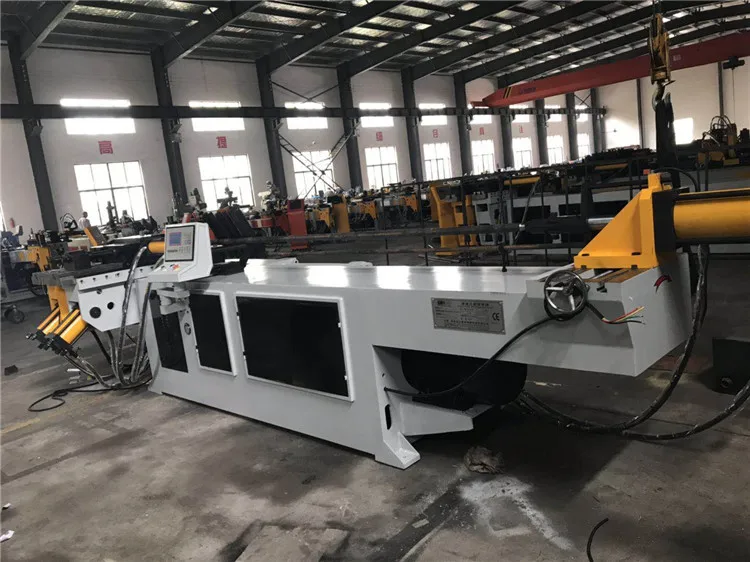

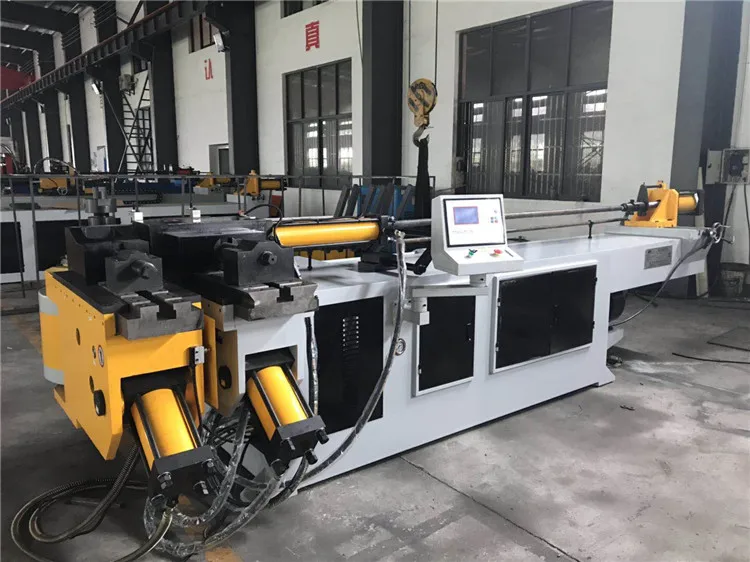

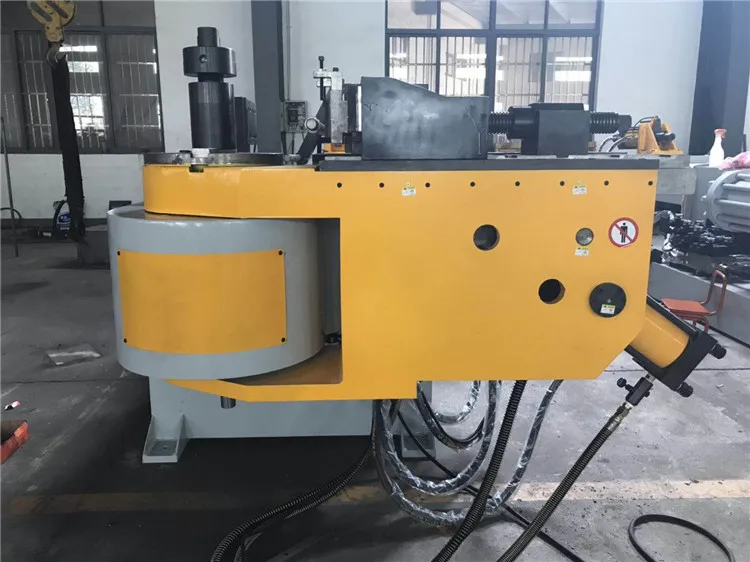

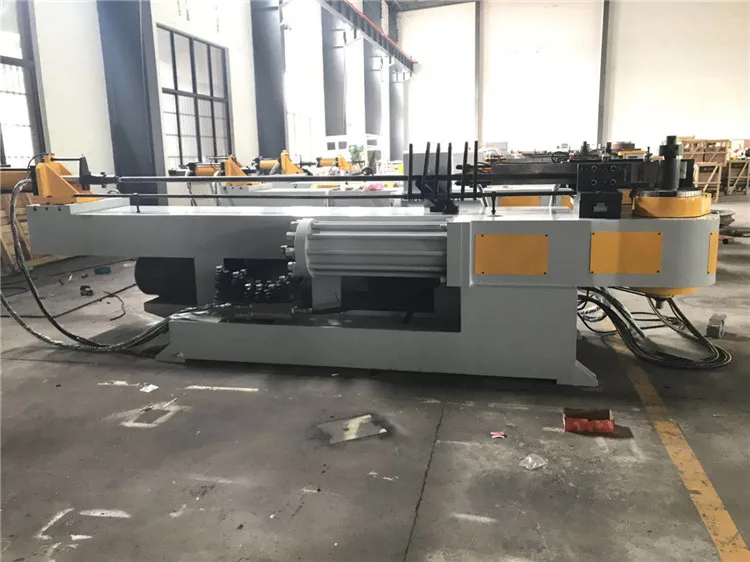

Main picture

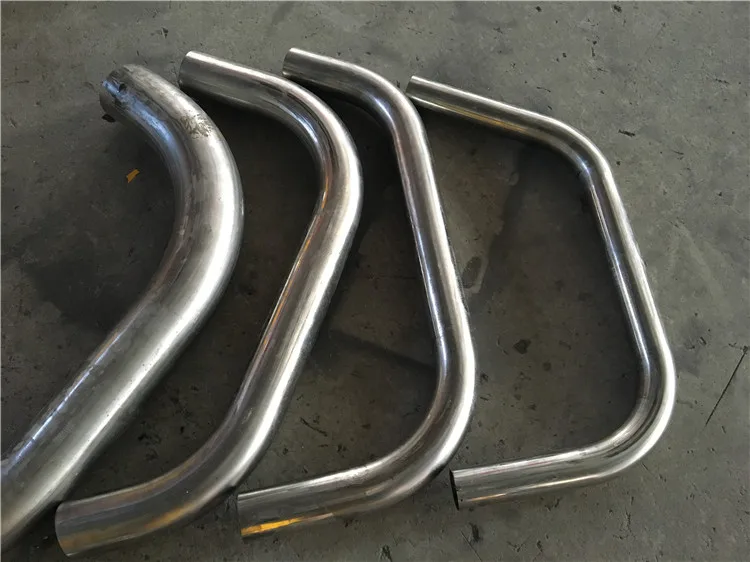

sample pipes
Our Services
1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
