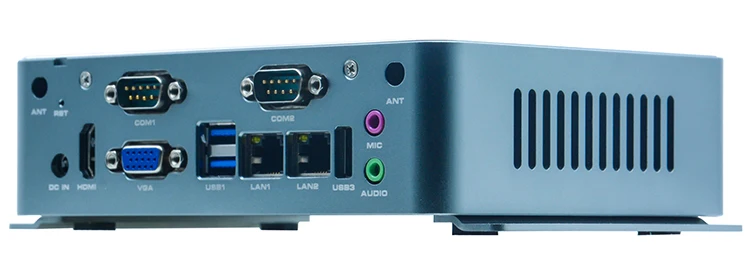

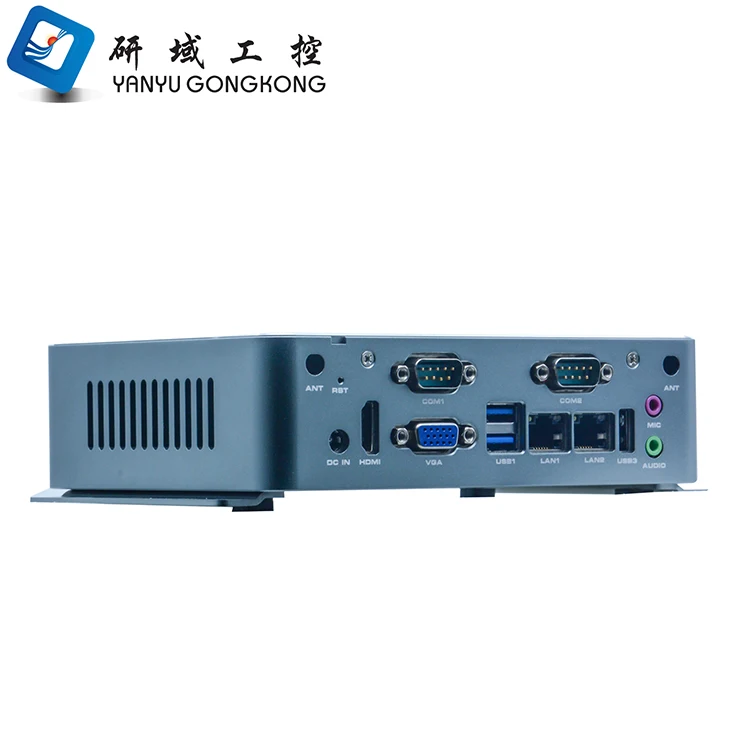

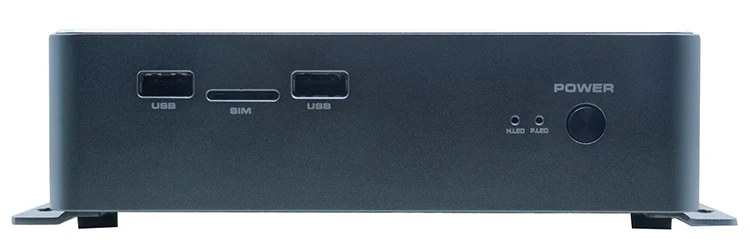

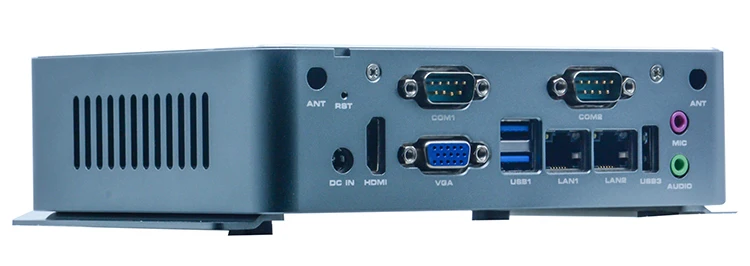

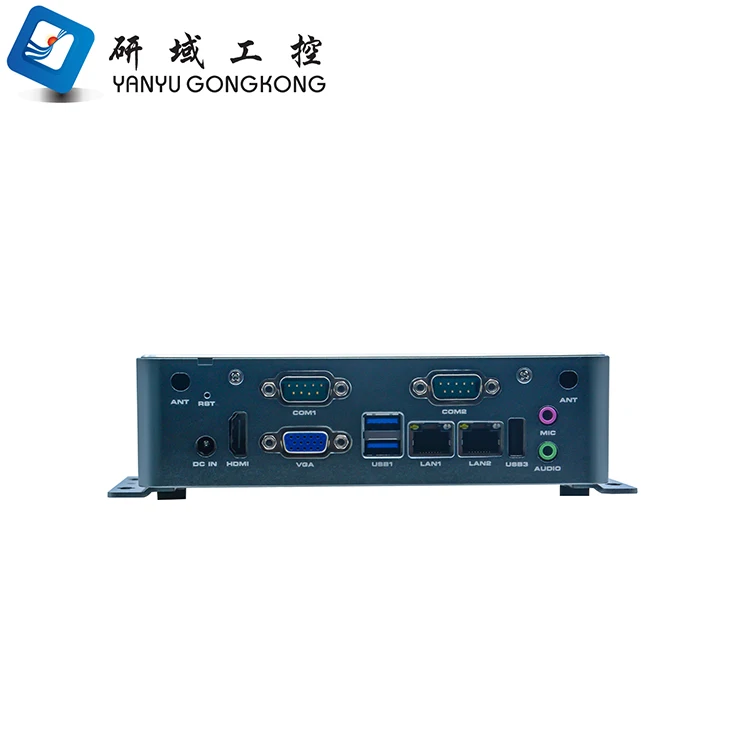

Intel Celeron J1900 NUC mini computer quad core processor J1900 Dual Lan Mini PC Nano PC with 2*com port

Share on (62290781201):


Price:$154.00 - $156.00

Quantity:


Product Overview

Description


Intel Celeron J1900 NUC mini computer quad core processor J1900 Dual Lan Mini PC Nano PC with 2*com port



Intel IoT Solutions





We are an Intel IoT Solutions Alliance Affiliate Member with professional R&D Team
16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe


12





YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.


YANYUGONGKONG also provide the service of custom design to meet your special requirement.


 Chassis / PVC membrane etc can custom.


oem network appliance/ Nano computer etc.








Product Description





Features


Fanless heatsink structure, all aluminium alloy material


Integrated Intel Celeron J1900 quad core processor


Supports 1*HD OUTPUT,VGA


2* RTL8111H Gigabit ethernet port,Supports Wake on LAN/PXE Function


2* RS232 ,COM2 supports RS485/422
























































































































































































Processor



CPU



Intel® Celeron  J1900 quad core processor







Frequency



2.00GHz~2.42GHz(MAX)







TDP



TDP 10W
10 W10
10 W







Chipset



Intel® Bay trail SOC







BIOS



64Mb Flash ROM



Memory



Memory



DDR3L 1600/1333MHz







Maximum capacity



8GB







Slot



SODIMM



Display



Chipset



Intel®HD Graphics







Graphics Engine



DirectX 11.1,OpenGL 3.2







HD OUTPUT



1*HD OUTPUT,1920X1080@60HZ







CRT



1*VGA,2560X1600@60Hz










Independent double display



1*HD OUTPUT   1*VGA



Ethernet



LAN1



1* RTL8111H Gigabit network card, supports wake on LAN/PXE functions







LAN2



1* RTL8111HGigabit network card, supports wake on LAN/PXE functions



Audio



Interface



On-board ALC662 6 channel high fidelity audio controller, supporting MIC/Line-out/power amplifier



I/O Interface



Serial Port



2* RS232 ,COM2 supports RS485/422







USB



3*USB2.0,2*USB3.0







Phoenix Terminals



N/A



Expansion



Mini PCIE



1* Mini PCIE,supports WIFI/4Gmoudle







Expansion Slot



N/A



Storage



SATA



N/A







 Solid state disk



1* MSATA SSD,the transfer rate is up to 3Gbps



OS



Microsoft Windows



Windows 10,64bit







Linux



Ubuntu



Power  Supply



Power Supply



1*DC JACK







Voltage input



12V







Power Adapter



AC TO DC,DC12V5A,60W(Optional )



Chassis



Structure



All-aluminium alloy Fanless







Installation



Desktop or wall mounted







Dimensions(L*W*H)



165mm*128mm*45.5mm



Environment



Working temperature



-10℃~60℃







Storage Temperature



-20℃~70℃







Relative humidity



5%-95%(relative humidity, non condensing)







Working Vibration



0.5g rms/5-500HZ/random/operating









Order information





























































No.



Model



Processor



Motherboard



Memory



HDD



GPIO



LAN



COM



HD OUTPUT



VGA



USB2.0



USB3.0



SIM



power-input



1



N1619Z



J1900/2.00GHz



N19_J122E



N/A



N/A



N/A



2



2



1



1



3



2



      1



DC 12V



2



N1631Z



J3160/1.60GHz



N16_J122E



N/A



N/A



N/A



2



2



1



1



3



2



      1



DC 12V







Detailed Images


 N16 3N16 2N1631Z-2C _09N1631Z-2C _10N1631Z-2C _08





Company Information





MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.


  Our products include:mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard,


firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC,All-in-one PC,


Embedded PC ,Vehicle computers,Cloud Terminal,Networking Security,OPS Mini PC


 Computer,OEM / ODM available.


 Kongxun Trade FairEnterprise Honor 750factory





FAQ


Q1: Can you put my brand name (logo) on these products
A1:    Yes,.We can support OEM/ODM service, the process of customization is following:
                   1:provide your specific requirement.    2:our design engineer draw the design draft.
                   3:you confirm the design draft.            4.we start produce it.





Q2:  What payment method do you accept?
A2:    T/T,Western Union,PayPal.





Q3: What is the Minimum Order Quantity(MOQ)?
A3:    We can sell one piece sample for your test.





Q4: What is the lead time of your products?
A4:    1-3 days for one sample, 15 working days for a large quantity.





Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.





Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.





Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
   we can repair it free. but we will charge for the parts that need to change.





Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China





Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
