Core 6th i3 6100 i5 6200 i7 7500 CPU 1U Server Rack Mounting 8*i211 AT LAN Firewall Server Support Pfsense AES NI
- Category: Firewall & VPN >>>
- Supplier: Shenzhen Iwill Technology Co. Ltd.
Share on (62290828904):
Product Overview
Description

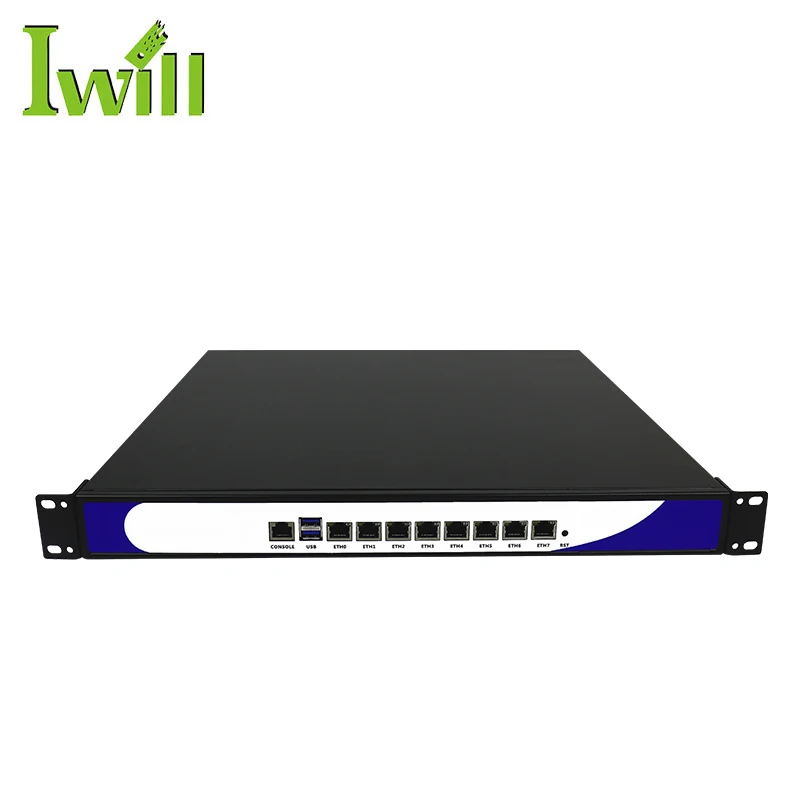

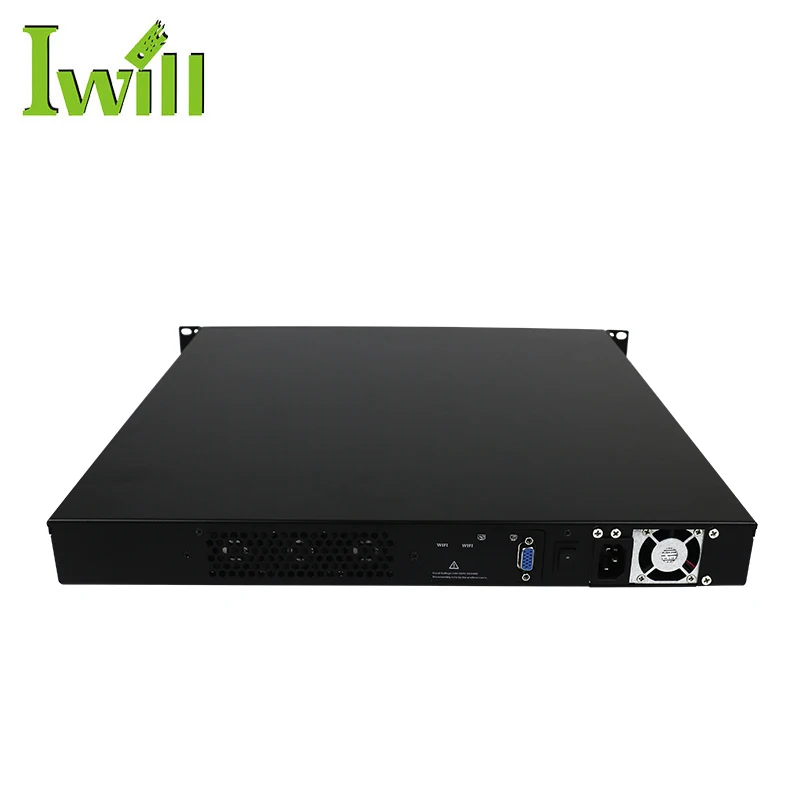

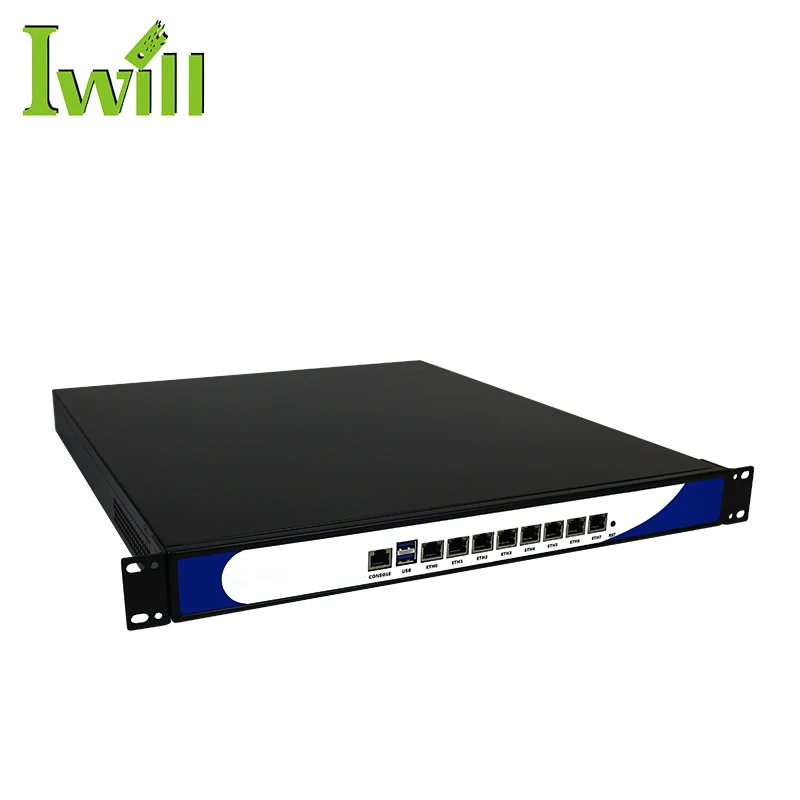

Core 6th i3-6100 i5-6200 i7-7500 CPU 1U Server Rack Mounting 8* i211-AT LAN Firewall Server Support Pfsense AES-NI
Product Features:
1) Inter Skylake core i3-6100 dual core 3.7Ghz, i5-6500 quad core 3.2Ghz, i7-6700 quad core 3.4Ghz and Z170 chipset
2) 1*VGA+2*USB3.0+1*Power switch +8* LAN(Can add 4* fibre optical port)
3) AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
4) High-quality pure aluminum Case

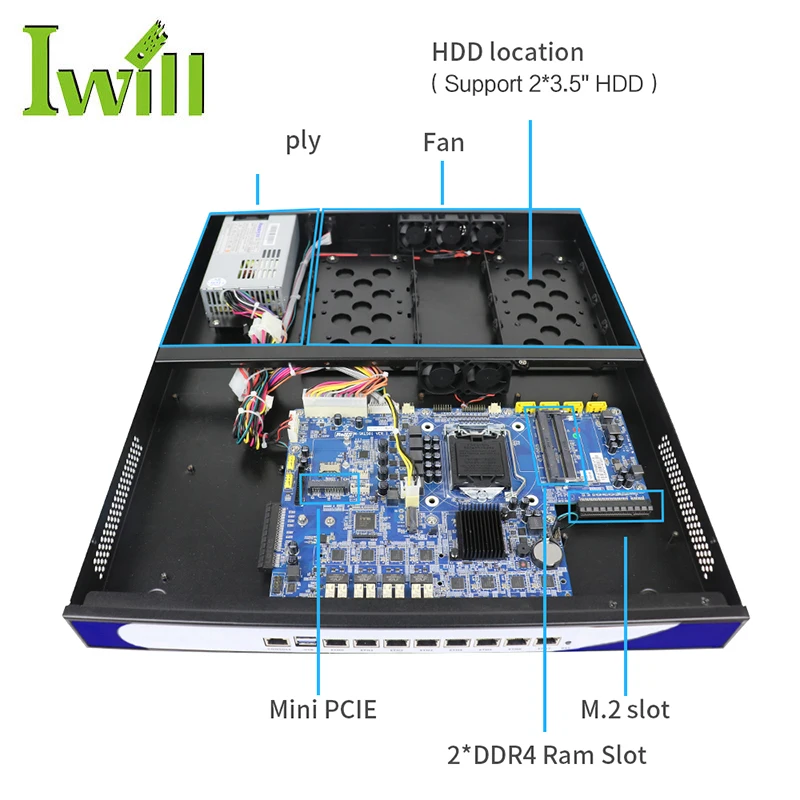

5) 1*M.2 Slot, 2* 2.5''/3.5'' SSD/HDD, 1*Mini-PCIE(support wifi/BT/3G/4G), Embedded SIM Slot.
6) 8* i211-AT 1000M lan card, support wake on lan
7) AC 110V - 240V power supply ;
8) Applied in Firewall, VPN , Network Server, Network Security, Router etc .
Product Display
Product Description
Specification | |||
Model | NS-1U8L(Z170) | ||
Case Color | Black(color can be customized) | ||
Material | High-quality pure aluminum 19'' 1U Server Case | ||
CPU | Skylake Core i3-6100 dual core 3.7Ghz, core i5-6500 quad core 3.2Ghz, Core i7-6700 quad core 3.4Ghz | ||
Chipset | Adopt Z170 chipset | ||
Mainboard | 170*170mm mini ITX mainboard | ||

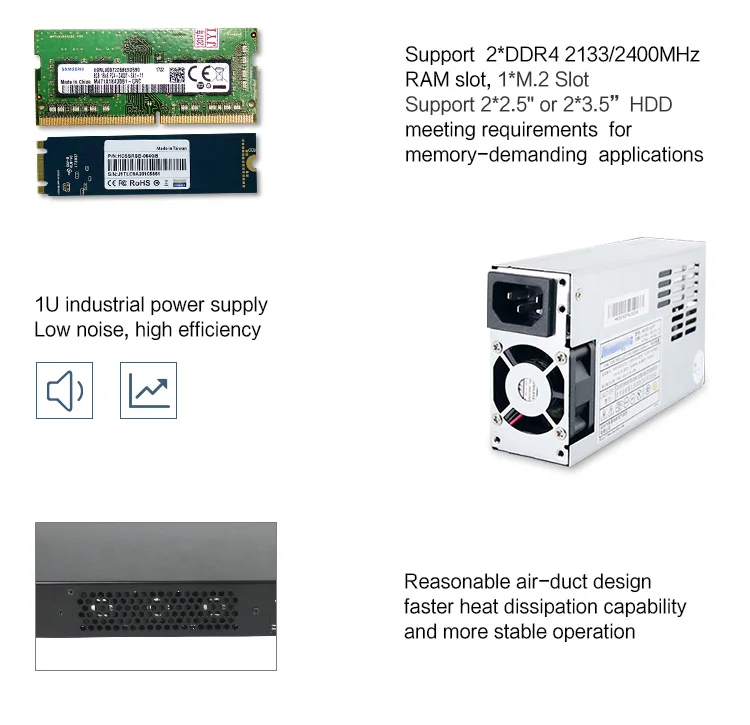

RAM | 2*DDR4 2133/2400Mhz ram slot, support max 32G | ||
Storage | 1*M.2 Slot(2280 standard), 2*2.5'' /3.5'' SSD/HDD, | ||
Audio | N/A | ||
Display Interface | 1*VGA (Support Scalable 1*HD Interface) | ||
Display | Integrated HD Graphic card, support 1*VGA | ||

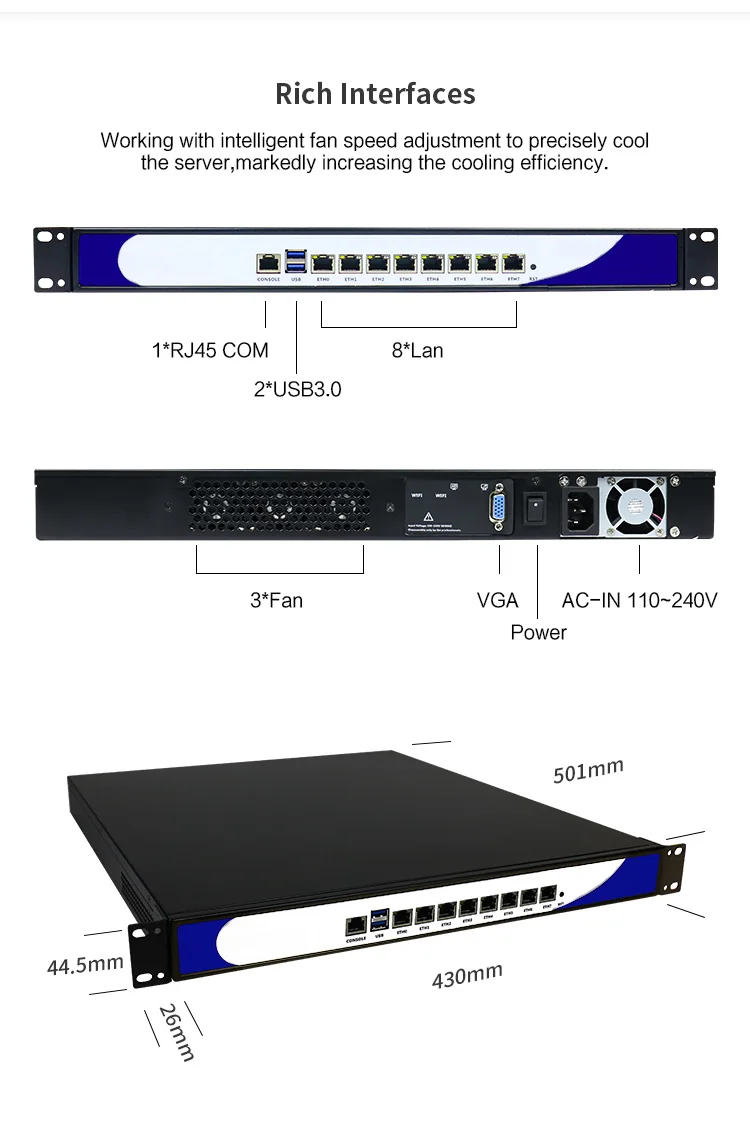

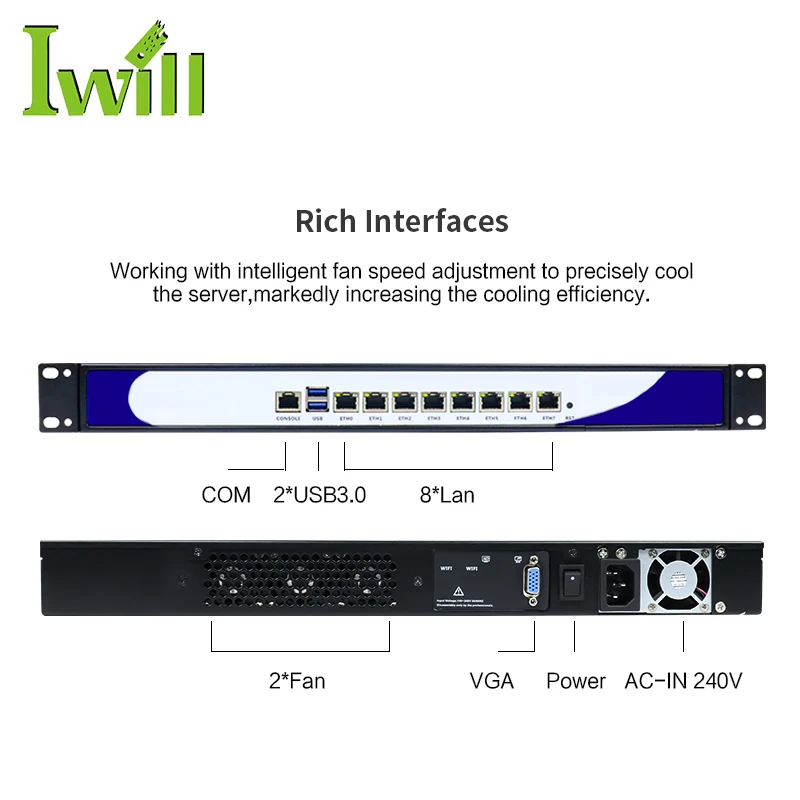

I/O | 2*USB3.0 | ||
1*VGA | |||
8* Lan | |||
1*RJ45 COM (support console function) | |||
1*Power Switch | |||
1*AC 110V~220V input | |||
Network Card | 8* i211-AT 1000M lan, support wake on lan | ||
Expansion | Support 2*PCI-E X8 Slot (Support Scalable 4 Gigabit Ethernet Ports or 4 Fibre Optical Ports) | ||
Support 1*M.2 Slot (support 2260, 2280 standard) | |||
Support 1*Mini-PCIE(support WiFi/BT/3G/4G), Embedded SIM Slot | |||
Watch Dog Timer | Support | ||
Power Supply | AC 110V~240V power supply | ||
Operating System | Windows 7/8/10, Linux, Pfsense | ||
BIOS | AMI 64M DPI Flash ROM | ||
Working Temperature | -10°C - 60°C | ||
Working Humidity | 5% - 95% relative humidity, Non-condensing | ||
Size | 482*501*44.5 mm (L*W*H); | ||
Weight | 10kg; | ||
Packaging & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Our Services
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Company Information
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-basedenterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Certifications
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
