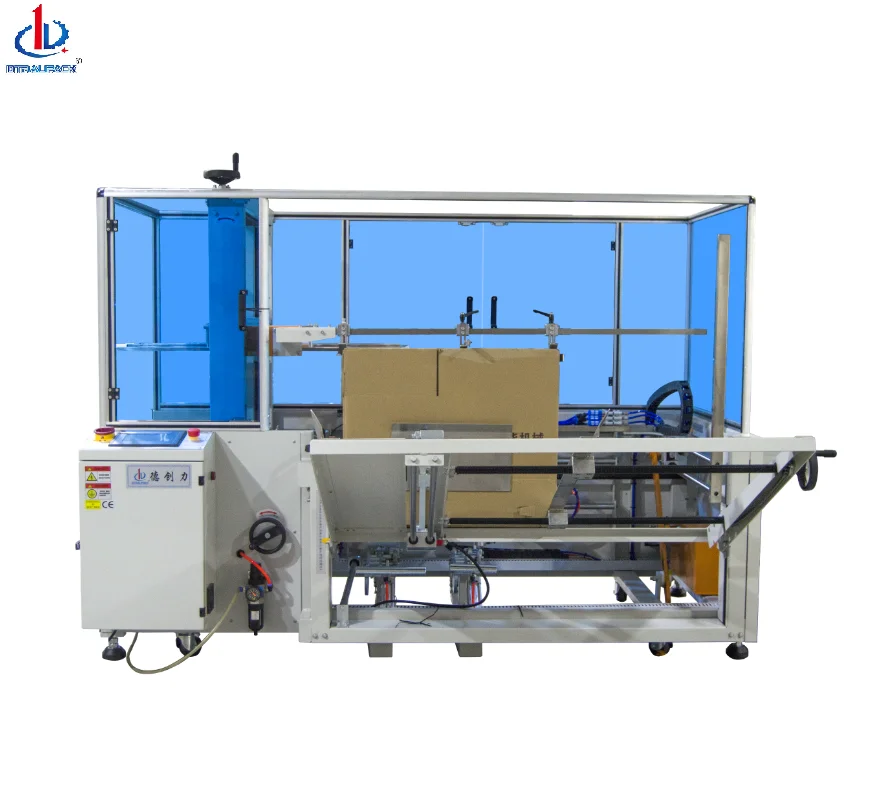

DPK 50 Automatic High Speed Case Unpacking Machine Case Unpacker carton erector for big box
- Category: >>>
- Supplier: Guangdong Dechuangli Packaging Machinery Co. Ltd.
Share on (62290973263):
Product Overview
Description
Product Description
Model | DPK-50 |
Unpacking capacity | 10-12 boxes / minute |
Carton temporary storage | 100pcs (1000mm) |
Carton size | L:250-700 W:200-500 H:150-500mm |
Use electricity | 220V 200W |
Necessary air pressure | 6kg/cm3 |
Air consumption | 450NL/min |
Mechanical size | L2300×W2000×H1700mm |
Mechanical weight | 600KG |
Function summary | Automatically open and fold the carton board and seal the bottom tape. |
1. It is manufactured by international advanced technology and uses imported parts, electrical components and pneumatic components.
2. The use of vertical storage cardboard, and can replenish the carton board at any time without downtime.
3. It can be used in the same type of carton size packaging at the same time. If you need to change the carton specifications, you can adjust it manually, and the time required is 2-3 minutes.
4. Rationalized design, simultaneous suction molding, and the bottom and the back cover are simultaneously formed.
5. Light weight, precision and durable piece counting performance, no vibration during operation, stable operation, long life and high efficiency.
6. Install a transparent plexiglass protective cover to avoid accidents.
7. Can be used in stand-alone operation, can also be used in conjunction with automated packaging lines.
2. The use of vertical storage cardboard, and can replenish the carton board at any time without downtime.
3. It can be used in the same type of carton size packaging at the same time. If you need to change the carton specifications, you can adjust it manually, and the time required is 2-3 minutes.
4. Rationalized design, simultaneous suction molding, and the bottom and the back cover are simultaneously formed.
5. Light weight, precision and durable piece counting performance, no vibration during operation, stable operation, long life and high efficiency.
6. Install a transparent plexiglass protective cover to avoid accidents.
7. Can be used in stand-alone operation, can also be used in conjunction with automated packaging lines.
