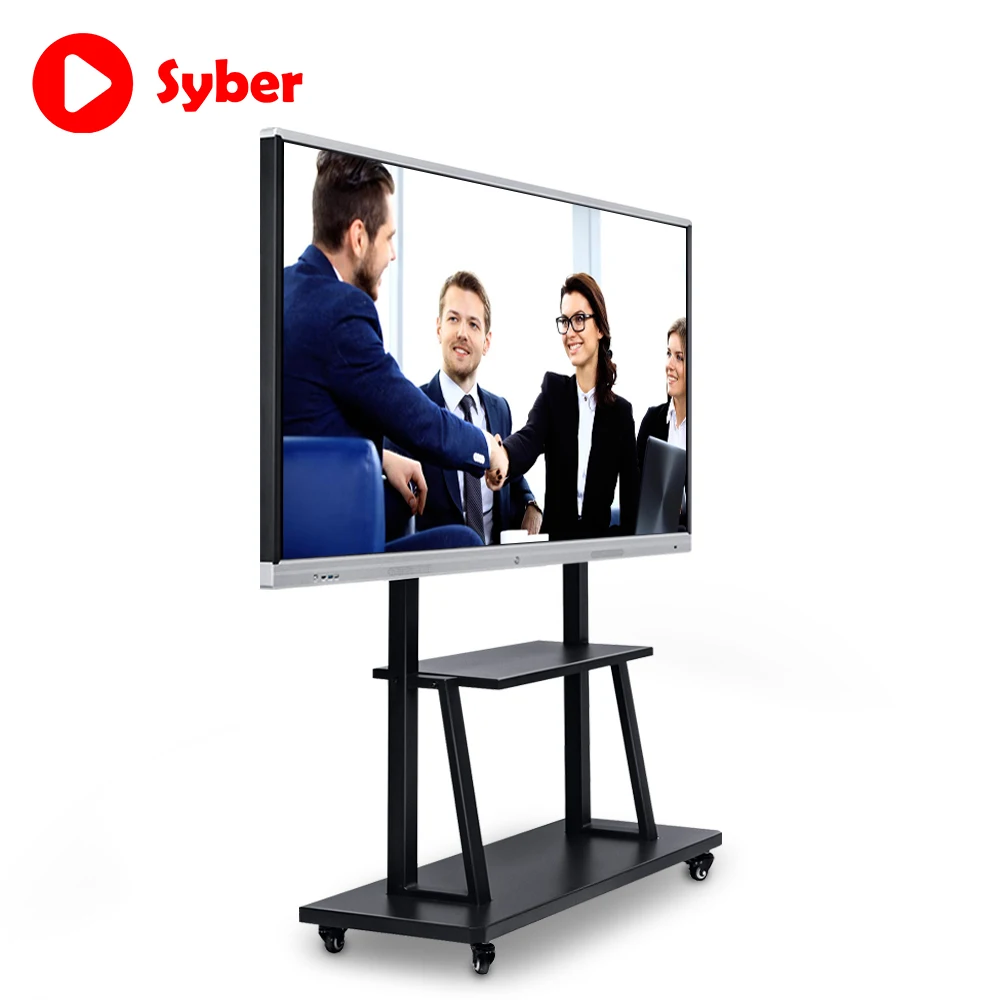

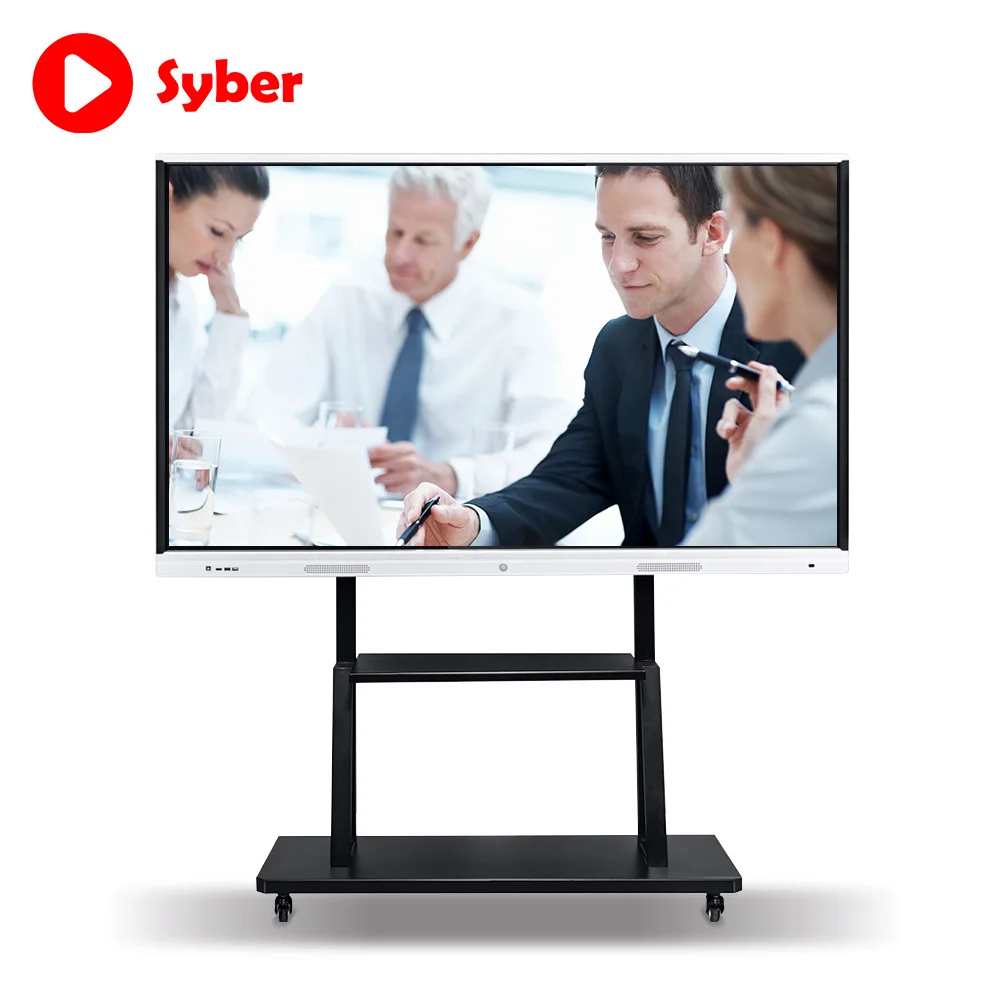

75 дюймов интерактивная доска Smart Board цена ЖК сенсорный экран видео конференций оборудование для встреч
- Category: >>>
- Supplier: Guangzhou Sibo Electronic Technology Co. Ltd.
Share on (62291031086):
Product Overview
Description
Related Products
Product Description
Syber Video interactive flat panels have two stylish frontal speakers, ideally suit meeting spaces. And this conferencing flat panels delivers intuitive collaboration and display, it is very easy to have wireless presentation. Efficient and collaborative meetings just at a touch.
Paratemer setttings
| Panel | Screen Size | 75" |
| Display Ratio | 16:9 | |
| Lightsource/ Backlight | DLED | |
| Resolution (pixels) | UHD 4K 3840*2160 | |
| Brightness (Typical) | 350 cd/m² | |
| Contrast Ratio (Typical) | 5,000:1 | |
| Viewing Angel | 178°/178° | |
| Response Time (ms) | 3~8ms | |
| Color Gamut (x% NTSC) | 65% | |
| Panel Bit (8 or 10) | 10 bits, 16.7M | |
| Backlight Life (Typical) | 120,000 hours | |
Dual OS | Android | Android OS |
| RAM 2G+ROM 32G | ||
| Windows | Windows 7/8/10 | |
| CPU: intel i3( i5/i7 optional) | ||
| RAM 4G+ 120GB SSD (500GB HDD optional) | ||
| Glass | Tempered Glass | 4mm, Tempered Glass, M7 |
| Anti-Glare | Yes | |
| Touch | Touch Technology | IR Touch/ Infrared touch |
| Numbers of Touch | 10 points (UP to 32 points) | |
| Resolution (Points Area Function) | 32,767x32,767 | |
| Touch Tools | Fingers, touch pens or opaque objects | |
| Response Time | 3~8ms | |
| Positioning Accuracy | ±2mm (more than 90% touch area) | |
| Touch Lifetime | ≥80,000 hours | |
| Power | Voltage | 100V-240V, 50/60Hz |
| Wattage (Typical) | 310W | |
| Standby Power Consumption | ≤3W | |
| Input & Output | Input | USB*6, VGA*1, RJ45*1, WIFI*2, D-SUB 9 Pin*1,VGA(D-SUB15pin)*1, HDMI*3 |
| Output | USB*2, COAX*1, EARPHONE*1 | |
| OPS Interface | RJ45*1, MIC*1, AUDIO LINE*1,USB3.0*2, USB2.0*4,HDMI*1, VGA*1, WIFI*1 | |
| Mechanical | View Size(L*H)(mm) | 1646*924 |
| Screen Size(L*H*T)(mm) | 1736*1060*108 | |
| Wall Mounting Size(L*H*T)(mm) | 770*205*35 | |
| Package Size (L*H*T) (mm) | 1870*1180*220 | |
| N.W. (KG) | 60 | |
| G.W. (KG) | 75 | |
| OSD | On-screen Display Language | Chinese & English |
| Accessories | Writing Pen | x1 |
| Remote Contro | x1 | |
| Instruction Manual | x1 | |
| Wall Mounting Bracket | x1 | |
| Power Cable | x1 | |
| Portabl Floor Standing Bracket | Optional |
Conference Advantage

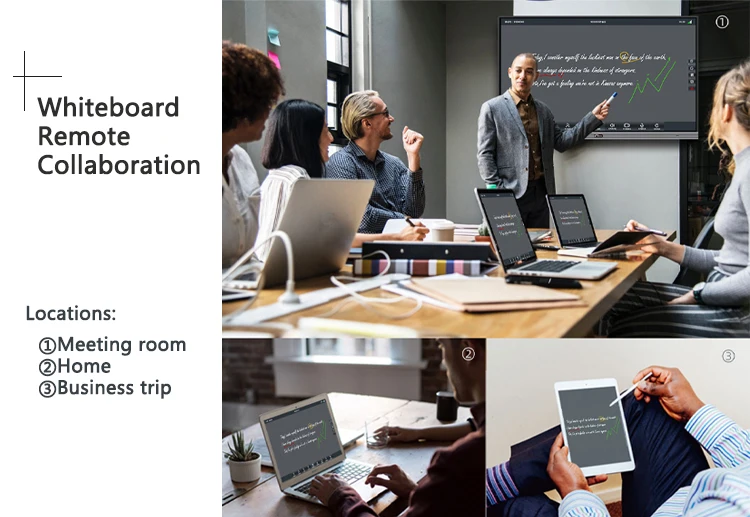

Whiteboard remote collaboration
During the conference, whiteboard sharing can be initiated through the conference flat panel or computer. Other participant terminals will simultaneously accept the whiteboard screen and they can freely write, annotate, erase on the whiteboard, other terminals(mobile phone, computer, ipad, PC) will display simultaneously.
Intelligent whiteboard writing make free writing and painting. Accurate touch, Smooth writing.
And, annotation can be used in any interface.

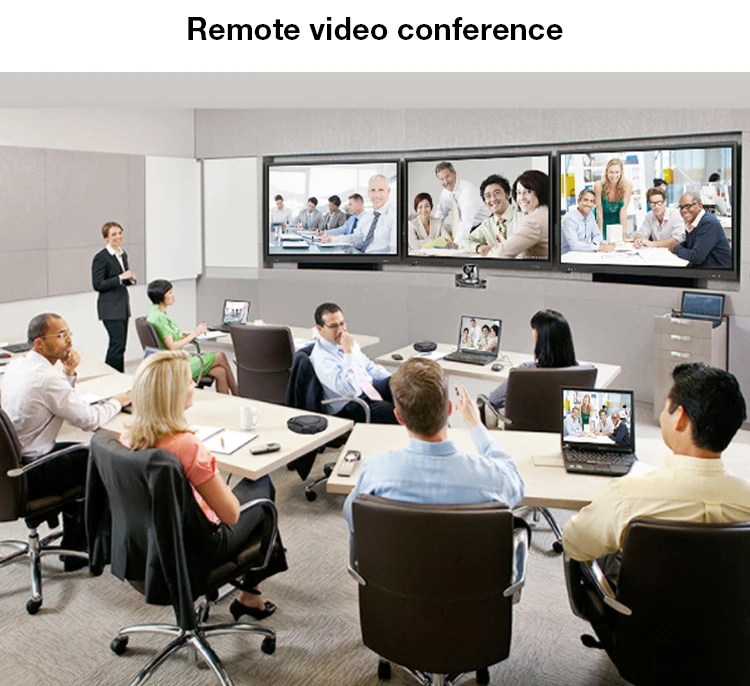

Remote video conference
Support external camera, microphone, compatible with third-party remote video conferencing hardware and software.
Wireless projection & Multi-screen interactive
Support iOS/Android/Windows system computer, mobile phone and ipad to share on the interactive flat panel. It can support four screens at the same time, greatly improving meeting efficiency.
All meeting results and progress can be saved and shared via email or by scanning a QR code, which remains available for 30 minutes to avoid information leakage. For more convenient, meeting data can saved on a USB.
Syber all-in-one interactive flat panel offers multiple sizes for you.
You can choose the most suitable size according to the size of the workplace and the actual needs

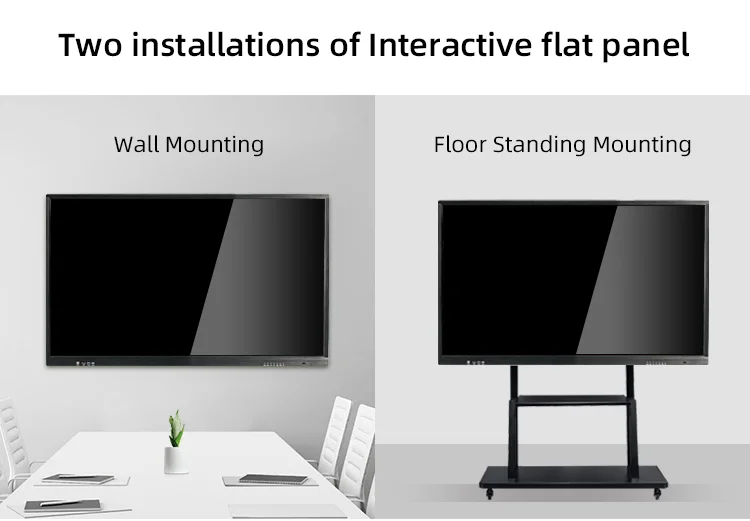

Two installations of Interactive flat panel :
Wall Mounting and Floor Standing Mounting.
1. Wall Mounting (free of charge).
Reinforced design, firm and easy to install. Also it can save space for interactive flat panel.

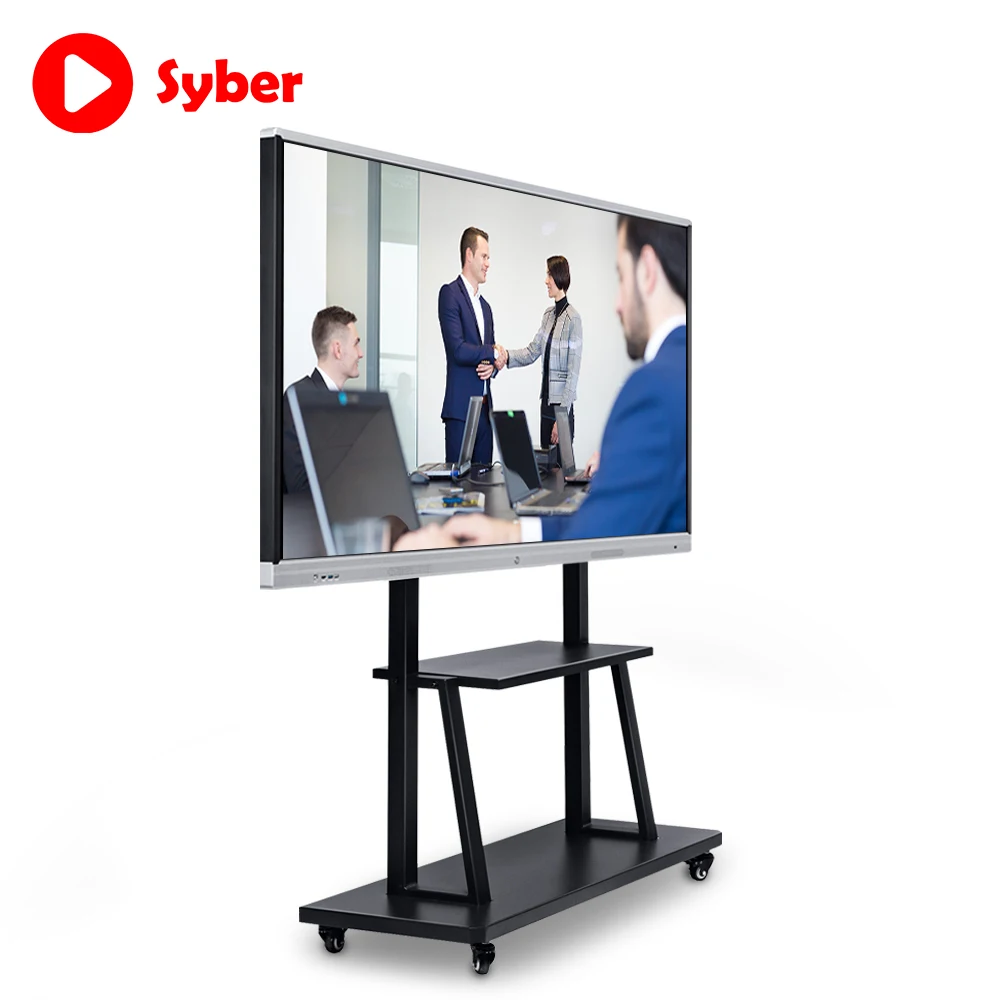

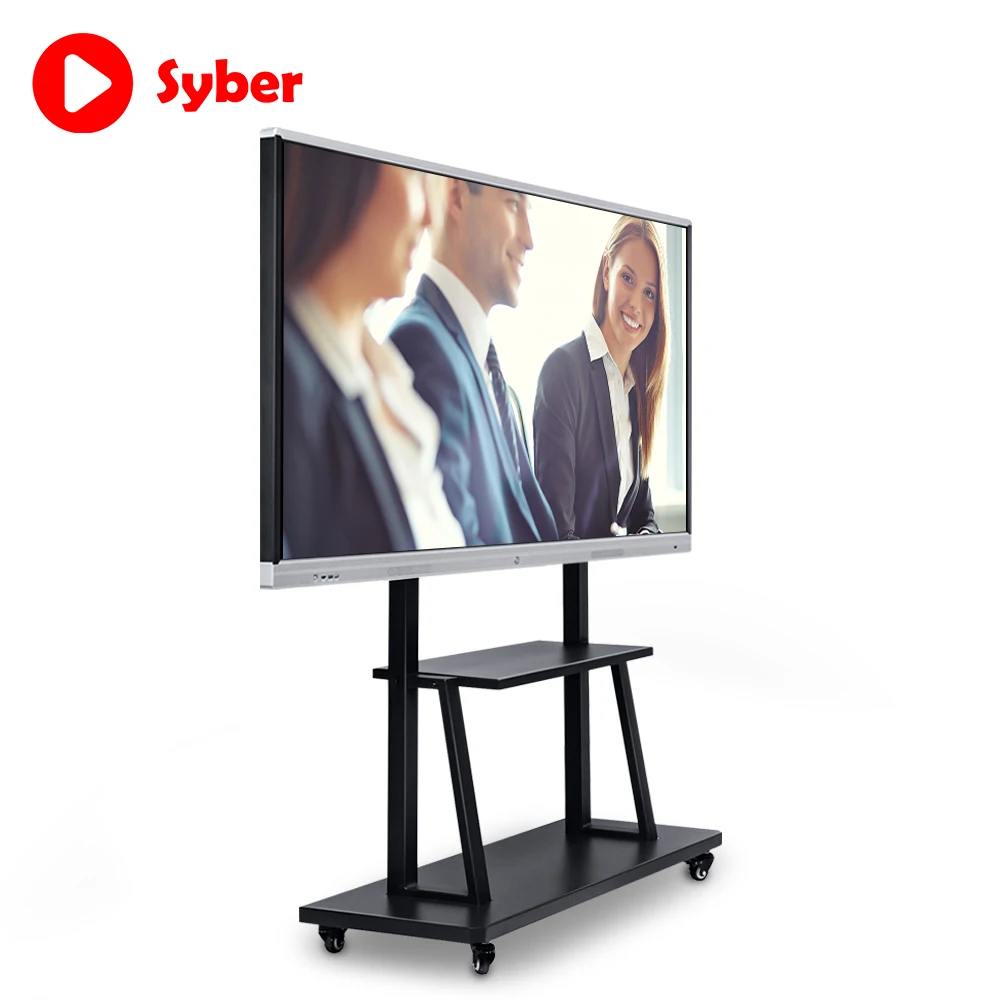

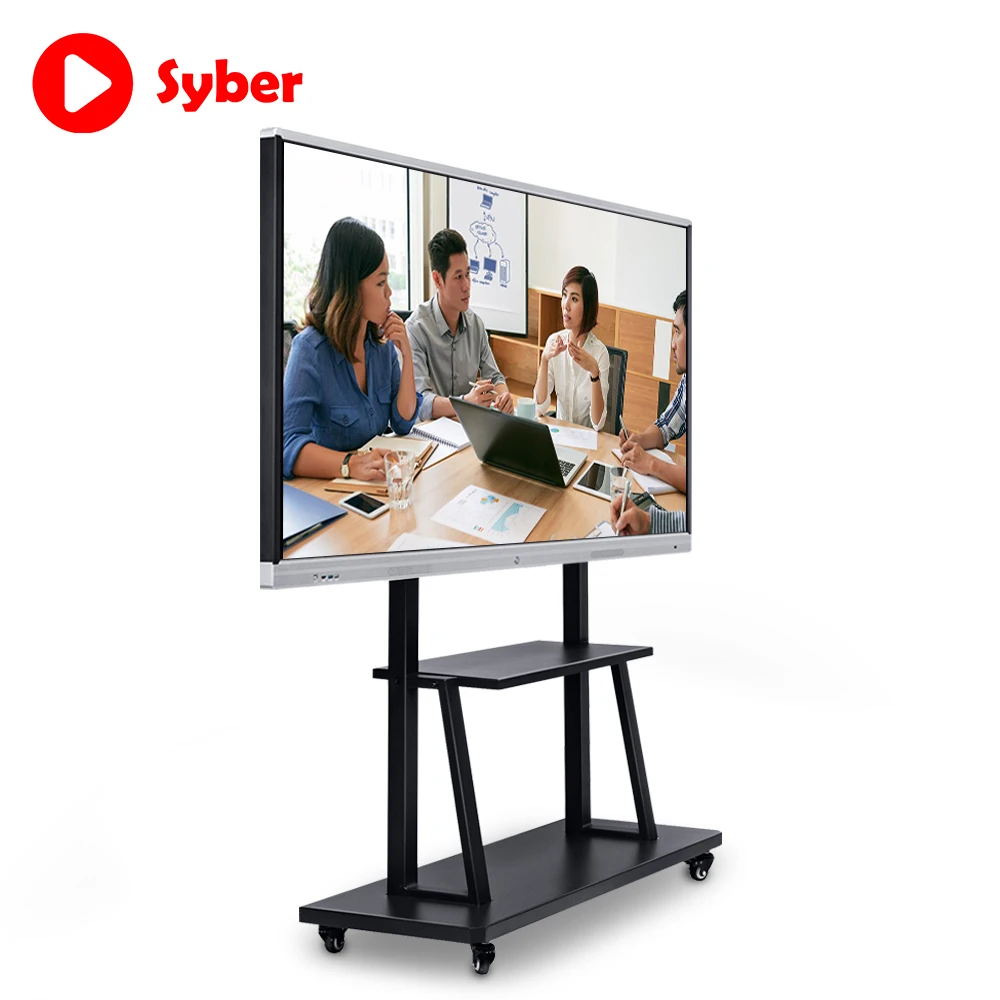

2. Floor Standing Mounting (optional).
Universal wheel portable mounting. Black, high quality cold rolled steel, surface pickling, frosted electrostatic spraying. The max loading is 45.5kg/100lbs, horizontal lifting height from 1280mm to 1700mm. Not only can you move freely in the classroom or conference room, but the lower pallet can also prevent some items, which is very convenient.

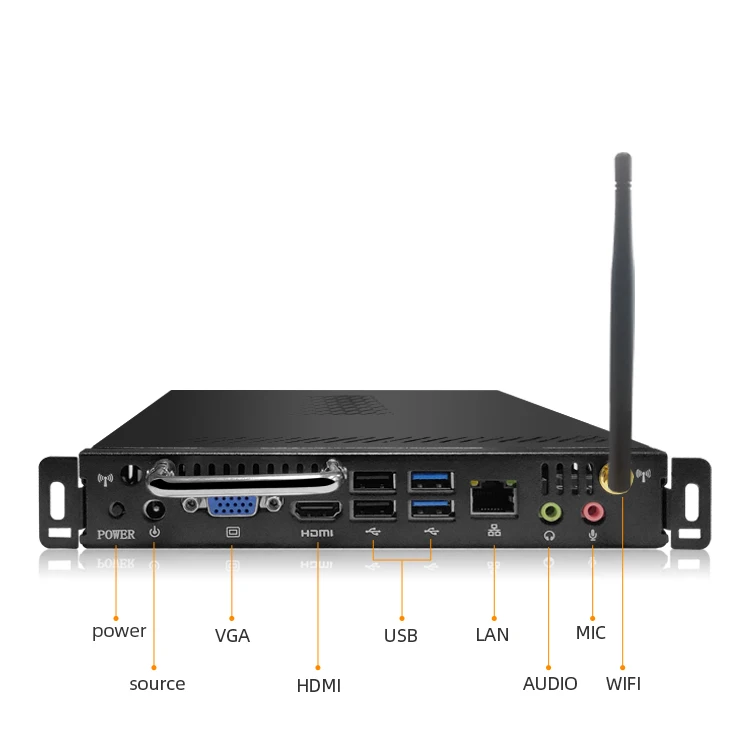

Plug-in OPS(Portable host):
High versatility, Fexible update, Convenient maintenance
With Intel Core i3/i5/i7 optional, RAM 4G+Standard 128GB SSD (500GB HDD optional) and enough input and output ports.
Adopt pluggable interface, which is convenient and lightweight, improving the performance and reducing power consumption.
Convenient maintenance and upgrades, save costs easily.
Features & Advantage
• All in one interactive flat panel

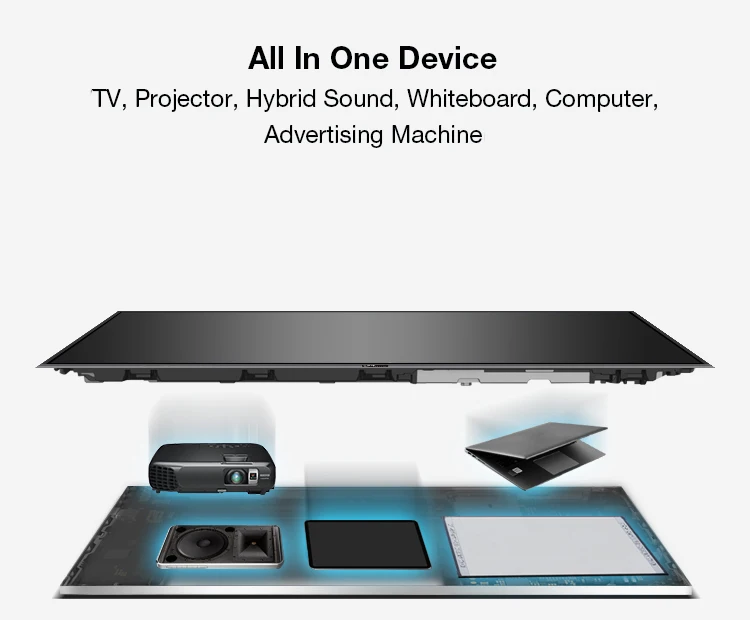

TV, Projector, Hybrid Sound, Whiteboard, Computer, Advertising Machine, all in one interactive flat panel.
• 4K UHD display
3840*2160 UHD: high definition LED screen.
Even in bright environments, the screen content is clearly presented.
• 4mm explosion-proof tempered glass, strength is up to MOHS7
• Anti-Glare display(optional)
Anti-glare glass will effectively reduce reflections, freeing people from excessive squinting with more legible text and more clear images, avoiding eye strain.
• IR touch
Support 10 points IR touch ( 20-32 points touch option), 0.8ms response accurate.
Adopts super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million times secure touch. Easily touch and control, no delay.
• Dual operation system
Windows 7/ 8/ 10/ Linux(CPU: I3/ I5/ I7 Optional)+ Android
Adopts pluggable module, which has strong versatility, flexible upgrade and convenient maintenance. Dual system operation, can be switched by using the floating menu with one button in any interface.
• Multiple sizes: 55”~100”optional
Choose the most suitable size according to the size of the workplace and the actual needs.
• Intelligent whiteboard
Smart writing, zoom in and out, gesture erasure, drag freely, one-button clear screen.
• Wireless screen
Screen-mirroring with android phone, iphone, ipad, computer, etc.
• Intelligent operation
Freely write, annotate and screen shot. Automatically recognize input channel.
Product Category
About Us
Syber video focuses on all in one interactive touch screen smart display flat panel for video conferencing, education, training, classroom, advertising, and meeting. With advanced and developing technology, the digital flat panels with interactive touch screens are far more than a display panel or simple touch screen. All of the collaboration tools are right here: Multiple presentations, smart whiteboard tools, web conferencing. Video, audio, web conference and interactive whiteboard come into the all in one screen and collaborate across multiple platforms in one click.
Strong R&D team ensures our leading technology and multiple solutions for interactive flat panels. We have engineers with over 15 years experience in communicaton industry. OEM and ODM are available, such as customize UI, MCU, etc. With over 10 years exporting experience, we always give priority to the quality of production and processing of each process excellence, all Syber staffs strive to do our best and spare no efforts to offer quality interactive flat panels at competitive prices with sincere service.
Interactive smart flat panels will bring you new smart experience and Syber will provide you the greatest cooperation.
Powerful conferencing software
In the Video conference software developmenting , we have obtained a lot of intellectual property patents. Cooperation companies including: Leyard, Lenovo, TCL, SKYWORTH.
FAQ
Q1: What's your MOQ of interactive flat panel?
A: One set. Guangzhou Syber is a professional manufacturer, We ensure the 100% quality of each flat panel.
Q2: Can you make IFP according to customer requirements?
A: Yes. Syber can customize interactive flat panel according to your requirements.
Q3: Is your IFP quality certified?
A: Yes. Guangzhou Syber has more than 10 years export experience and we can provide the professional certificates for all our interactive smart flat panels, such as CCC, FC, CE, CB ect..
Q4: How about your delivery time?
A: About interactive smart flat panels, generally our delivery time is 15 days.
Q5: Do you test all your interactive smart flat panels before delivery?
A: Yes, Syber smart interactive flat panels are 100% tested before delivery.
Q6: What payment method can Syber accept?
A: T/T, West Union, Credit Card.
Q7: What is your shipment terms?
A: By sea, by air or by express. (Depends on order quantity and requirements.)
Q8: What is your terms of packing?
A: Generally, 5-layer corrugated carton+ EPE(Inside protection)+ Stretch film (Outside protection) for FCL, and extra Plywood frame for LCL (optional).
Q9: Do you produce IFP by yourself?
A: Yes, Syber have a professional R&D team and factory.
Q10: How do you make business long-term and good relationship with customers?
A: 1. Syber keep good quality and competitive price to ensure our customers benefits;
2. Syber respect every customer as our friend and we sincerely do business and make friends with them.
