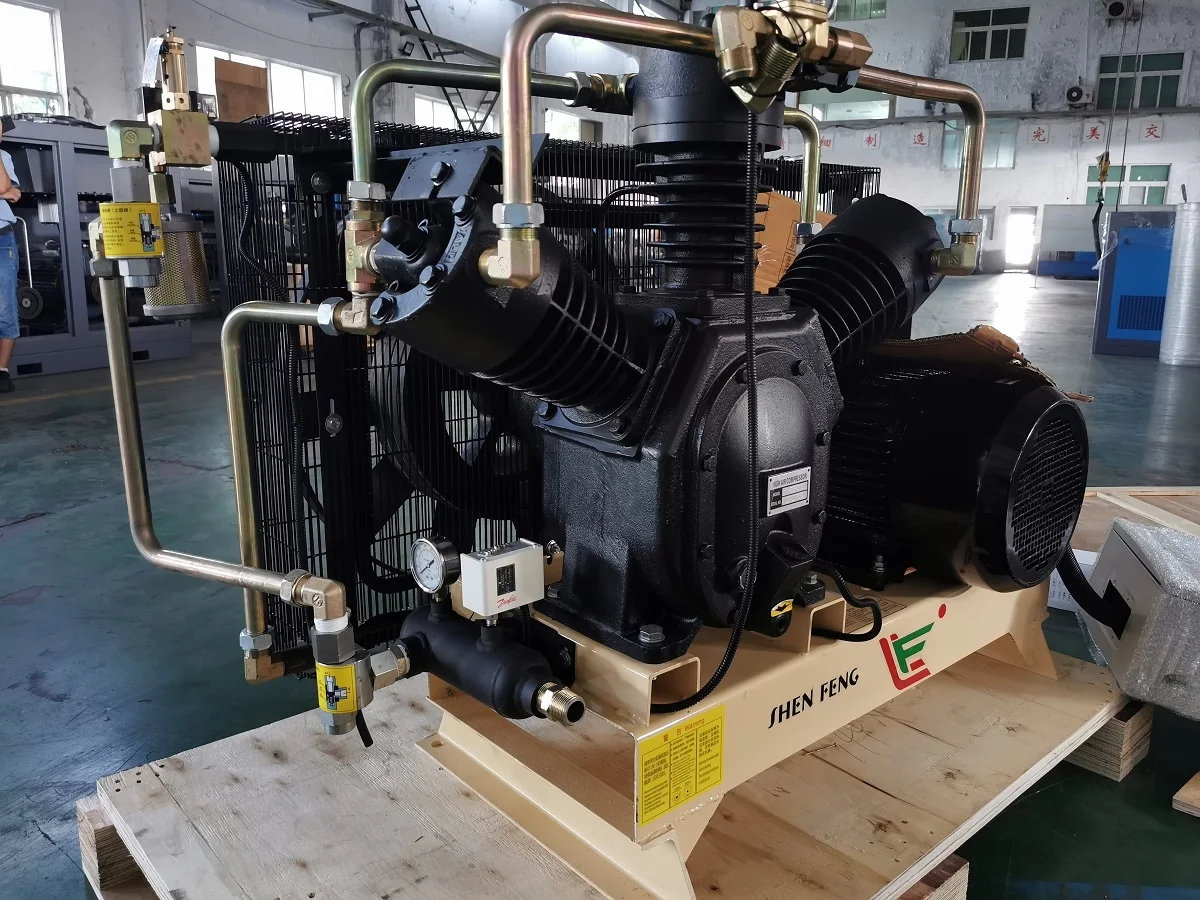

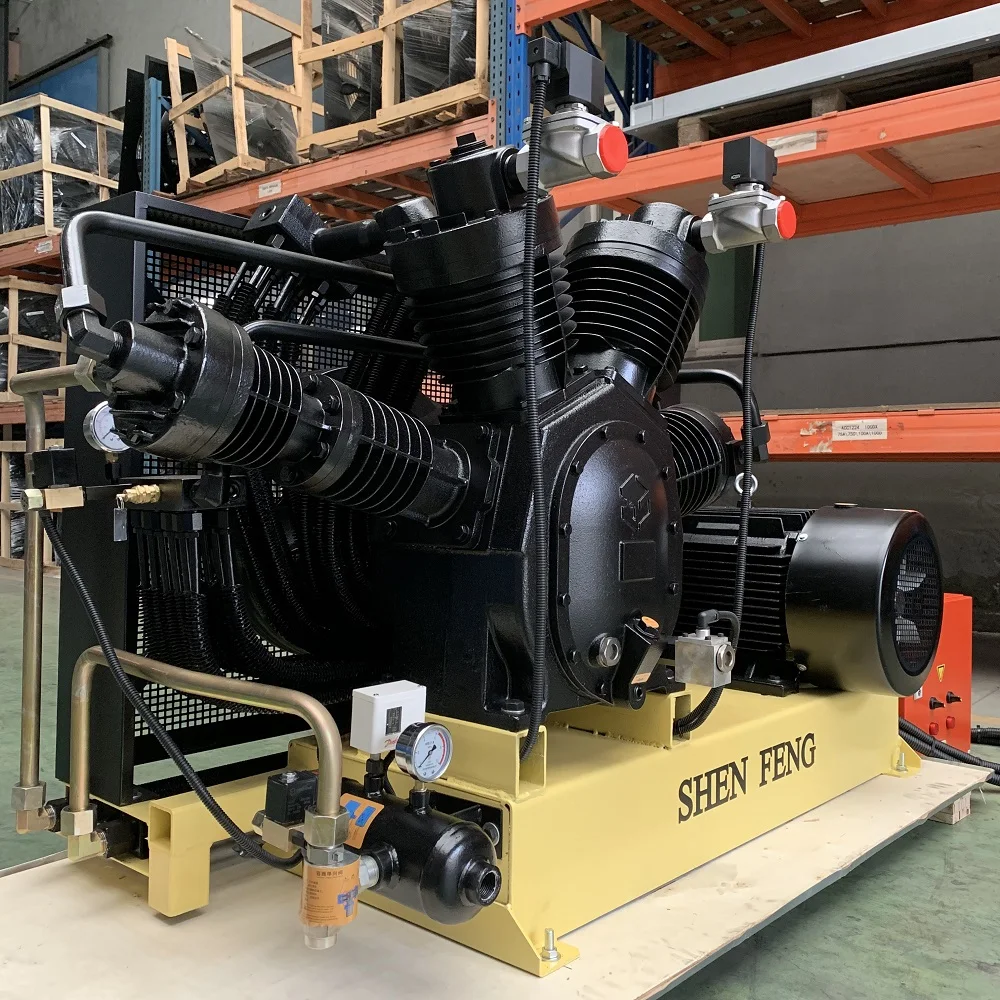

11kw 30 bar high pressure air compressor
- Category: Air-Compressors & Parts >>>
- Supplier: Shanghai Shengyi Compressor Co. Ltd.
Share on (62291104908):
Product Overview
Description
Product Description

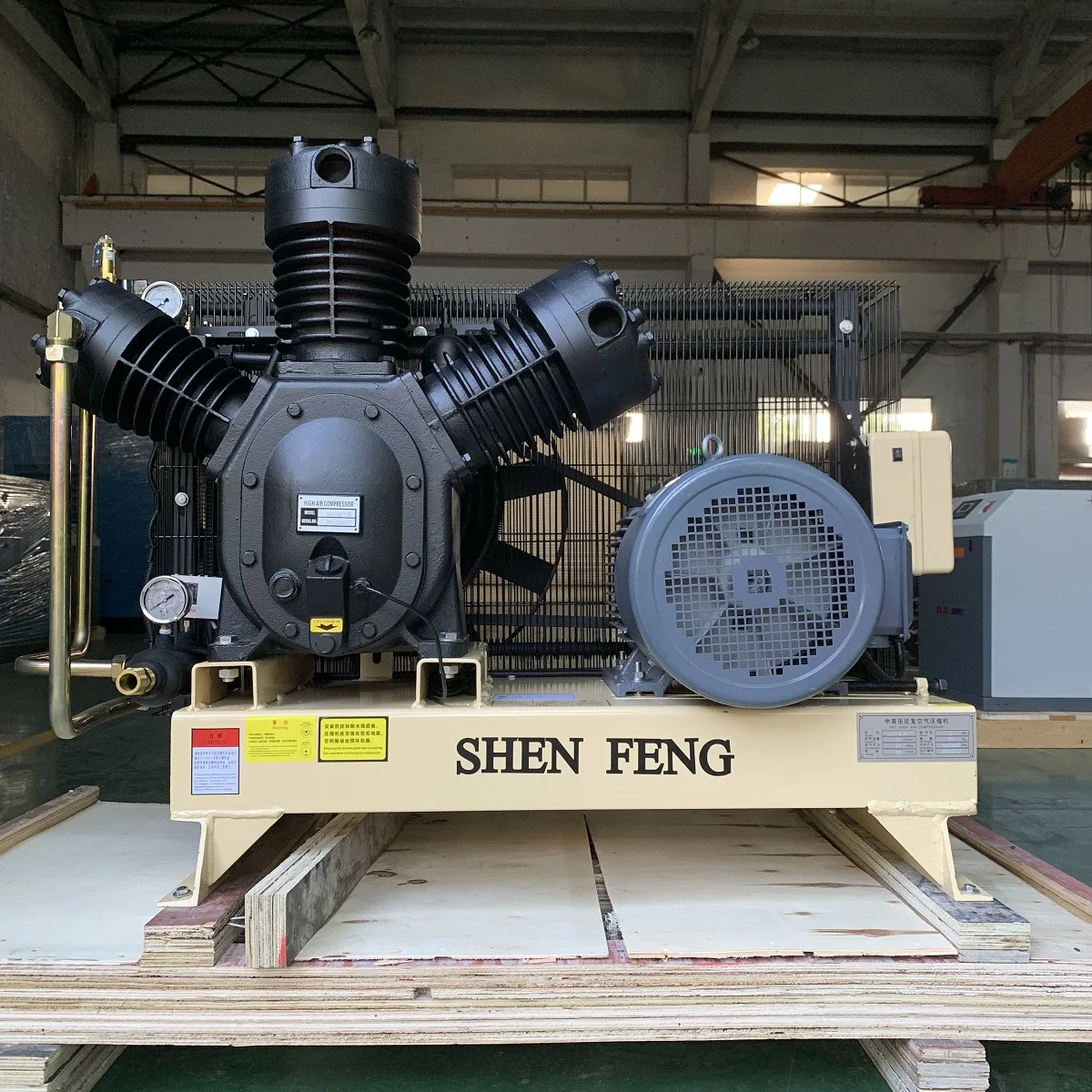

20bar 30 bar 40 bar piston air compressor

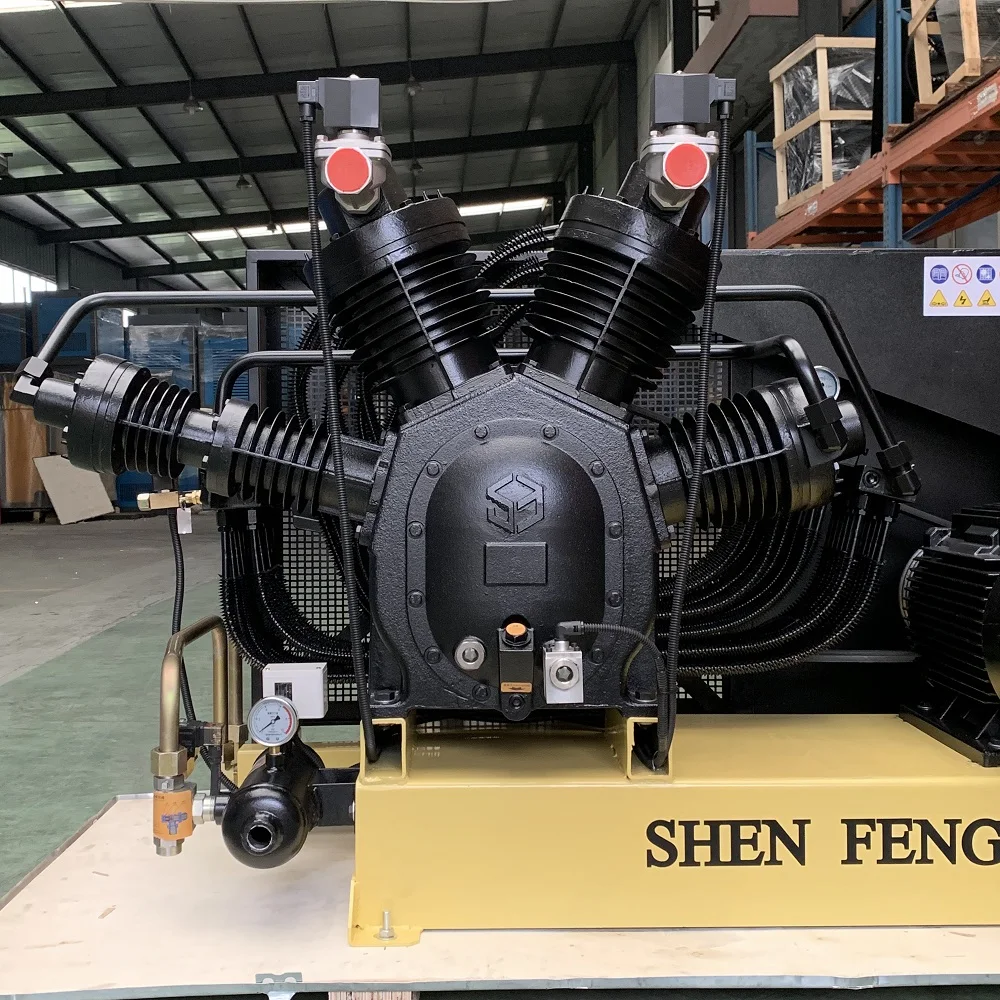

High pressure piston air compressors
This 30bar/40bar high pressure booster air compressors are used for PET bottle blowing industry applications.
PET bottle blowing high pressure air compressor is widely used in pet bottle blowing,leakage testing,pipeline cleaning (cleaning pipeline welding slag,cement), chemical industry,military industry,petrochemical industry,oil and gas,valve testing,marine and other fields

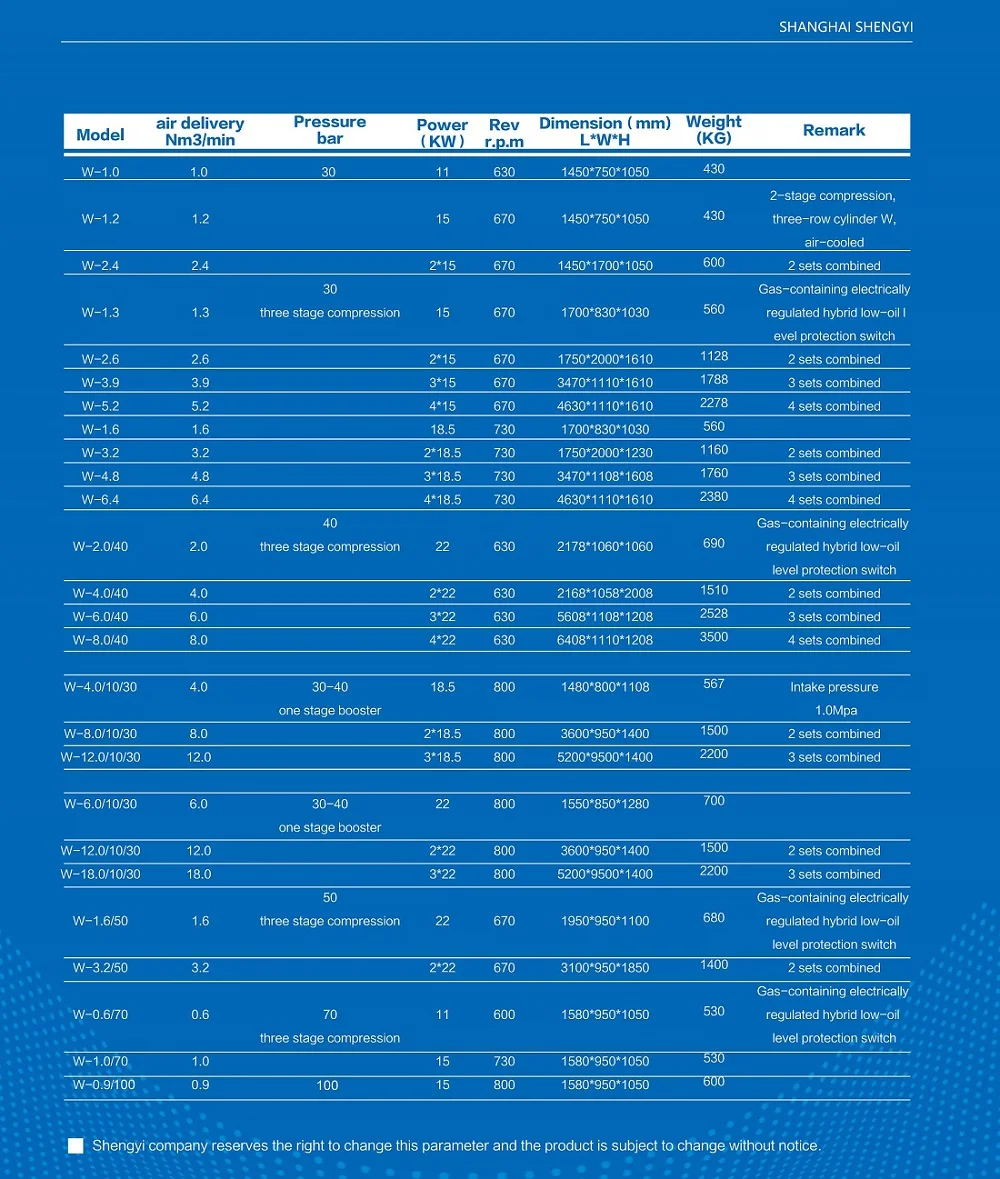

Parameter List
| Model | Displacement (M3/min) | Pressure (Mpa)) | Compression stage | Power (kw) | r.p.m | Dimension L*W*H(mm) | Weight (kg) | Start mode |
| W-1.0 | 1.0 | 3.0 | 2 | 11 | 620 | 1450*750*1050 | 430 | |
| W-2.0 | 2.0 | 2*11 | 590 | 1450*1700*1050 | 600 | |||
| W-2.0 | 2.4 | 2*11 | 620 | 1450*1700*1050 | 600 | |||
| W-1.2 | 1.2 | 15 | 660 | 1450*750*1050 | 430 | |||
| W-2.4 | 2.4 | 2*15 | 660 | 1450*1700*1050 | 600 | |||
| W-1.3 | 1.3 | 4.0 | 3 | 15 | 660 | 1700*830*1030 | 560 | Direct drive |
| W-2.6 | 2.6 | 2*15 | 660 | 1750*2000*1610 | 1128 | |||
| W-3.9 | 3.9 | 3*15 | 660 | 3470*1110*1610 | 1788 | |||
| W-5.2 | 5.2 | 4*15 | 660 | 4630*1110*1610 | 2278 | |||
| W-1.6 | 1.6 | 18.5 | 720 | 1700*830*1030 | 560 | |||
| W-3.2 | 3.2 | 2*18.5 | 720 | 1750*2000*1230 | 1160 | |||
| W-4.8 | 4.8 | 3*18.5 | 720 | 3470*1108*1608 | 1760 | |||
| W-6.4 | 6.4 | 4*18.5 | 720 | 4630*1110*1610 | 2380 | |||
| W-2.0 | 2.0 | 3.0 | 3 | 22 | 620 | 2178*1060*1060 | 690 | Direct drive |
| W-4.0 | 4.0 | 2*22 | 620 | 2168*1058*2008 | 1510 | |||
| W-6.0 | 6.0 | 3*22 | 620 | 5608*1108*1208 | 2528 | |||
| W-2.0 | 2.0 | 4.0 | 22 | 620 | 2178*1060*1060 | 690 | ||
| W-4.0 | 4.0 | 2*22 | 620 | 2168*1058*2008 | 1510 | |||
| W-6.0 | 6.0 | 3*22 | 620 | 5608*1108*1208 | 2528 | |||
| W-1.7 | 1.7 | 5 | 3 | 22 | 660 | 1950*950*1100 | 680 | Direct drive |
| W-3.4 | 3.4 | 22*2 | 660 | 3100*950*1850 | 1400 | |||
| W-5.1 | 5.1 | 22*3 | 660 | 4600*950*1850 | 2100 | |||
| W-0.6 | 0.6 | 4.5-7.0 | 3 | 11 | 620 | 1580*950*1050 | 530 | Direct drive |
| W-1.0 | 1.0 | 4.5-7.0 | 15 | 720 | 1580*950*1050 | 530 | ||
| W-0.6 | 0.6 | 7.0-10.0 | 11 | 660 | 1580*950*1050 | 600 | ||
| W-0.9 | 0.9 | 7.0-10.0 | 15 | 790 | 1580*950*1050 | 600 |
