200W Laser Spot Welder for Sale Jewelry Laser Welding Machine mini laser welding

Product Overview

Description

200W Laser Spot Welder for Sale Jewelry Laser Welding Machine mini laser welding

Whatsapp: +86 15628767027



1. Machine features:

1) This type machine is designed according to ergonomics, which meets the need of

exquisiteness, blazonry, stable performance of jewelry industry, and is suitable for long

and continuous working time. One key operation: one key switch, simplify the starting

process , convenient use process Cumbersome Process.

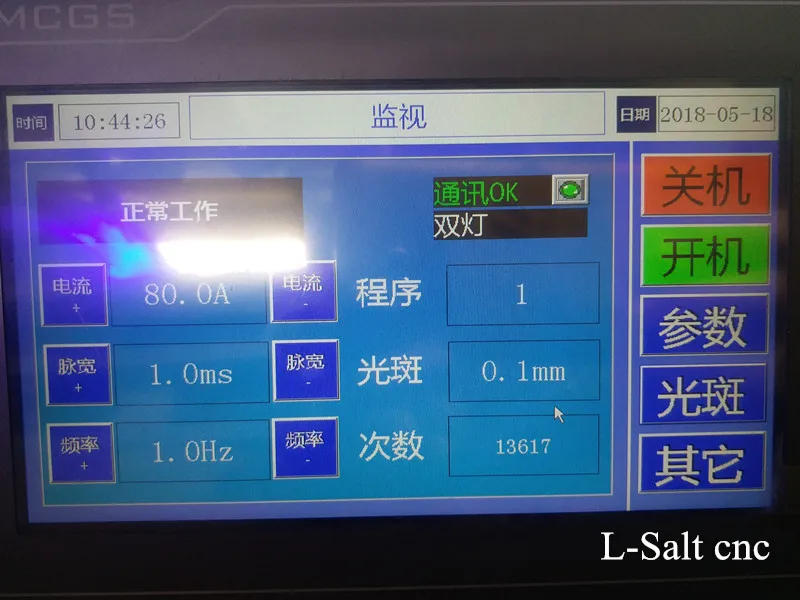

2) The single chip microcomputer control regulation: the storage 50 groups commonly

used welder parameters, convenient use again.
3) The energy, pulse width, frequency and light spot size can be adjusted in a large range to

realize different welding effects. The parameters are adjusted by the lever in the seal cavity,

which is simple and highly efficient.
4) Use the most advanced light shielding system to eliminate the irritation to eyes by light

during working.
5) Able to work for 24 hours continuously; stable performance; free of maintenance in

10,000 hours.
6) Annular, shadowless, adjustable brightness LED-lamp makes it clearer when observe

the welding area.Human-based design accords with ergonomics, avoiding fatigue after

long time working.



2. Machine parameters:

Machine model	LSW-200W
Max laser power	200w
Laser wavelength	1064nm
Max power of single impulse	80J
Welding depth	0.1-2.5mm
Pulse width	0.1-20ms
Laser welding frequency	0-50Hz
Adjustable scope of laser spot	0.1-2.0mm
Power Consumption	≤6KW
Cooling system dimensions	Water cooling
Observation system	10X Microscope or HD CCD
Power required	220V±10%/50Hz
Consumable	Xenon lamp,Filter element,Protective lens,Argon
Working temperature	55°F(13°C)-82°F(28°C)
Working Humidity	5%-75%

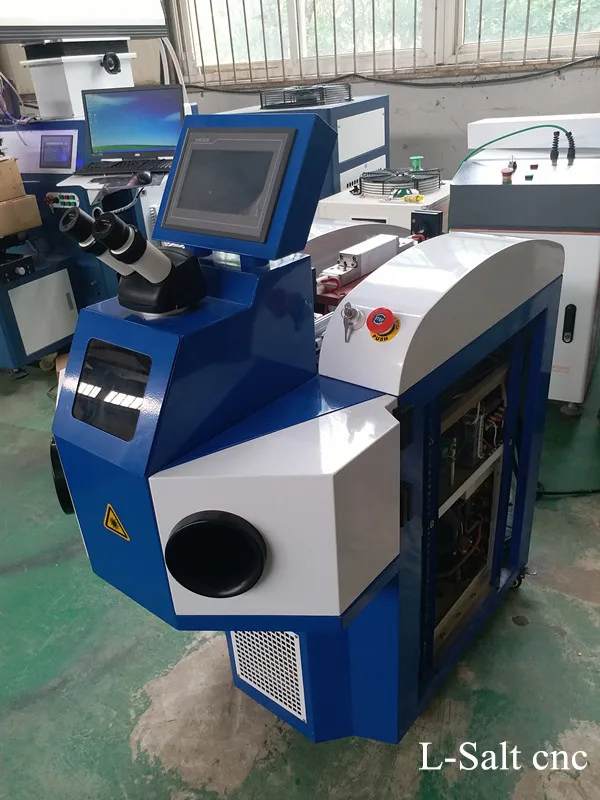

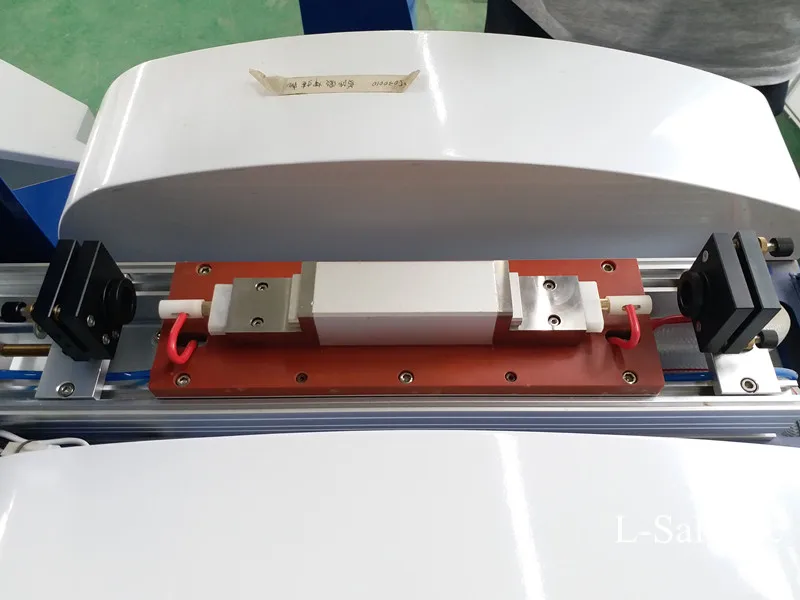

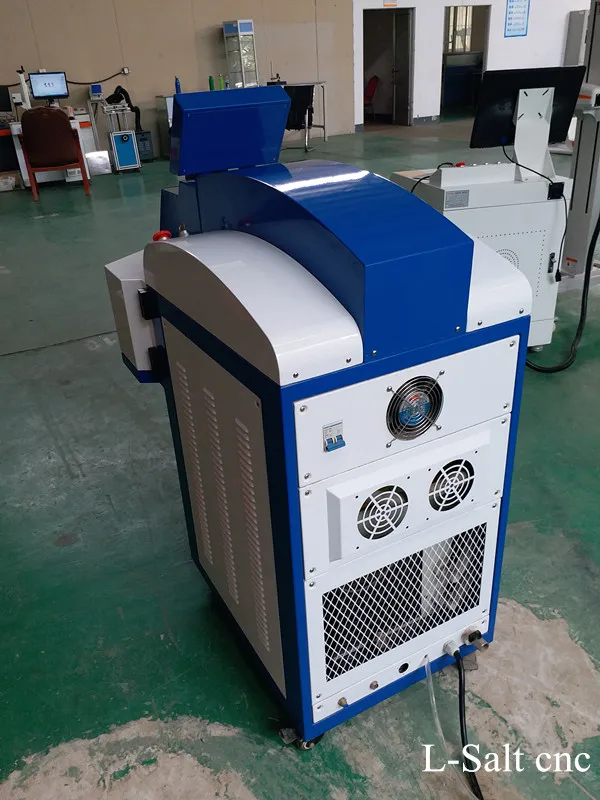

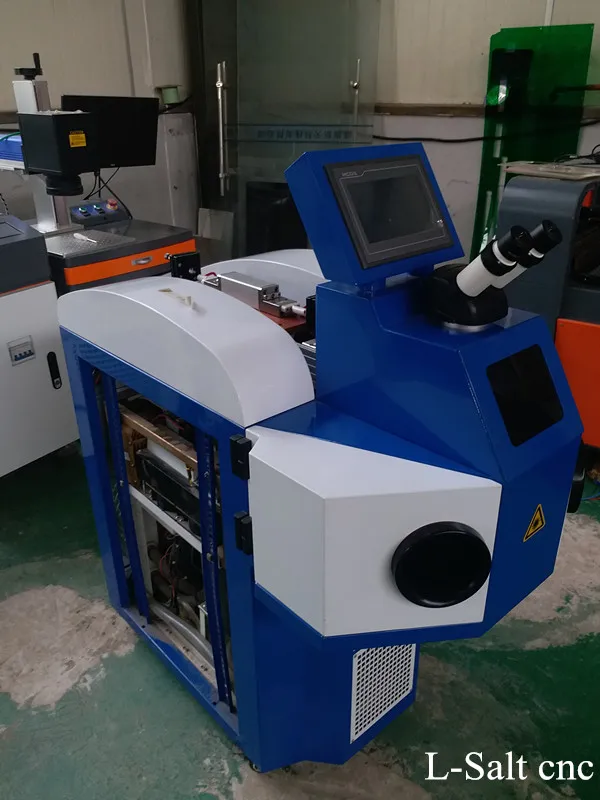

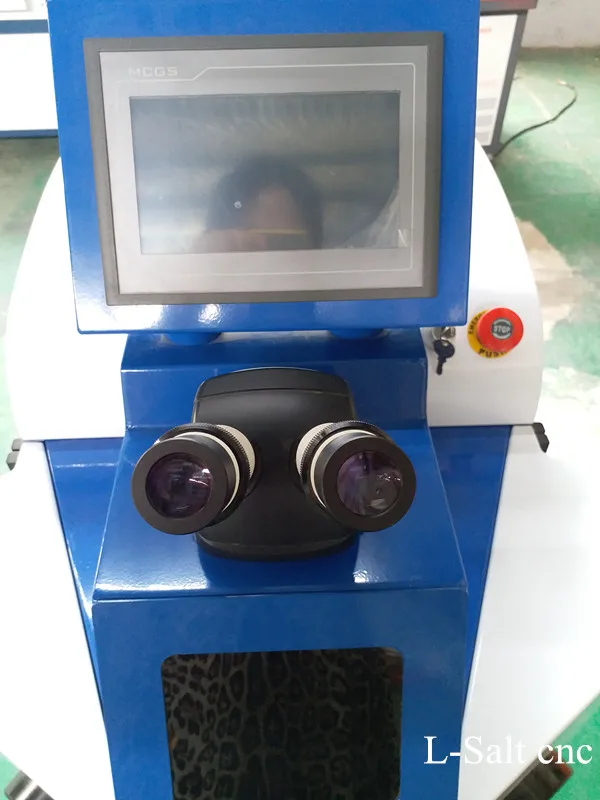

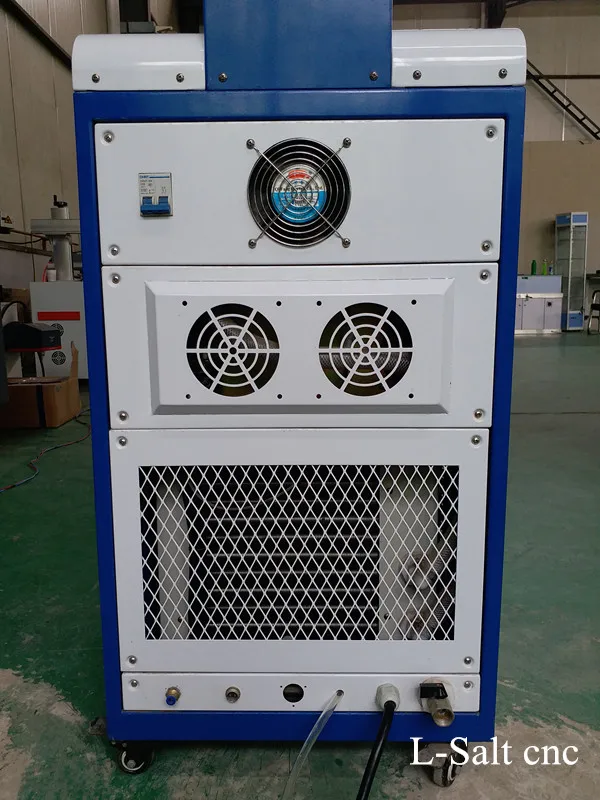

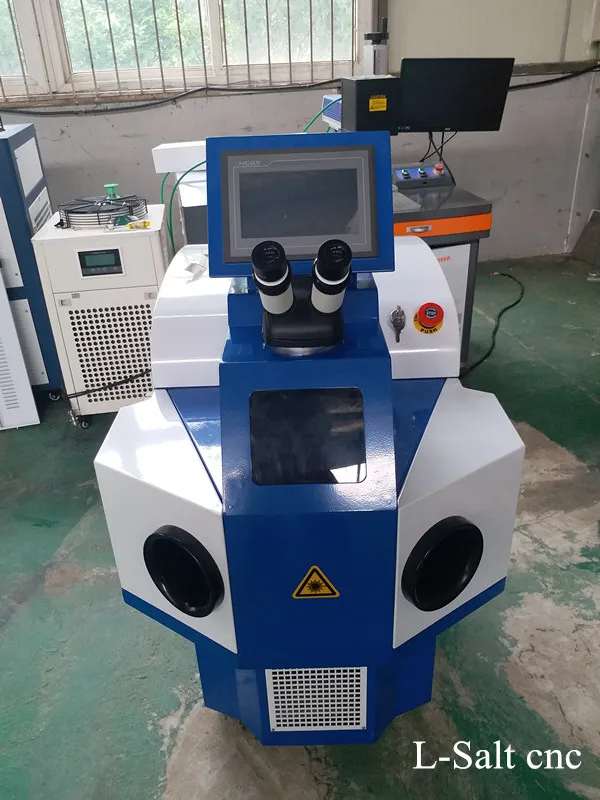

3. Machine photos:

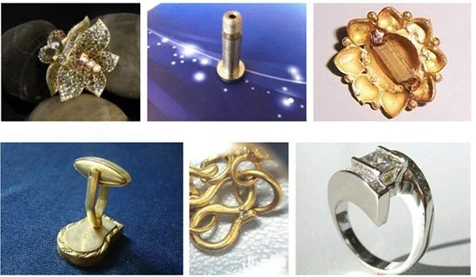

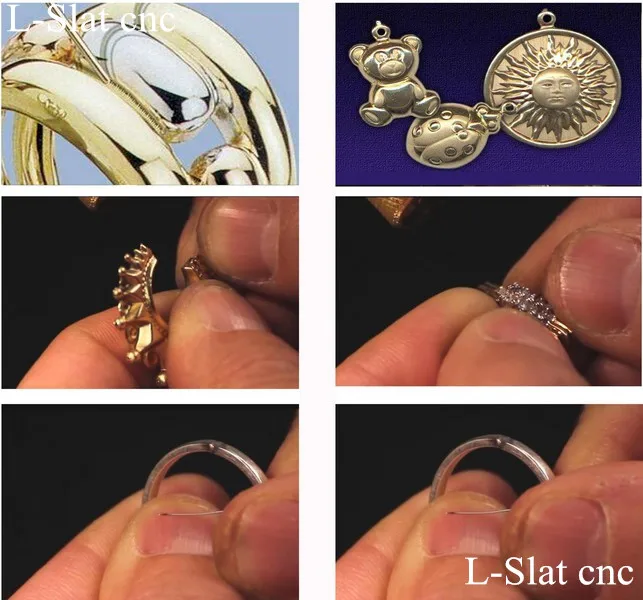

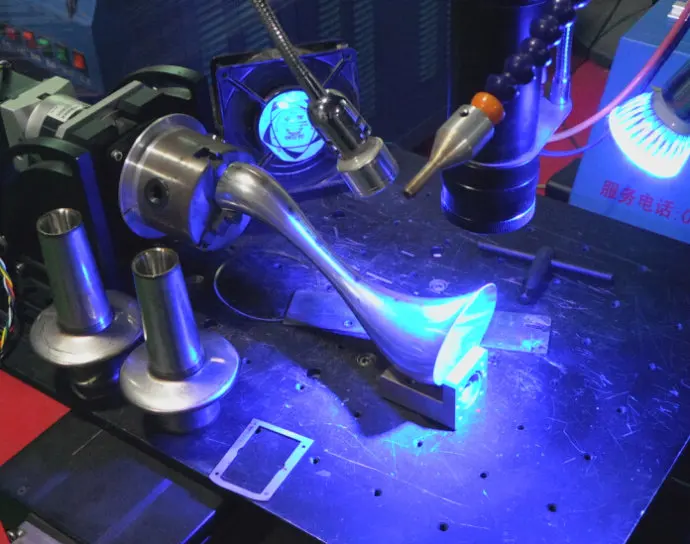

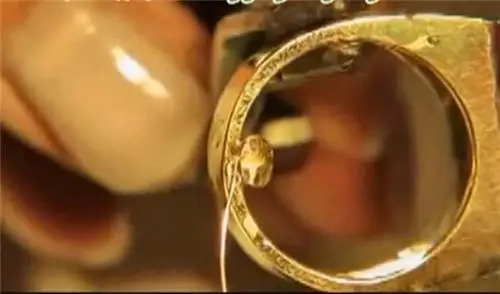

4. Working samples:









5. Warranty :



1. We provide 2 year warranty of our company jewelry machines series products . 2. After-sales Service Provided: Engineers available to service machinery overseas. 3. Our companyhave factory boith in shenzhen and jinan,will serve you well. 4. ISO9001: 2008 Quality management system certification.

Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service * Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas.









Q1: What is your delivery time?

    It usually takes us 5-7 days to finishe producing machine.



Q2: How can I confirm if your fiber laser marking engraving machine meet my needs?

    You can send us some samples so that we can make a demo video for you.



 Q3: What's your payment terms? MOQ?

    We accept Alibaba trade ssurance,  T/T(bank transfer), 1set MOQ



 Q4: What's your certificate approval?

    & CE approved.



Q5: What's your after sales service and warranty?

 We provide 24 hours online technical support and instruction and 2 years warranty.
