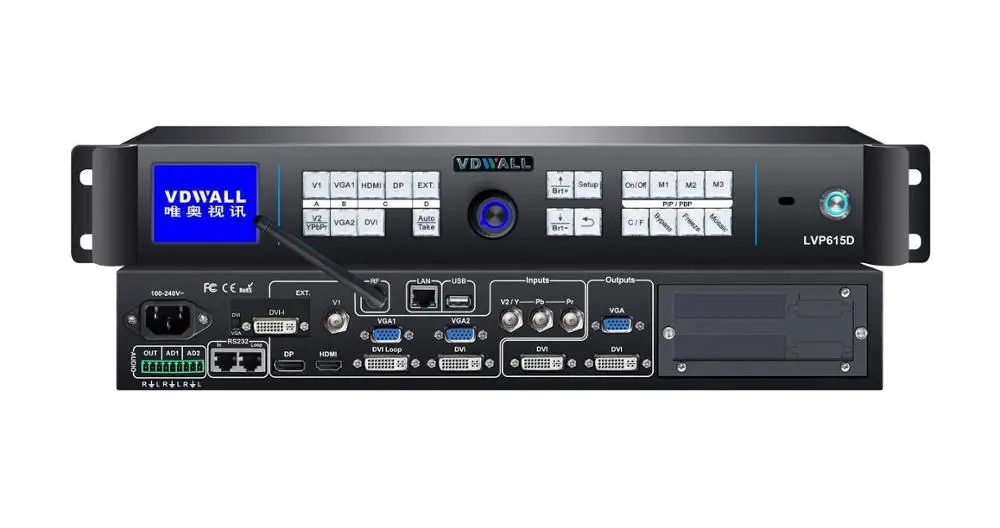

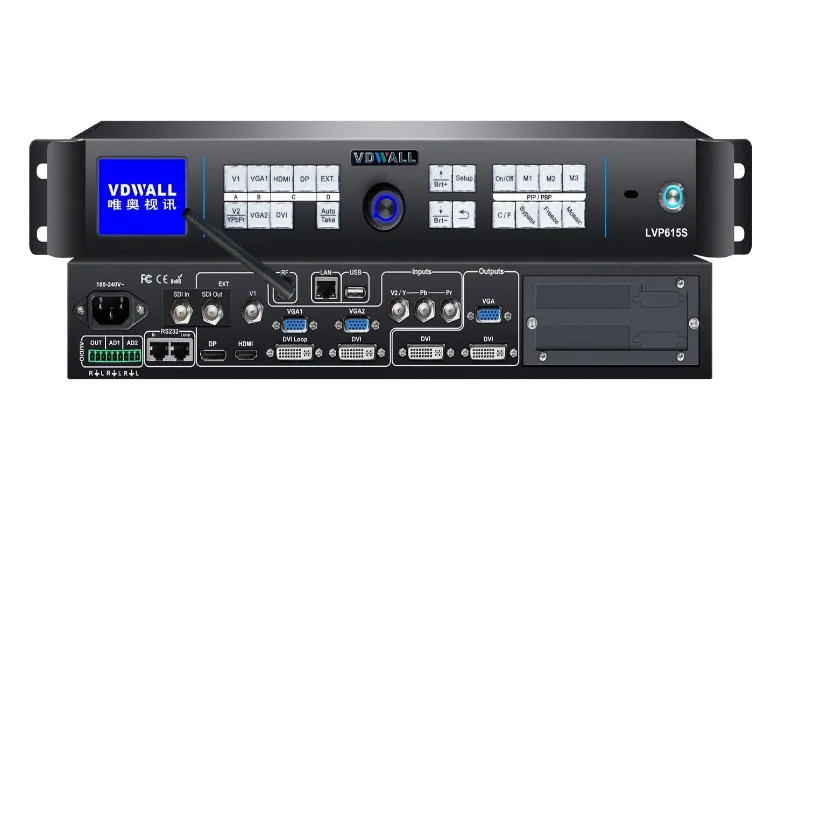

Professional Video Processor LVP615 HD Led display Frocessor

Inputs

Number/type

2×Video

1×YPbPr

2×VGA(VESA)

1×DP(VESA)

1×DVI(VESA)

1×HDMI(VESA/CEA-861)

1×EXT.(extended Video/DVI-I/SDI)

VGA format

PC(VESA)

≤2048x1152-60Hz

VGA Amplitude/Impedance

R,G,B = 0.7 V(p_p)/ 75Ω

DP format

DisplayPort1.1(VESA)

DVI format

PC(VESA)

≤2304x1152-60Hz

HDMI1.3(CEA -861)

Custom output format

width≤3840 height≤1920

HDMI format

(HDCP1.3)

PC(VESA)

≤2304x1152-60Hz

HDMI1.3(CEA -861)

≤1920x1080p-60Hz

Outputs

VGA/DVI resolution

1024×768-60Hz/75Hz

1080×1920-60 Hz

1200×1600-60 Hz

1280×1024-60Hz/75Hz

1366×768-60Hz

1440×900-60Hz

1536×1536-60 Hz

1600×1200-60Hz

1920×1080p-50Hz/60Hz

1920×1200-60 Hz

2048×1152-60Hz

2304×1152-60Hz

2560×816-60Hz

Output ports

VGA OUT:15pin D-Sub( female)

DVI OUT1:24+1 DVI-D

DVI OUT2:24+1 DVI-D
