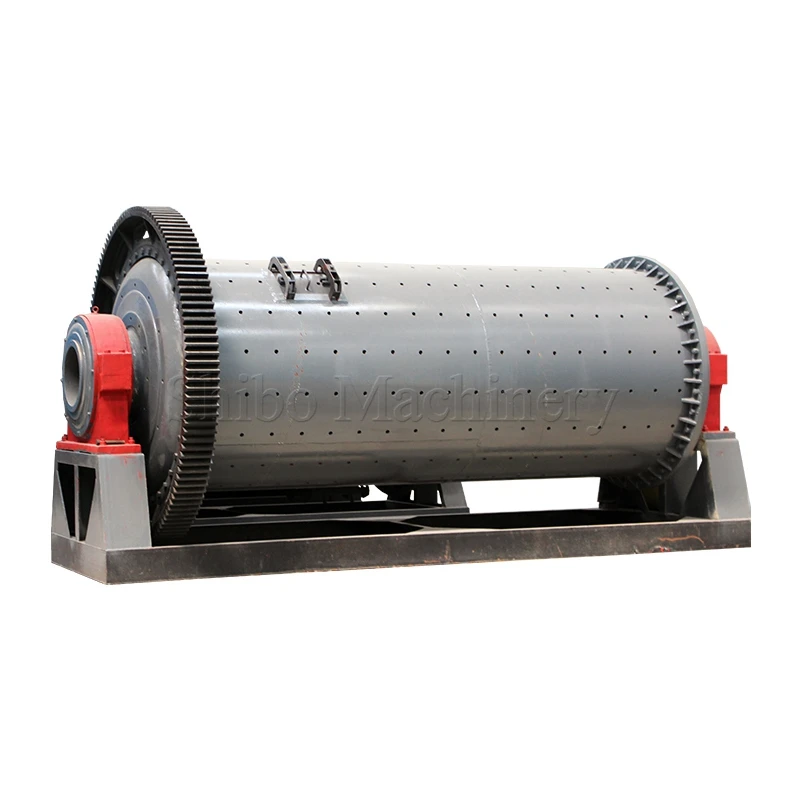

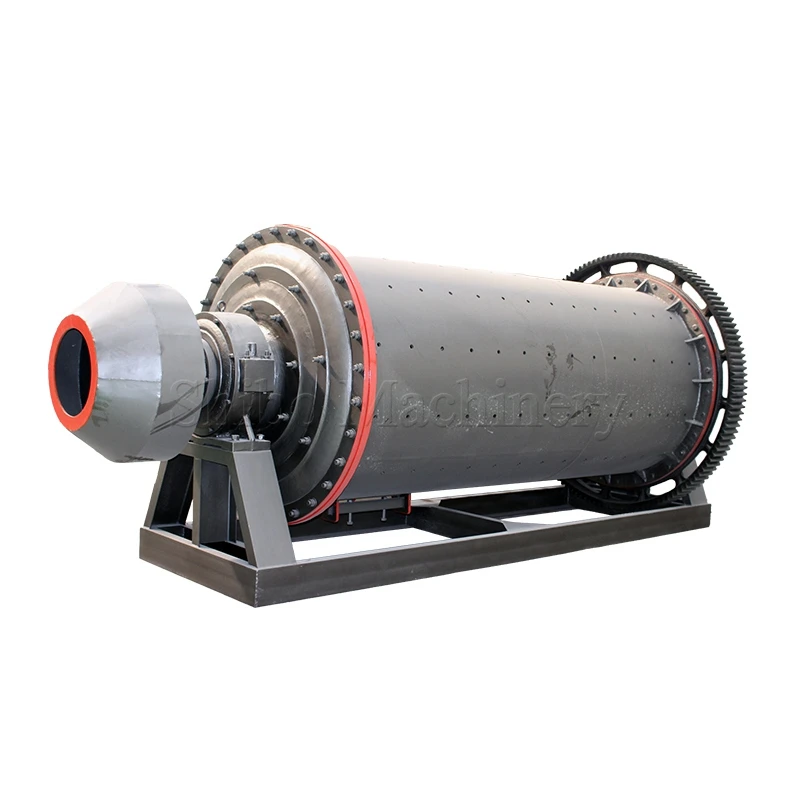

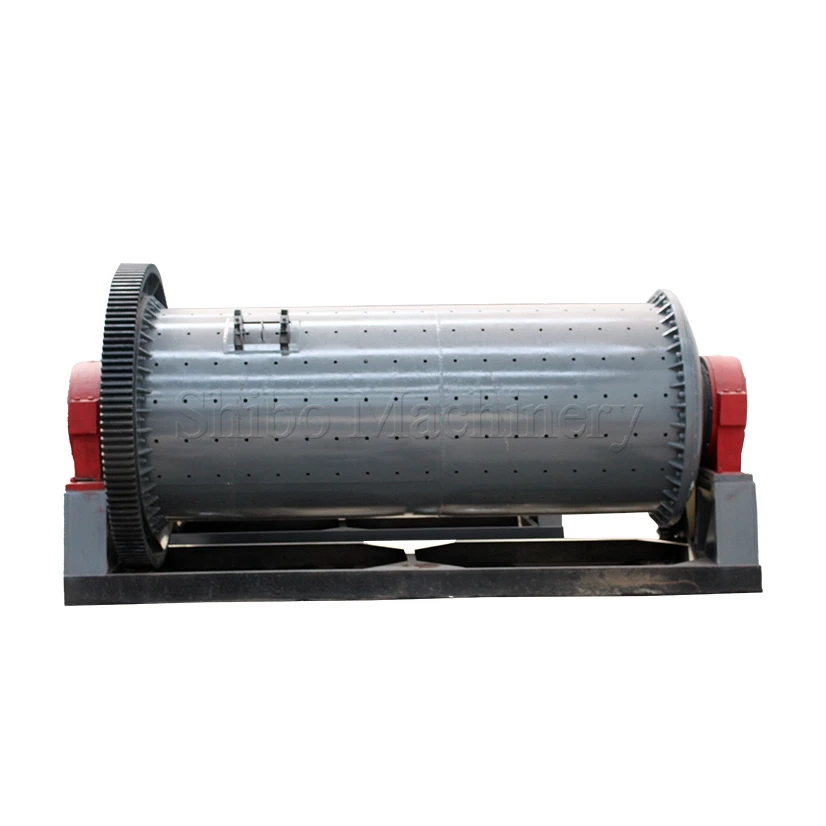

China Wet Grinding Ball Mill Price List
Product Description
Ball mill is the key equipment for grinding after the crushing process in the beneficiation plant, it is used to grind kinds of materials such as copper ore, gold ore, magnetite ore, quartz, lead zinc ore and other materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc. What's more, the ball mill can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
| Features of Wet Ball Mill | Contact us |
1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.
2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.
3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.
4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.
| Working Principal | Contact us |
The ball mill is a homitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical Parameter
| Technical Parameter: | |||||||
| Model | Shell rotation speed(r/min) | Ball load(t) | Feeding size(mm) | Discharging size((mm) | Capacity(t/h) | Motor power(kw) | Total weight(t) |
| Φ900 x 1800 | 36 | 1.5 | ≤20 | 0.075-0.89 | 0.65 - 2 | 18.5 | 5.5 |
| Φ900 x 3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1- 3.5 | 22 | 6.7 |
| Φ1200 x 2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5- 4.8 | 30 | 12 |
| Φ1200 x 3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Φ1200 x 4500 | 36 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Φ1500 x 3000 | 32.4 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| Φ1500 x 4500 | 29.7 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Φ1500 x 5700 | 27 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Φ1830 x 3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
| Φ1830 x 4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Φ1830 x 6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Φ1830 x 7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Φ2100 x 3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5- 36 | 155 or 180 | 34.8 |
| Φ2100 x 4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8- 43 | 245 | 42 |
| Φ2100 x 7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8- 48 | 280 | 56.6 |
| Φ2200 x 4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9- 45 | 280 | 51.8 |
| Φ2200 x 6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 60 |
| Φ2200 x 7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62 |
| Φ2200 x 7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Φ2400 x 3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Φ2400 x 4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 69 |
| Φ2700 x 4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 40 0 | 94 |
| Φ2700 x 4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Φ3200 x 4500 | 18 | 65 | ≤25 | 0.074-0.4 | According to the process conditions | 630 | 137 |
| Φ3600 x 4500 | 17 | 90 | ≤25 | 0.074-0.4 | According to the process conditions | 10 00 | 158 |
| Φ3600 x 6000 | 17 | 110 | ≤25 | 0.074-0.4 | According to the process conditions | 1250 | 175 |
| Φ3600 x 8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8 - 256 | 1800 | 252 |
| Φ4000 x 5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45 - 208 | 1500 | 203 |
| Φ4000 x 6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65 - 248 | 1600 | 218 |
| Φ4000 x 6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45 - 252 | 1800 | 238 |
| Φ4500 x 6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54 - 306 | 2000 | 280 |
| Φ5030 x 6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68 - 386 | 2600 | 320 |
| Φ5030 x 8300 | 14.4 | 266 | ≤25 | 0.074-0.4 | 88 - 500 | 3300 | 403 |
| Φ5500 x 8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108 - 615 | 4500 | 525 |
| Ball Mill Porject | Contact us |
Packaging & Shipping
| Our Service | Contact us |
Pre-sales
*Help customers to choose product.
*Freely send engineers to the working field to plan the installation site and design the best technical production process.
*Design the special product according to the contract.
After-sales
*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation.
Company Information
Henan Shibo Mechanical Engineering Co.,Ltd.
We committed to designing, producing grinding mills, crushers,conveyors, feeding machines, drying and calcinating as well as beneficiation equipments and etc, which are widely applied in electricity, metallurgy, mine and quarry, wharf, granary, chemical industry.
Our products have been spreaded all over China, and also exported to European,American, Asian, African countries and enjoyed great popularity among our customers.

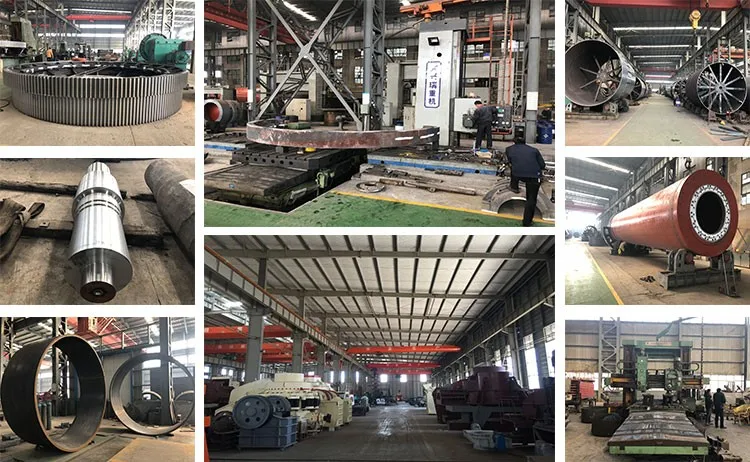

| Our Factory | Contact us |
| Client Visit | Contact us |
Production Line
| Quartz Ball Mill In India | Contact us |
Raw Material: Quartz, feldspar Minerals Model:1830×300
Raw Material: gold ore Model: 3200×4500
