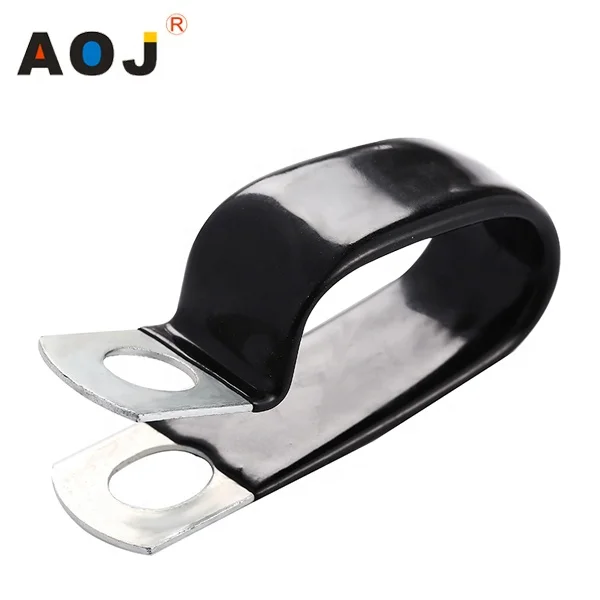

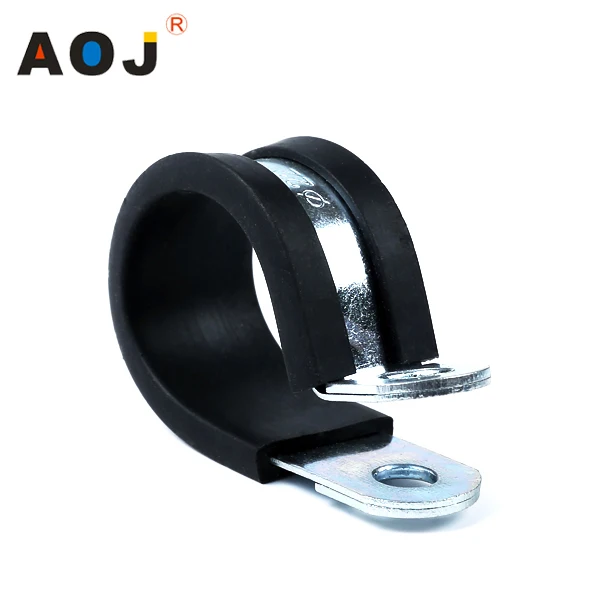

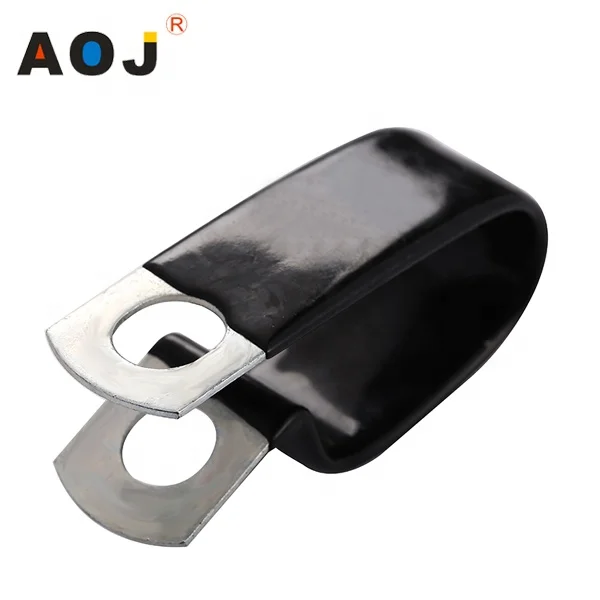

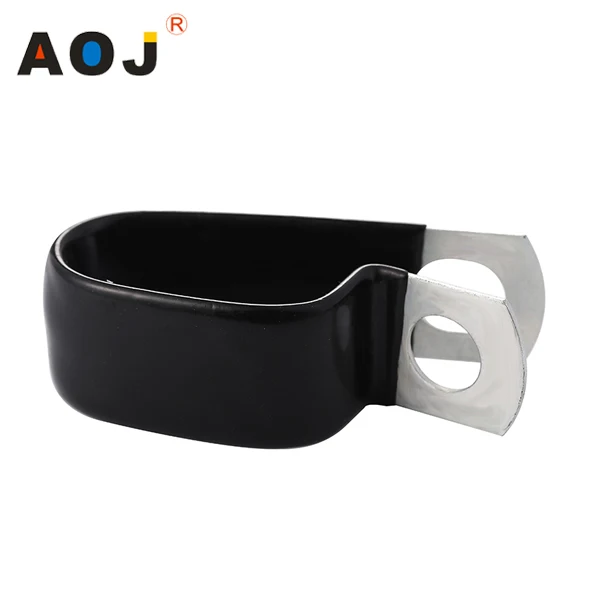

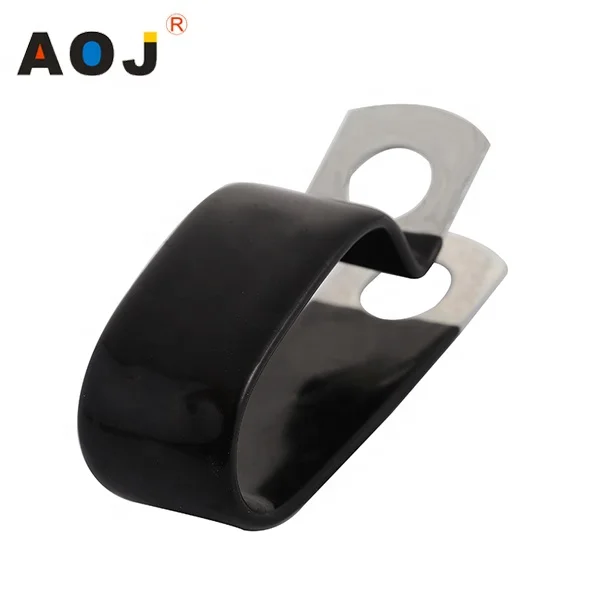

stainless steel fixing pipe P tube rubber coated clamping clip

Product Overview

Description

stainless steel fixing pipe p tube rubber coated clamping clip

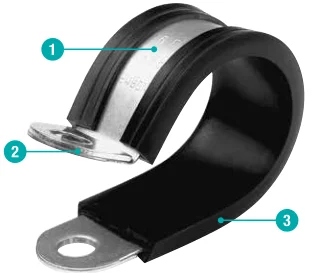

1.Form-fit, adjustable band     2.Reinforced band ends          – strengthen the band; prevent retaining sections from tearing or be-coming loose during exposure to extremely high mechanical loads     3.Can be supplied with rubber profile as an option          – improved form closure between clip and clamping fixture          – dumping

Pipe retaining clips in accordance with DIN 3016

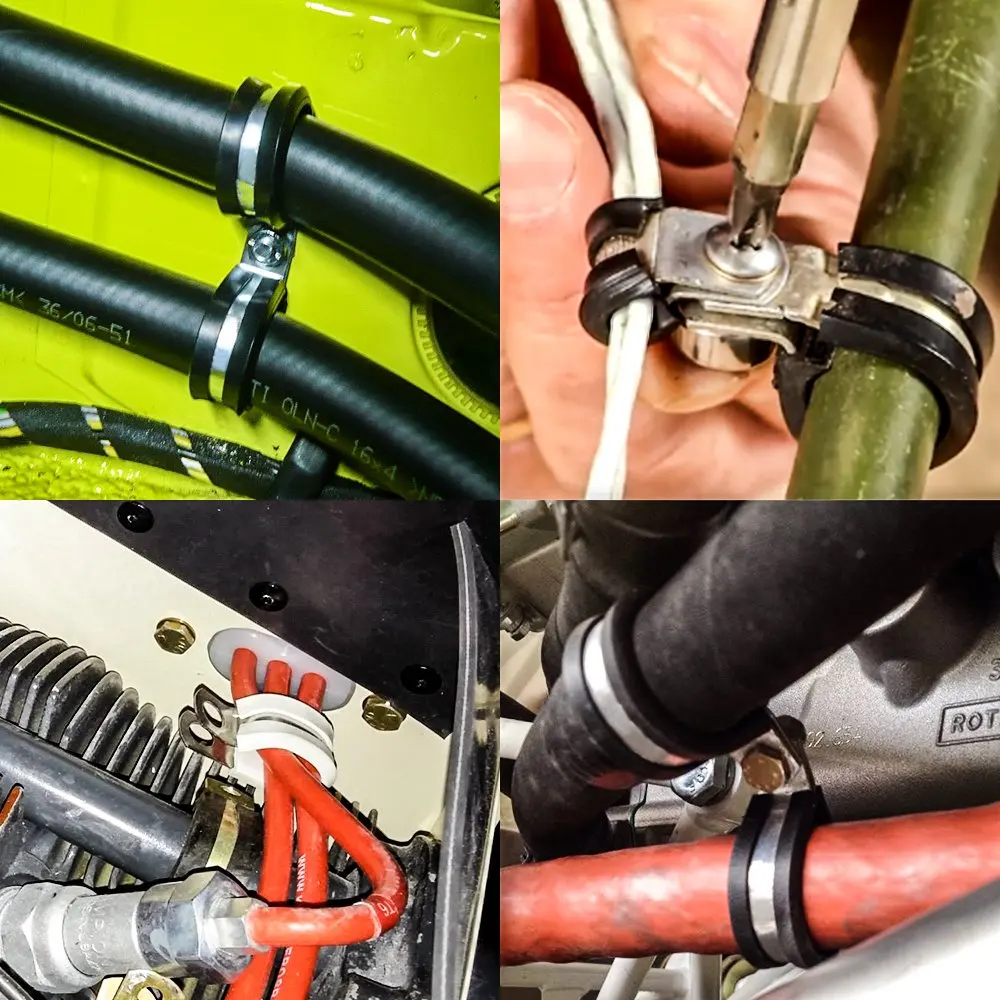

AOJ ® RS/RSGU pipe retaining clips are suitable for all kinds of
fastening and retaining applications: pipes, cables, cable harnesses,
cable protection pipes, hoses and other lines.



Advantages at a glance
    • Easy installation and secure fastening
    • Reinforced band ends for extremely high mechanical loads
    • Rubber profile protects against vibrations and creeping water, is
       sound-absorbent and protects against contact corrosion
    • No single parts for the customer



Applications
    • Machine building                                • Railway industry
    • White goods                                        • Agricultural machines
    • Chemical industry                              • Building machines
    • Irrigation systems                               • Engine manufacturing
    • Ship manufacturing                            • Pump and filter
    • Food and beverage industry             • Mining industry

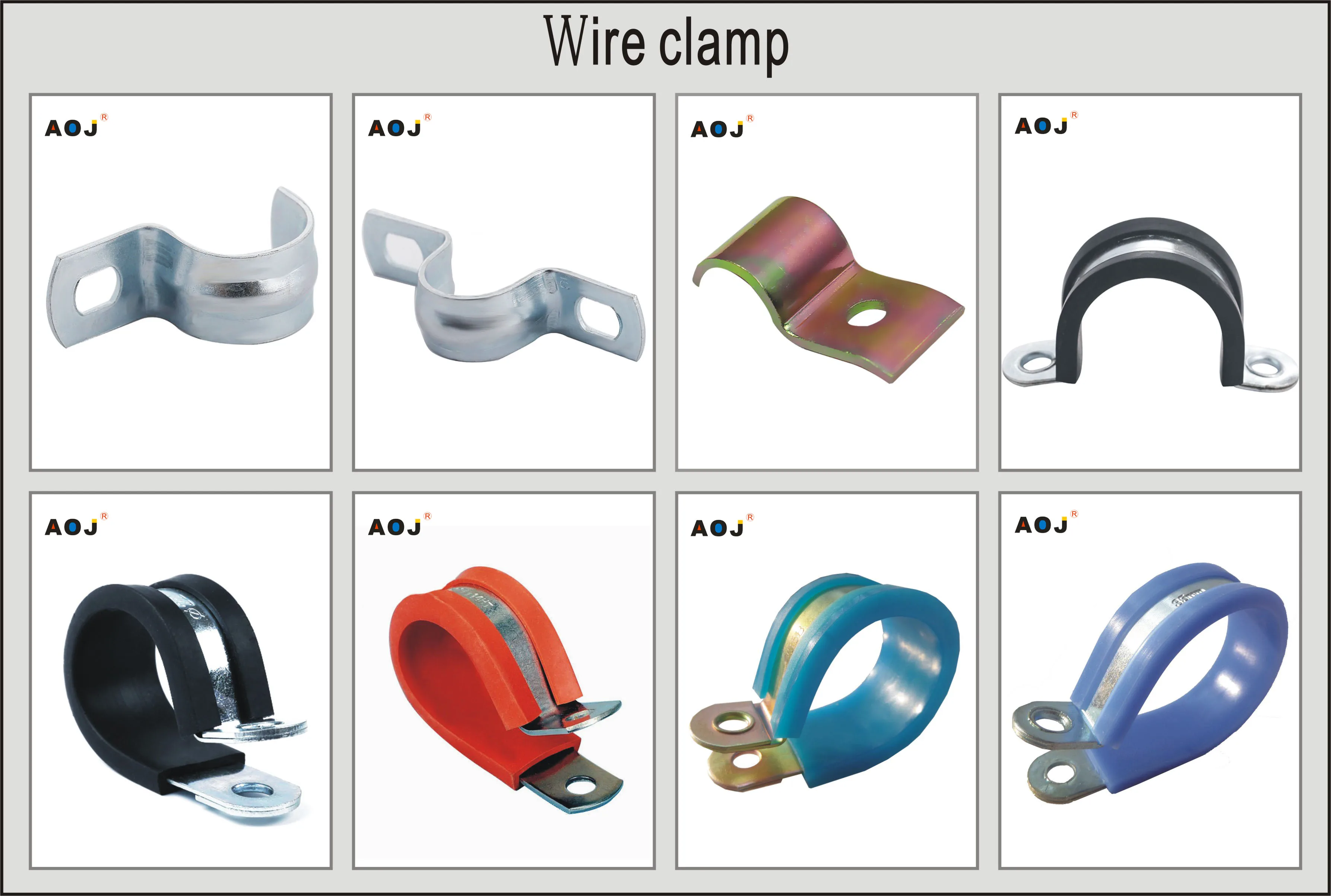

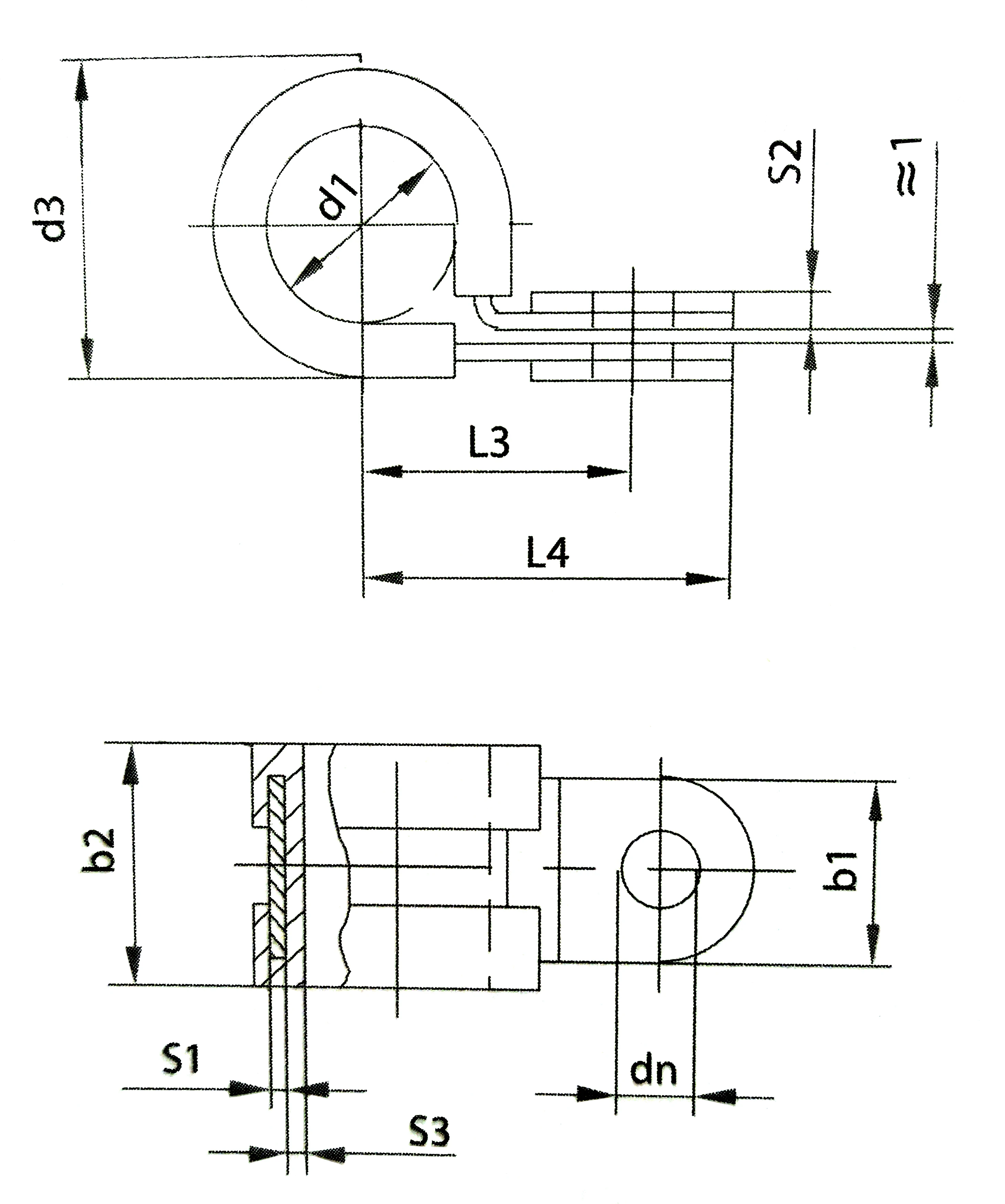

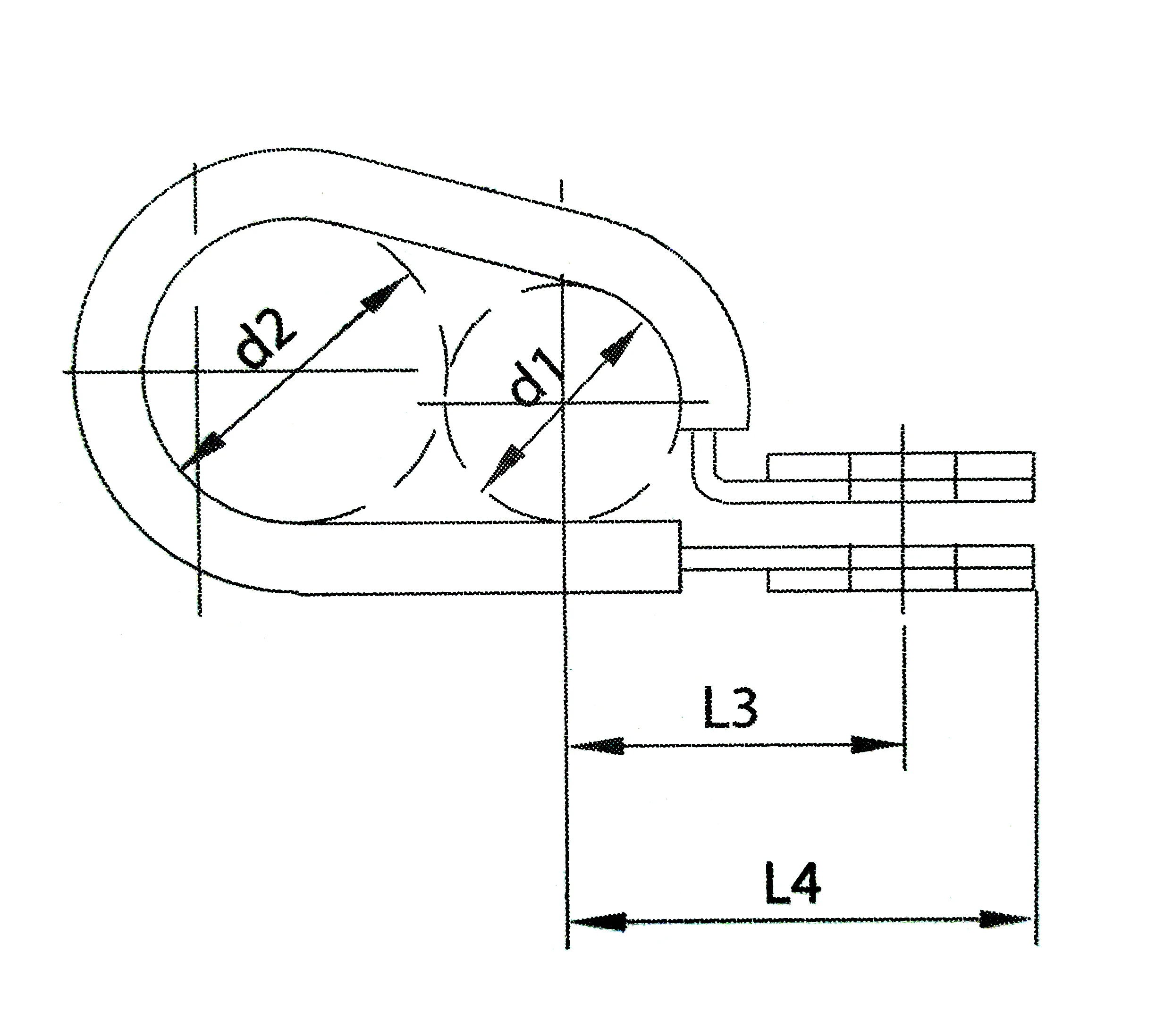

D1 type clamp	D2 type clamp

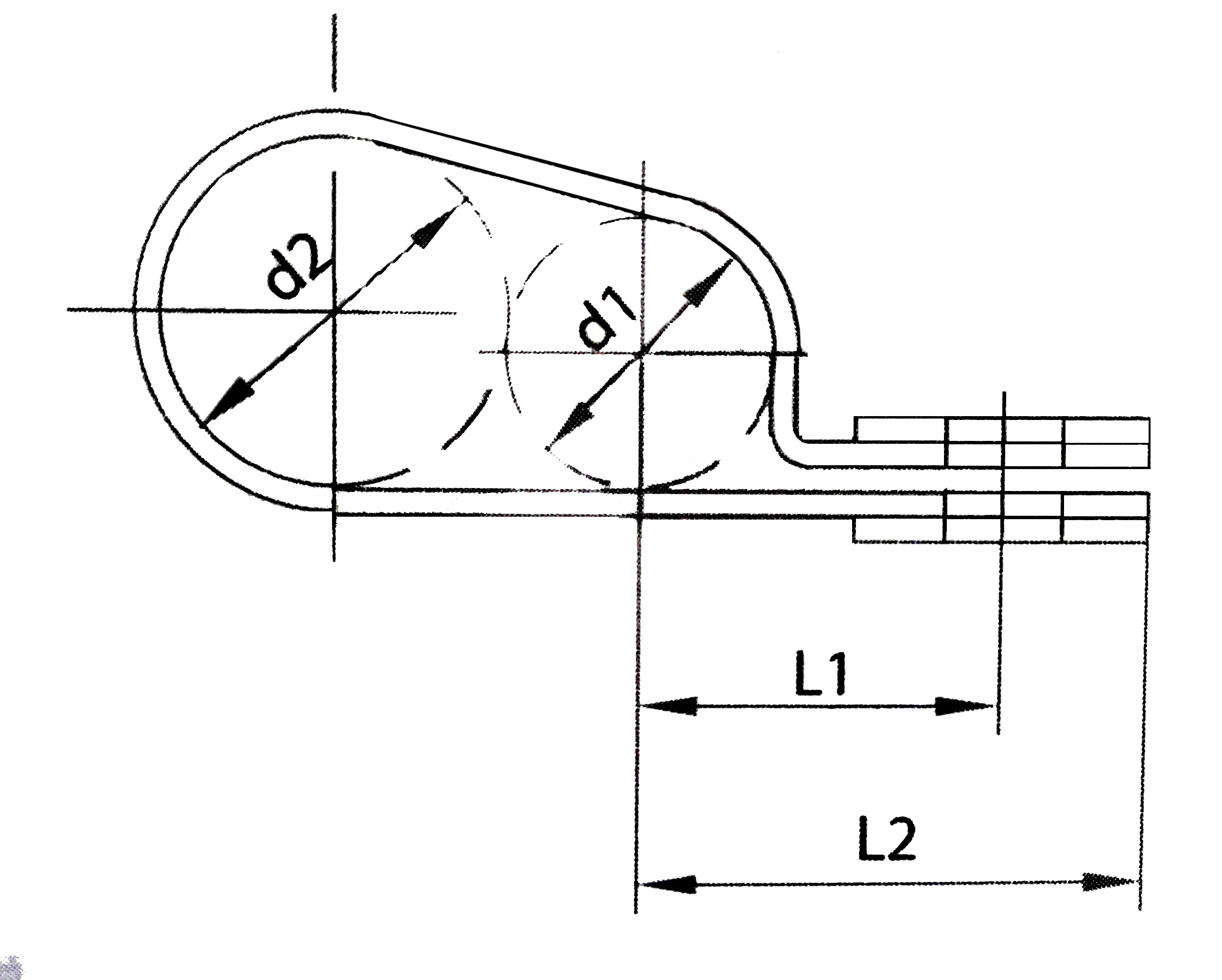

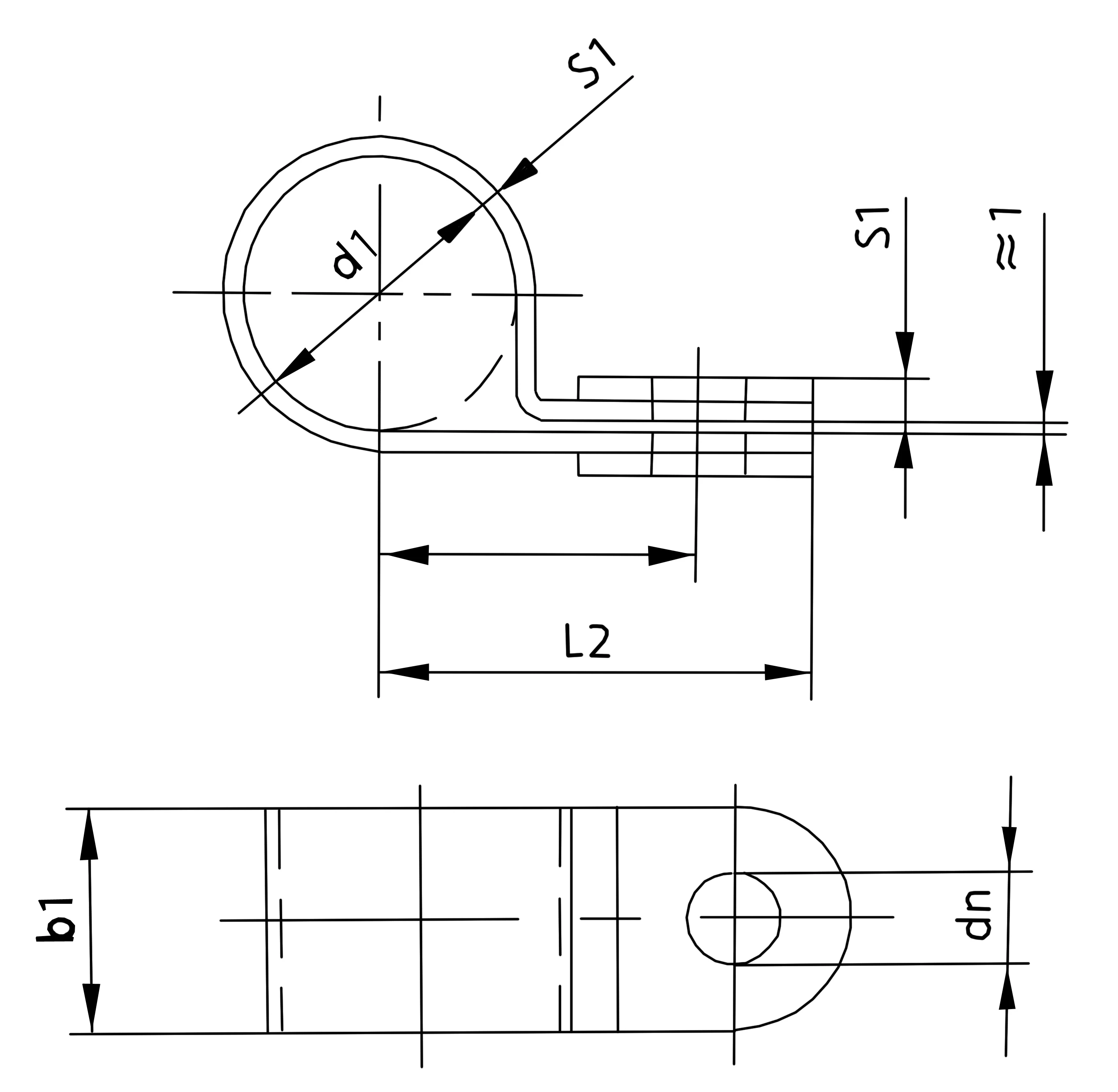

A1 type clamp	A2 type clamp

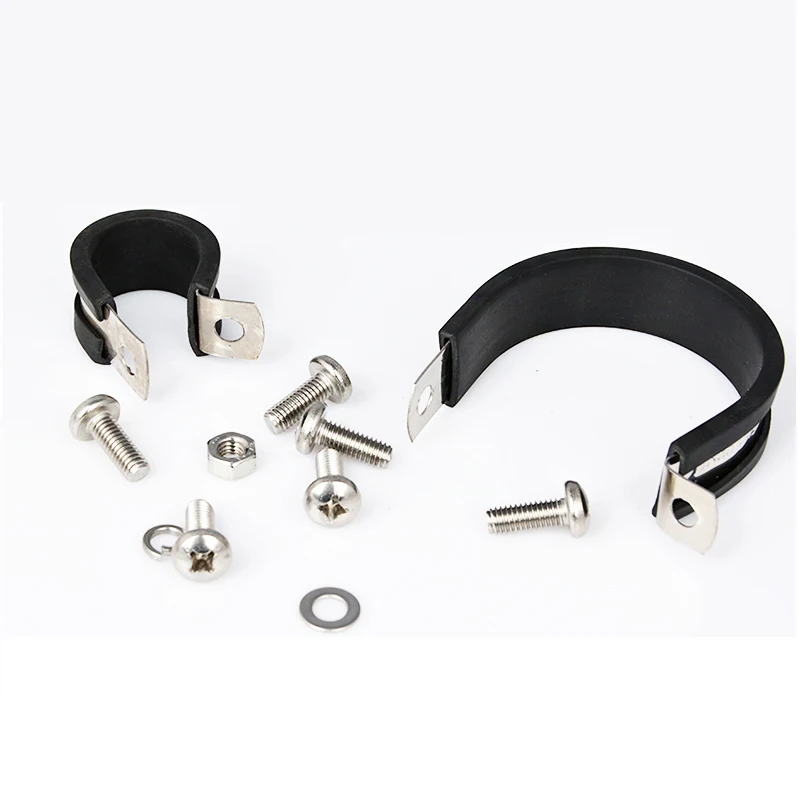

Bolts The scope of delivery does not include bolts or nuts. We recommend:      For AOJ ® RSGU with 12mm band width: M5 bolt      For AOJ ® RSGU with 15mm band width: M6 bolt      For AOJ ® RSGU with 20mm band width: M8 bolt

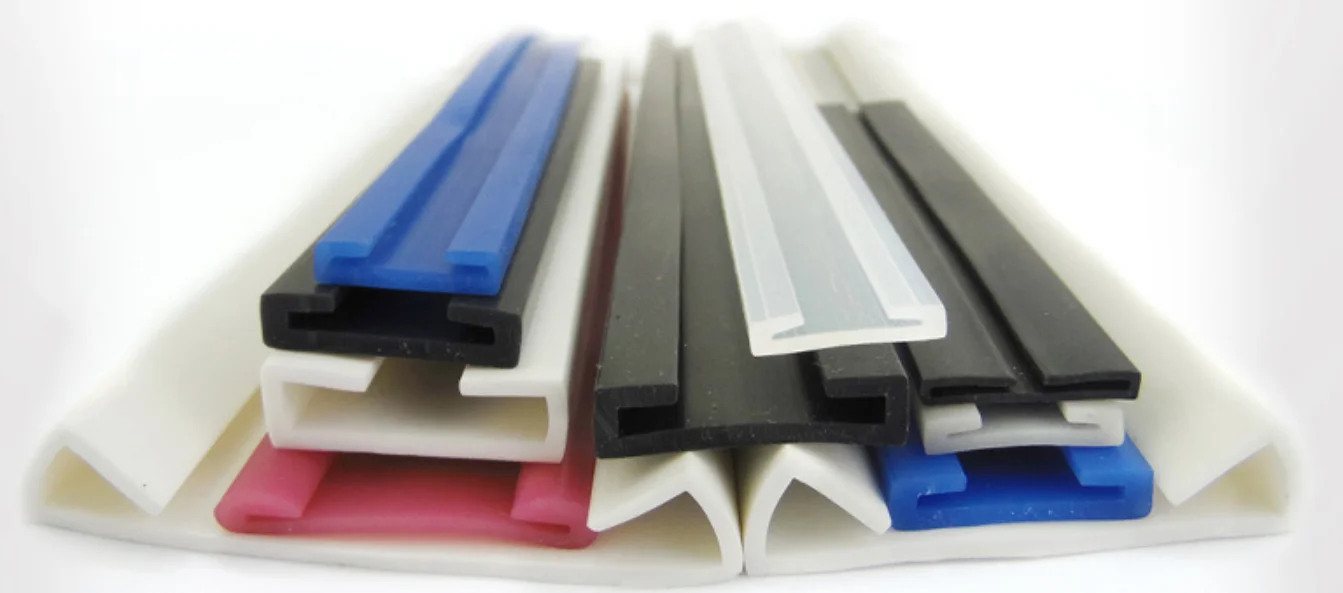

MATERIAL PROPERTIES OF EPDM RUBBER PROFILE

Material properties		EPDM rubber profile
Tensile strength [N/mm 2 ]		Min. 8
Elongation at break [%]		350
Shore hardness A		70 ± 5
Temperature [°C]		–40 to +120
Resistance to:	Weather/Ozone	Very good
	Aging/UV	Very good
	Fuel storage	Not suitable
	Storage in oils and greases	Not suitable
	Alcohols	Good
	Acids	Good
	Alkalis	Good

Silicone rubber profile also available on request.
