Taizhou Juhao Import &Export co., Ltd. supplys a varity of medical equipment to satisfy globlecustomers. Now many customers from all over the world are willing to choose us for our high quality products, excellent aftersales service and well-deserved reputation.
Product Description
Technical Specification:

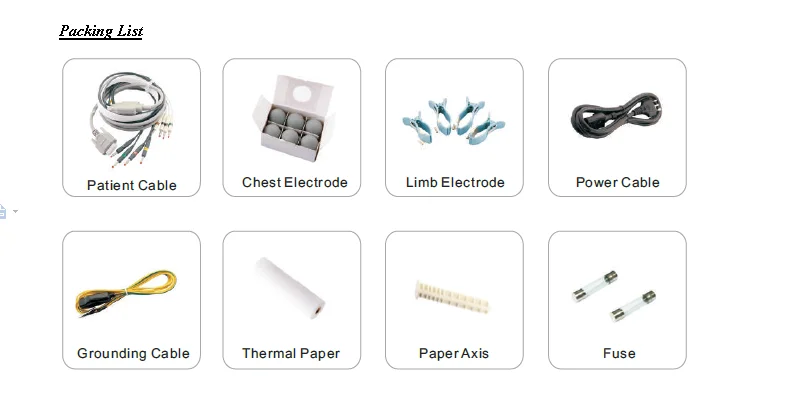

Packing List
Lead
Standard 12 leads
Lead acquisition
1000Hz(synchronously 12leads)
Work mode
Manual/Auto/R-RAnalysis/Storage
Filter
AC Filter: 50Hz/60Hz
EMG Filter: 25Hz/45Hz
Anti-Drift Filter: 0.15Hz(Adaptive)
CMMR
≥120dB (with AC Filter)
Input circuit
Floating; Protection circuit against
Defibrillator effect
Input circuit
≥ 50MΩ
Input impedance
≤0.05μA
Patient current leakage
<10μA
Calibrating voltage
1mV±2%
Voltage tolerance
≥±500mV
Time constant
≥3.2s
Frequency response
0.05~160Hz(-3db)
Noise level
<15μVp-p
Inter-channel interference
≤0.5mm
Sensitivity
Auto,2.5, 5, 10, 20, 40mm/mV±3%
Recording mode
3ch+++, 6ch, 6ch+, 12ch
Default Man. Mode is 3 ch+++ format
Default Auto Mode is12 ch format
Paper speed
6.25, 12.5, 25, 50mm/s (±3%)
Paper
112mmx20m roll paper
Working environment
Temperature 5-40 ℃, Humidity 25-90%
Power supply
AC 110-230V(±10%), 50/60Hz(±1Hz), 40VA
DC Built-in Li-ion battery, 14.4V (4400mAh)
Dimension/Weight
347mmx293mmx83mm,5.8kg
Main Unit
1set
Crounding cable
1pc
Patient cable
1pc
Fuse
2pcs
Limb electrode
1set (4pcs)
Paper axis
1pc
Chest electrode
1set (6pcs)
Printing paper
1 roll (80mmx20m)
Power cable
1pc
Operation Manual
1 copy
Portable and delicate design, easy to operate.
Accurate pulse pace identification function.
High accuracy digital filter, automatic baseline adjustment.
Working modes: Manual, Automatic, Arrythmia Analysis, Storage.
80mm, 3 channel format recording, excellent automatic interpretation.
320x240 graphic 5 inch color LCD to simultaneously display EGC information. 250 patient cases storage (SD card storage is optional)
Detailed patient information input and record.
With alphanumeric keyboard to input detailed patient information.
With Freeze function.
Adapt to 110-230V, 50/60Hz power supply. Built-in rechargeable Li-ion battery.
USB/Rs232 communication ports support USB storage, laser printer printing and PC ECG
software(Optional)
