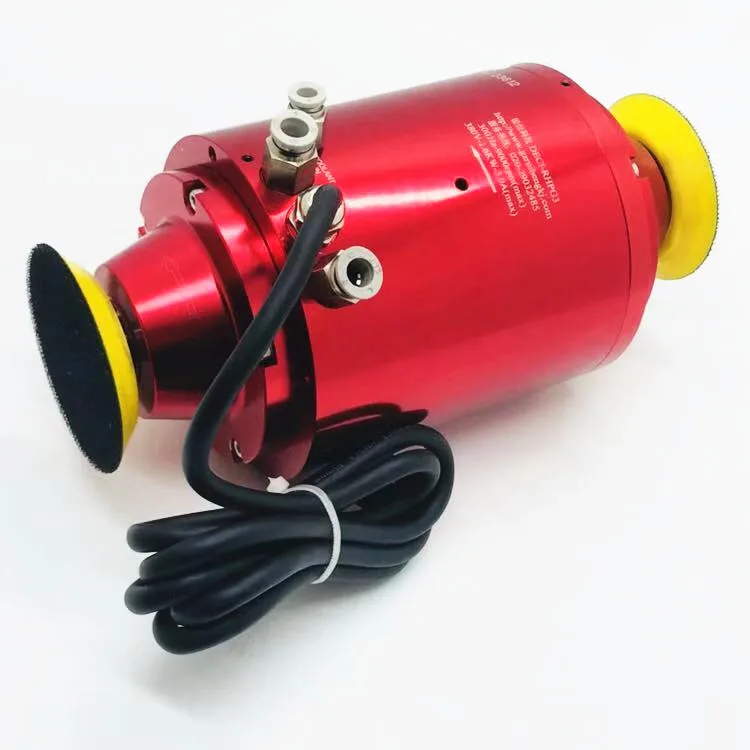

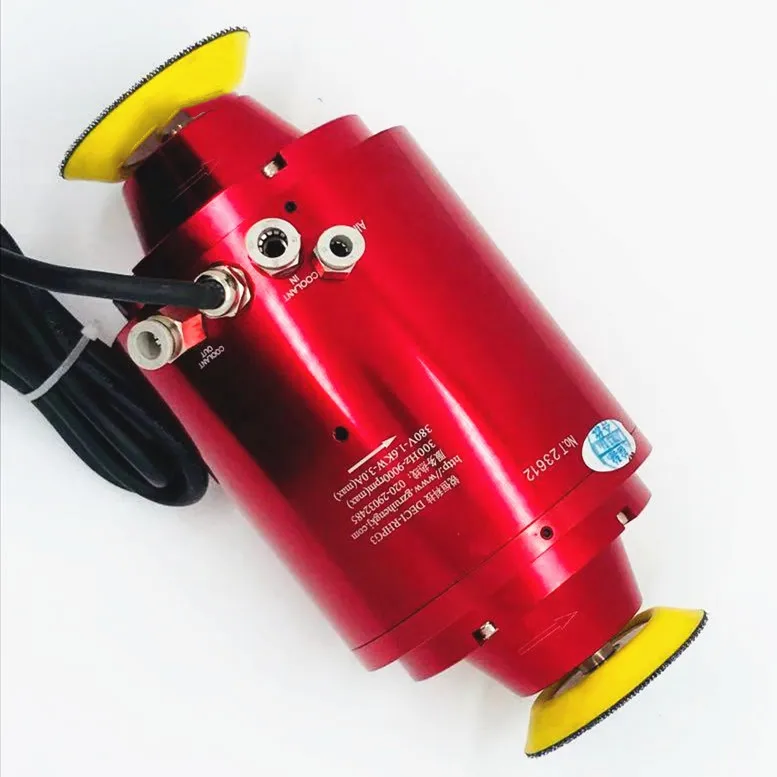

This product is a polished high-speed electric spindle with a maximum speed of 9000 rpm and a rated power of 1.6 kW. The high-precision motor for glass grinding can be customized to a standard glass with a thickness of 0.07 mm.It is mainly used in engraving and milling machines, glass machines and small machining centers. It is specially designed for high-precision milling of various metals and non-metals.
spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Water-cooled spindle and air-cooled spindle differences:
1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.

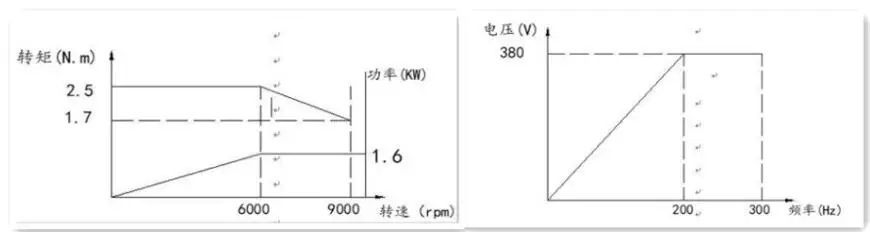

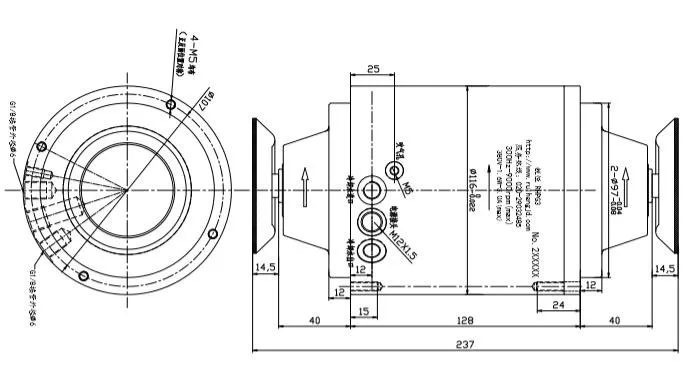

Specificiations
RHPG3
Parameters
Motor Power:
1.6KW
Rated voltage:
380v
Max rotate speed :
9000Rpm/min
Max currency:
3A
Max Frequency:
300Hz
Torque:
2.5N.M
Applicable industry
Packaging & Shipping
Why choose us
Company Profile
Certifications
FAQ
Q1:Are you a trading company or a manufacturer ? A1: We are the manufacturer of DECI electric spindles.
Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.
Q3:Can I get some samples first? A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..
Q4:How does your factory do regarding quality control? A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.
Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.
Q6:How do you make our business long-term and good relationship? A6:1.DECI keep good quality and competitive price to ensure our customers benefit ; 2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
