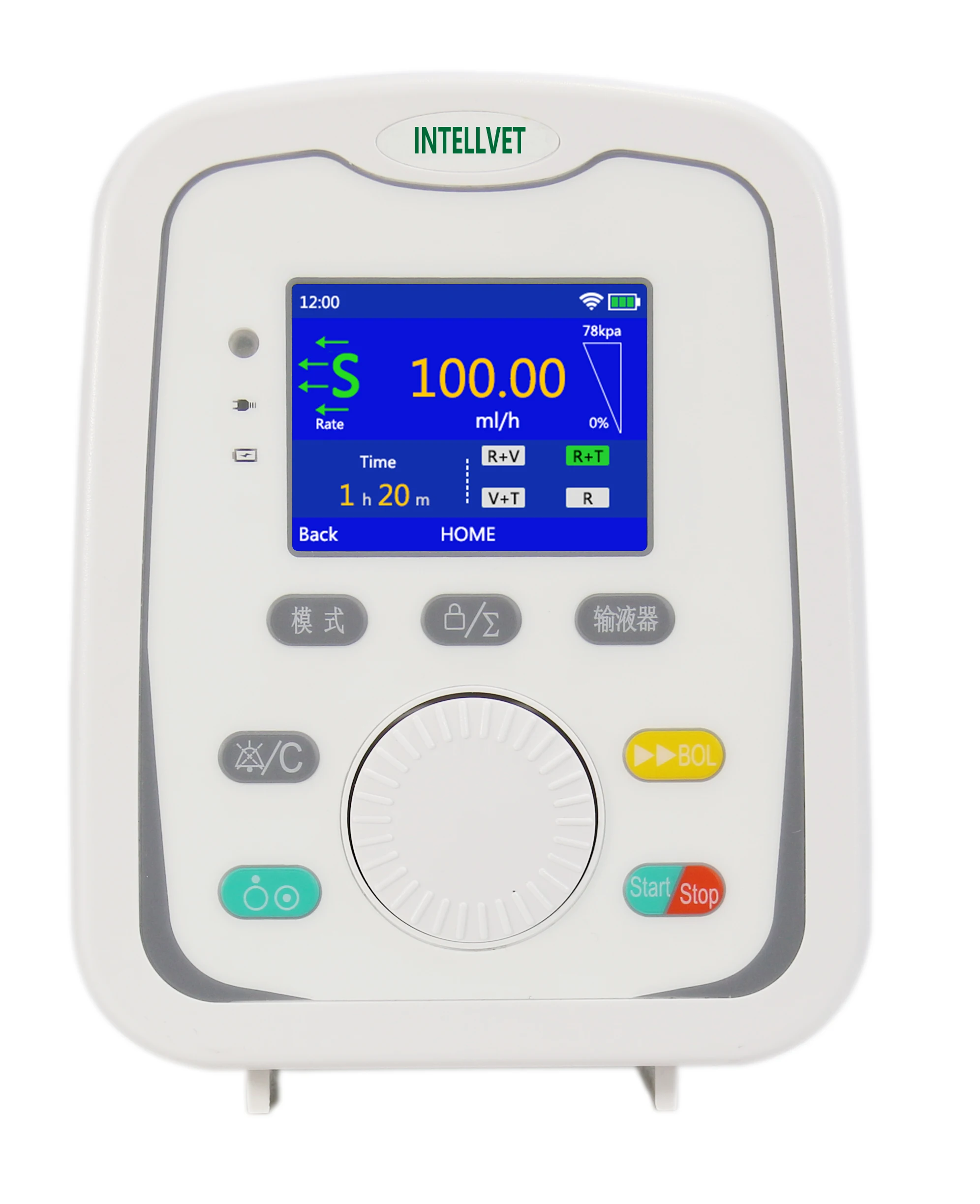

Peristaltic Volumetric Infusion Pump with touchscreen CE certification
- Category: >>>
- Supplier: Beijing Intelligent Technology Co. Ltd.
Share on (62292473164):
Product Overview
Description
Product Description
Technical Specifications
| Volume Infused | 0.1~9999.9 ml, Step by 0.1 ml |
| Flow Rate | 0.1~1800 ml/h, Step by 0.1 ml/h |
| Accuracy | ± 5% |
| Purge / Bolus Rate | 1~1800 ml/h, Step by 1 ml/h |
| KVO Rate | Flow rate ≥ 10 ml/h: KVO rate 3 ml/h Flow rate < 10 ml/h: KVO rate 1 ml/h Flow rate < 1 ml/h: KVO rate = Flow rate |
| Alarm | Battery error, Low battery, Battery exhausted, Air in line, Occlusion, Door open, Pause overtime, VTBI completion, Drop error, Malfunction, AC and DC off |
| Occlusion Pressure | Two levels: High, Low High: 100 kpa ± 30 kpa Low: 40 kpa ± 20 kpa |
| Power Adapter | AC input power 100 ~ 240 V, 50/60 Hz DC output power 15 V/2A |
| Lithium Battery | Nominal Voltage: 10.8 V; Device can work over 7 hrs on battery |
| Infusion Pump Input Power | DC 15 V |
| Power | < 20VA |
| Classification | Class II, Type CF, IPX4 |
| Weight | 1.5 kg |
| Dimension | 132*95*165 mm (W*D*H) |

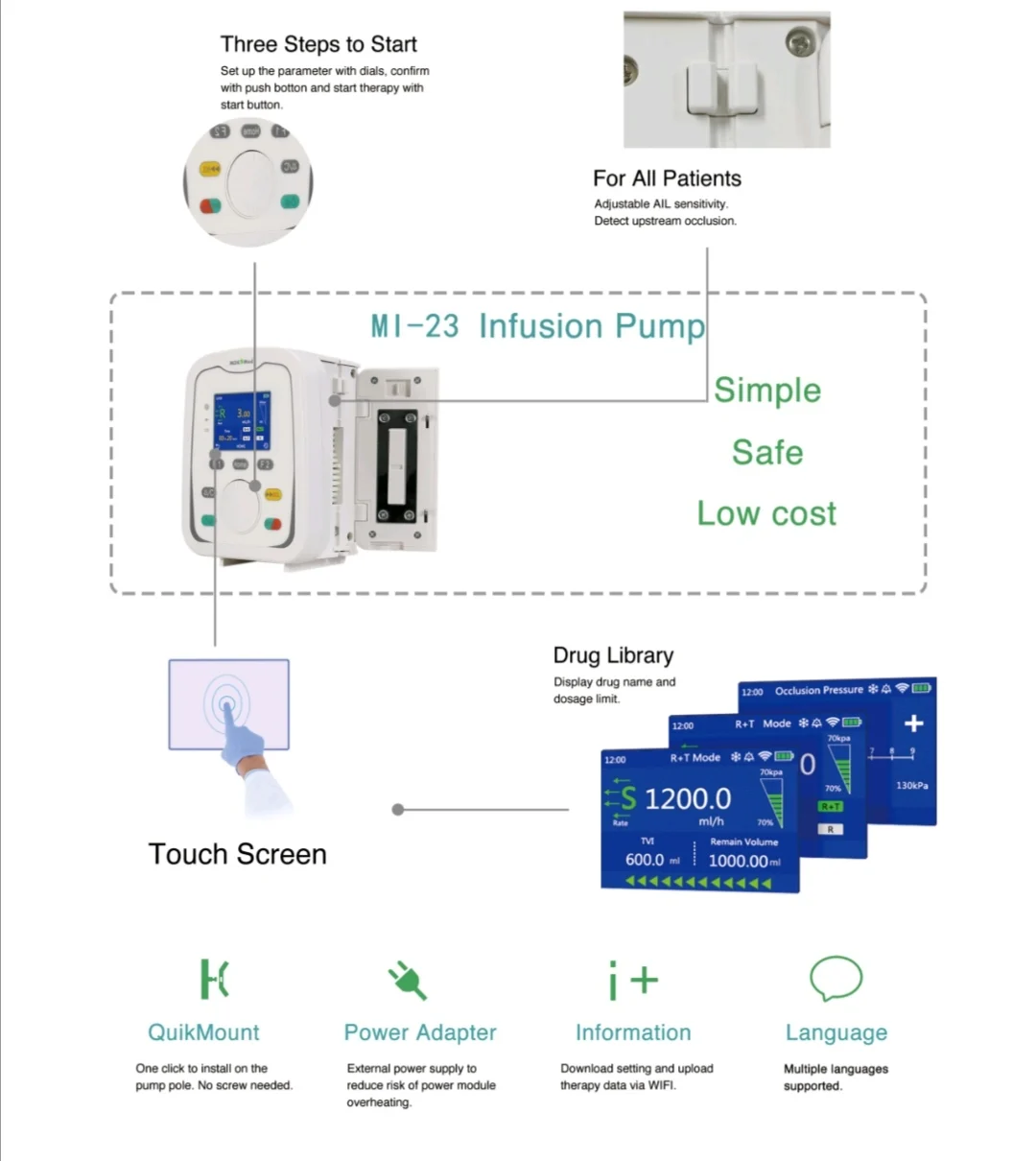

Features
