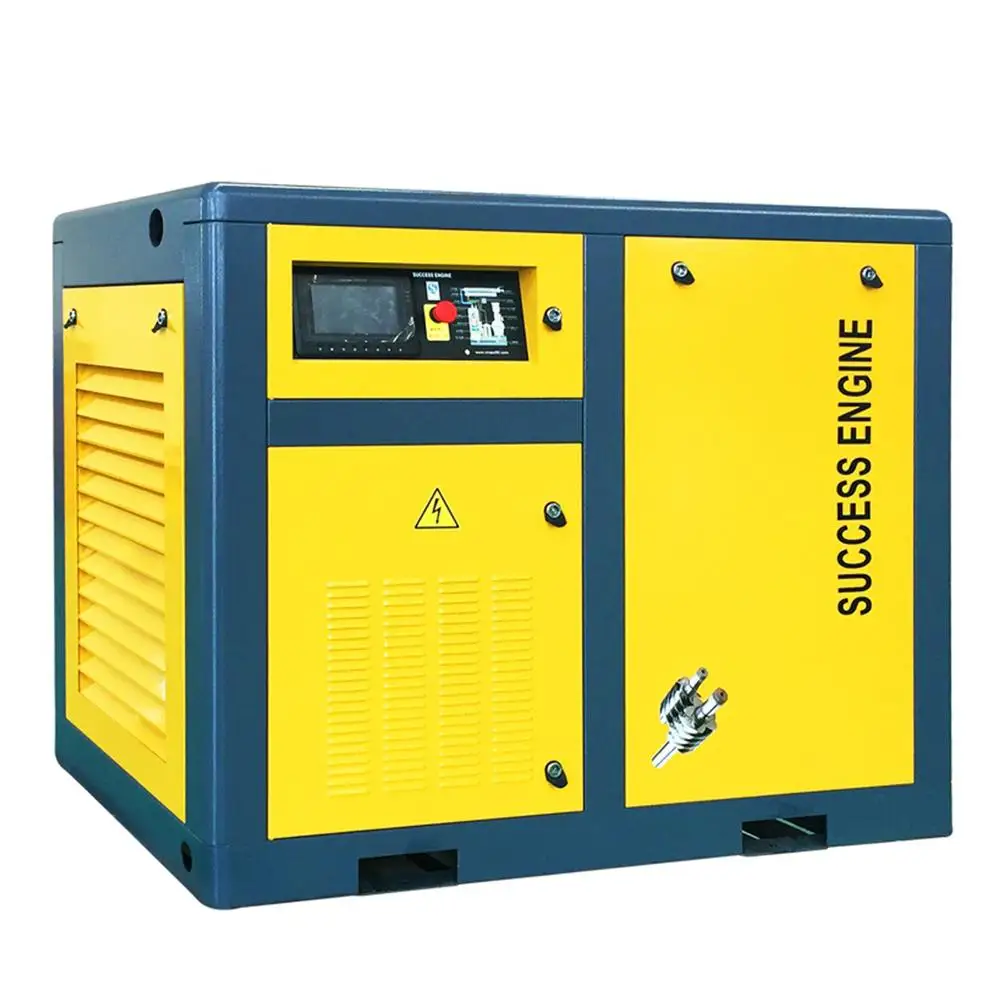

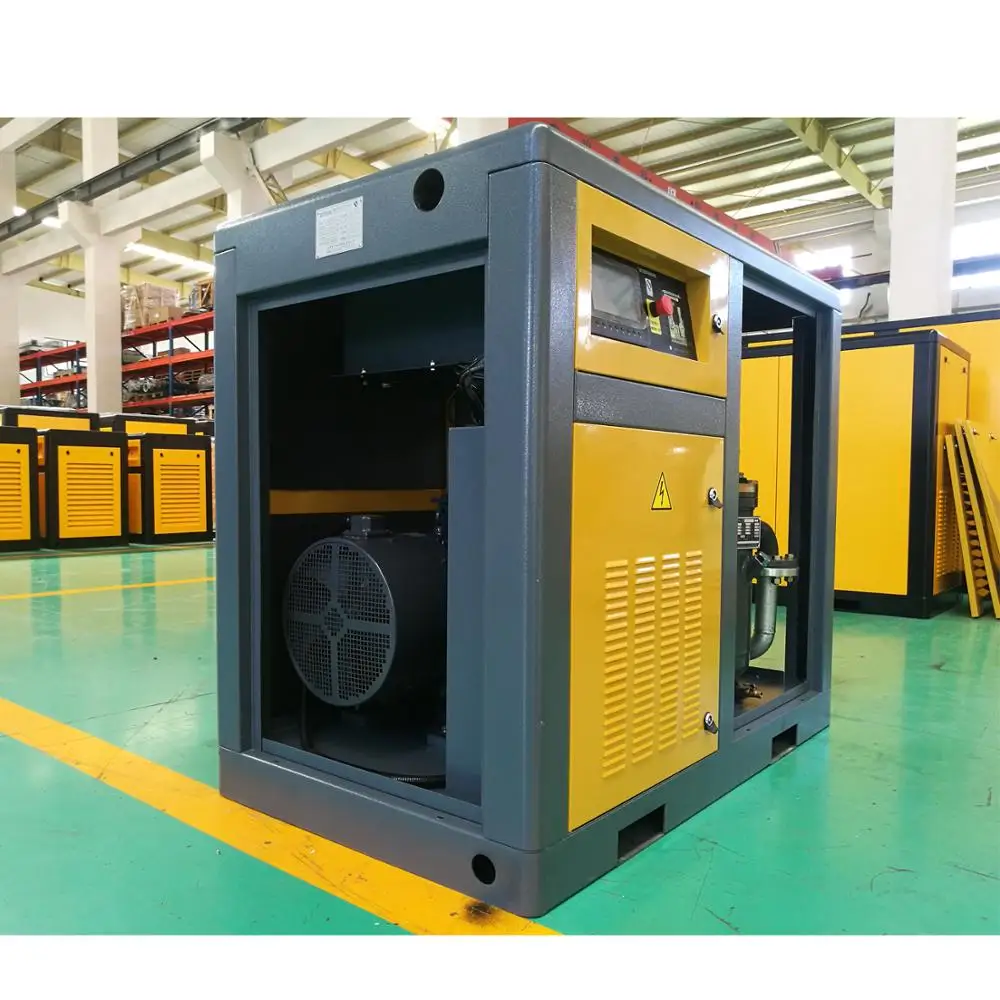

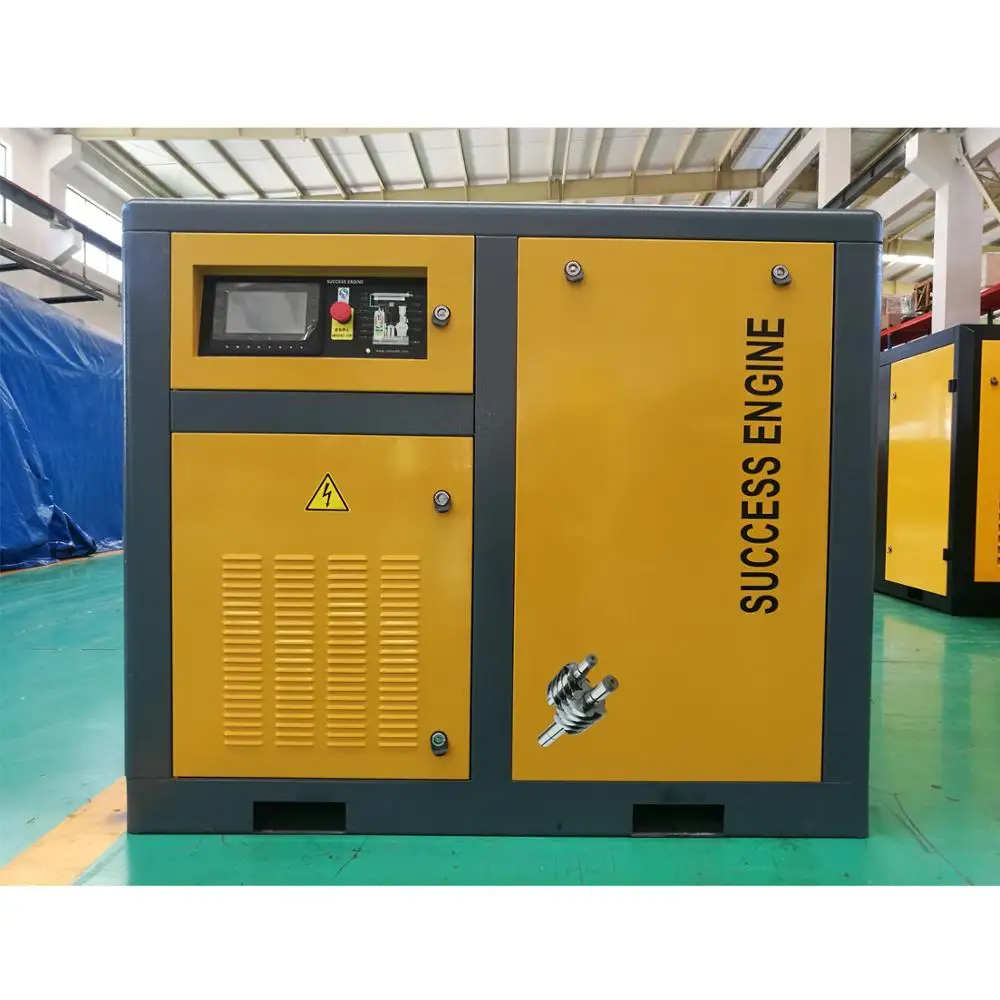

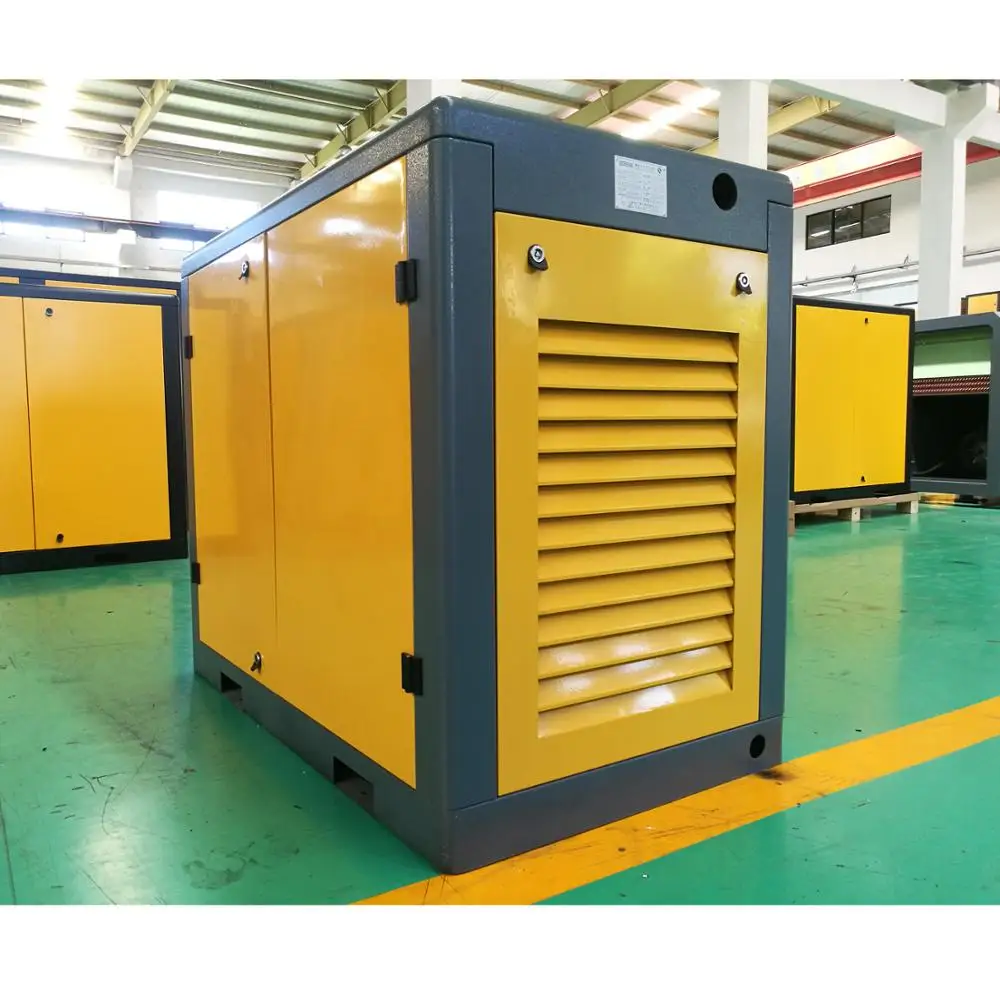

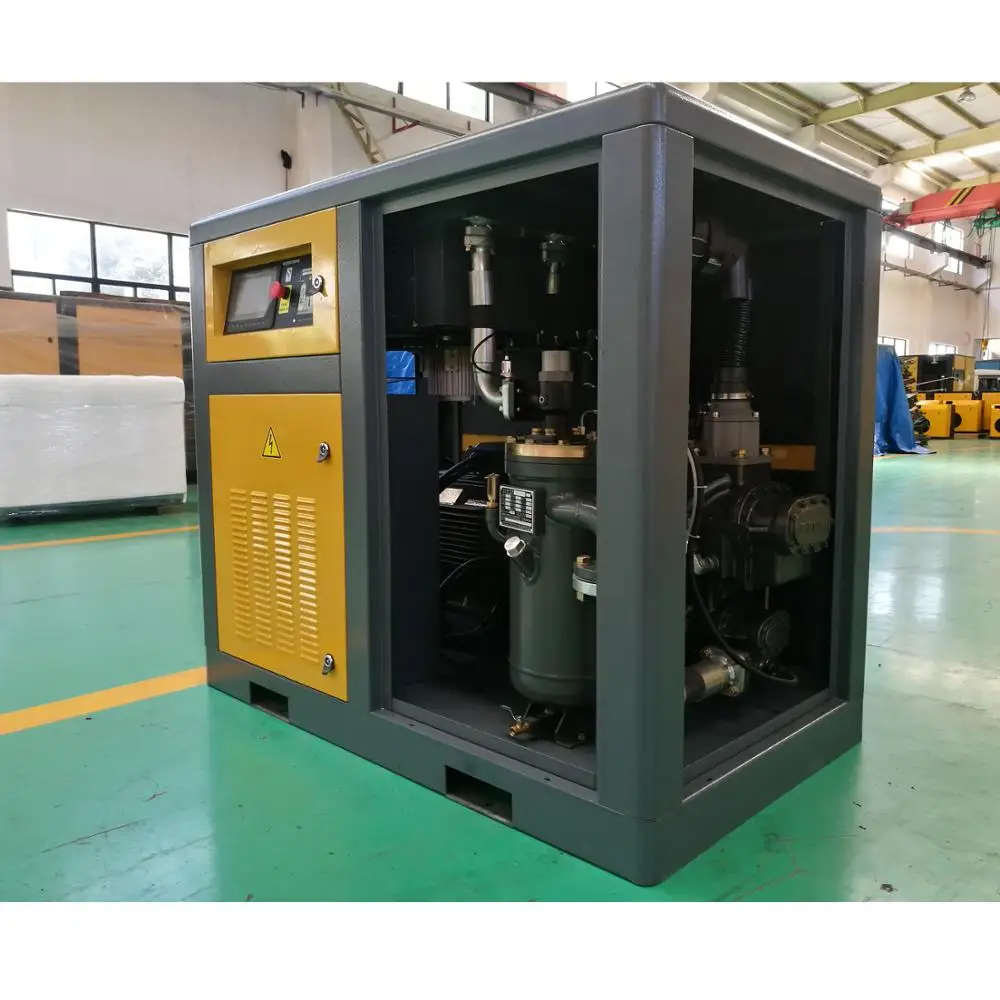

160kw Industrial Twin Stage Rotary Screw Air Compressor High cost performance

Product Overview

Description

Two-Stage Energy-Saving Screw Air Compressor
        Constant Speed & Variable Speed Drives (VSD)
                       (22-315KW    20-450 HP)


1. Features

Reliable, Ultra-Efficient Performance: Use the newest UV rotor of profile line with large diameter and low speed. The two pairs of rotors are independent of the two compression units, the primary compression rotor and the secondary compression rotor are combined in same compressor housing. Respectively, through the gear drive, the two inter-stage rotors are in the best line speed state of operation, and the compression efficiency is extremely high. This air compressor's has smaller host compression ratio, less leakage, and the volume efficiency is higher than the single-stage compression of 15%, the energy-saving effect is remarkable.

Precise Control: Personalized intelligent control system, Intuitive Intellects controller gives you complete, fingertip access to your compressor, including easily adjustable operating parameters and time-saving on-board diagnostics.

Less-Leakage Design: Selection of high durability, strong bearing capacity of SKF heavy-duty bearing to ensure that the core components with excellent reliability and durability. Using O-ring fittings significantly reduces the potential leakage problems associated with conventional threaded fittings..



2.



                                                  (Energy efficiency and durability, energy savings up to 15-30% on full-load)



3. Technical Specifications

MODEL	Power (kW)	Pressure(bar)	Air Flow (m3/min)	Outlet Connection	Cooling water/air capacity (air -kw;warter-m3/h)	Weight (Kg)	Dimension L×W×H mm
SE22AE-7 SE22AE-10 SE22AE-12.5	22	7 10 12.5	4.20 3.80 3.20	Rp 1 1/4	*	680	1470x860x1340
SE37E-7 SE37AE-10 SE37AE-12.5	37	7 10 12.5	7.10 6.60 5.80	Rp 1 1/2	*	920	1610x1000x1470
SE55AE-7 SE55AE-10 SE55AE-12.5	55	7 10 12.5	11.60 11.20 9.10	Rp 2	*	1620	2100x1200x1680
SE75AE-7 SE75AE-10 SE75AE-12.5	75	7 10 12.5	15.80 14.20 11.60	Rp 2	*	1980	2100x1200x1680
SE90AE-7 SE90AE-10 SE90AE-12.5	90	7 10 12.5	20.50 17.60 14.20	DN 65	*	2600	2500x1800x1800
SE110AE-7 SE110AE-8 SE110AE-10 SE110AE-12.5	110	7 8 10 12.5	24.50 23.50 20.00 17.20	DN 65	Air-3.0kw Water-10m3/h	3300	2500x1800x1800
SE132AE-7 SE132AE-8 SE132AE-10 SE132AE-12.5	132	7 8 10 12.5	27.60 26.60 23.50 19.60	DN 65	Air-3.0kw Water-12m3/h	3550	2500x1800x1800
SE160AE-7 SE160AE-8 SE160AE-10 SE160AE-12.5	160	7 8 10 12.5	33.50 32.50 29.00 23.20	DN 80	Air-3.5kw Water-15m3/h	4000	3000x1800x1800
SE185AE-7 SE185AE-8 SE185AE-10 SE185AE-12.5	185	7 8 10 12.5	39.50 38.00 32.50 27.80	DN 80	Air-3.5kw Water-15m3/h	4200	3000x1800x1800
SE220A(W)E-7 SE220A(W)E-8 SE220A(W)E-10 SE220A(W)E-12.5	220	7 8 10 12.5	46.60 45.00 41.50 38.20	DN 100	Air-5.5kw Water-20m3/h	6500	3200x2200x2300

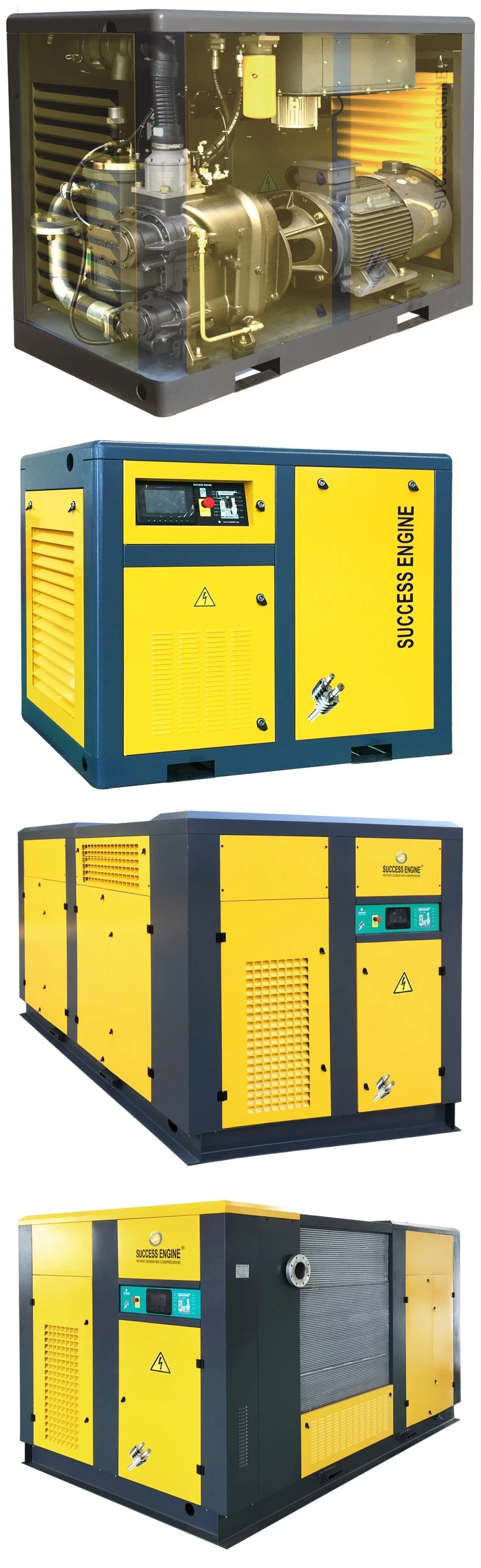

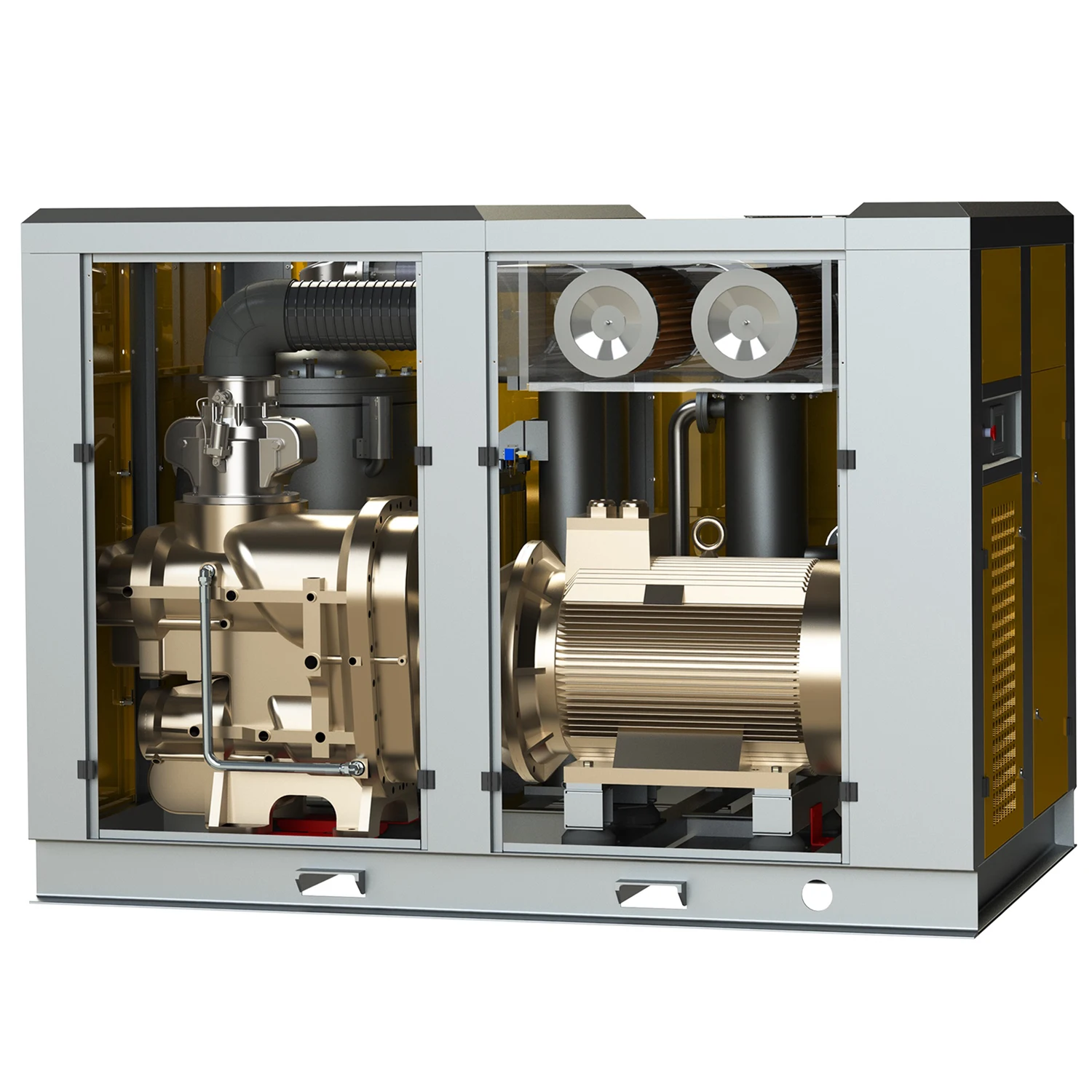

4. Main components




5. Application

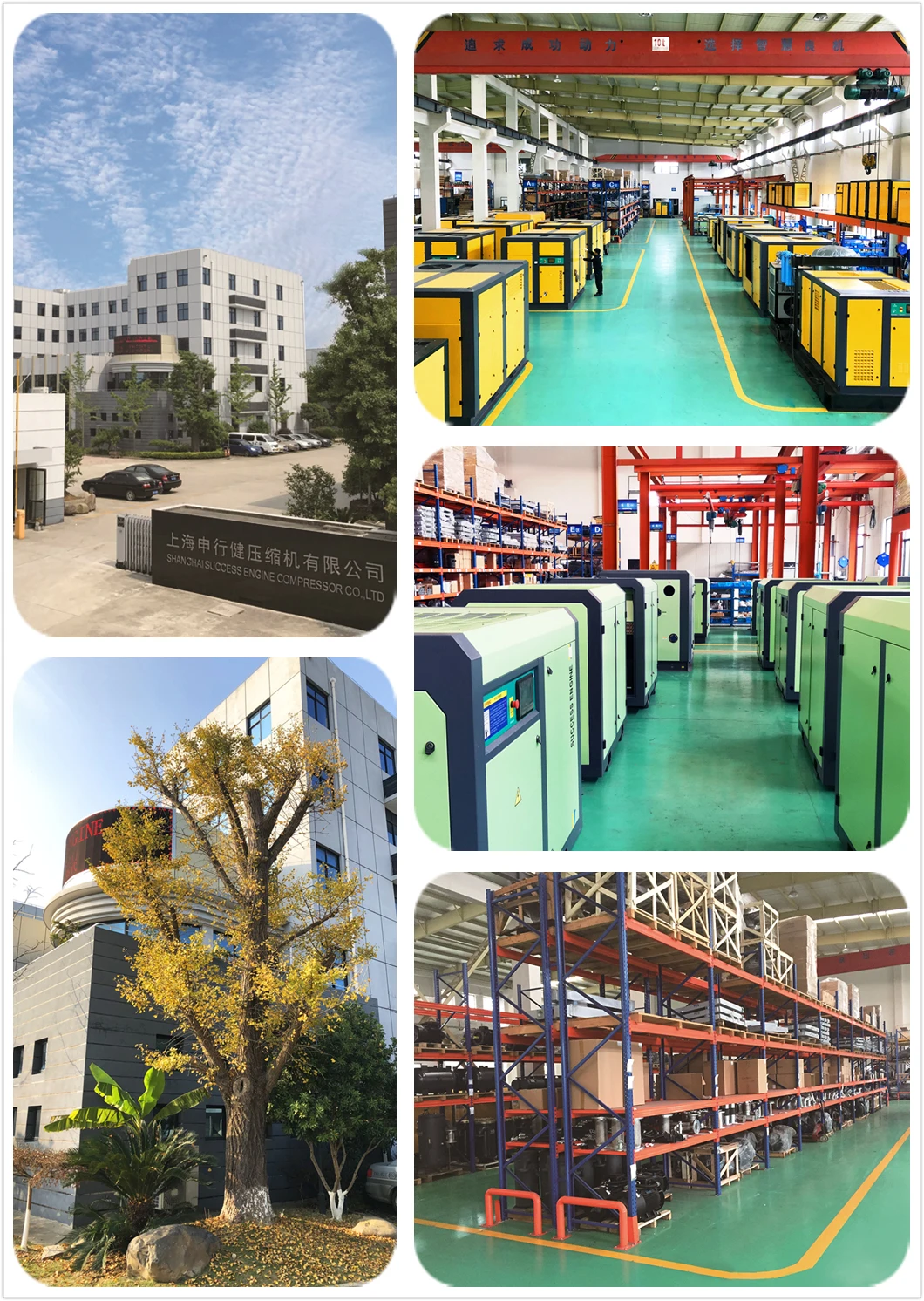

6. Factory View




7. Support & RFQ

Q: Are you a factory or trading company?

A: We are the professional screw air compressor manufacturer established in 2004

Q: Where is your company and factory located? How can I visit you?

A: Our overseas sales center is located in No.666,Xinbo Road, Maogang Industry Zone, Songjiang, Shanghai, China(201606). It takes about one hour from Shanghai Pudong airport or Hongqiao Airport. We warmly welcome all our clients from home or abroad to visit us!

Q: How does your company and factory do regarding quality control?

A: Quality is priority. SUCCESS ENGINE always attach great importance to quality controlling from beginning to the end. Our factory comply with the IS09001 standard strictly.

Q: What is your after-sale service?

A: The guarantee period is 12 months from the date of the installation or 15 months from the day of delivery. We will take full responsibilities for the charges caused by the defects during the guarantee period.
