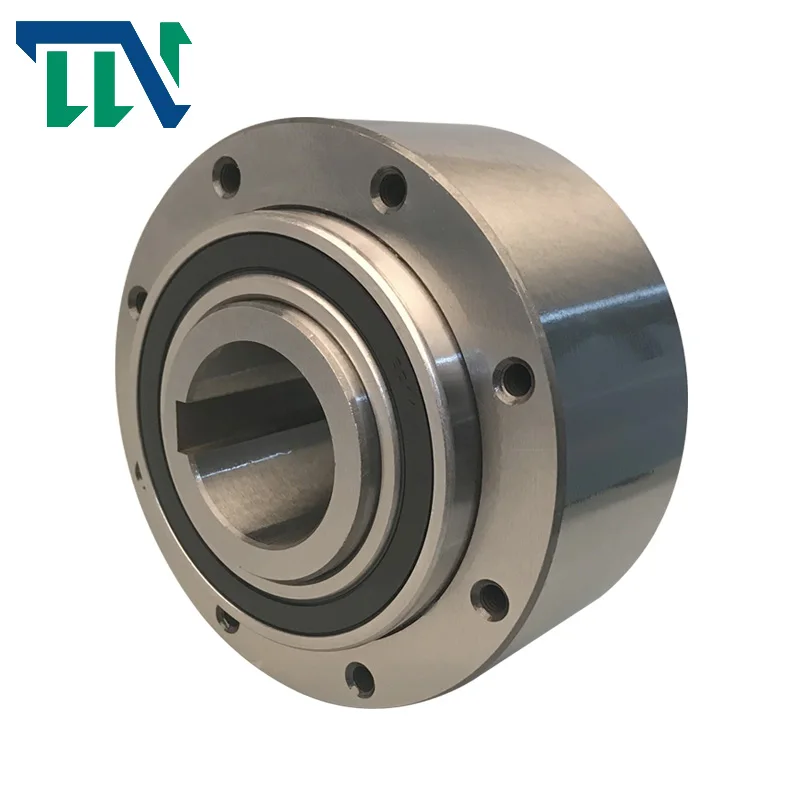

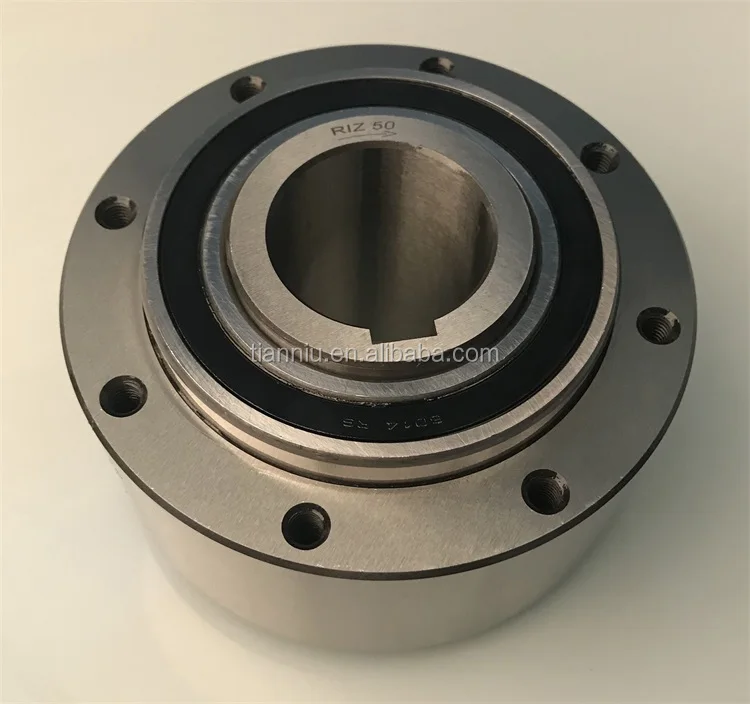

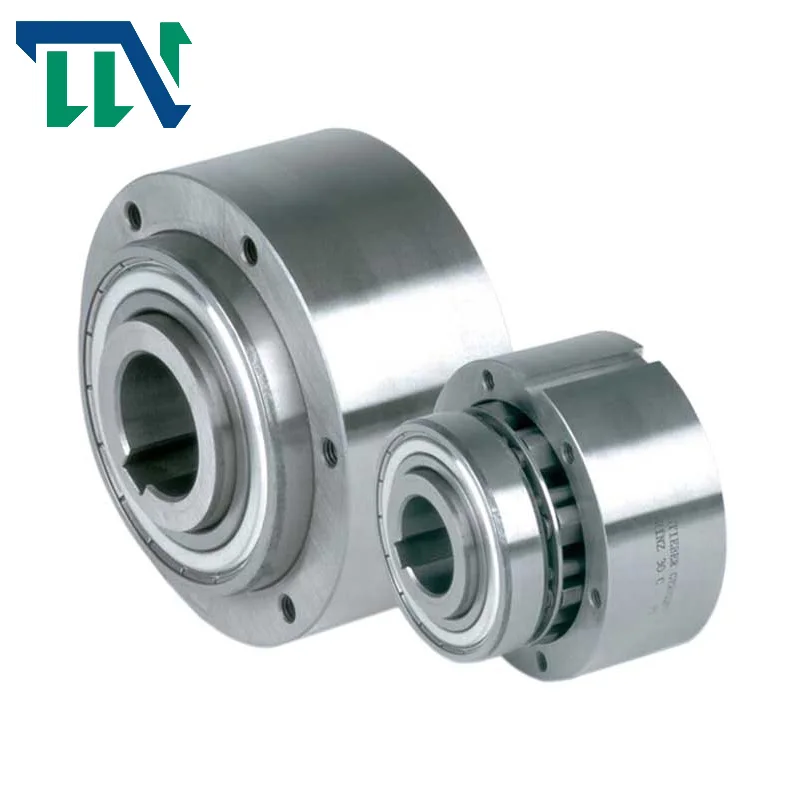

RIZ30 RINZ Sprag Freewheel Clutch Overrunning Clutch for Industrial Machinery RIZ 30 RINZ
- Category: Other Ball Bearings >>>
- Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.
Share on (62292629368):
Product Overview
Description
Product Description
Technical Datas
| Item | RIZ30 RINZ |
| Material | GCr15 |
| Bore dia. | 30 mm |
| Outer dia. | 100 mm |
| Width | 68 mm |
| Torque capacity | 375 N.m |
| Weight | 3.9 kg |
| Package | Carton box, wooden box or as your requirements |
Feature
Types RIZ, RINZ are centrifugal lift off sprag type freewheels with the inner race rotating. Suitable for backstop,
or overrunning clutch applications. Only the inner race is designed for freewheeling.
These units are part of the Stieber modular system. They are bearing supported using series 60.. bearings,
grease lubricated and fitted with ZZ seals. Units are delivered as standard lubricated with grease and ready to
install in either a horizontal or vertical position. Types RIZ, RINZ are designed to be used with G series covers.
The following pages give further inportant information for use of this type unit.
If the unit is to be installed inside a housing where oil lubrication is available, please specify type RIW, RIWN.
The F series covers from type GFR, GFRN are then used without shaft seals.

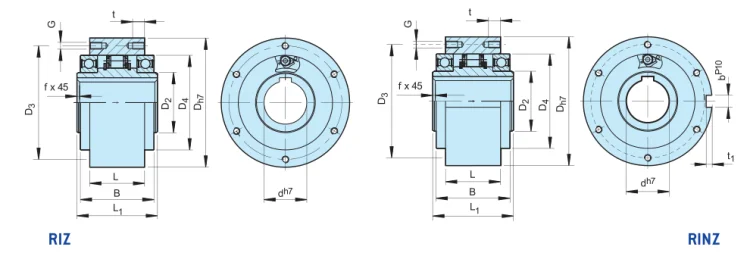

Dimensions and Capacities
|
Type |
Size |
Speeds |
Num |
Weight |
|||||||||||||||||
|
|
dH7 |
TKN1) |
nmax2) |
nimin3) |
nimax4) |
Dh7 |
D3 |
D4 |
D5 |
D7 |
O |
z |
S |
L1 |
L |
L5 |
t |
t1 |
bP10 |
f |
G1 |
|
[mm] |
[Nm] |
[min-1 ] |
[min-1 ] |
[min-1 ] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
[kg] |
|||
|
30 |
375 |
290 |
700 |
9000 |
100 |
114 |
75 |
128 |
109 |
6.6 |
6 |
11.5 |
68 |
43 |
70 |
3 |
4 |
8 |
1 |
3.9 |
|
|
35 |
550 |
280 |
670 |
8500 |
110 |
124 |
80 |
140 |
119 |
6.6 |
6 |
13.5 |
74 |
45 |
76 |
4 |
5 |
10 |
1 |
4.9 |
|
|
40 |
800 |
260 |
630 |
7500 |
125 |
142 |
90 |
160 |
135 |
9 |
6 |
15.5 |
86 |
53 |
88 |
4 |
5 |
12 |
1.5 |
7.5 |
|
|
45 |
912 |
255 |
610 |
6700 |
130 |
146 |
95 |
165 |
140 |
9 |
8 |
15.5 |
86 |
53 |
88 |
4 |
5.5 |
14 |
1.5 |
7.8 |
|
|
50 |
1400 |
235 |
560 |
6000 |
150 |
166 |
110 |
185 |
160 |
9 |
8 |
14 |
94 |
64 |
96 |
4 |
5.5 |
14 |
1.5 |
10.8 |
|
|
60 |
2350 |
210 |
510 |
5300 |
170 |
192 |
125 |
214 |
182 |
11 |
10 |
17 |
114 |
78 |
116 |
4 |
7 |
18 |
2 |
16.8 |
|
|
70 |
3050 |
195 |
470 |
4000 |
190 |
212 |
140 |
234 |
202 |
11 |
10 |
18.5 |
134 |
95 |
136 |
4 |
7.5 |
20 |
2.5 |
20.8 |
|
|
80 |
5800 |
155 |
375 |
4000 |
210 |
232 |
160 |
254 |
222 |
11 |
10 |
21 |
144 |
110 |
146 |
4 |
9 |
22 |
2.5 |
27 |
|
|
90 |
8700 |
145 |
350 |
3000 |
230 |
254 |
180 |
278 |
242 |
14 |
10 |
20.5 |
158 |
115 |
160 |
5 |
9 |
25 |
3 |
40 |
|
|
100 |
16000 |
140 |
340 |
2400 |
270 |
305 |
210 |
335 |
282 |
18 |
10 |
30 |
182 |
120 |
184 |
5 |
10 |
28 |
3 |
67 |
|
|
130 |
23000 |
130 |
320 |
2400 |
310 |
345 |
240 |
380 |
322 |
18 |
12 |
29 |
212 |
152 |
214 |
5 |
11 |
32 |
3 |
94 |
|
Notes:
1. T max = 2 × T KN
2. Inner race overruns
3. Outer race overruns
Keyway to DIN 6885.1

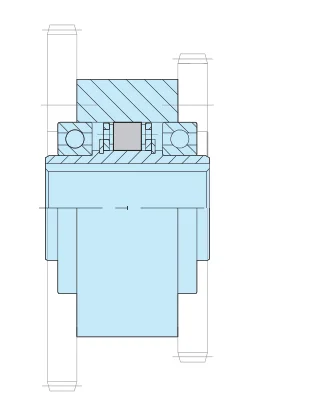

Mounting

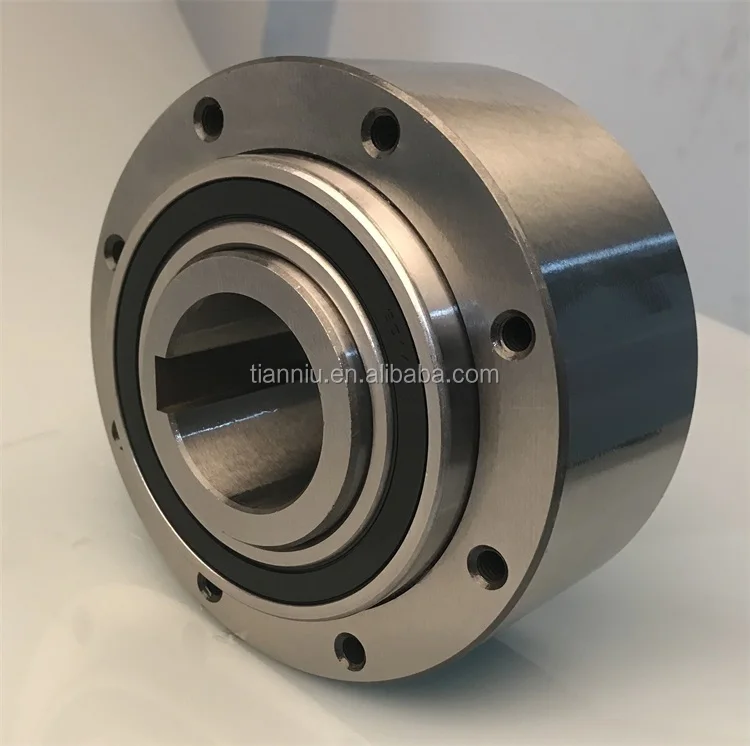

Product Display
Production Flow
Packaging & Shipping
Certifications
Clients Visit
Company Information
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
