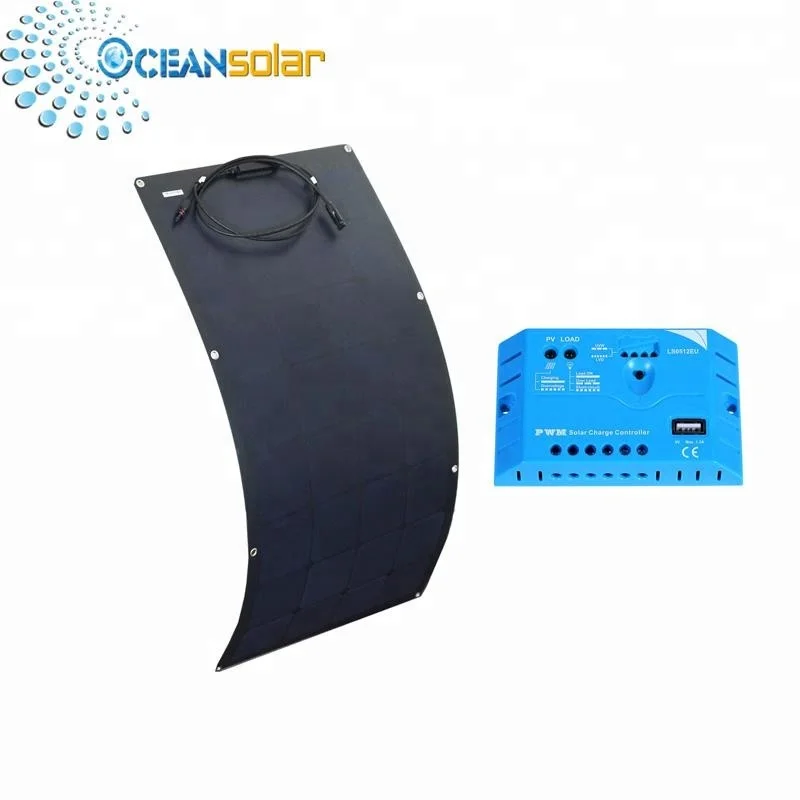

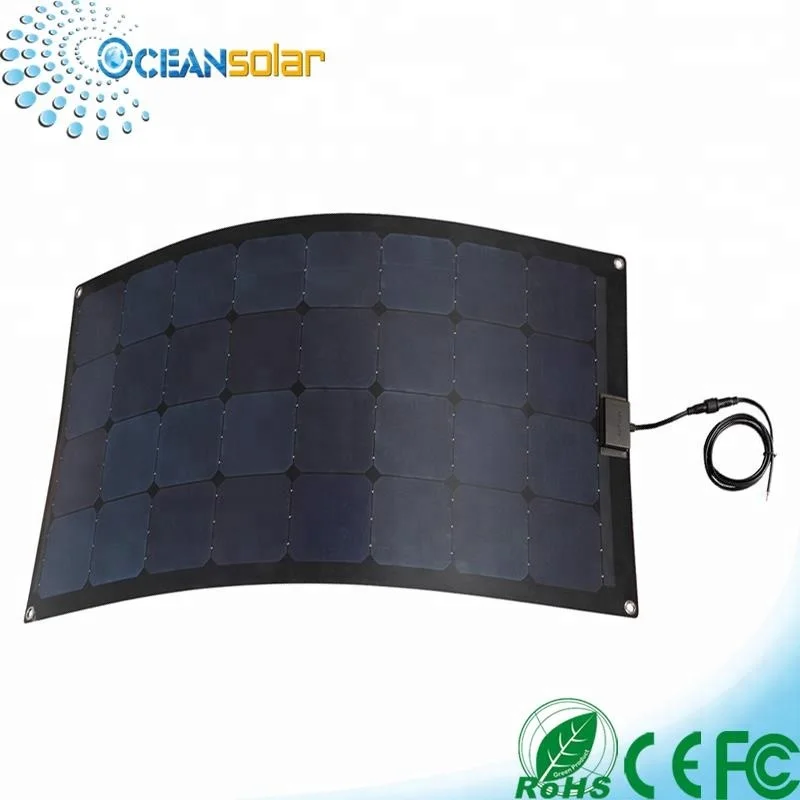

12 volt etfe sunpower black flexible solar panel 50W 80W 100W 110W 120W solar cell flex for boat
- Category: >>>
- Supplier: Guangzhou Ocean Solar Power Technology Co. Ltd.
Share on (62292667741):
Product Overview
Description
Product Description

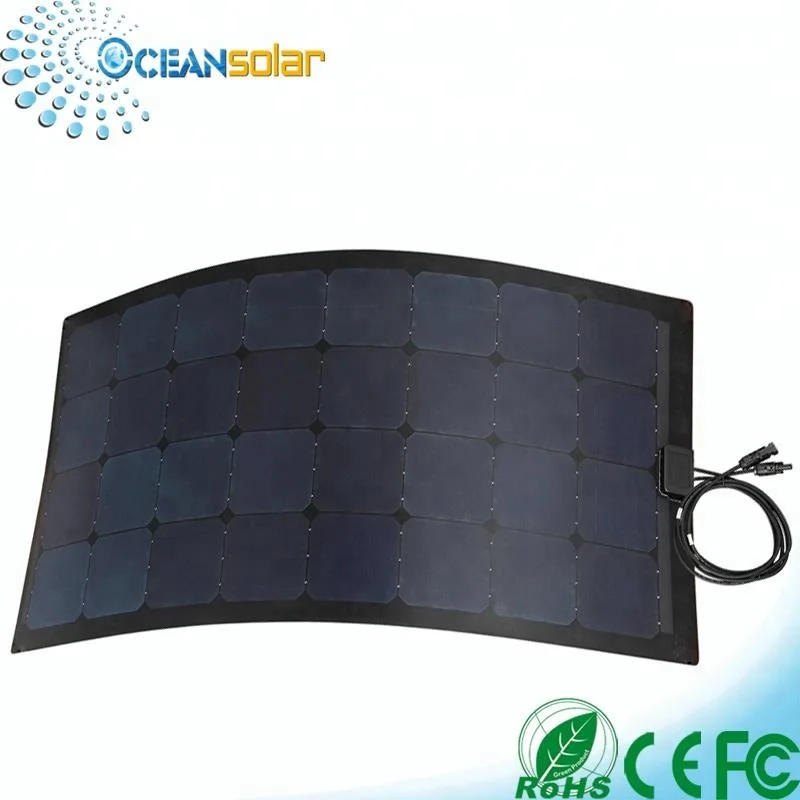

110W Semi Flexible Solar Panel
This 110W semi flexible solar panel can be widely used on yacht, boat, RV roof and so on. Our 2nd generation newest product main advantage is higher efficient in producing power, more light in weight and more water proof and durable in long use.
Product Parameters
Mechanical Data:
1).Flexible Angle : up to 10 degree
2).Back Sheet: aluminum or fiberglass (PCB)
3).J-Box: IP 67 rated
4).Thickness of ETFE: 0.025mm
5).Thickness of solar panel: 2.5mm or 3mm
6).Cables/Connector: 0.9meters, 2*2.5mm2 cable with waterproof connectors
7).Type of Solar Cells: 125 Sunpower Monocrystalline silicon cells.
8).Eyelets: 4pcs in the corners
9). By pass diode: 2pcs (10A for each )
Model No. | OS110-17.6MFX |
Power | 110W |
Vmp | 17.6V |
Imp | 5.88A |
Voc | 20.06V |
Isc | 6.47A |
Size | 1100*540*2.5mm |
Net Weight | 2.2kg |

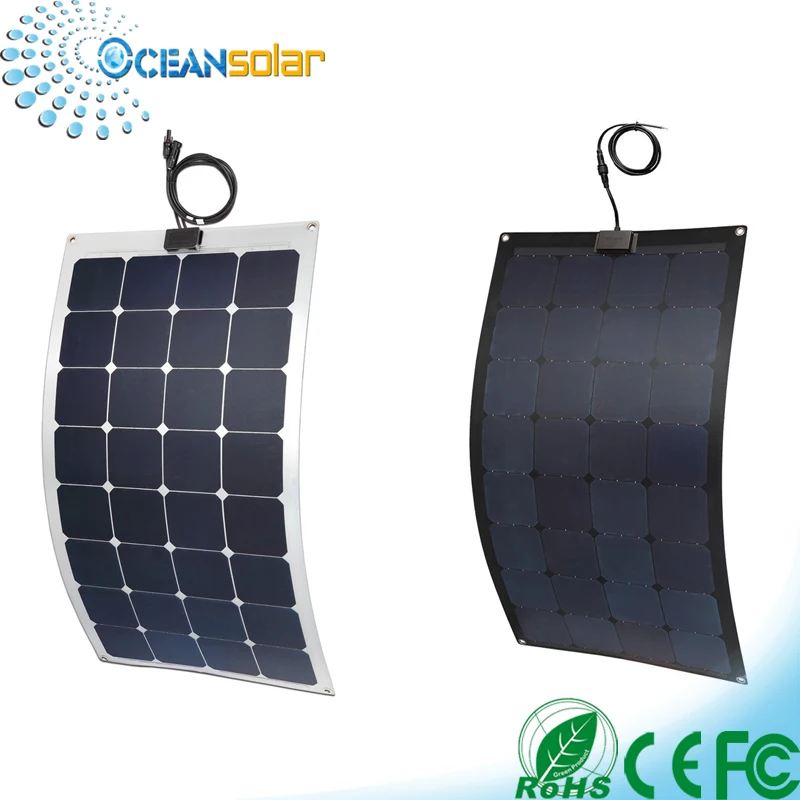

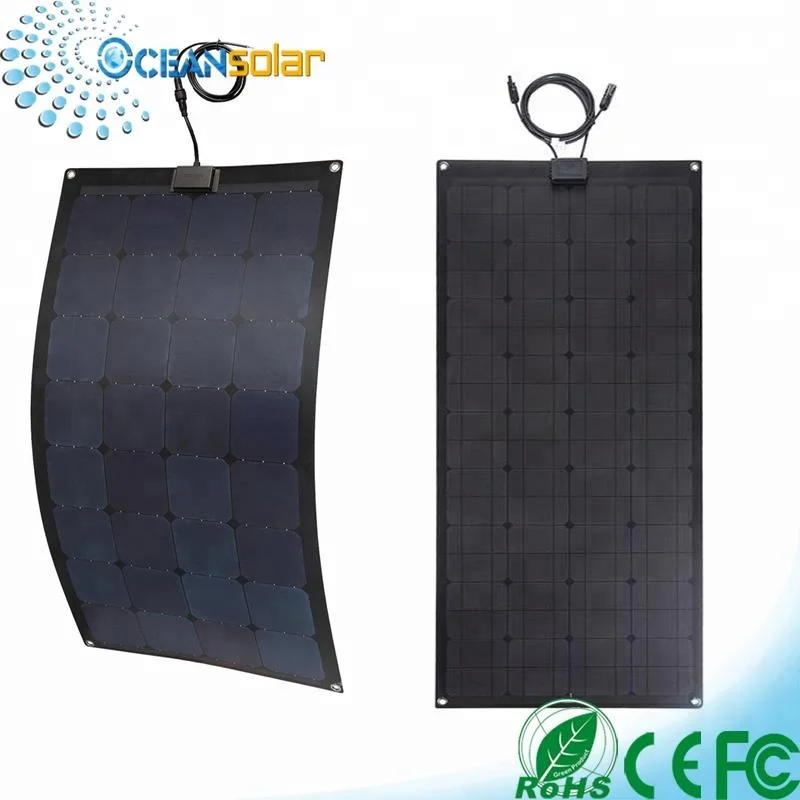

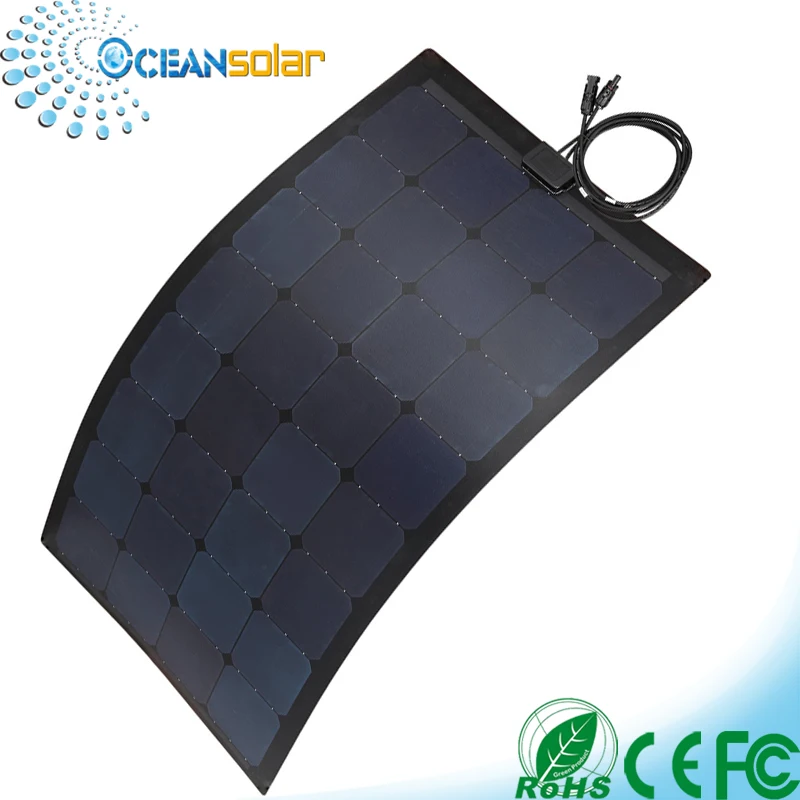

Details Images

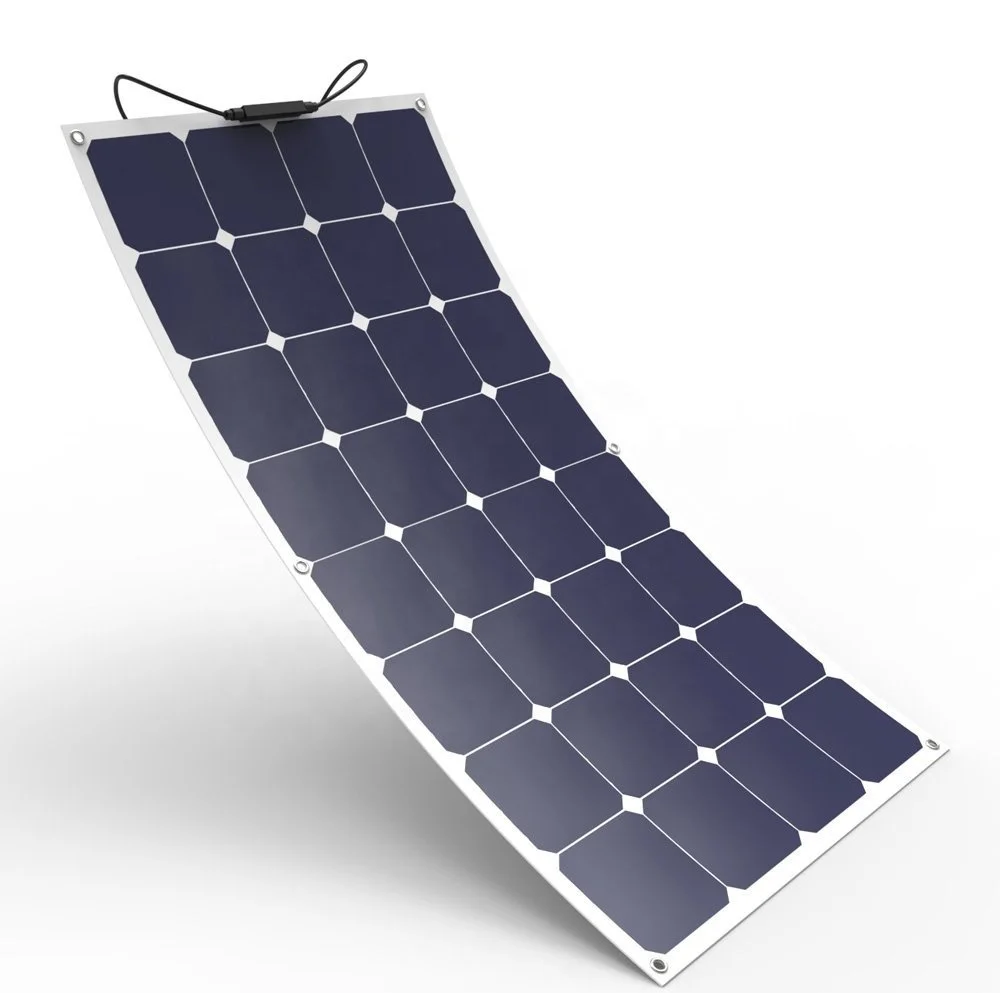

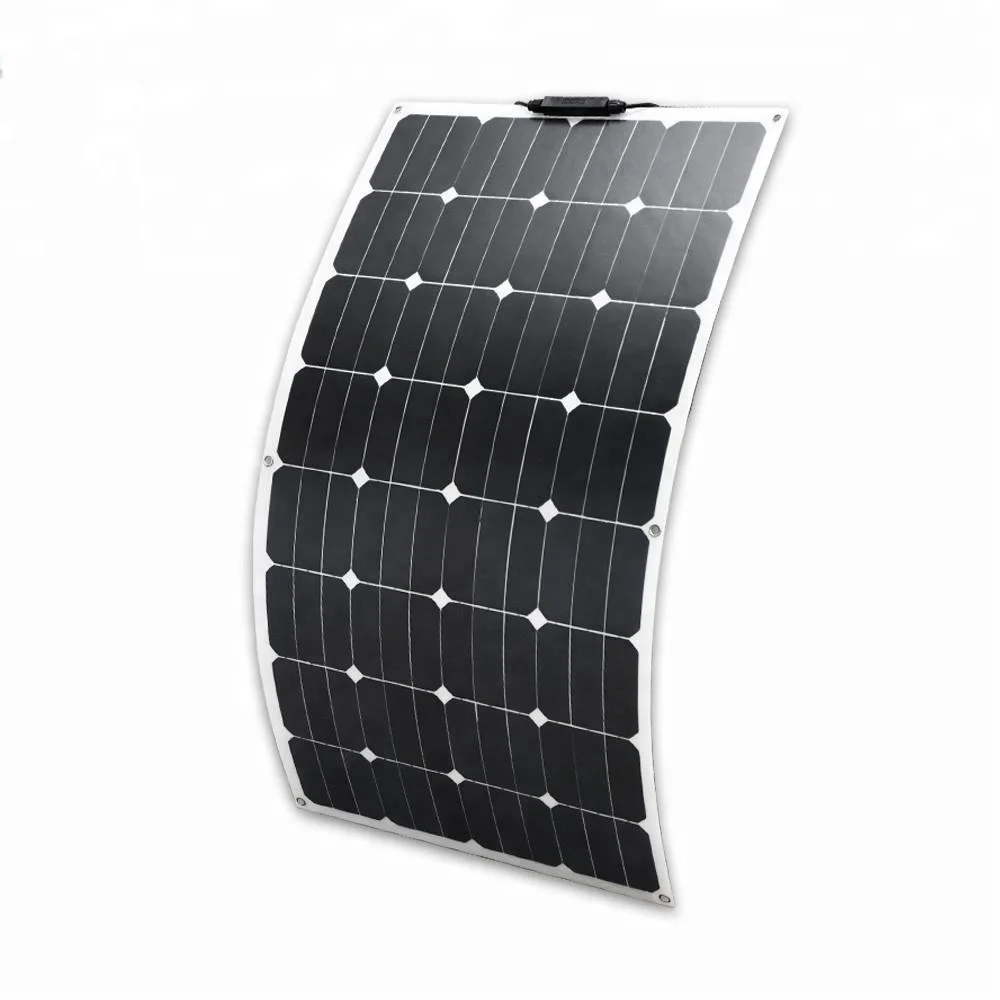

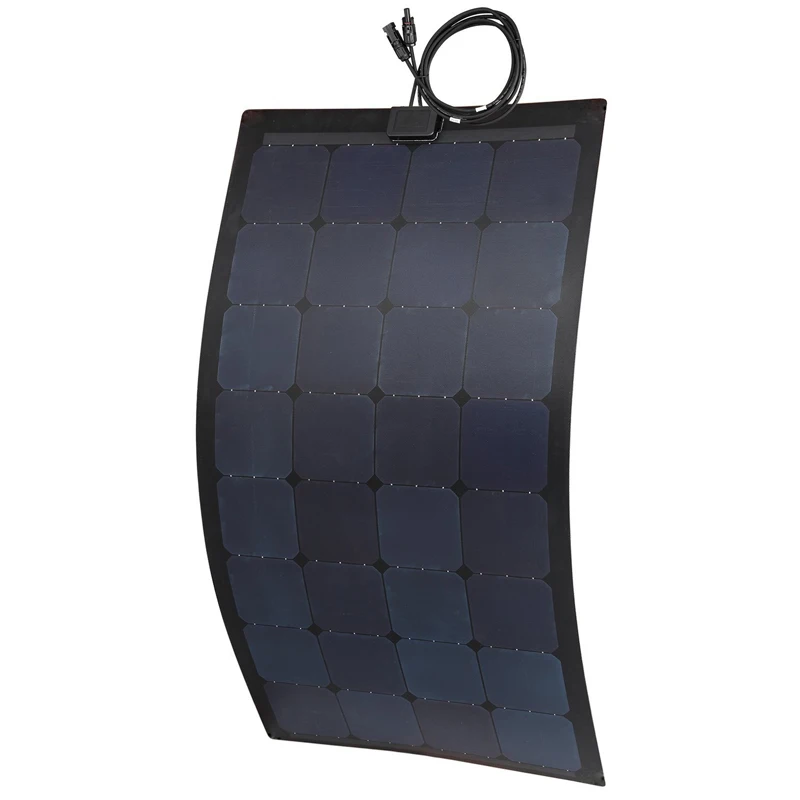

Semi flexible : bending angle up to about 10 degrees
Durable with aluminum backsheet or fiberglass backsheet, no glass
Light weight for easy carry.
The thickness only 2.5mm, easy joint to your yacht or RV roof.

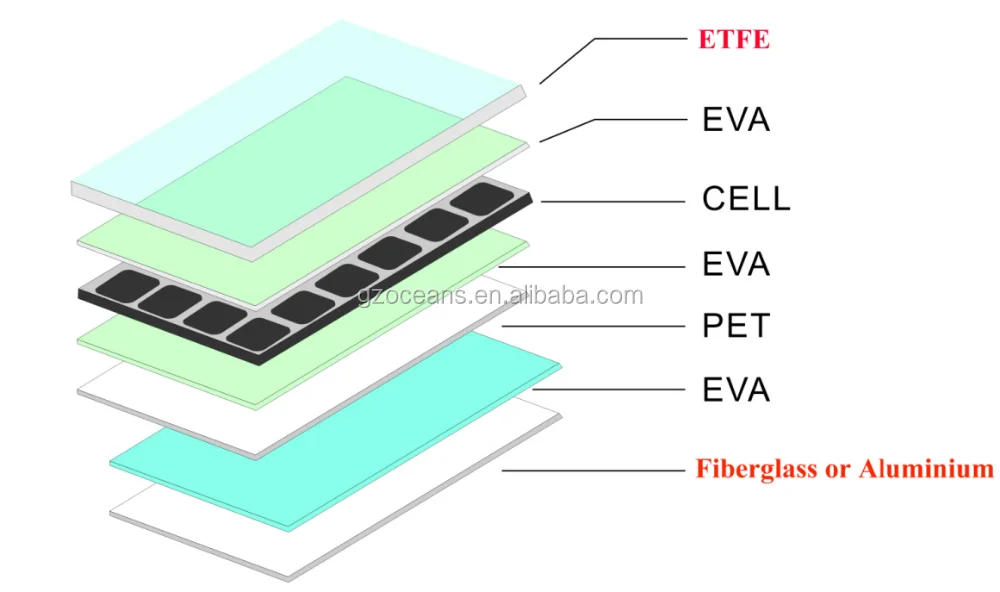

EVA, solar cell , oxidation resistance PCB or aluminium sheet laminated with more waterproof and aniti aging , long life.

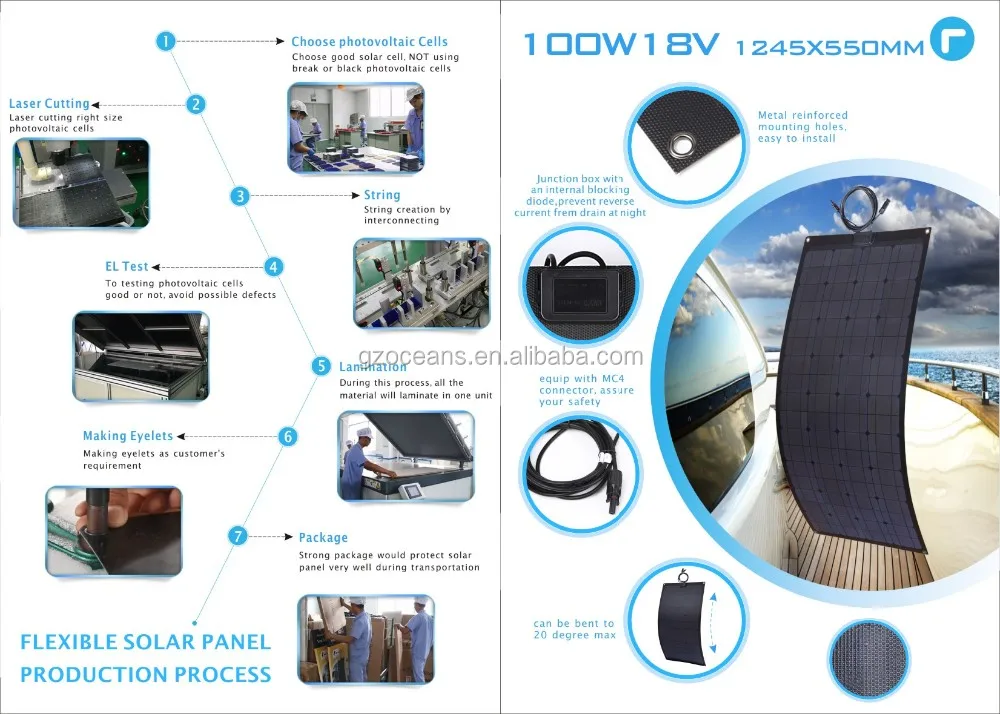

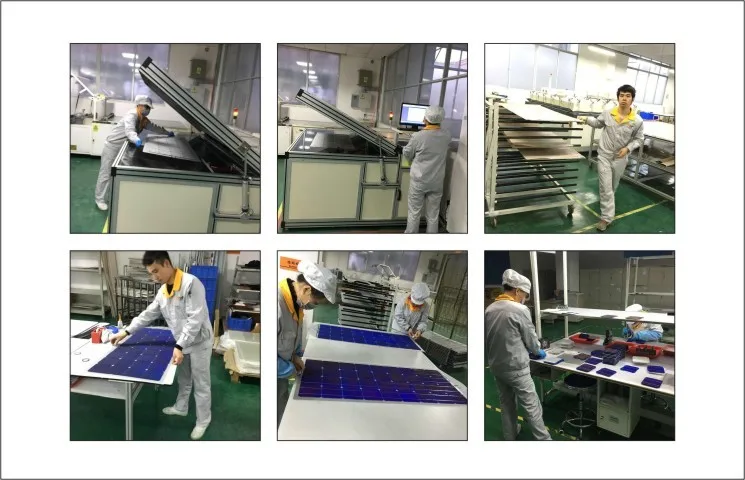

Product Processing
Product Packing

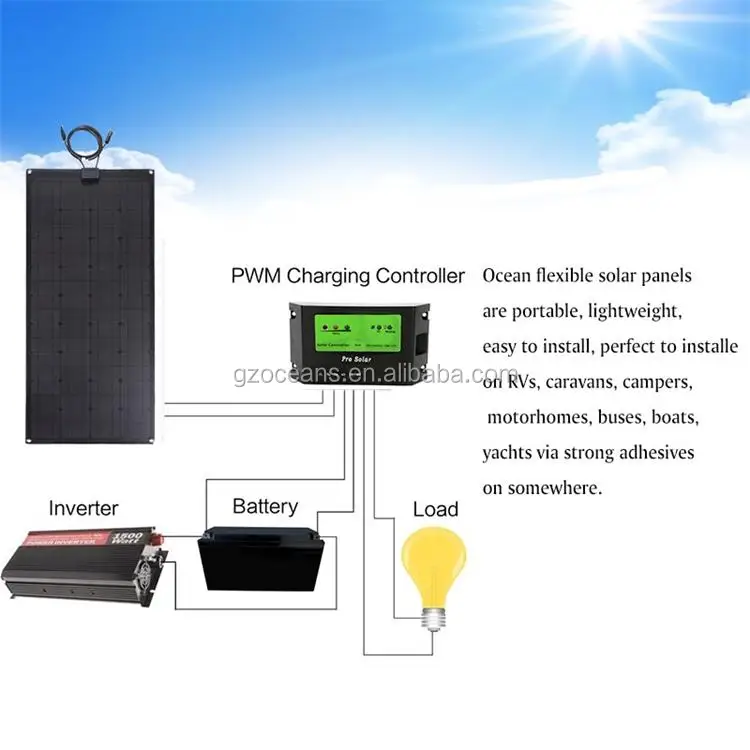

Application Scenarios
