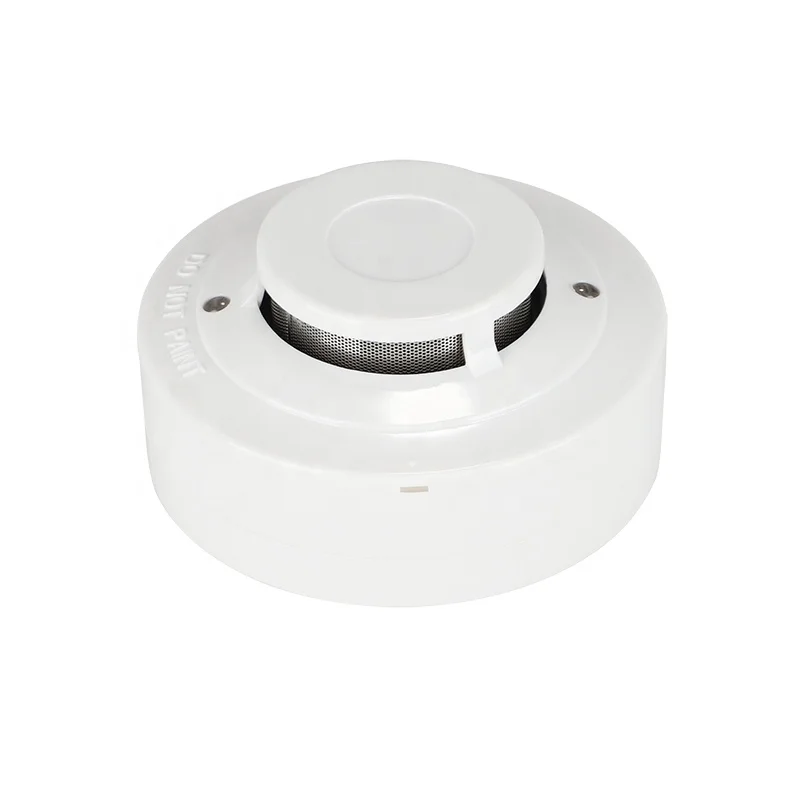

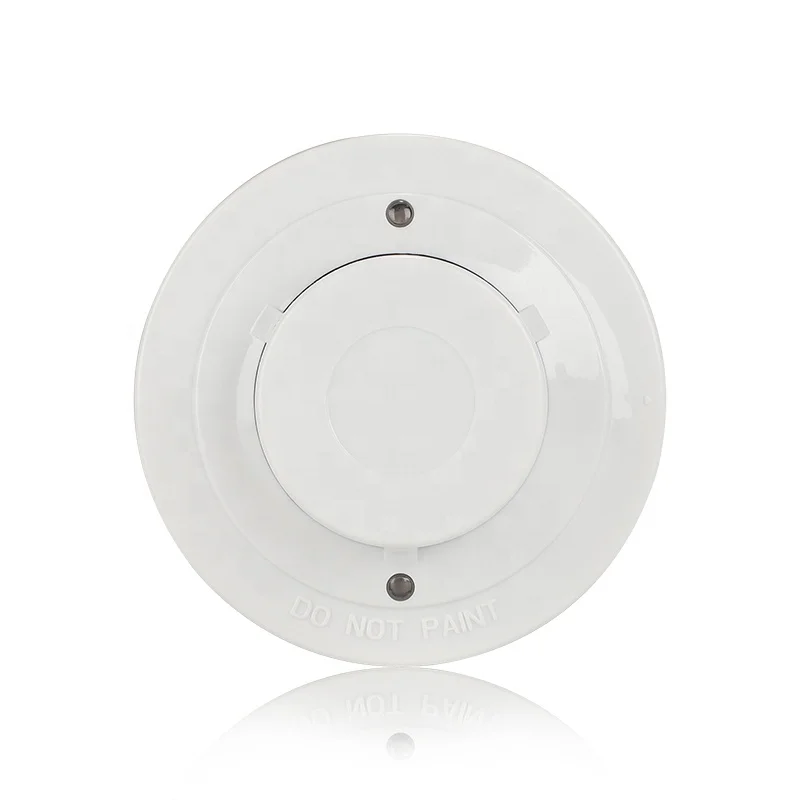

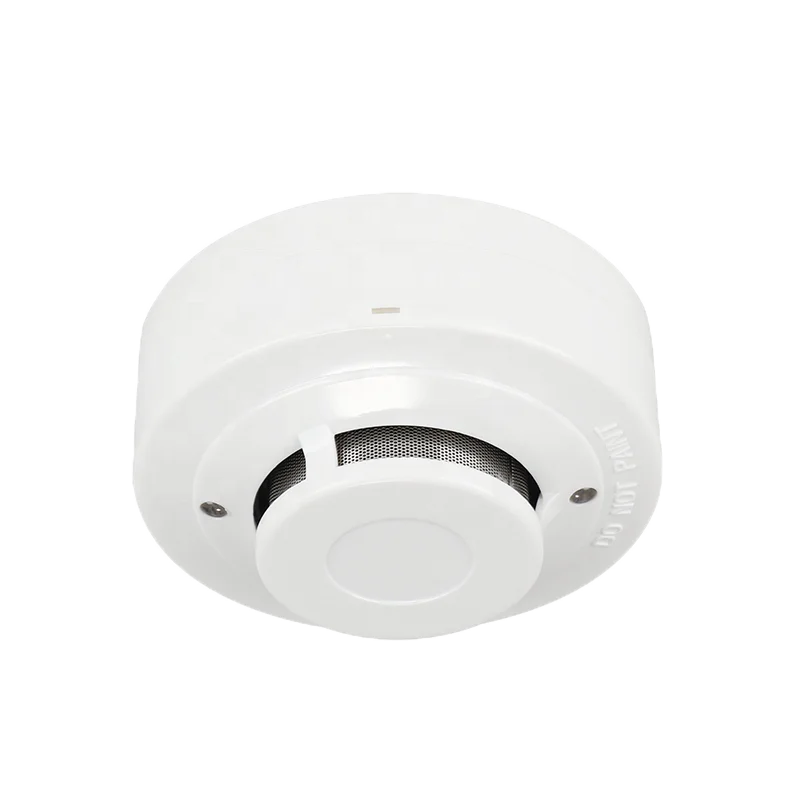

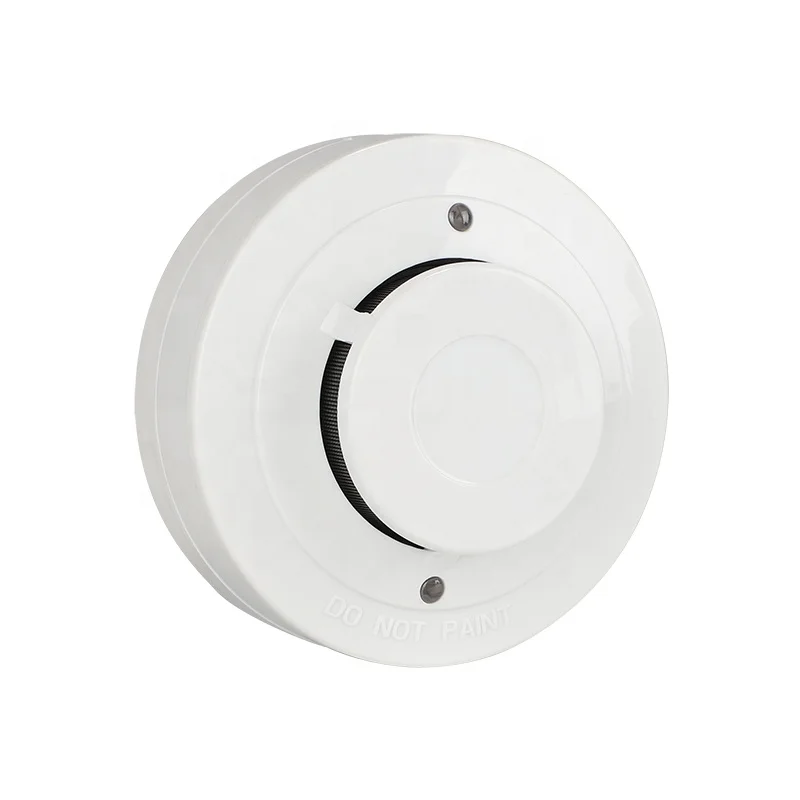

Conventional Smoke Detector with Remote Indicator Output
- Category: >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (62292864301):
Product Overview
Description
Description
Conventional Smoke Detector with Remote Indicator Ouput
The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber.
This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
Two LEDs on each detector provide local 360° visible alarm indication.
They flash every six seconds indicating that power is applied and the detector is working properly.
The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.
The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Parameters
Product Name | Conventional Smoke Detector with Remote Indicator Ouput | ||||
Model No. | AS-SD102 | ||||
Type | Conventional optical | ||||
Operating Voltage | 9-28VDC | ||||
Standby Current | ≤60uA | ||||
Alarm Current | ≤30mA | ||||
Indicator | Yes | ||||
Wiring | 2 wires | ||||
Standard | EN54-7 | ||||
Matched Host | AS-BFP, AS-AFP series panel | ||||
Application | Office, factory, warehouse, apartment, hotel, bank, supermarket, shopping mall, school, hospital etc. | ||||
Pictures
Related Products

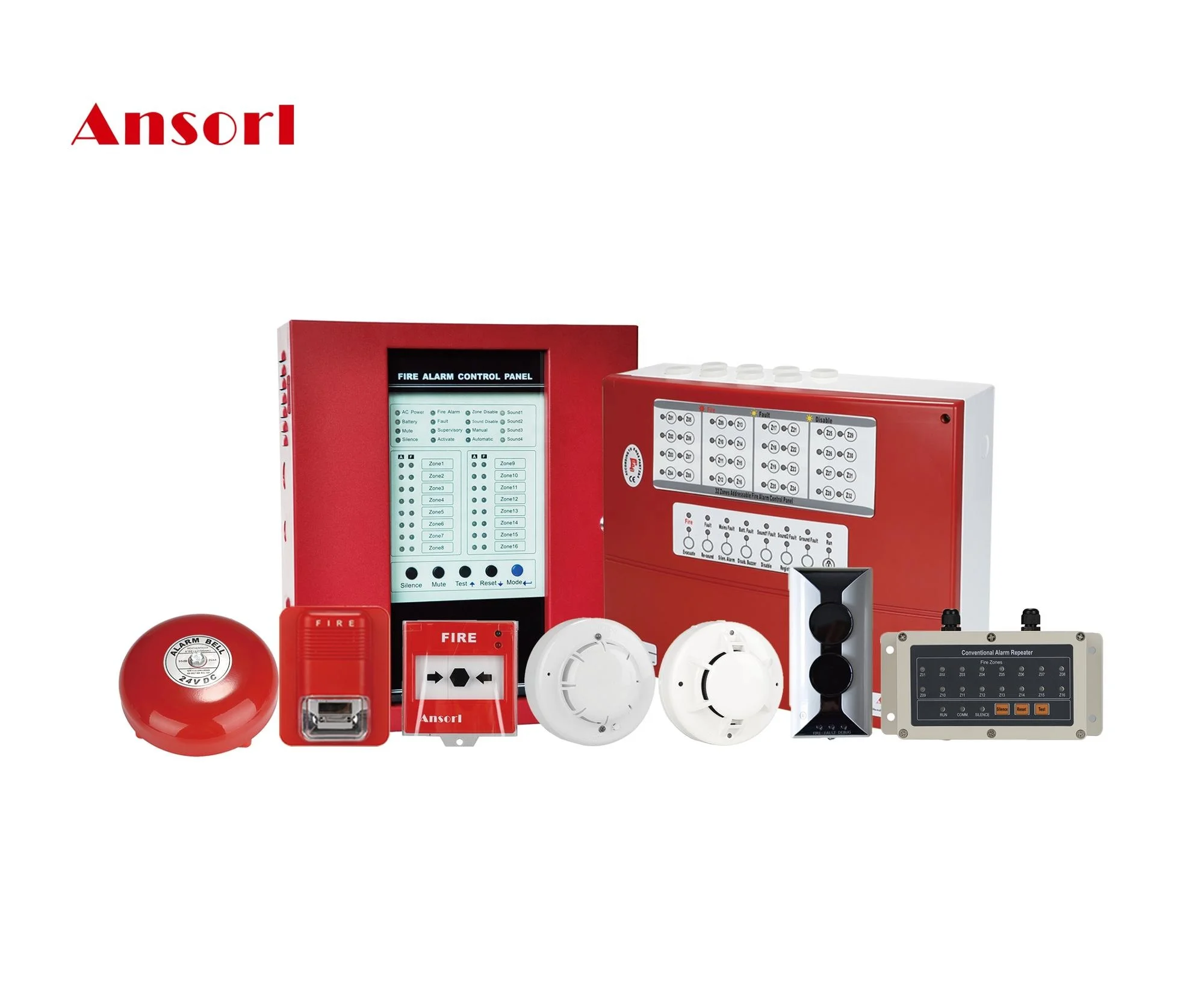

Click below picture to view the details of conventional fire alarm panel.
