Juice Filling Line
- Category: >>>
- Supplier: Zhangjiagang Golden Machinery Co. Ltd.
Share on (62293008338):
Product Overview
Description
Product Description
Product Application

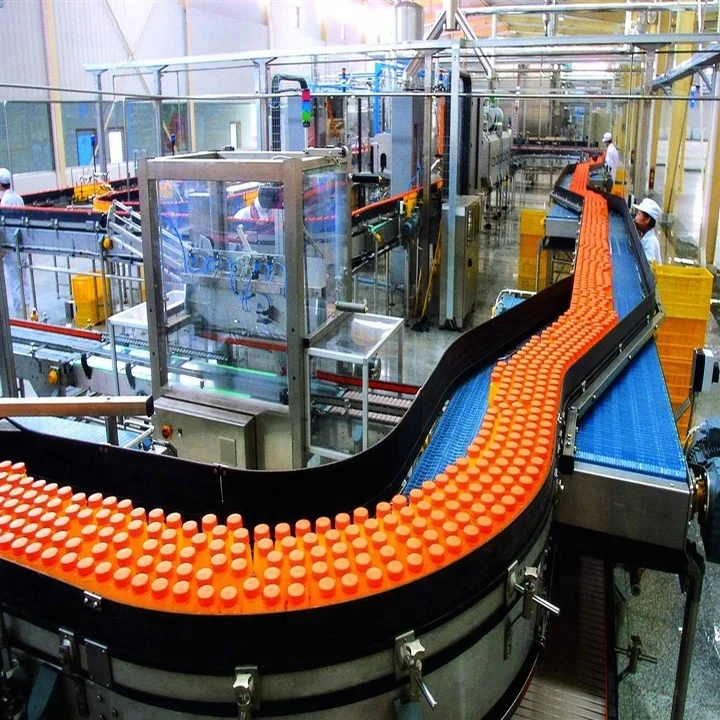

Complete Juice Filling Production Line

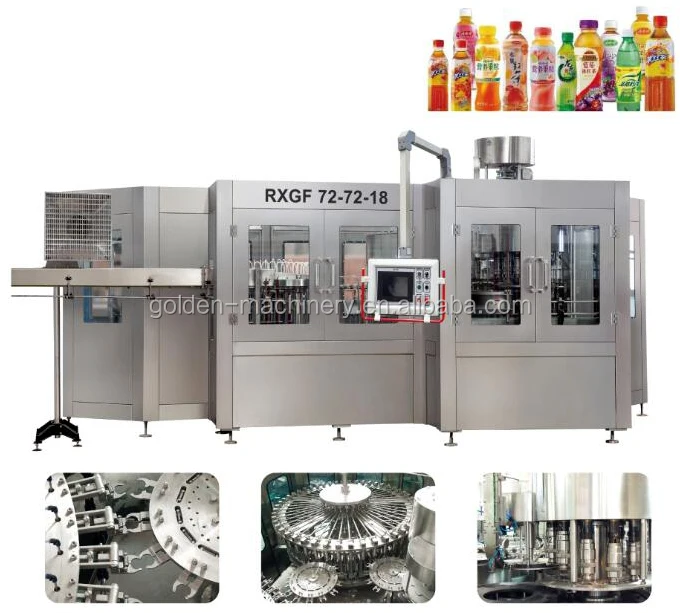

Monoblock Rinser Filler Capper for mineral water
(Small bottle juice production line/aotomatic bottle filling machine )
We are the factory of making all types of filling machines,and have 12 years experiences in filling package line.
This series of machines are automatic and used for the whole filling production of non-carbonated soft drink, such as pure water, mineral water ,spring water and so on.
It integrates bottle washing, filling and capping into one body of the machine. It is very convenient to change bottle size by means of advanced bottleneck clamping & bottle suspending technology.
How to get a quickly price ?
1.Pls let me know how many bottles per hour you want to produce?
2.How about the bottle size?
Kindly keep my contact info, whenever you need, I am always here!
Whatsapp:+86 13616243401
Messenger: +86 13616243401
Water bottling machine specification | ||||||||||
Model: | RCGF16/12/6 | RCGF18/18/6 | RCGF24/24/8 | RCGF32/32/10 | RCGF40/40/12 | |||||
Production capacity:(500ml,1500ml ...Adjust) | 3000-4000BPH | 4000-6000BPH | 8000-10000BPH | 12000-15000BPH | 18000-20000BPH | |||||
Filling precision | ≤5mm (liquid level) | |||||||||
Suitable bottle standard:(mm) | Bottle diameter: φ40-φ80, bottle height: 130-280mm | Bottle diameter: φ50-φ100 bottle height: 150-320mm | ||||||||
Suitable cap standard:(mm) | Plastic screw cap | |||||||||
Total power(KW) | 4.23 | 5.03 | 6.57 | 8.63 | 10.68 | |||||
Overall Dimension (L*W*H mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2250 | 4200*2400*2350 | |||||
Total Weight | 2000 | 3500 | 5500 | 8000 | 9500 | |||||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
Machine Parts
Name: Washing head
Brand: GM
Original: China
1.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
2.Into bottle way is air conveyor direct connection with Bottle dial .
3.Adjust as your request.
Main Features

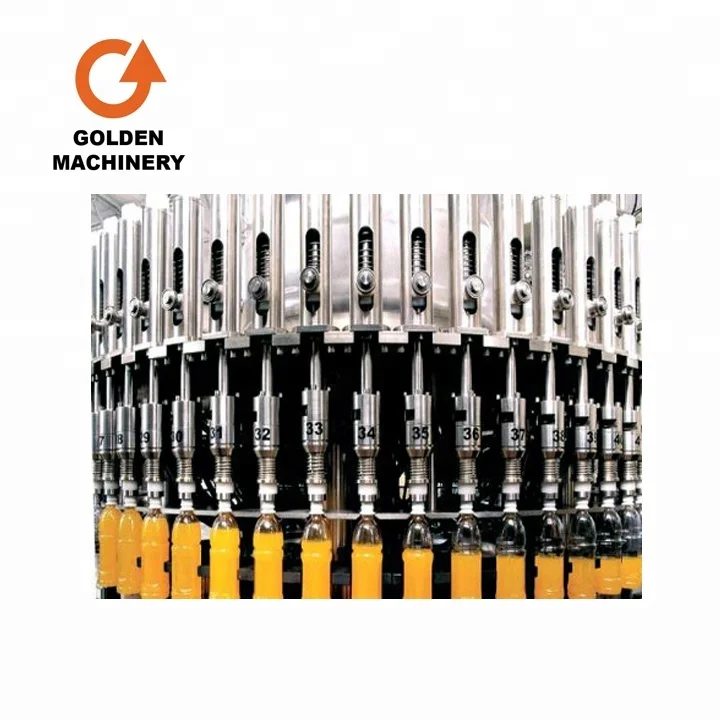

Name: Filling head
Brand: GM
Original: China
1.Filling volume adjustable in fine rank, same liquid level after filling
2. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
3.Efficient spray nozzle rinse thoroughly and save water for flushing
Machine Parts
Name: Capping heads.
Original: China
1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. No bottle no capping
3. Automatic stop when lack of bottle
Water treatment:
It contains multi-medium filter,active carbon filter,sodium-ion filter,precision filter,RO,ozone generator,UV sterilizer etc.

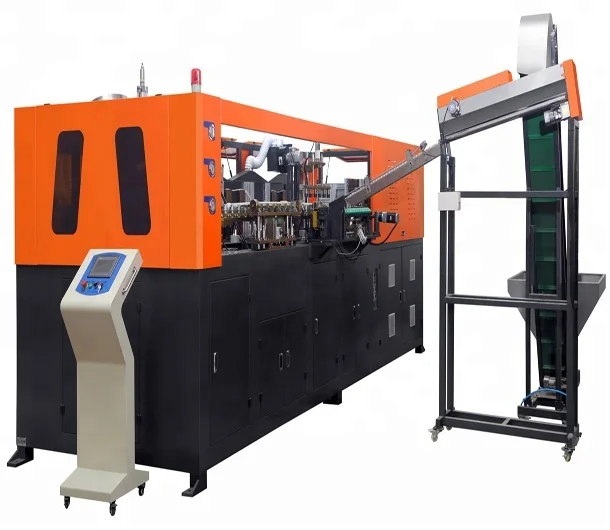

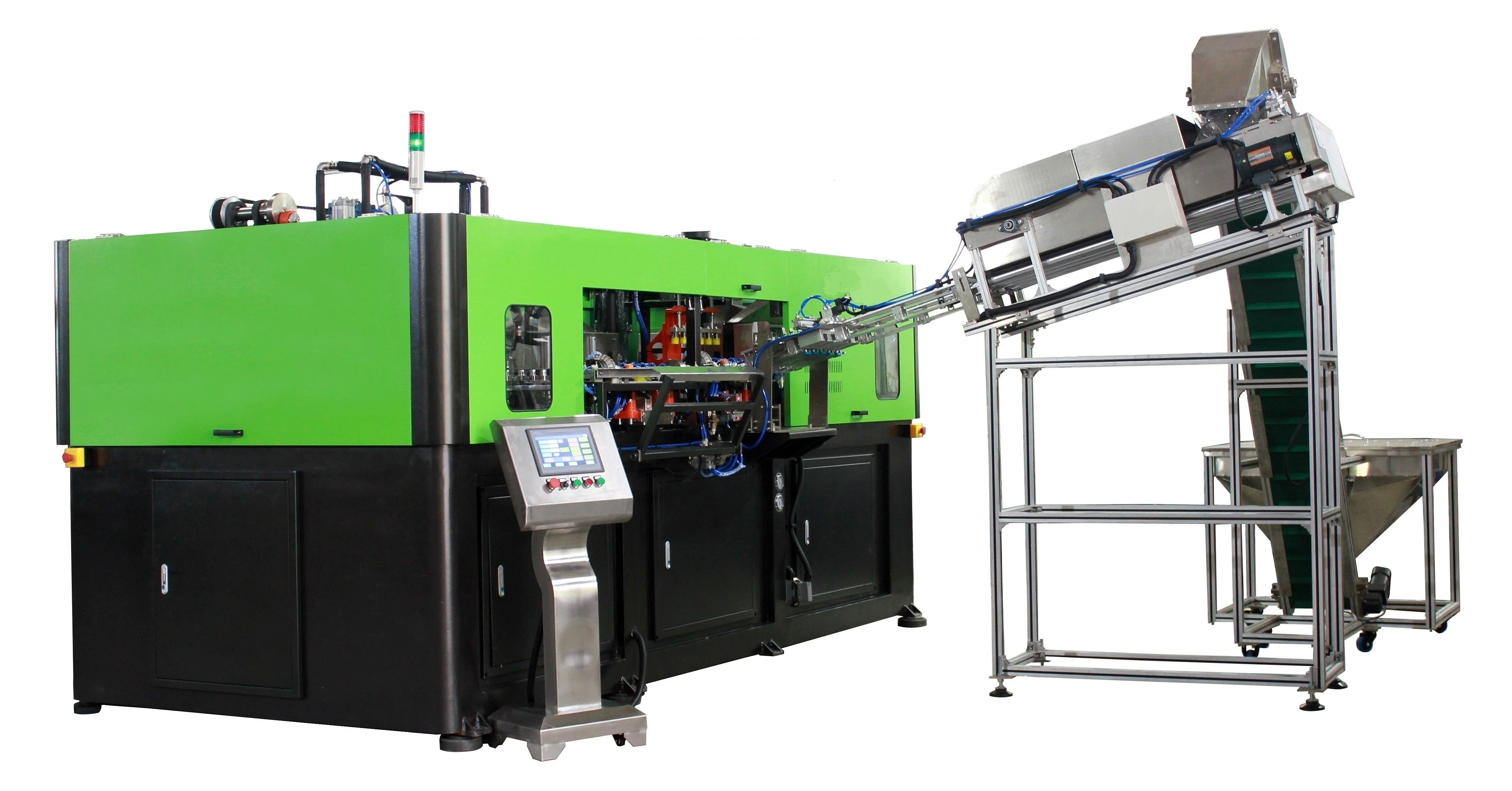

Blowing machine.
Blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

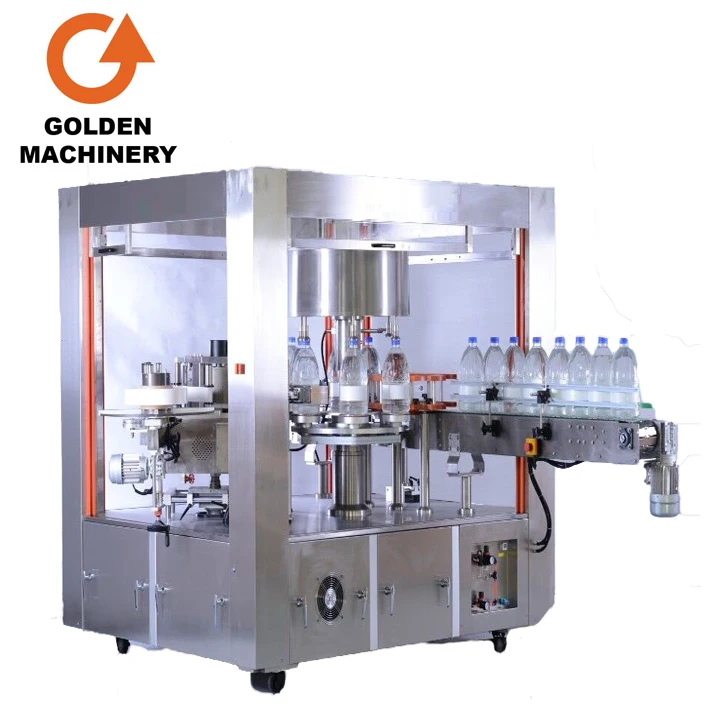

Automatic Shrink Labeling Machine
Whole cover made of stainless steel,waterproof and anti-rust
Adjustable cutter head:uniquely cyclontron cut off,double sides cutting edge with edge with a long service life.
PE Film Shrink Packaging Machine.
With full automatic function of bottle transfer and arrange,membrane packing,sealing and cut,shrinkage,cooling and shaping etc.
8-50 Boxes per minute
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 3500(L) * 2200 (W) * 2250 (D) | |
Weight | 8000KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2450 (L) * 1800 (W) * 2200(D) | |
Weight | 3500KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
