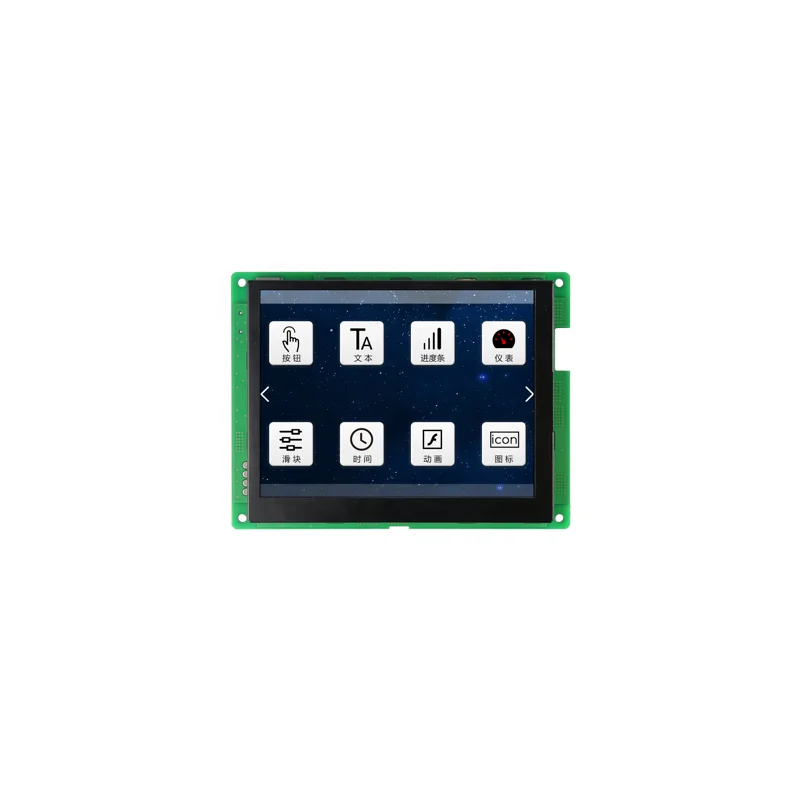

5.6 Inch TFT LCD 640*480 Display Monitor WiFi Touch Screen
- Category: >>>
- Supplier: Guangzhou Dacai Optoelectronic Technology Co. Ltd.
Share on (62293085147):
Product Overview
Description
Product Description
Product Description
DC64480EW056_1VW1_0N (RS232/TTL, No touch, WIFI)
is a 5.6-inch without touch screen with 640*480 resolution.(The package will not contain speaker and battery,due to international air express policy,thanks for understanding.)
LCD Display | |
Display Type | TFT LCD |
Backlight Tube | LED |
Brightness(cd/m²) | 280 |
Backlight Life(H) | >20,000 |
Contrast Ratio | 500:1 |
Viewing(L/R/T/B) | 70/70/50/70 |
Product Specification | |
Product Model | DC64480EW056_1VW1_0T (RS232/TTL, Resistive touch, WIFI) DC64480EW056_1VW1_0C (RS232/TTL, Capacitive touch, WIFI) DC64480EW056_1VW1_0N (RS232/TTL, No touch, WIFI) DC64480EW056_1V01_0T (RS232/TTL, Resistive touch, No WIFI) DC64480EW056_1V01_0C (RS232/TTL, Capacitive touch, No WIFI) DC64480EW056_1V01_0N (RS232/TTL, No touch, No WIFI) |
Product Series | IOT Series |
Processor | 800MHz 32-bit dual-core processor |
Operation System | Embedded real-time operating system, running after power-on 4S |
Protocol Type | Default Dacai configuration insructionsets,The host computer can be configured to run MODBUS RTU,XGUS protocol |
Size | 5.6 inch |
Resolution | 640*480 |
Installation Display | Support 0°/90°/180°/270°rotate display |
Memory Space | 1Gbit |
Font Library | Built-in vector font, edge anti-aliasing,including ASCII,GBK,GB2312 and UNICODE libraries. Any computer font display is customizable |
Image Storage | Support JPEG, PNG (semi-transparent/full transparency) compression, support any size picture storage. The accumulation can store about 115 full-screen images (calculated according to the size of 120KB/sheet, BMP format is not recommended). The image compression ratio is different, and this value fluctuates up or down |
Color | 65K colour,16-bit RGB |
Voltage | 4.5-28V |
Power Consumption | Darkens backlight, No horn:1.9W Darkens backlight, horn:3.7W Brightens backlight, No horn:3.5W Brightens backlight, horn:5.2W |
Communicate Interface | RS232/TTL (factory default 232 level, short J5 is TTL level) |
Communicate Baudrate | 1200~921600bps, typical baud rate: 115200bps |
Interface Specification | Default HY2.0-8P |

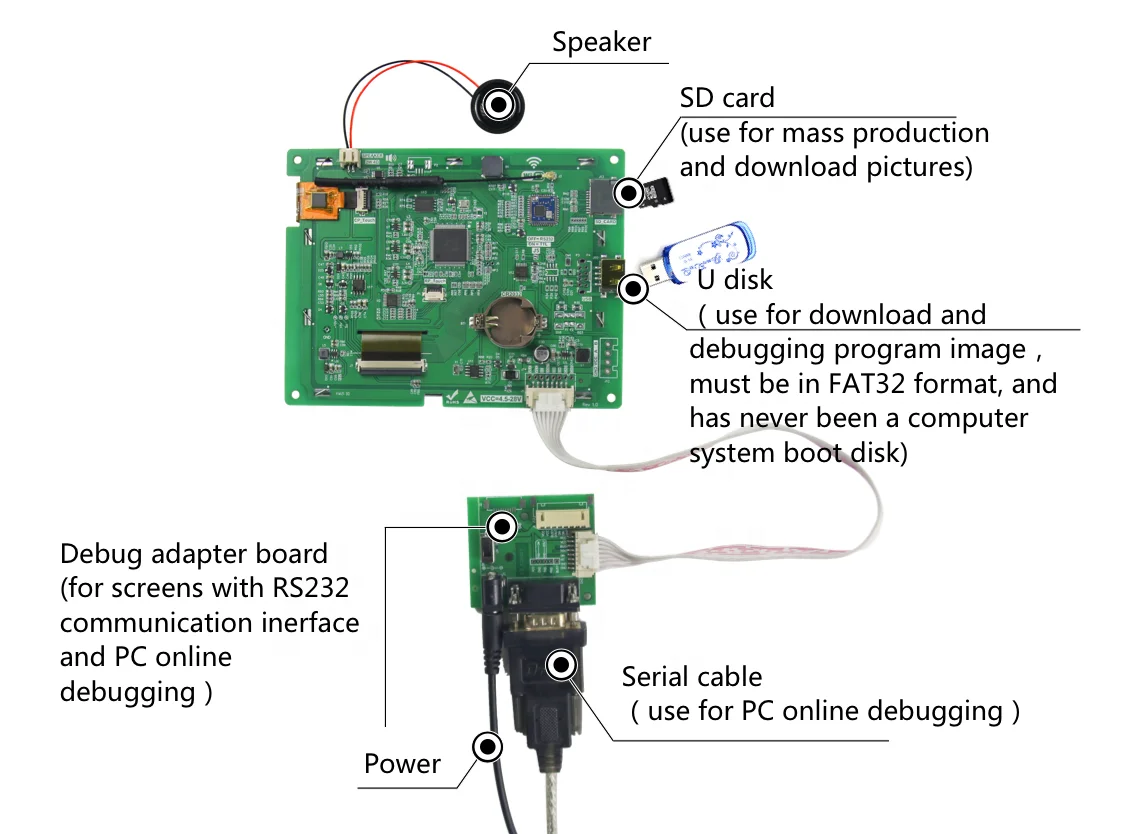

Image Download | SD card/USB flash drive/serial port/WIFI |
Real-time RTC | Support countdown, timer, year, month and day and other time display |
Active Area of Displaying(AA) | L*W = 112.9mm*84.7mm |
Product Dimension(L*W*H) | L*W*H = 144.9mm*110.2mm*20.8mm |
Host computer software | VisualTFT® |
Audio Playing | MP3 audio format (speaker 4Ω2W, mono), sharing storage space with pictures. If the sampling rate is 128kbps, 0.95MB/min of storage is occupied |
Specification of Audio Connector | PH2.0-2P |
Video Playing | MP4 video format.If a video file with a resolution of 800*600, a video bit rate of 3000Kbps, an audio code rate of 166Kbps, and a frame rate of 25Hz,it occupies 21.9MB/min |
WIFI | It adopts BL-M8189FS6 module, supports 2.4GHz-2.48GHz frequency band, supports network card mode and hotspot mode, can be configured as wireless serial port transparent transmission mode, can use TCP/IP protocol, FTP protocol, HTTP protocol |
Three Anti-paint Process | None |
