Silicone rubber fireproof fiberglass sleeve

Product Overview

Description

 The price of each specification is different, please confirm with the business

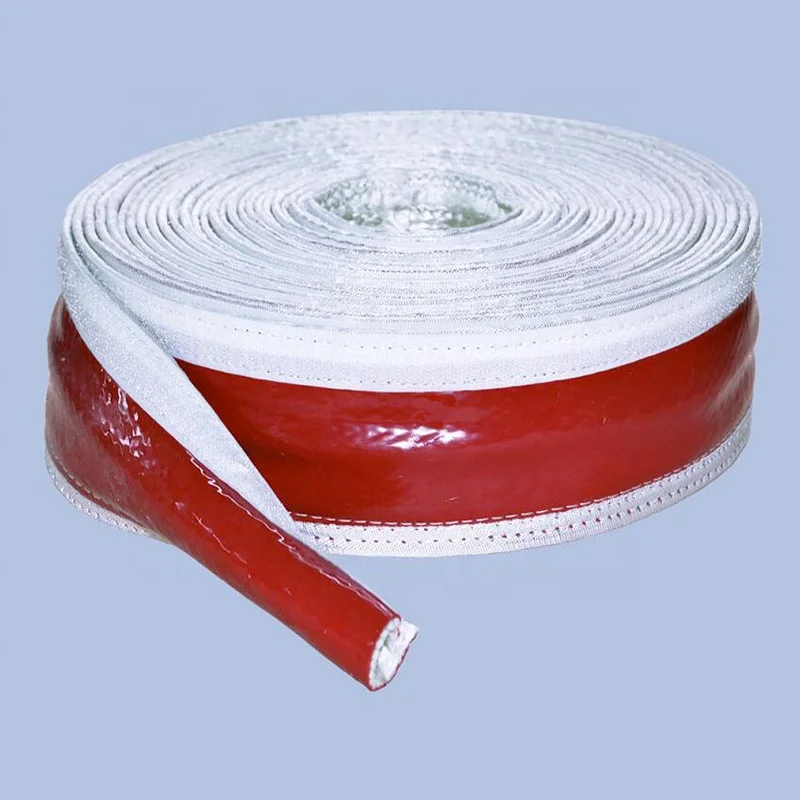

Silicone rubber fireproof fiberglass sleeve/ Fiberglass Sleeving with VCO

Mine machinery and equipment fire resistant high temperature tube





Silicone rubber fireproof fiberglass sleeve/ Fiberglass Sleeving with VCO is made by fire-resisting sleeve seamed with nylon flame resisting fastening.

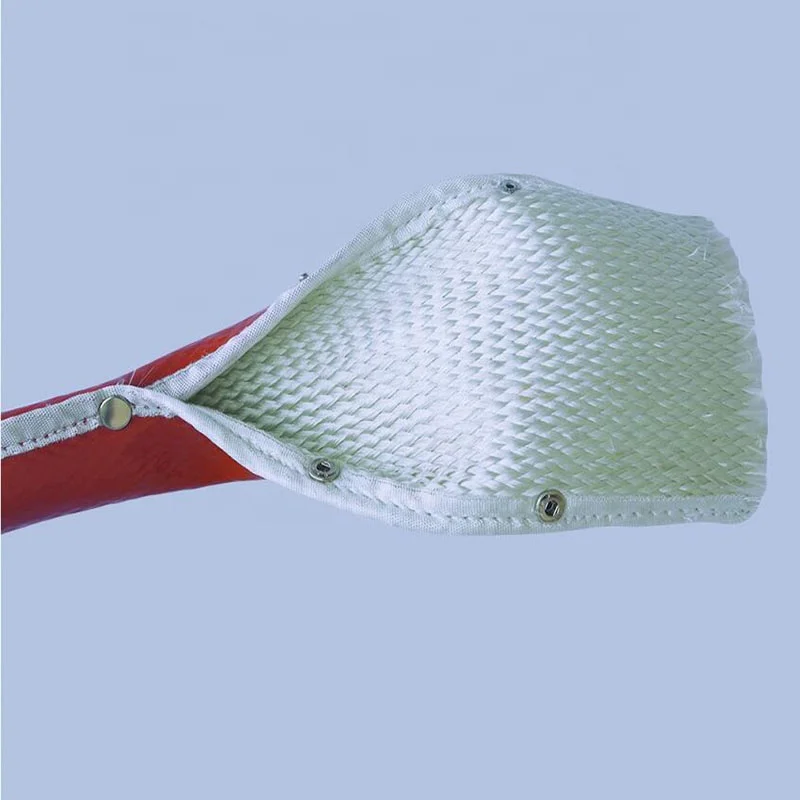

Hook and Loop Fastener design make the fire proof sleeve easy to install and tear down. Its flexible and simple structure make it easy to apply to pipeline instruction. Especially used in installed pipeline equipment for high temperature protection.





Hook-Loop fiberglass Fire Sleeving Product feature:
1, Fire proof, flame retardant, heat insulation.
2, Heat prevention, insulation , anti-aging
3, Withstand melting metal splash
4, Withstand strong heat source and flame.
5, Anti-acid and anti-alkali



Safety protection high temperature Sleeve Product application:
1, widely used in steelworks, smelting plant,glassworks, rail transit, and other high temperature environment.
2, Applied to hydraulic hose, cable, metal hose, corrugated tubing and all kinds of pipeline for high temperature protection.









Product Characters:



Inner diameter	10mm-115mm
Color	Red, black, other colors can be made according to customer's need, nylon fastening optional color: white or black
Work temperature	Can use continuously at - 75 ° C to 260 ° C, short moment resistance can be up to 1650 ° C
Nominal voltage	7kv--25 kv.
Product properties	Fire prevention, flame retardant, heat insulation, insulation, anti-aging, prevent splashing liquid steel and waterproof, prevent oil, acid and alkali resistance





 Standard Sepcifications:





PART NO.	INNER DIA.		Single WALL THICK (mm)	LENGTH (M/Roll)
	mm	inch
DKF-10	10	3/8	2.1	20
DKF-15	15	5/8	2.4	20
DKF-20	20	3/4	2.6	20
DKF-25	25	1	2.9	20
DKF-30	30	1 1/8	3.1	20
DKF-35	35	1 3/8	3.4	20
DKF-40	40	1 5/8	3.4	20
DKF-45	45	1 3/4	3.6	20
DKF-50	50	2	3.7	20
DKF-55	55	2 1/6	3.8	15
DKF-60	60	2 3/8	4.0	15
DKF-65	65	2 1/2	4.1	15
DKF-70	70	2 3/4	4.3	15
DKF-75	75	3	4.3	15
DKF-80	80	3 1/8	4.5	15
DKF-85	85	3 3/8	4.5	15
DKF-90	90	3 1/2	4.6	15
DKF-95	95	3 3/4	4.6	15
DKF-100	100	4	4.7	10
DKF-105	105	4 1/8	4.7	10
DKF-110	110	4 3/8	4.8	10
DKF-115	115	4 1/2	4.8	10

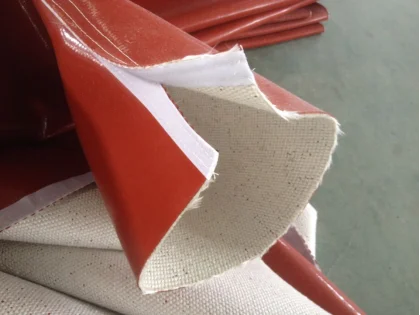

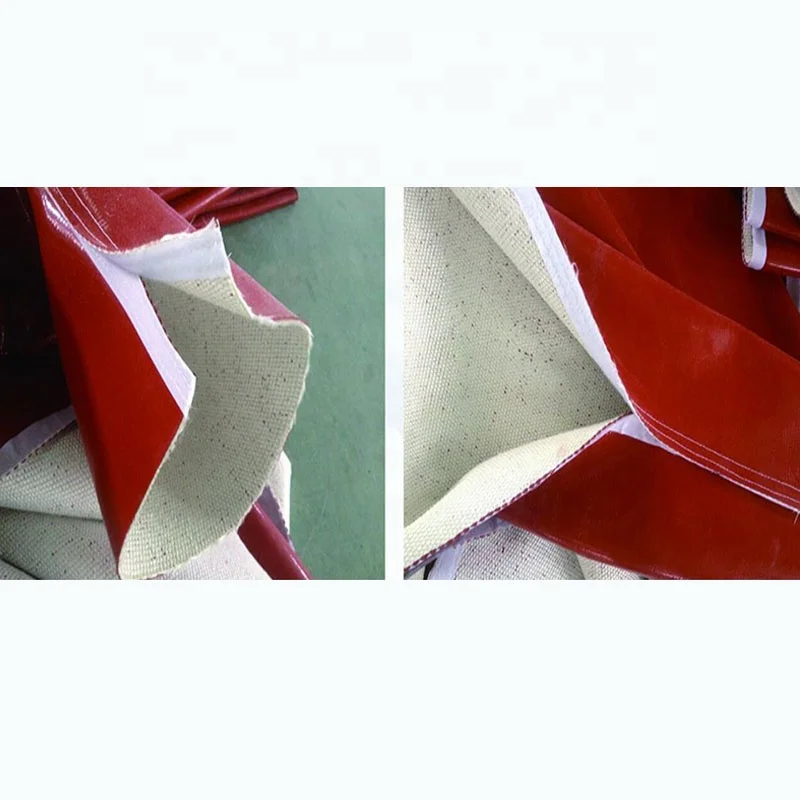

DKF-SF  Fire sleeve with silicone rubber coated fiberglass fabric(made of silicone rubber coated fiberglass fabric)



Thickness:	3.0mm
Inner Dia.:	≤310mm
