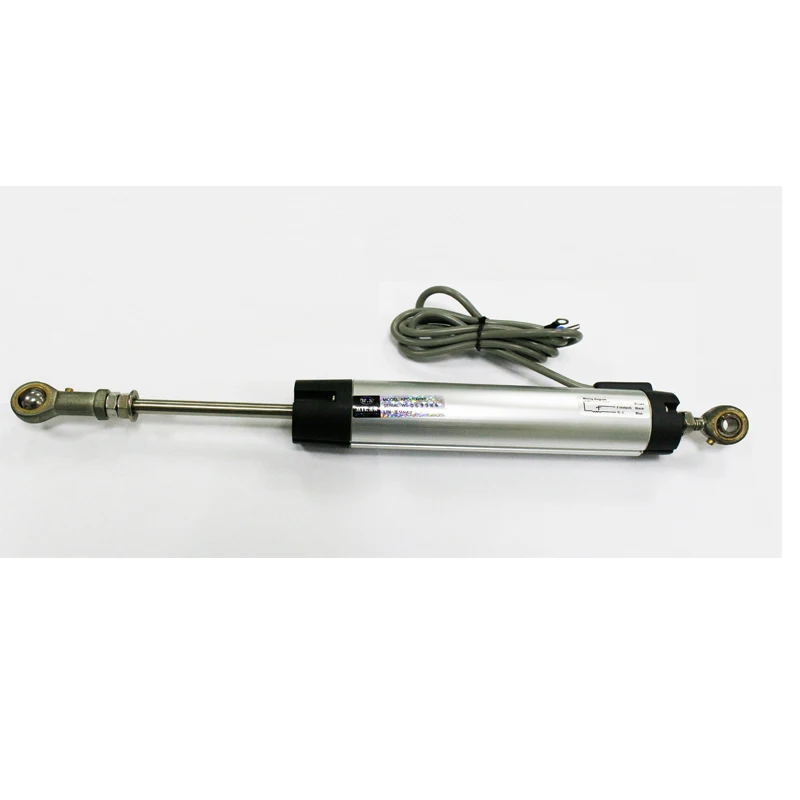

MIran KPC Linear Displacement Sensor Used for Printing Machine
MIran KPC Linear Displacement Sensor Used for Printing Machine
MIran KPC Linear Displacement Sensor Used for Printing Machine
MIran KPC Linear Displacement Sensor Used for Printing Machine

MIran KPC Linear Displacement Sensor Used for Printing Machine

Share on (62293301237):


Price:

Quantity:


Product Overview

Description



Product Description

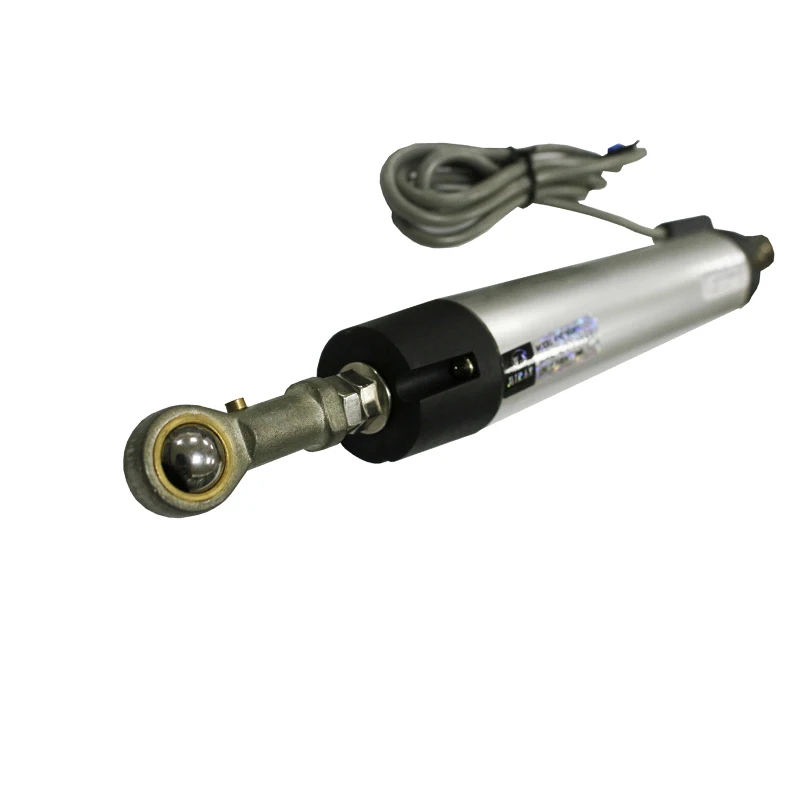

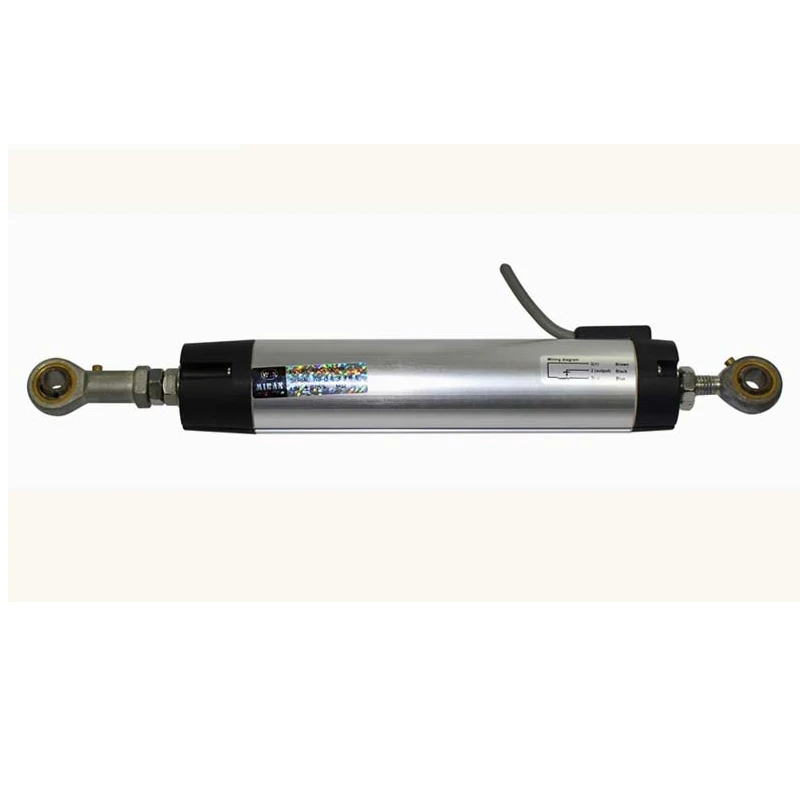

Miran linear displacement transducer KPC 50mm-750mm articulated position transducer with high resolution

KPC series products are articulated sensor，high accuracy,high resolution,stable performance,with two Heims joint at both ends.The installation advantage is the it's has no requirement of the neutral.The model is suitable for swinging position detection with a not very long range(from 50-750mm).The installation advantage is the it's has no requirement for neutral installation.such like: mechanical arm,robots, brick machines, ceramic machines, sluice gate, shoes machinery ,3D seat ,Prestress jack and so on.


Main Feature

1.KPC linear displacement transducer with two heims joint at both ends,simple installation.

2. Adopting advanced components in electric parts and operation parts.
3. High linear precision output, repeatability precision.
4. Variety of output signal: 4-20mA/ 0-5V/0-10V /RS485


Applications

KPC linear position transducer is suitable for swinging position detection with a not very long range(from 50-750mm).The installation advantage is the it's has no requirement for neutral installation.such like: mechanical arm,robots, brick machines, ceramic machines, sluice gate, shoes machinery ,3D seat ,Prestress jack and so on.


Technical Data
KPC Linear Position Sensor
75mm-175mm
200mm-550mm
600mm-750mm
Linear Precision (±%FS)
±0.1%
±0.05%
Resistance (±10%)
5ΚΩ
5ΚΩ
10ΚΩ

Output signal
standard: 0~100% × input voltage (change with the movement of the rod)
optional: 0-5V/0-10V/4-20mA/RS485 output need an extra module
Mechanical stroke
range+7mm
Resolution
Infinite
Repeatability Precision
0.01mm
Max Speed
10m/S
Recommended Temperature
0℃-80℃ ;-20℃~+100℃
Sensitivity
1
Temperature Drift
infinitesimal
Material for transducer case
Anodised aluminium
Material for pull shaft
Stainless steel
Protection level
IP65
Lifetime
>100*1000000 cycles,>25*1000000 m

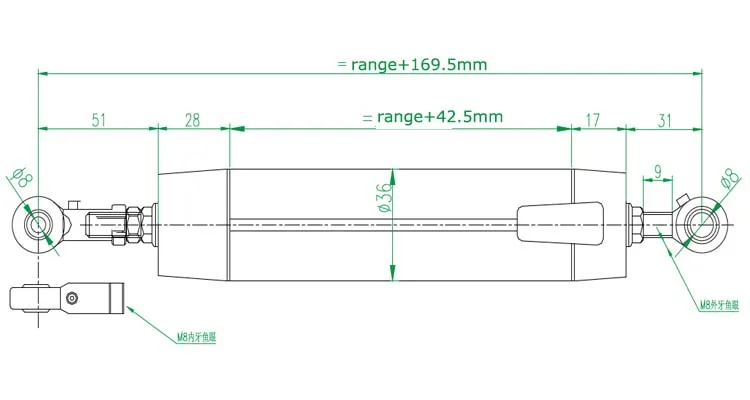

Mounting
brackets with adjustable distance between centers
Useful electrical stroke(mm)
75   100  110  125  130   150  175   200   225   250   275  300   325   350  360  375   400  425 450  475   500  550   600   650  700  750


Detailed Images










Packing & Delivery



1.Lead time:within 3 working days after receive payment.

2.Port: shenzhen

3.Shipping by DHL,TNT, FedEX, USP ,EMS etc.

4.Packing in a pvc tube with foam to ensure the safety of     transportation.




Our Company


Since 2003 we have been developed and produced displacement sensors in Shenzhen.In order to meet more customer needs,we expend the scale of production.And set up our new factory in Hubei Province
Zaoyang Miran Technology Co., Ltd. is the professional manufacturer of Linear Position Sensor in China.It's our new factory which is located in Hubei Provice.Our sales headquarters located in Shenzhen.

Our main products are: Linear Position Sensor,Wire Rope Encoder,Magnetostrictive Liquid Level Sensor,Angle Sensor,Inclinometer, Lubricating System(pump and distributors and the other accessories),LVDT sensor,Eddy Current Sensor, and many other motion control products to support many different industries.Our factory is approved by ISO9001:2008, and all our products have CE, CCC certificates.

Our Principles: Quality First, Credit First, Customer First.

Our Advantages
1. Strong capability in Research&Design.We spend million dollars every year for developing new tech and new products.
2. Promise high quality after strict tests. Every product will go through vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test.
3. Strong production capacity. We have factories both in Shenzhen and Hubei Province, and also a lot of in-stock products in warehouses. We can meet large demands from our customers, and deliver the orders on time.
4. Excellent sales & after-sales service. We are headquartered in Shenzhen, and have branches all over China. We guarantee life-long for all products.We can offer you the competitive perfect products.
5.OEM is aviable.We also support to put your logo on the products if you need.

Hope we can build up the long-term and harmonious business relationship!
Wechat/whatsAPP/Phone: 86 18988775283
Skype: miranivy










FAQ



Q1: What payment method your company accepts?

  A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat  pay.


Q2:How long for the production time?

  A: Standard products in stock, or 5-7 days depends on order quantity and  product type. Exactly time              please contact us.


Q3: You said we can use our own logo? What's the MOQ if we wanna do this?

  A: Yes, 1 pcs MOQ.We can also offer customized products.


Q4: Can I have a sample products for testing?

  A: Yes you can buy sample product.


Q5: Can you do drop shipping?

  A: Yes, we can help you ship the goods to any address you want. We will not put any catalogue or any            document with our company info in it if you requested.


Q6: What is the shipping methods?

  A: Usually by express, such as DHL, FedEx, TNT, UPS etc..
