Name: bean roasting machine 5kg sweet coffee italia roaster
SKU: 62293457007
Availability: InStock

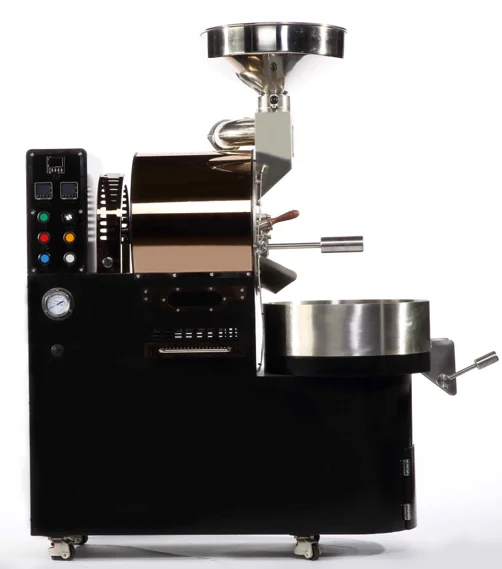

bean roasting machine 5kg sweet coffee italia roaster

Product Description

Model	5kg coffee roaster
Heating Source	Gas
Batch Capacity	1kg-5kg
Roasting time/Batch	12-15 mins
Cooling time	1-2 mins
Gas Consumption	0.5Kg/h
Voltage	220 V 50/60 Hz Single Phase
Heating Mode	Direct Fire and half hot air heating
Temperature Control	Omron temperature controller and programmable PID
Motors Power	Drum Motor 90W, Chaff Fan Motor 45W, Cooling 105 W
Machines Dimensions	*13755051550mm*
Packing Size	*135011001300 mm*
N/G Weight	305kg/355kg

5kg coffee roaster is very suitable for large and medium sized coffee shops and coffee farms to use. The whole machine adopts lasercutting technology. Using welding process to fix the whole frame. It is more solid and stable than using ordinary screw to fix, and noteasy to loose parts or structural deformation. The baking machine can be connected with the computer, to achieve the output of baking curve, bring more accurate operation for your baking. Baking capacity from 1kg to 5kg all can be bake out of the taste you want.

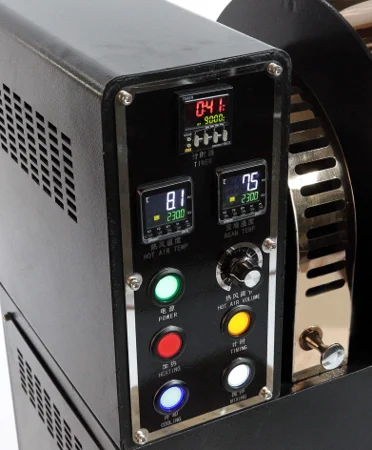

uUsing OMRON thermostat. Display temperature is more sensitive and accurate.

uEquiped with an OMRON timer, easy to check the baking time.

uElectronic throttle control, through the knob to change the exhausting motor speed, so as to change the fan speed, to realize stepless control.

uSIEMENS APT industry button,service life of up to 1 million times.Not only beautiful and more easy to operate.

uLarge flame observation window, so thatthe baking room situation is absolutely clear.

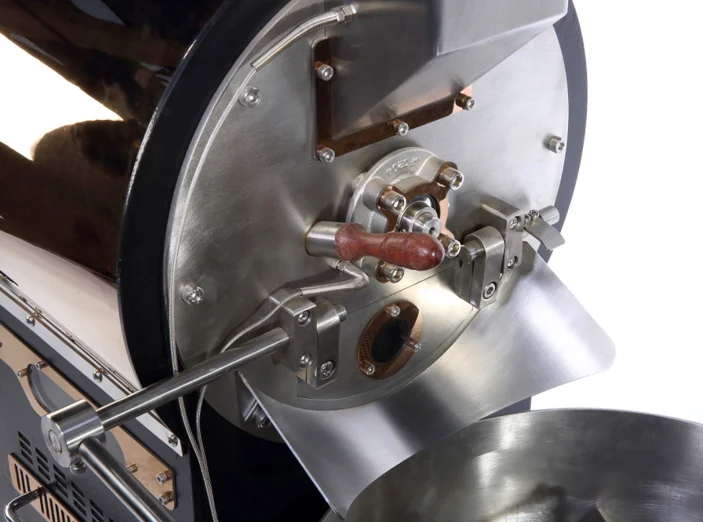

uThe sampling handle using the finest rosewood, with artificial mechanical design, make your grip more comfortable.

uCoffee bean feeding deviceadopt304stainless steelmaterials,canensure food safety. Just gently stir, coffee beans can quickly fall into the drum.

uWith coffee beans observation window, can observethecoffee beansat any time when you baking.

uHumanized design of cooling plateis easyily to operate.

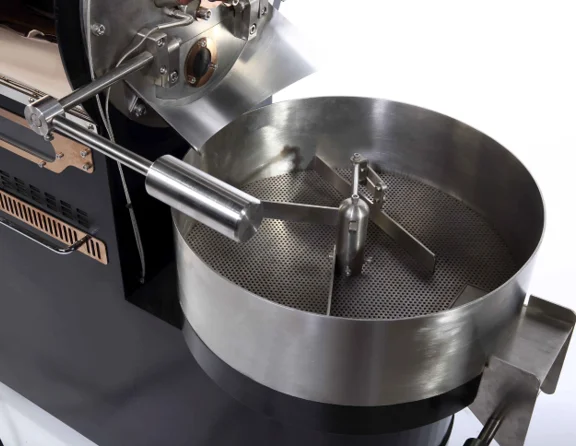

uIndependent cooling fan with the mixingarms, can quickly cool the roasted coffee beans.

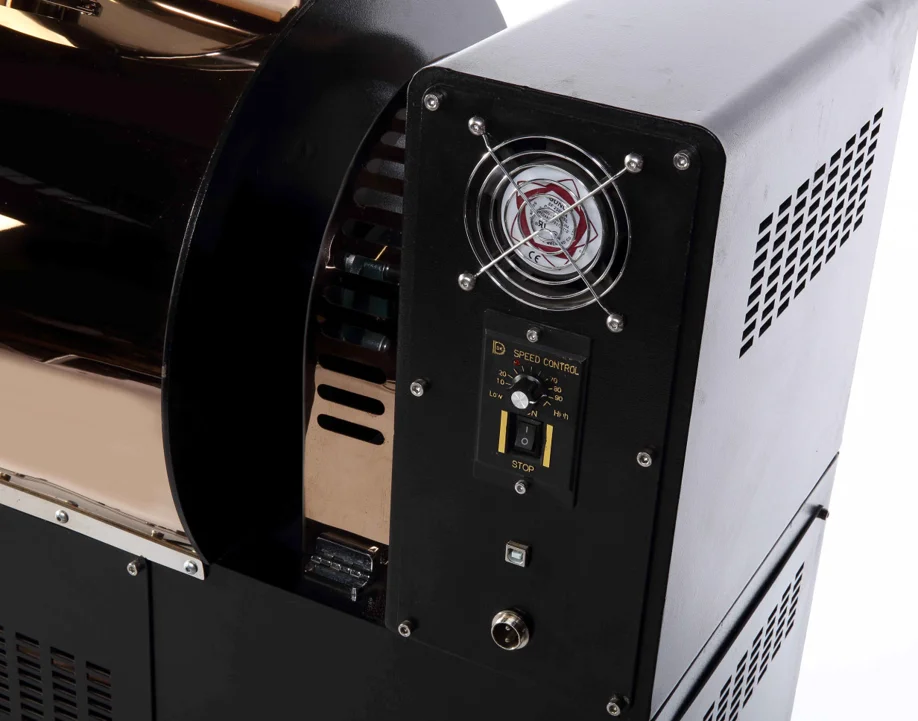

uDrum motor speedisadjustable,the range is 0~100 rpm.

uThe machine is installed with USB interface, can communicate with the computer. Artisan software can be perfectly compatible.

uBaking drum: using the international standard food grade stainless steel, tomakesure thepure taste ofroasted coffee beansisnotaffected by other off-flavors. With the independent design of the stirring blades, the coffee beans will do reciprocating moving in drum,makethe bakingmore uniform,theskin more easilyto drop off.

uBurner: using high efficiency energy--saving furnace head, the fire is more powerful,and more economical to use. Maximum heating rate is 20 degrees/min, to meet the changing needs of the baking.

Color

[New-Technology advantages]

1. 304 Stainless steel drum with the special mixing blades to ensure the best blending and even roast.

2. Roasting and cooling can work at same time, separated chaff cyclone for effective chaff separation.

3. High quality stainless steel cooling tray with bin agitator.

4. Self ignition with adjustable heat controls.

5. High grade insulation layer for keeping heat inside the drum.

6. Sight glass, burner window glass, sampler spoon and the real-time temperature displays for accurate monitoring during roasting.

7. Programmable Temperature preset with alarm feature & manual settings.

8. Four high quality motors to control drum, hot air volume, Cooling tray and Cooling mixing.

9. Non-stop roasting from 1kg-5kg.

10. Complete manual control of air flow to maximize coffee taste.

11. Auxiliary LED Lamp attached.

12. 2-in-1 Ground legs and Casters for easy moving and balancing the machine.

13. USB Data logging.

14. Drum Speed control.

5kg coffee roaster related equipments


600g coffee roaster	1kg coffee roaster	10kg coffee roaster	30kg coffee roaster

Packaging & Shipping

Fixed in Standard export Plywood carton. Machine surface protection, plastic fastening.Manufacturer logo printed on the outside of package.
30% deposit when placing order, 70% balance paid before shipment. 7 days after receipt of balance payment.
