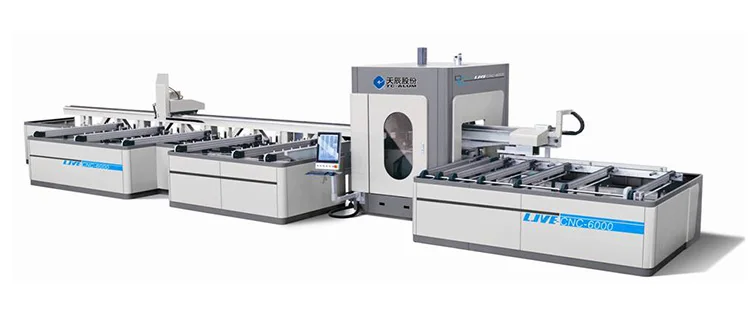

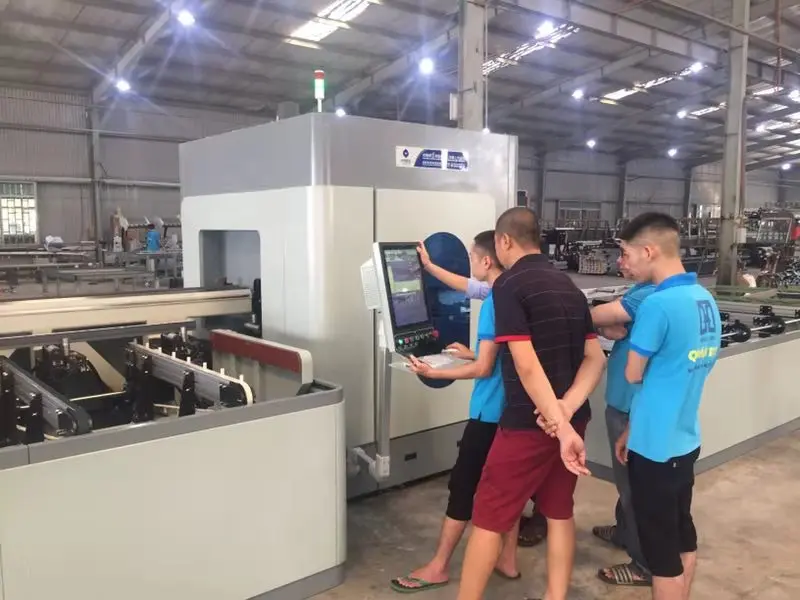

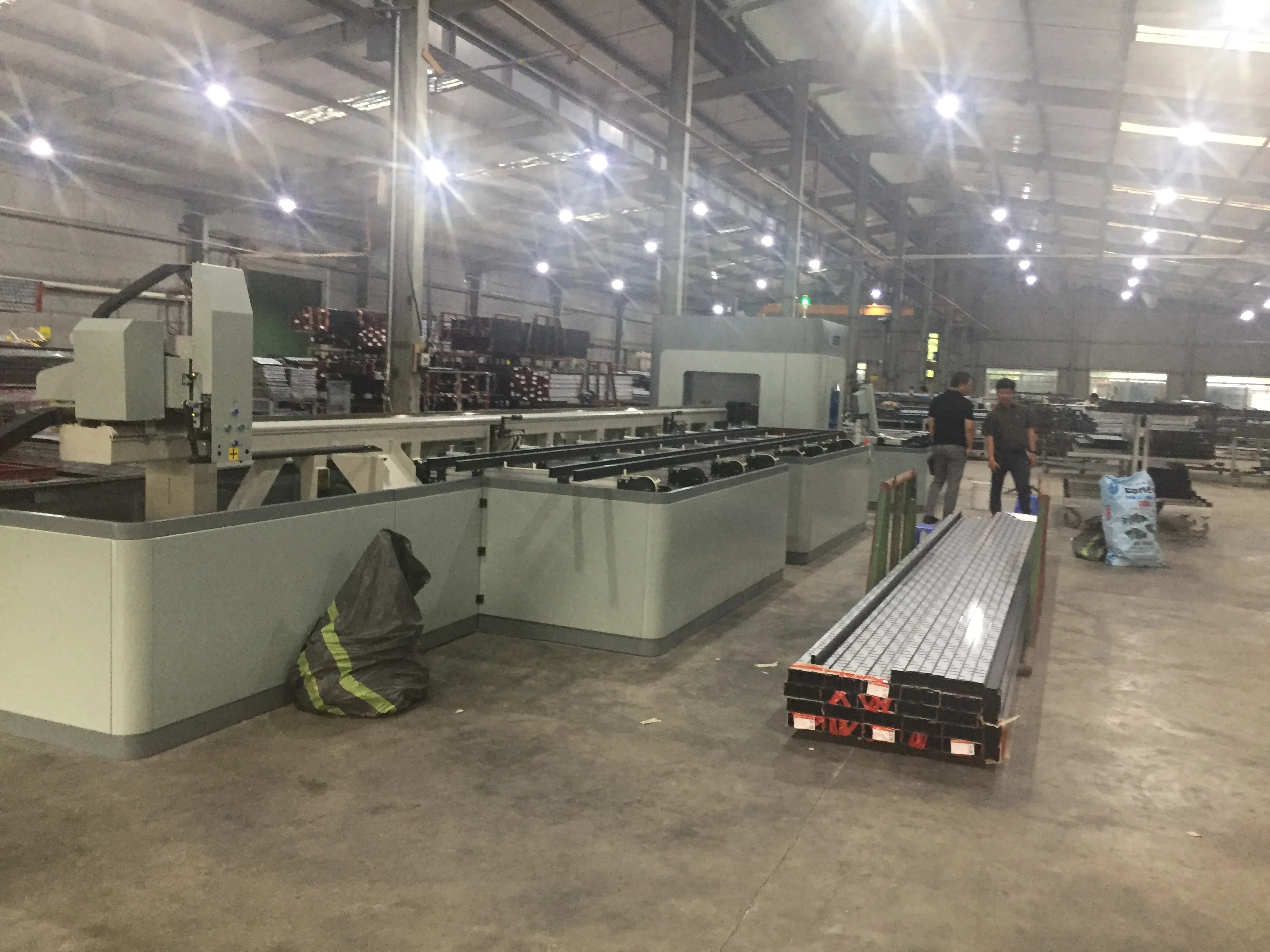

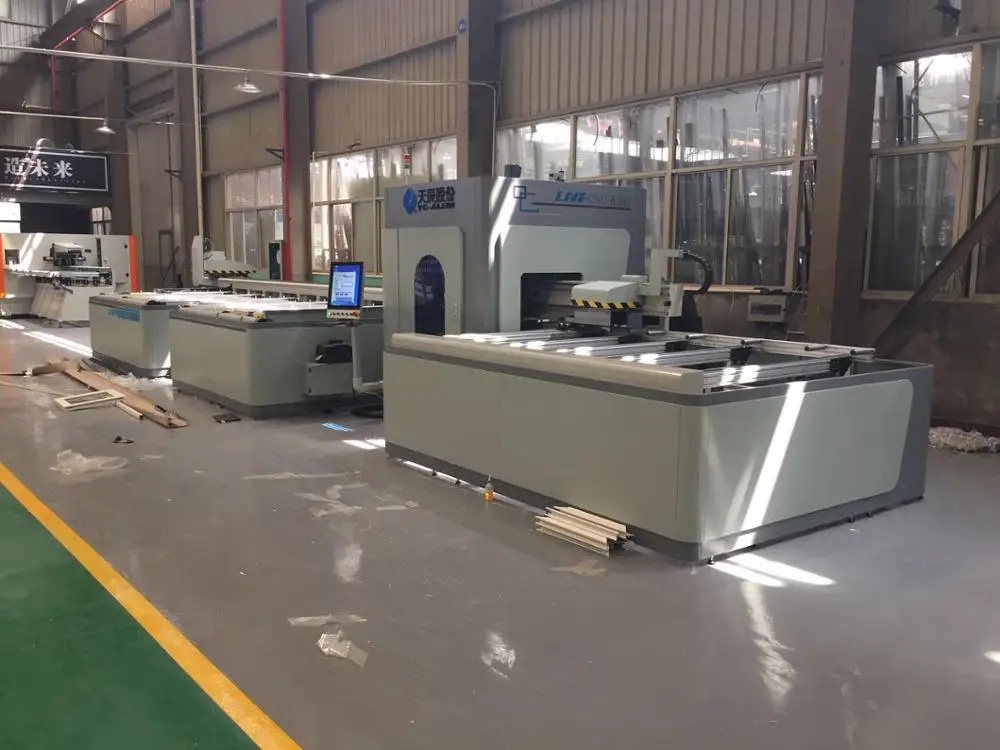

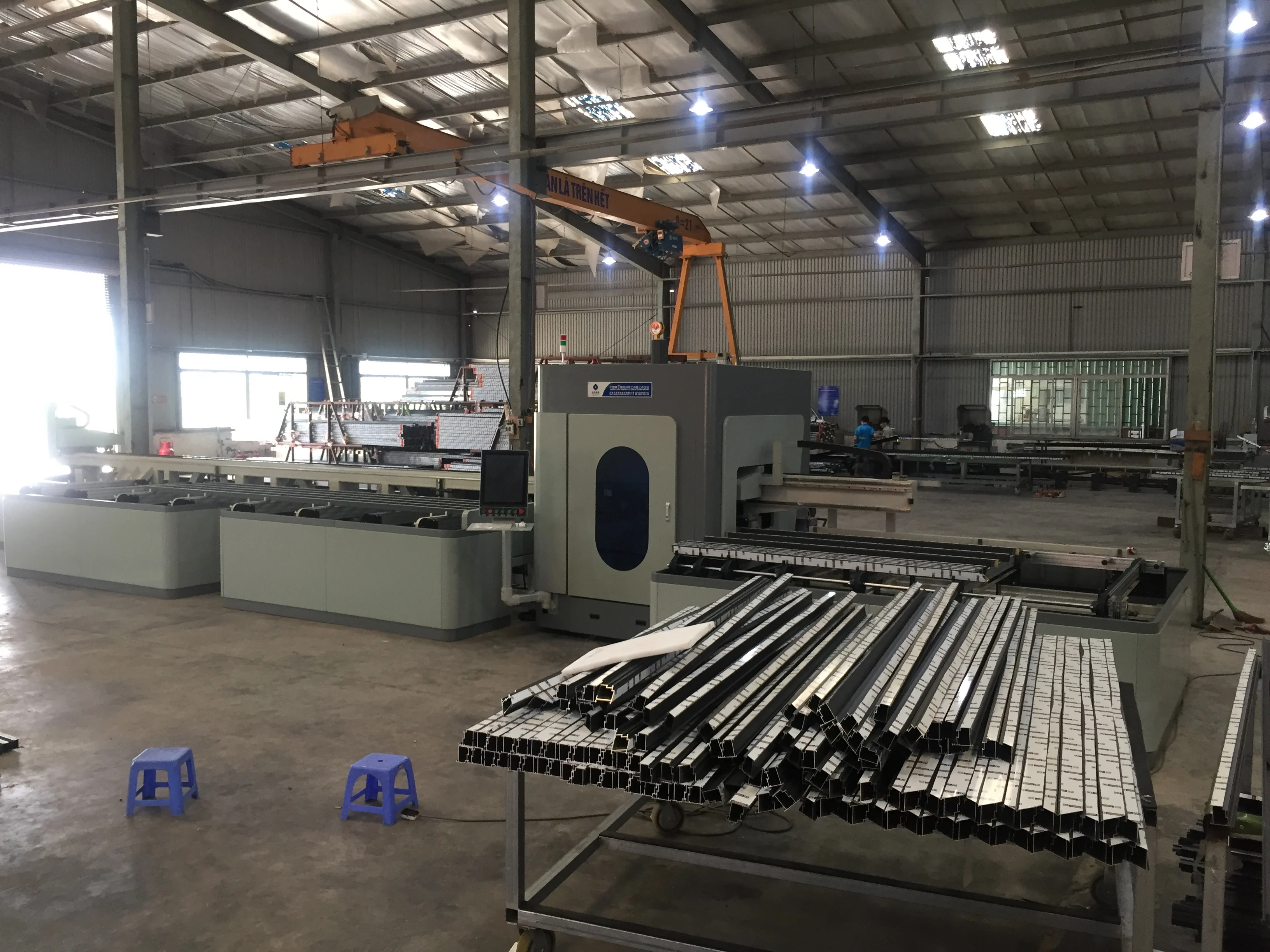

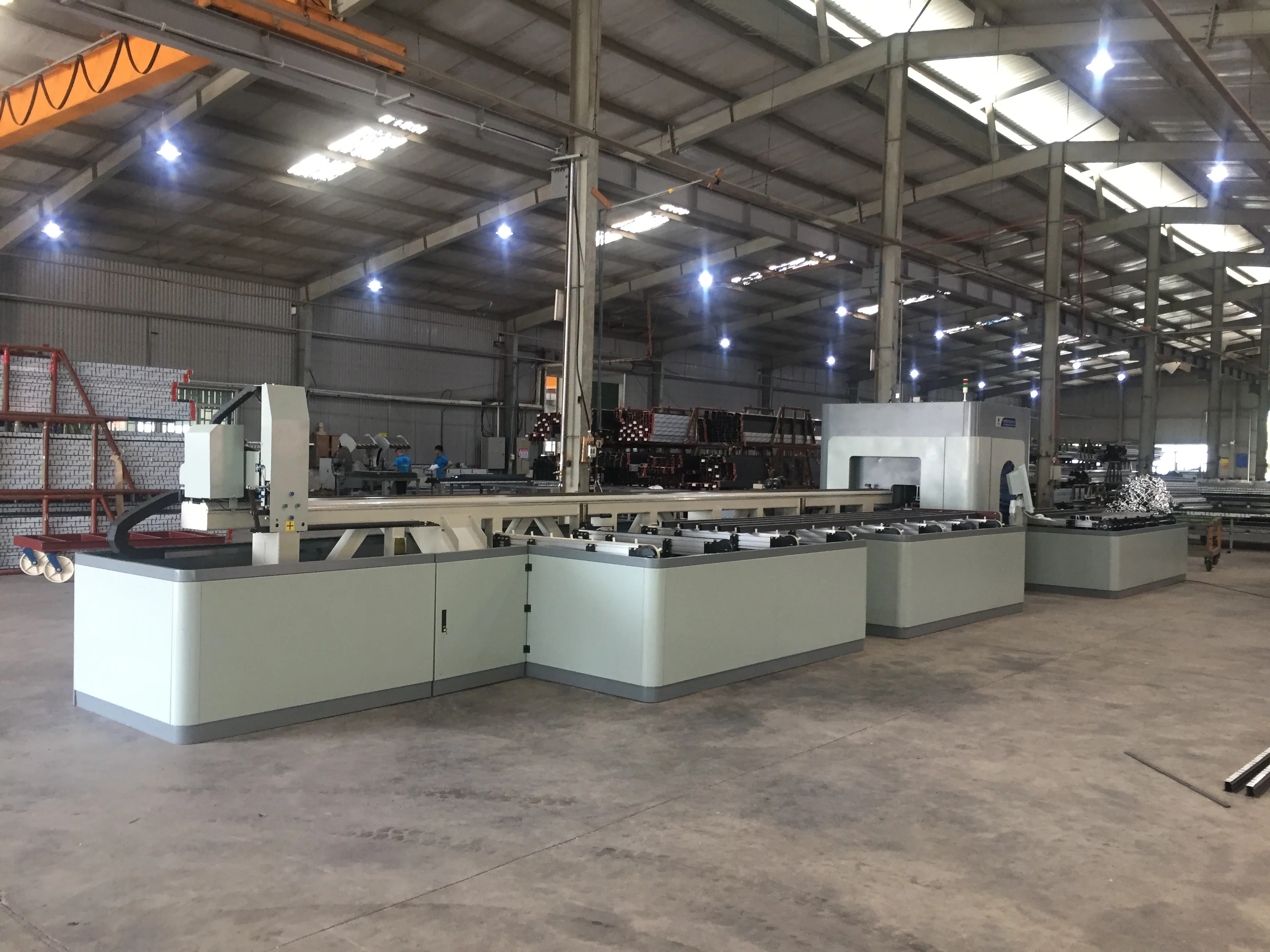

Automatic Cutting Saw Center
Model LJVE-CNC-6000
MACHINE FEATURES
◆ It is used for high effective cutting aluminum profile at 45°or 90°.
◆ The auto worktable continuous feeding and clamping profile.
◆ It adopts high precision straight guide rail pair to ensure stability and reliable operation.
◆ Load mechanical arm adopts Siemens servo drive can reach to three axis (X, Y, Z) auto control. Imported high precision gear rack drive to ensure reliable feeding.

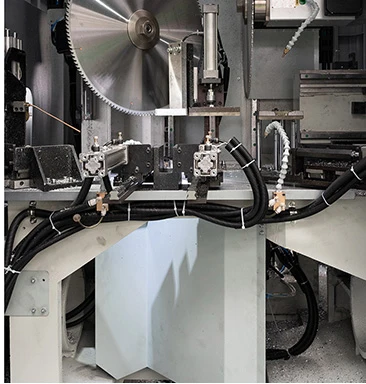

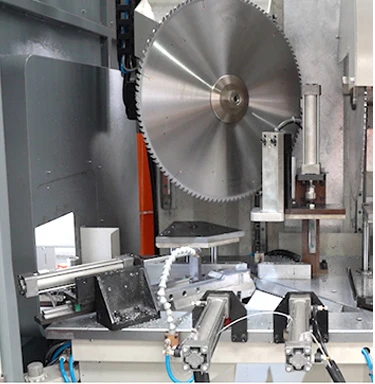

◆ Blade connected with imported motor. Cut smooth, steady and high precision.
◆ Siemens control system makes machine working steady and reliable.
◆ It can complete the 45°cutting through up and down saw blades’ separate cutting, high cutting precision, which can avoid partial breakage of profile.
◆ It can continuously complete profile ±45° or 90° cutting, high processing efficiency.
◆ Unload mechanical arm adopts servo driver, which can realize fast unloading, positioning function and be able to reach the auto output of the shortest profile 260mm.
◆ Roller linear guide pair and ball screw equipped with auto lubrication system, improve the precision and service life.
◆ Hinge type constantly conveys scrap and aluminum scrap to the outside.
◆ The totally enclosed safety cover to ensure the personal security.
◆ Option: Profile lifting platform to achieve the single person feeding operation
◆ Option: Bar code printer for E-works.
◆ The auto worktable continuous feeding and clamping profile.
◆ It adopts high precision straight guide rail pair to ensure stability and reliable operation.
◆ Load mechanical arm adopts Siemens servo drive can reach to three axis (X, Y, Z) auto control. Imported high precision gear rack drive to ensure reliable feeding.
◆ Blade connected with imported motor. Cut smooth, steady and high precision.
◆ Siemens control system makes machine working steady and reliable.
◆ It can complete the 45°cutting through up and down saw blades’ separate cutting, high cutting precision, which can avoid partial breakage of profile.
◆ It can continuously complete profile ±45° or 90° cutting, high processing efficiency.
◆ Unload mechanical arm adopts servo driver, which can realize fast unloading, positioning function and be able to reach the auto output of the shortest profile 260mm.
◆ Roller linear guide pair and ball screw equipped with auto lubrication system, improve the precision and service life.
◆ Hinge type constantly conveys scrap and aluminum scrap to the outside.
◆ The totally enclosed safety cover to ensure the personal security.
◆ Option: Profile lifting platform to achieve the single person feeding operation
◆ Option: Bar code printer for E-works.
TECHNICAL PARAMETERS
Cutting motor power | 3×3.0 kW |
Total power | 18kW |
Power supply | Customized value |
Operation air pressure | 0.6~0.8MPa |
Air consumption | Ф550×Ф30×4.4×120T |
±45° Sawing blade size | Ф600×Ф30×4.4×120T |
Cutting height | 30~150 mm |
Cutting width | 30~100 mm |
Cutting Length | 290~6000 mm |
Cutting angle deviation | ±5′ |
Length deviation | ±0.15mm |
Repeat locating length deviation | ±0.05mm |
Overall dimension | 14000×5000×2500 mm |
Weight | About 7500 kg |
MAIN OUTSOURCED COMPONENTS LIST
Item | Brand name |
Control System | Siemens |
Servo Motor | Siemens |
Air Cylinder | SMC |
Damping Cylinder | SMC |
Guide Rail | HIWIN |
Ball Screw | PMI |
Cutting Motor | Shenyi |
Rack | YYC |
Infeeding material Reduction Box | APEX |
Output material Reduction Box | NEWSTART |
Sawing Blade | KANEFUSA (Japan) |
Total 3 pcs blades
2 pcs of 45°sawing blade +1 pcs of 90°sawing blade, good for cutting window profile and door profile also.
Sawing blade feeding by servo way
45°sawing blade is feeding by servo motor servo drive and ball screw guide rail, ensures higher accuracy and better stability & reliability.
Cast iron frame ensures better rigidity
The main frame is manufactured by cast iron, better stability and stronger shock resistance, high accuracy and better reliability in long term operation.
detection device
It can measure the material’s width while loading material, to prevent wrongly loaded material
Siemens control system
The control system and electrical components are all Siemens, which has the strongest anti-interference and better quality.
Jinan Tianchen Aluminum Machine Corp., Ltd.’s clear focus on our ultimate goal – to secure and increase our customers’ productivity – has made us China market leader in the manufacture of machines for processing aluminium profiles – Mainly for aluminium window door façade making machines and large format aluminium structure processing machines.
Strong R & D center with 20 engineers team, 23 years experience from year 1997, 240 staff, plant area about 200,000 sqm., very harsh control of heat treatment for machine’s main structure, 12 new machines developed annually. Tianchen machines' market share in China is around 65% and exported to over 40 countries globally. All top ranked window door façade makers in China are our company’s client.
Main products: Window Door Façade making machines and Industrial aluminium structure manufacturing machines.
One measure of the outstanding quality of our products is their longevity: many TIANCHEN machines have been in service for more than 16 years! And many old clients are continually placing repeated orders which verify our machines’ good quality and performance.
The company drafted China national standards of processing center machine with Standard No. GB/T28390-2012.
Tianchen Aluminum Machine company is the global strategical partner of Siemens company.
Strong R & D center with 20 engineers team, 23 years experience from year 1997, 240 staff, plant area about 200,000 sqm., very harsh control of heat treatment for machine’s main structure, 12 new machines developed annually. Tianchen machines' market share in China is around 65% and exported to over 40 countries globally. All top ranked window door façade makers in China are our company’s client.
Main products: Window Door Façade making machines and Industrial aluminium structure manufacturing machines.
One measure of the outstanding quality of our products is their longevity: many TIANCHEN machines have been in service for more than 16 years! And many old clients are continually placing repeated orders which verify our machines’ good quality and performance.
The company drafted China national standards of processing center machine with Standard No. GB/T28390-2012.
Tianchen Aluminum Machine company is the global strategical partner of Siemens company.
more >>
Q : When can you arrange shipment?
A : We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
Q : What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can assign our engineers to repair your machines
Q : Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine’s installation, commissioning, and operation training.
A : We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
Q : What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can assign our engineers to repair your machines
Q : Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine’s installation, commissioning, and operation training.
All of our engineers have passport.
Q : Which machine model shall I choose when I purchase from you?
We have both high-end machines and normal machines. Please inform us your estimated production capacity (how many windows you plan to produce per year) and your budget plan, we will recommend our machine models best for your request.
Q : If I make Aluminum window and door, how many basic machines shall I have?
Q : Which machine model shall I choose when I purchase from you?
We have both high-end machines and normal machines. Please inform us your estimated production capacity (how many windows you plan to produce per year) and your budget plan, we will recommend our machine models best for your request.
Q : If I make Aluminum window and door, how many basic machines shall I have?
