Product Overview

Description

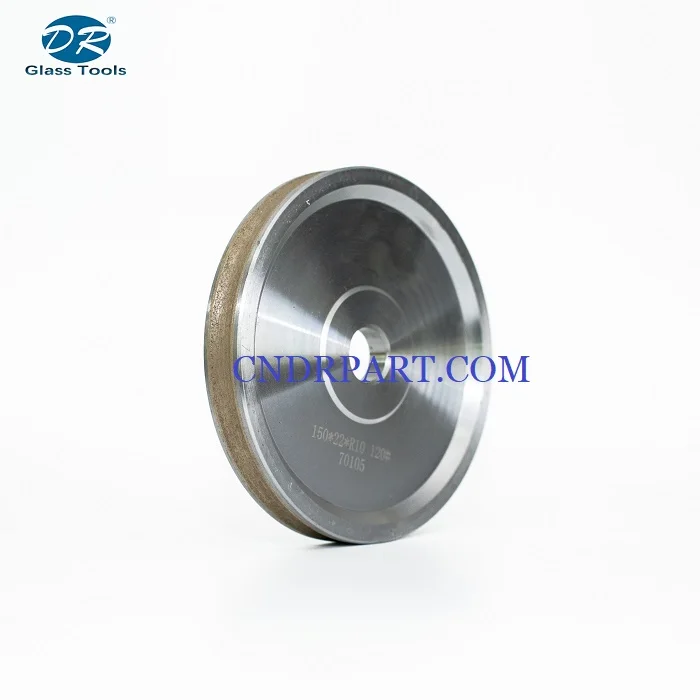

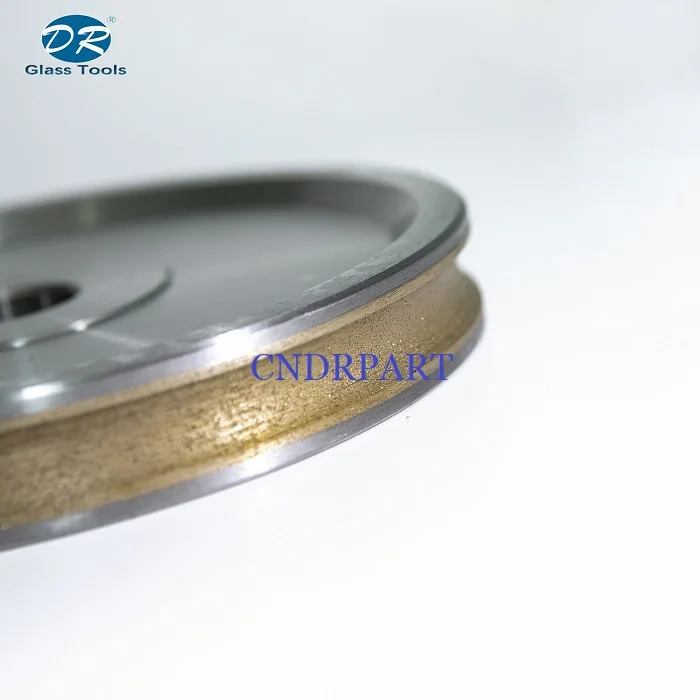

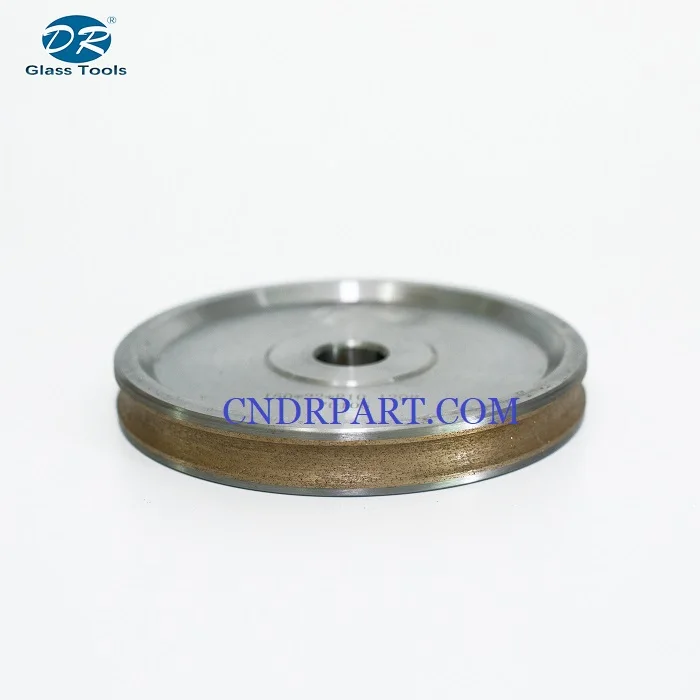

High quality dimond grinding wheel for polishing/cutting glass/ceramics/carbide/steel











Please refer to all of the types of PCB/CBN diamond grinding wheel



1) Electroplated diamond grinding wheel

 Features:high processing efficiency, good wear resistance, good shape retentivity,etc..


Application:   It not only can make common shape, but especially appropriate for into special

complicated shapes, ultra-thin, extra small, geometry and higher size accuracy requirements

for all kinds of special sophisticated molded surface grinding wheel. which has been widely used

in aerospace, automobile, hydraumatic bearings, mould, magnetic material, glass and other industries.



2) Metal bond diamond grinding wheel



Features: characteristics of high grinding efficiency, long service life, good shape retentivity.

Application: Suitable for the normalization of automobile glass and standardized production.





3) Resin bond diamond & CBN grinding wheel



Features: 1,Good self sharpness;  2,Sarp cutting;  3,High grinding efficiency; 4,Easy to trim; 5,Great

surface finish for processing workpieces.

Application: widely used in accurately grinding ceramic, glass, cemented carbide, hard alloy steel, etc..









All of our products have the unique features, especially in high precision, high finish grinding.



Size:



D	T	X	H	Con	Grits Size
mm	mm	mm	mm	%	D151 D126 D107 D91 D76 D64 D54 D46
50	0.8-20	3-20	16-25.4	50%-150%
75	0.8-20	3-20	22.23-25.4	50%-150%
100	3- 12	10-20	22.23-25.4	50%-150%
125	3-15	10-20	22.23-25.4	50%-150%
150	3-20	10-25	22.23-25.4	50%-150%
175	6-20	10-25	22.23-25.4	50%-150%
200	23-20	10-25	22.23-25.4	50%-150%
250	6-25	10-30	22.23-25.4	50%-150%
300	6-25	10-30	22.23-25.4	50%-150%
350	10-25	10-30	22.23-25.4	50%-150%
400	6-30	20-35	22.23-25.4	50%-150%
450	6-30	20-25	22.23-25.4	50%-150%
500	10-30	20-35	22.23-25.4	50%-150%
600	20-30	25-35	22.23-52.0	50%-150%
other size are upon requirement

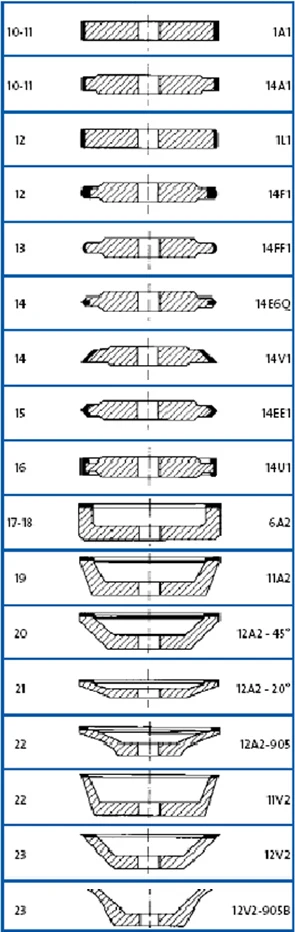

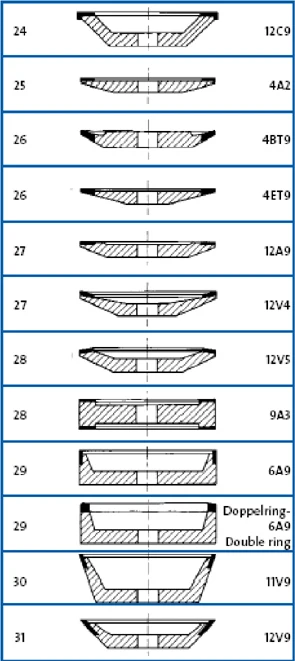

Shape:
