Product Overview

Description



Product Description

Smart Power

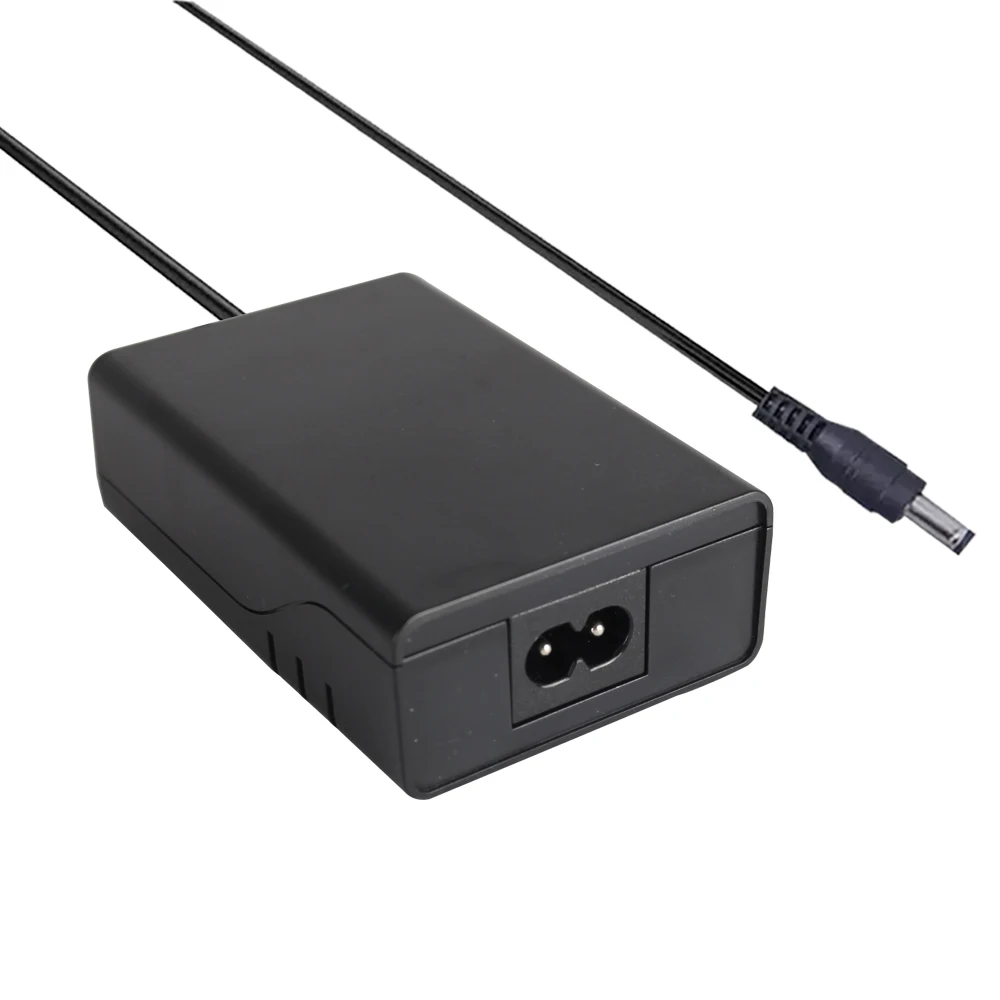

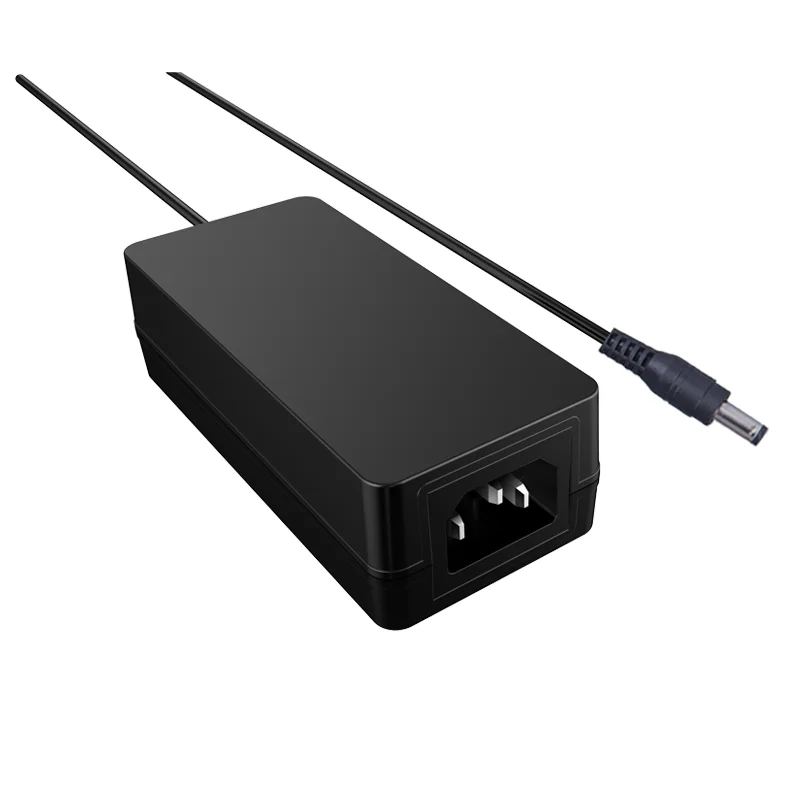

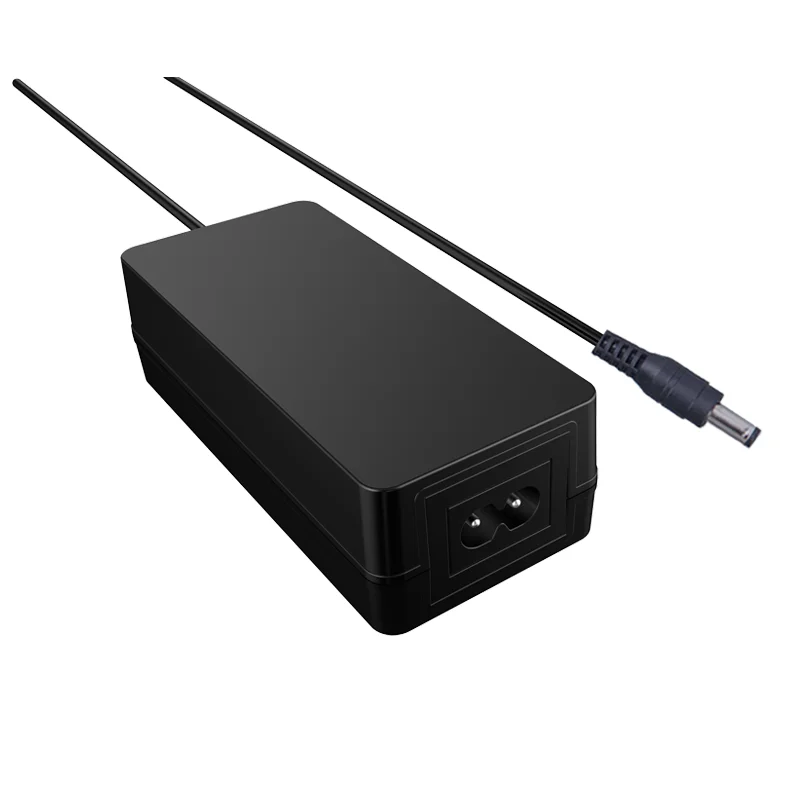

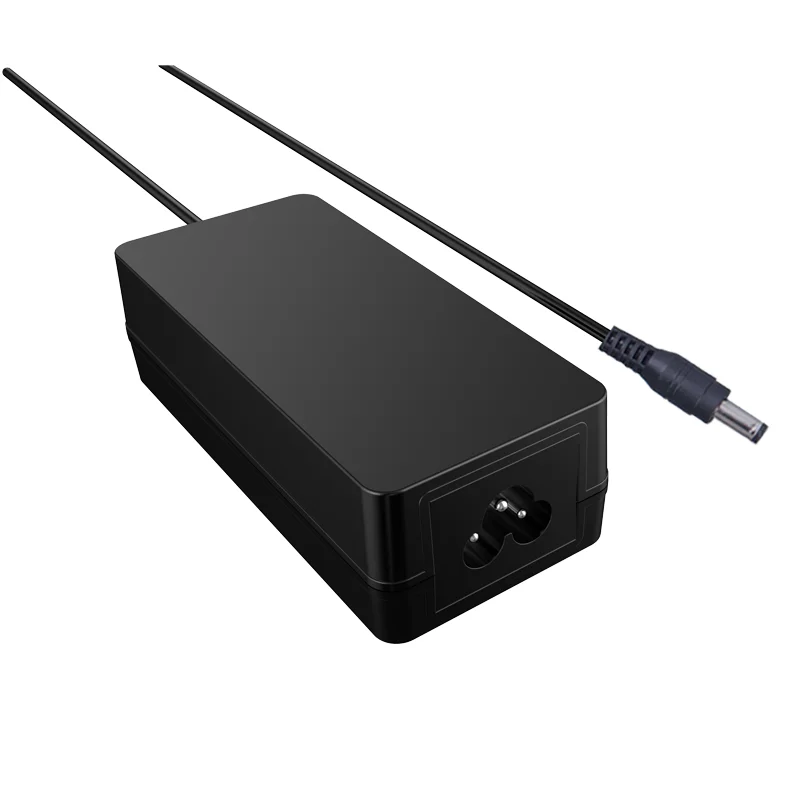

12V 6A AC DC Power Adapter 72W Desktop Power Adapter with UL/FCC , CE, PSE,KC, ,ROHS Switching Power Supply Adapter

Product Name	12V8.3A AC DC Adapter DC Power Adapter Desktop Power Adapter
Input Voltage	100-240V AC 50/60Hz 1.8 A
Output Voltage /Current	12VDC 6000mA
Total Output Power	100W(Max)
Input Inlet	IEC320-C6,IEC320-C8,IEC320-C14
O/P DC Cord Length	1.2M, 1.5M, 1.8M, 2.5M,3.0M, etc.
DC Connector	5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm, 4.0*1.7mm, 2.5*0.7mm ,etc.
Dimension / Net Weight
Safety Approvals	UL/FCC, CE, PSE, KC,  Certificate, Level 6
MTBF	50,000 hours
Ripple and noise	<100mV
Operating temperature	-10 to 45°C
Storage temperature	-20 to 80°C
Humidity	5% to 95% RH (rockwell hardness)







POWER	MODEL	INPUT	OUTPUT		AC
			Voltage	Current	Input Inlet
100W  Series	SWpp-XXXXYYYY-W	96-264V AC 1.5A	12-24V dc	3.16-8.2A	IEC320-C6   IEC320-C8   IEC320-C14
	SWpp-12006000-W		12V	6.0A
	SWpp-12008300-W		12V	8.3A
	SWpp-19005000-W		19V	5.0A
	SWpp-24003000-W		24V	3.0A
	SWpp-24004000-W		24V	4A
	SWpp-24005000-W		24V	5A
